Chinese Manufacture Explosion Proof LED Light Fixture Floodlight 200 Watt
Rayborn Lighting Co., Ltd.- Lamp Body Material：Aluminum
- IP Rating：IP67
- Irradiated Area：15-30m²
- Input Voltage：220v
- Power：200W
- Color Temperature：Cool White
Base Info
- Model NO.：RB-CNL-60005-200W
- Emitting Color：Cool White
- LED Chips Brand：SMD3030
- Certification：CE, EMC, LVD, RoHS
- Product Name：200W LED Explosion-Proof Light
- Luminous Flux：20700lm
- LED Efficiency：120lm,W
- Lamp Efficiency：100lm,W
- Voltage：AC90V~277V
- Current：500mA
- AC Power Factor：>98%
- DC Power Efficiency：>94%
- Beam Angle：120 Degree
- Color Rendering Index：Ra>80
- Light Source Life：>50000hrs
- Replacement for：500,640 Watt HID
- LED Qty：3030 SMD X 156 PCS
- Warranty：5 Years
- Transport Package：1 PCS,CTN
- Specification：11.5kg,pcs
- Trademark：Rayborn
- Origin：China (Mainland)
- HS Code：9405409000
- Production Capacity：50000 PCS,Month
Description
FEATURES of LED Explosion Proof Flood Light:
1. High Efficacy low decay 700MA LED chip;
2. High heat transmit die cast housing ADC12 aluminum, patent design, IP68;
3. Shock and vibration resistant tempered glass, super clear 95% light transmit rate;
4. Anti-glare.Scientific optical reflector design, making the light more focus,even, comfortable for eyes;
5. Original /Bridgelux LED source,high luminous efficacy and long lifespan;
6. MEANWELL HLG series driver, the highest level of MEANWELL driver;
7. Surface treatment-Powder painted, salt resistant and chemical resistant, also hard for dust to accumulate on the surface;
8. 2.0mm aluminum PCB with heat index 2.5, keep LED working under cool temperature;
9. Working temperature: -30ºC to 50ºC;
10. IK09 robust design.

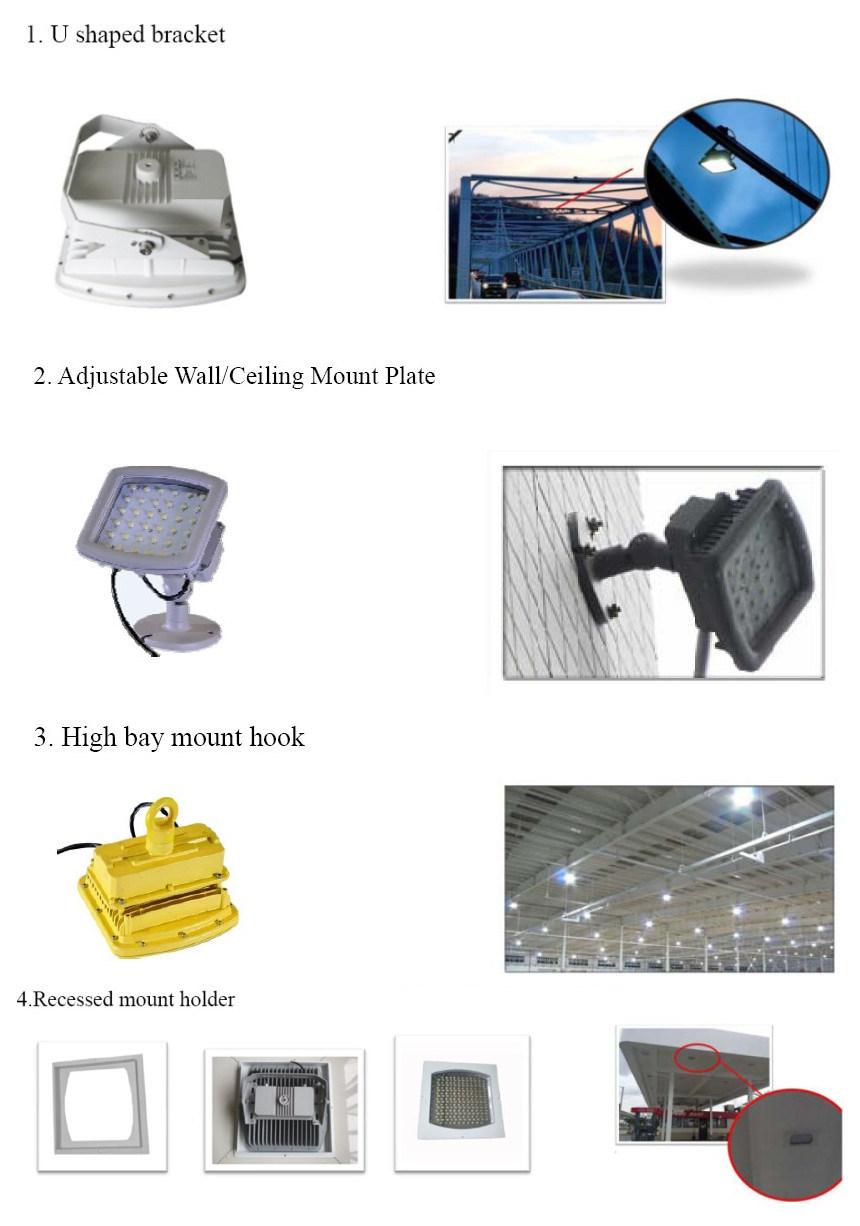

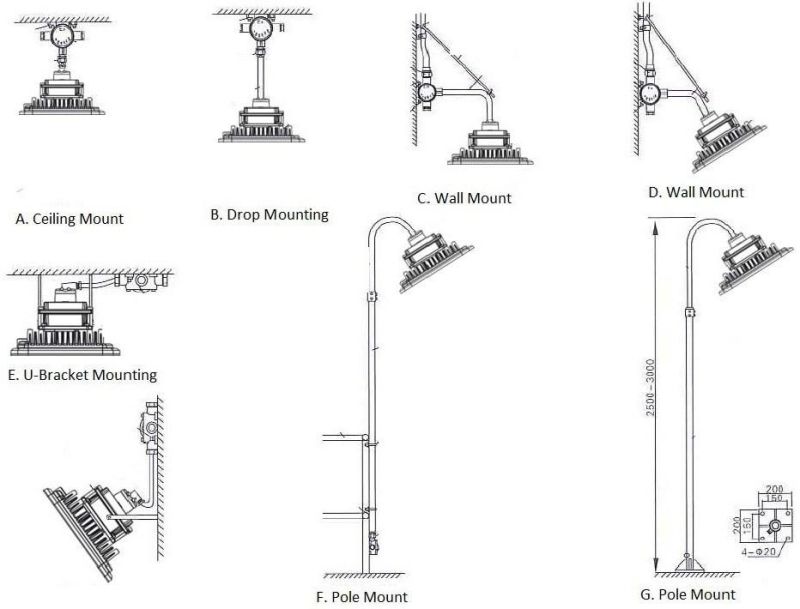

INSTALLATION of LED Explosion-proof Flood Light:
1. Fixture is equip with Bracket;
2. Connection outlet conduit: 3/4" NPT;
3. Conduit and pole are not included in products;
4. All installation must conduct by qualify electrician;
5. Seal must be placed in each conduit.
APPLICATIONS of LED Explosion-proof Light:
The integration of reflective optical design,install directly in the light body, make the light more focus and comfortable for eyes.
1. Suitable for gas station, petroleum and chemical industries, coal mine, military, airport, warehouse, marine etc.
2. Zone1 & Zone2 gaseous environment, and Zone21 & Zone22 dust environment.
3. Class I Division 2 Group A, B, C, D.

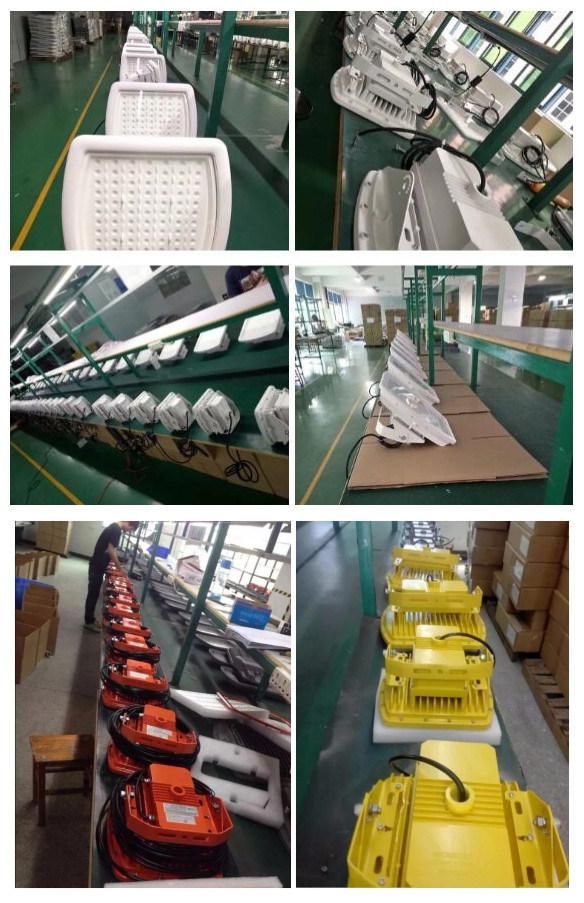

Strict Tests of Explosion-proof Flood LED Lights :
Before shipping, all our LED flood lights will be over 12 hours aging tested, inspection department will test 100% products including light up test , power wattage test , high-Voltage test , waterproof test , ground connection test and so on, defective rate is controlled less than 0.1%. Quality is ensured, you can be assured.
Packaging of LED Explosion-proof Light :
Our individual package maximize protecting the LED Explosion-proof Lights from transfer damage in transit.
1. Label on backside of each LED Explosion-proof Light and your required label is available.
2. One piece LED Explosion-proof Light per carton.
3. This is our regular packing of the LED Explosion-proof Lights, if you need, we can also customize color packing and put your logo on it.
Shipping of LED Explosion-proof Lights : By sea, air, express (DHL, FedEX, UPS, TNT etc.)
Big quantity advised to be shipped by sea.
Samples advised to be shipped by express.
Samll quantity advised to be shipped by air.
Rayborn Good Service:
1. Your inquirey related to our products or price will be replied within 24 hours.
2. All your inquireies will be well explained by our experienced staff.
3. OEM&ODM,also provide customized service.
4. Distributor ship is available for your unique design and some our current models.
5. We will keep secret for customer sale area,design ideas and all other private information.
Company Information:
Rayborn Lighting Industry Co., Ltd is a professional LED manufacturer, focusing on industrial Led Light and commerical Led light research, development,production, sales and service,was in High-end operation and service provider in High power led.Under the conuntry "saving" policies,we are striving to create environmental protection,energy saving,long life lighting and earned a reputation of being a quality supplier of LED lighting.
We has a group of professional technical R & D team, who can provide the OEM / ODM services according to customers and LED lighting solutions,our factory has passed the authentications of ISO9001:2000,CE, FCC, ROSH ,TUV authentication.
With the direction of High power led light,industrial Led light and commerical Led light,company developed milti-stlye series of Led lighting,including Led Flood light,Led Tunnel Light,Led High Bay light,Led Ceiling light,Led Tube Light,Led Down Light,Led Strip,Led Bulb,Led spot light.
We warmly welcome domestic and overseas agents and wholesaler to join us,to light up a green planet,for a more environmental earth.
FAQ:
Q1: What is the warranty of your LED Explosion-proof Lights?
A: We offer three years guarantee for our LED Explosion-proof Lights, and we will offer you based on your requirements.
Q2: What color temperature we can choose?
A: We offer LED Explosion-proof Lights in warm white, natural white,pure white and cool white and the range is as follow:(These are our conventional color ranges,we also can offer you other range that you need)
Warm white = 3000K-3500K
Natural white = 4000K-4500K
Pure white = 5000K-5500K
Cool white = 6000K-7000K
Q3: Do your LED Explosion-proof Lights can be used in our country?
A: Yes, Our LED Explosion-proof Lights have wide input voltage AC85-265V, and it can be customized too.
Q4: How do you help me to save freight cost?
A: We will give you best solution based on your order quantity,and freight quotation can be sent within 1 hours.
Q5: Do you have any MOQ limite?
A:We don't have MOQ,even only one piece LED Explosion-proof Lights you can buy.
Q6: What's the lead time?
A: Sample :3-7 days. Mass production: 7-15 days depends on the order quantity.
Q7:How do you ship the goods and how long does it take?
A: We usually ship by DHL,UPS,FEDEX,TNT. It usually takes 4-5 days to arrive. By air,by sea are also acceptable.
Q8: Do you accept Paypal or Western Union for sample order?
A: Yes, we accept Paypal and Western Union as payment term.T/T,LC are also accepted.
