• Model NO.：TH-W0124E-T
• Voltage：9~60V DC
• Voltage Type：DC
• LED Type：Epistar
• Certification：CE, C-tick, EMC, FCC, REACH, RoHS
• Operating Voltage：9~60V DC
• Power Output：24 Watts
• LEDs：8PCS*3W Epistar
• Lumens：1600lm
• Beam：Spot or Flood
• Material：Diecast Aluminum Housing,Polycarbonate Lens
• Bracket：Stainless Steel Bracket
• Waterproof Rating：IP68
• Dimension：14(L)*8.6(W)*5.7(T)Cm
• Net Weight：0.51kg
• Transport Package：One Piece in One Box, Twenty Boxes in One Carton
• Specification：Carton size: 35*32*26cm
• Trademark：Teehon
• Origin：Guangzhou, China
• HS Code：8512201000
• Production Capacity：90000PCS Per Month

Basic Info.

Model NO. TH-W0124E-T Voltage 9~60V DC Voltage Type DC LED Type Epistar Certification CE, C-tick, EMC, FCC, REACH, RoHS Operating Voltage 9~60V DC Power Output 24 Watts LEDs 8PCS*3W Epistar Lumens 1600lm Beam Spot or Flood Material Diecast Aluminum Housing,Polycarbonate Lens Bracket Stainless Steel Bracket Waterproof Rating IP68 Dimension 14(L)*8.6(W)*5.7(T)Cm Net Weight 0.51kg Transport Package One Piece in One Box, Twenty Boxes in One Carton Specification Carton size: 35*32*26cm Trademark Teehon Origin Guangzhou, China HS Code 8512201000 Production Capacity 90000PCS Per Month

Product Description

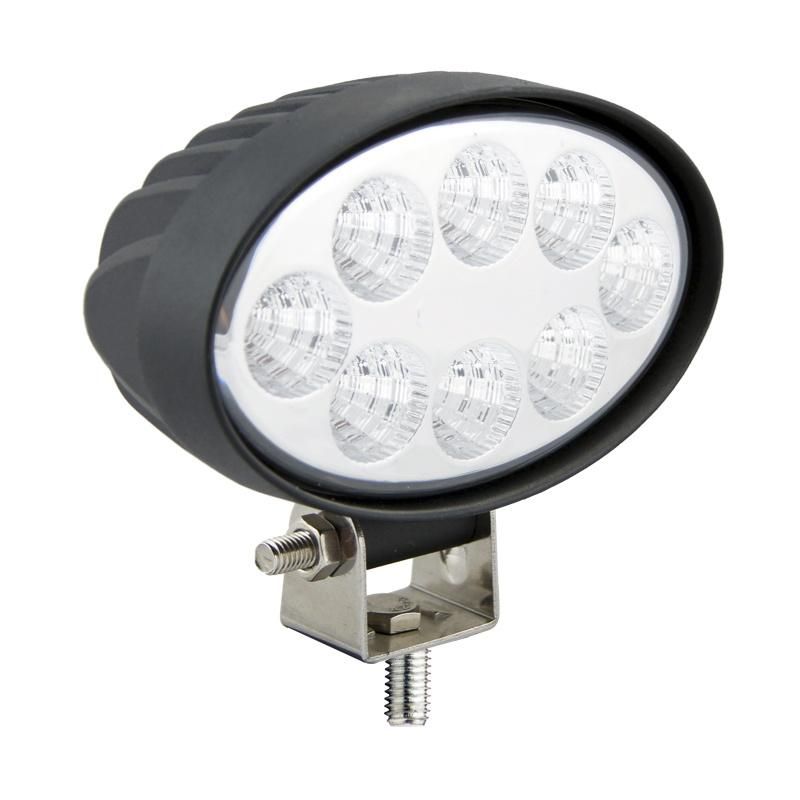

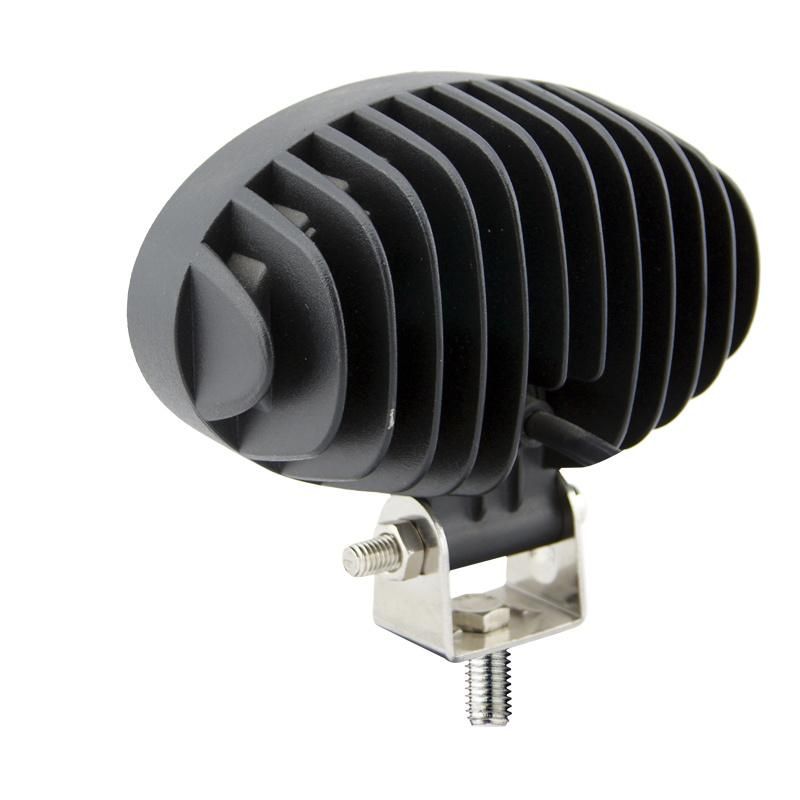

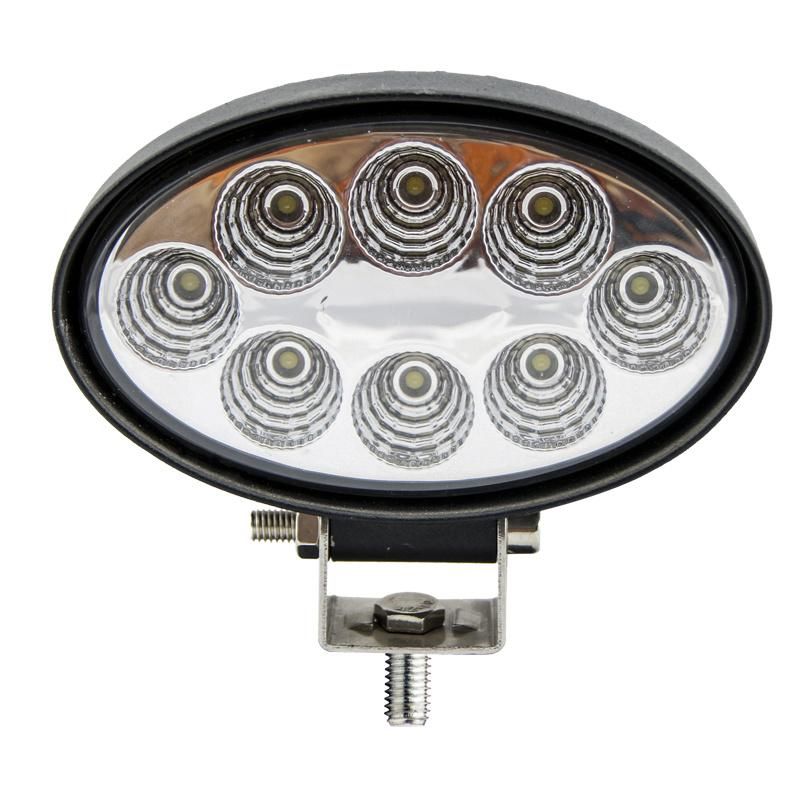

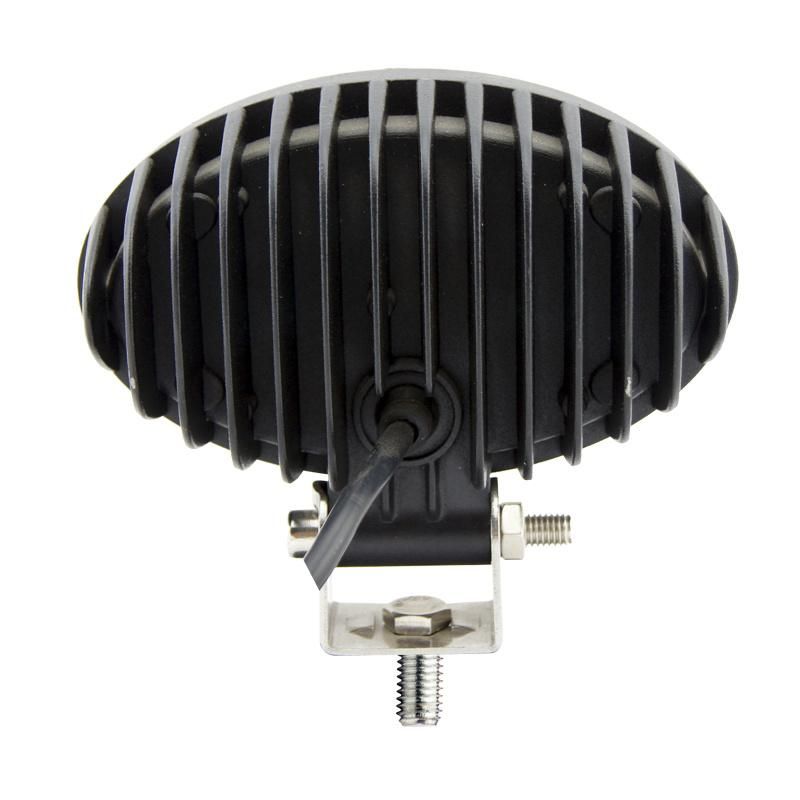

Hot sale LED lamp 24W LED auto lamps





The Specifications of led:

ITEM	DESCRIPTION
Model Number	TH-W0124E-T
Power Output	24 Watts
Operating Voltage	DC9~60V
LED Chip	8pcs*3w Epistar
Lumens	1600lm
Color Temperature:	6000K
IP rating	IP67/IP68
Beam Pattern	Spot beam or flood beam
Housing Material	Diecast aluminum housing
Mounting Bracket	Stainless steel
Lens Material	PC
Housing Shape	Rectangle
Size	5.6 inch
Operating Temperature	-40°C - 60°C
Life Span	30000 hours
Wire Length	40cm
Warranty	12 months



*The Features of auto lamps:
1/ 100% Brand new and high quality!
2/ Lamp body is faster radiating for aluminum, high temperature resistance, beauty exterior.
3/ Lamp cover adopted Germany pmma technology, good vitreousness,anti high/low temperature burst.
4/ Lamp reflector used Italian optical reflectivity projector lens, long reflect distance.
5/ Fix device from Japanese airlines tighten technology ,stainless steel, shake proof, rust-proof, water proof.
6/ Energy saving, high brightness, long lifespan, adopted Japanese encapsulation technology.



*Spotlight & Floodlight
1/ A spotlight has a narrow beam that concentrateslight on a small area.
2/ A floodlight is built so that the light spreads overa wide area.

3/ With a spotlight you will see things further away infront of you however it will leave everything beside you in the dark with a floodlight the reverse is the case.
4/ Because the light is more concentrated, a spotlight willappear brighter than a floodlight but only within its narrower beam. A spotlight is more suited to illuminating objects and a floodlight is moresuited to illuminating areas.

*Applications for led lamp

1/ Available for offroad vehicle, atvs, truck, engineering vehicles(excavator, treedozer, road roller, bulldozer, crane and mining truck etc.

2/ Special vehicle(fire engine, police cars, rescue vehicle, communication vehicle, military command vehicle)forklift, trains, boat, bus, and tanks.
3/ Back up light / Off Road Lighting
4/ Truck,Trailer Interior & Exterior


Why choose us:
1.Provide complete ODM&OEM solutions, which include LEDs producing, circuit board designing & producing, as well as housing designing
2.Strong R&D capabilities: to develop a new product costs only 30 days, we release at least 2 new products each month.
3.Powerful production strength: we can produce 15,000pcs LED light bar & 90,000pcs LED work light each month.
4.Extraordinary quality & cost control ability: we are the only auto LED light manufacturer who makes the light from beginning to end, the defective rate of product is lower to 0.2%.  The LEDs will be lighten up for 6 times before delivery, and each light will be tested strictly under water according to IP68 waterproof standard.

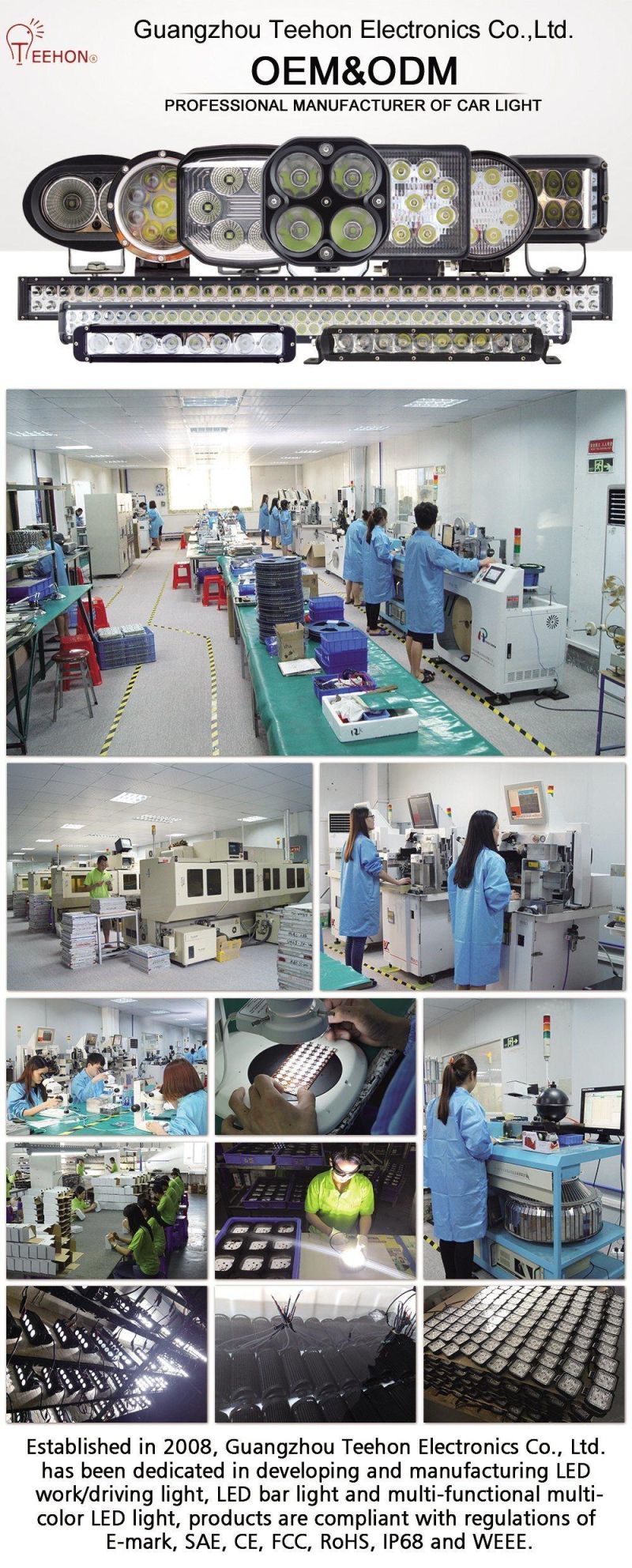

  A modern factory: owns a high-class LED encapsulation laboratory, and 5 high speed full automatic SMT machines, the whole factory is equipped with over 30 advanced producing   & testing facilities

FAQ:
Q: What's your after-sales service and warranty?
A: we promise to bear the following responsibility when defective product is found:
1.12 months warranty from the first day of receiving goods
2. Replacements would be sent with goods of your next order
3. Refund for defective products if customers require
Q: What's the MOQ?
A: MOQ is 10pcs for standardized products; for customized products, MOQ should be negotiated in advance. There is no MOQ for sample orders.
Q: How long is the lead time?
A: The lead time for sample orders is 3-5 days, for bulk orders is 5-15 days.
Q: How to place orders?
A: 1. Email us the model, beam pattern and quantity, consignee information, shipping way
and payment terms
2. Proforma Invoice made and sent to you
3. Complete Payment after confirming the PI
4. Confirm Payment and arrange production
