• Model NO.：CSNJ-P240
• Input Voltage：100-277V,85-265V
• Power：240W
• Shape：Square
• Warranty：5 Years
• Housing Material：Aluminum
• Life：50000h
• LED Chips：Samsung
• Certification：CE, RoHS, UL, FCC, SAA
• Ppf：600umol,S
• Efficiency：2.5umol,J
• LED Type：2835+3535
• Dimmable：Knob 0-10V,
• LEDs Wavelength：660nm, 3000K, 4000K
• Beams Angle：120 Degrees
• Driver Brand：Sosen, Inventronics, MW
• HPS Equivalent：500W HPS Lamp
• Package：Super Thick Carton+EPE
• Packing Info：4PCS Per Carton
• Transport Package：EPE and Carton
• Specification：L735*W325*H455mm,4PCS
• Trademark：CSNJ
• Origin：China
• HS Code：9405409000
• Production Capacity：5000PCS Per Month
• Package size per unit product：75.00cm * 35.00cm * 48.00cm
• Gross weight per unit product：15.500kg

Basic Info.

Model NO. CSNJ-P240 Input Voltage 100-277V/85-265V Power 240W Shape Square Warranty 5 Years Housing Material Aluminum Life 50000h LED Chips Samsung Certification CE, RoHS, UL, FCC, SAA Ppf 600umol/S Efficiency 2.5umol/J LED Type 2835+3535 Dimmable Knob 0-10V/ LEDs Wavelength 660nm, 3000K, 4000K Beams Angle 120 Degrees Driver Brand Sosen, Inventronics, MW HPS Equivalent 500W HPS Lamp Package Super Thick Carton+EPE Packing Info 4PCS Per Carton Transport Package EPE and Carton Specification L735*W325*H455mm/4PCS Trademark CSNJ Origin China HS Code 9405409000 Production Capacity 5000PCS Per Month

Packaging & Delivery

Package size per unit product 75.00cm * 35.00cm * 48.00cm Gross weight per unit product 15.500kg

Product Description

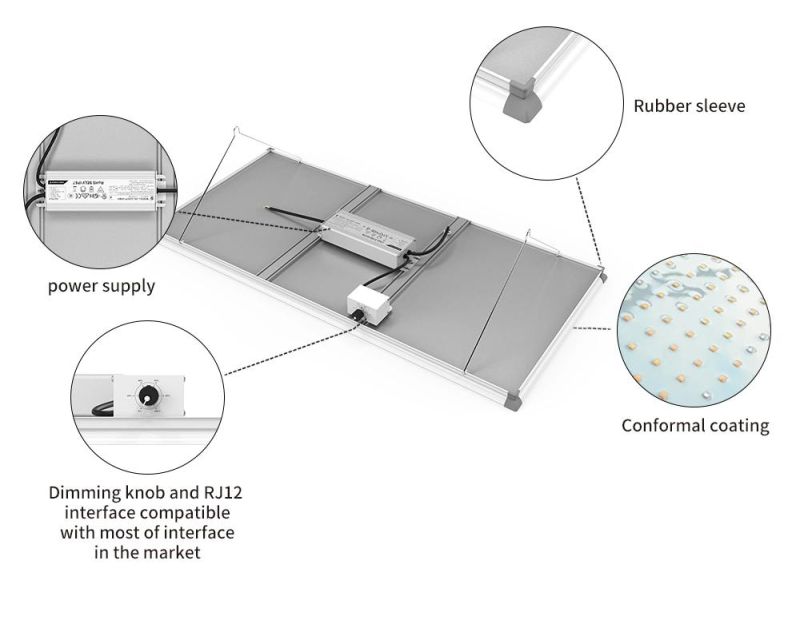

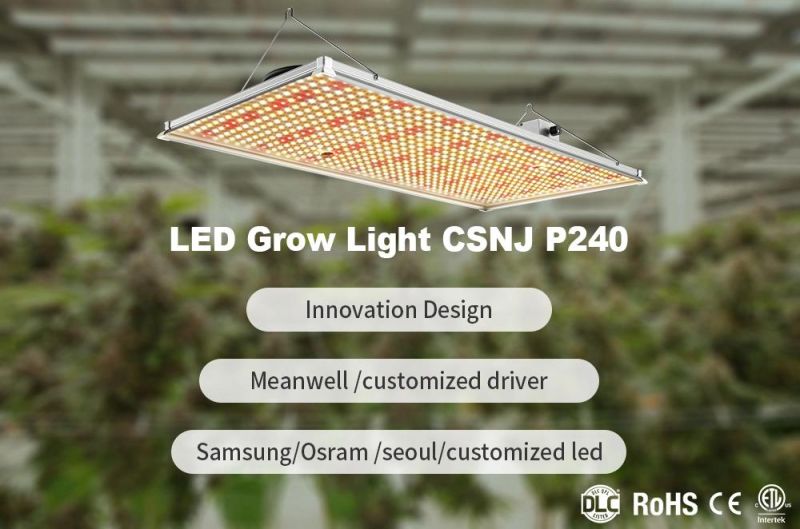

                 ETL Certified Competitive Full Spectrum 240W LED Photon Board Grow Panel for Indoor Plants

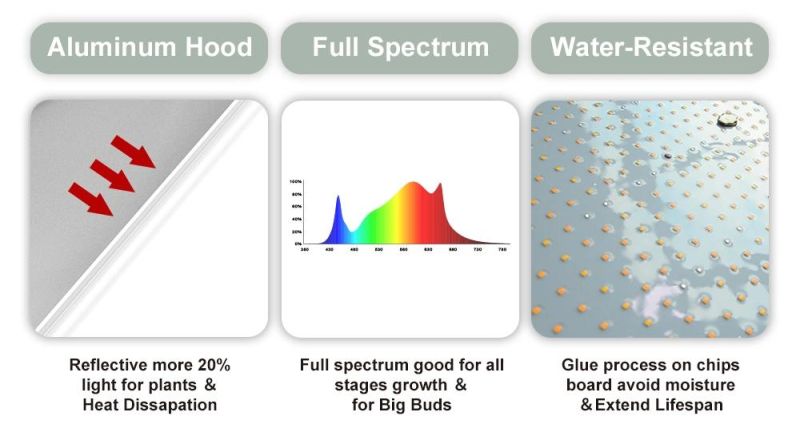

Advantages:
1. The lamp body is formed by aluminum alloy extrusion process. Anodizing surface, consistent, simple and beautiful;
2. The light spectrum conforms to the physiological requirements of plants, especially in the effective spectral region of photosynthesis;
3. Choose high brightness LED as the light source, long life, low energy consumption, under normal circumstances can reach more than 50,000 hours, green environmental protection;



Specification:

Item Name	P240 Grow Light	Item NO.	CSNJ-P240
Input Voltage	100-277VAC	Power	240W
LED Type	SMD2835/3535	Efficiency	2.6umol/J
PPF	620umol/s	Driver Eff.	90%
Dimming	1-10V/PWM/Timer Dimmable	PF	>0.9
CRI	85	R1-R15	85
Materials	Aluminum+silicone cover	Beams angle	120°
Demension(mm)	680*396*64(mm)	Color	White
wire length	500mm	Installing type	Hanging
Package info	L735mm *W325mm *H455mm	Qty per carton	4 piece
G.W.	15.2kg	N.W.	13.2kg
Operating TMPT	-20° -- +45°	Operating humidity	10%-80%
Lifespan	50000 Hours	Warranty	5 years

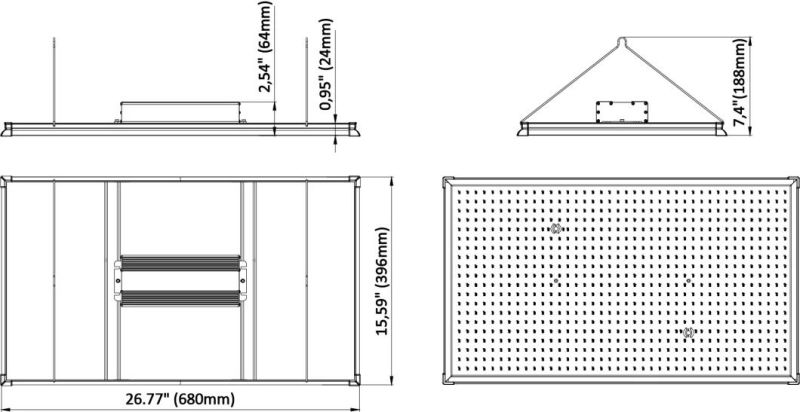

Dimension:

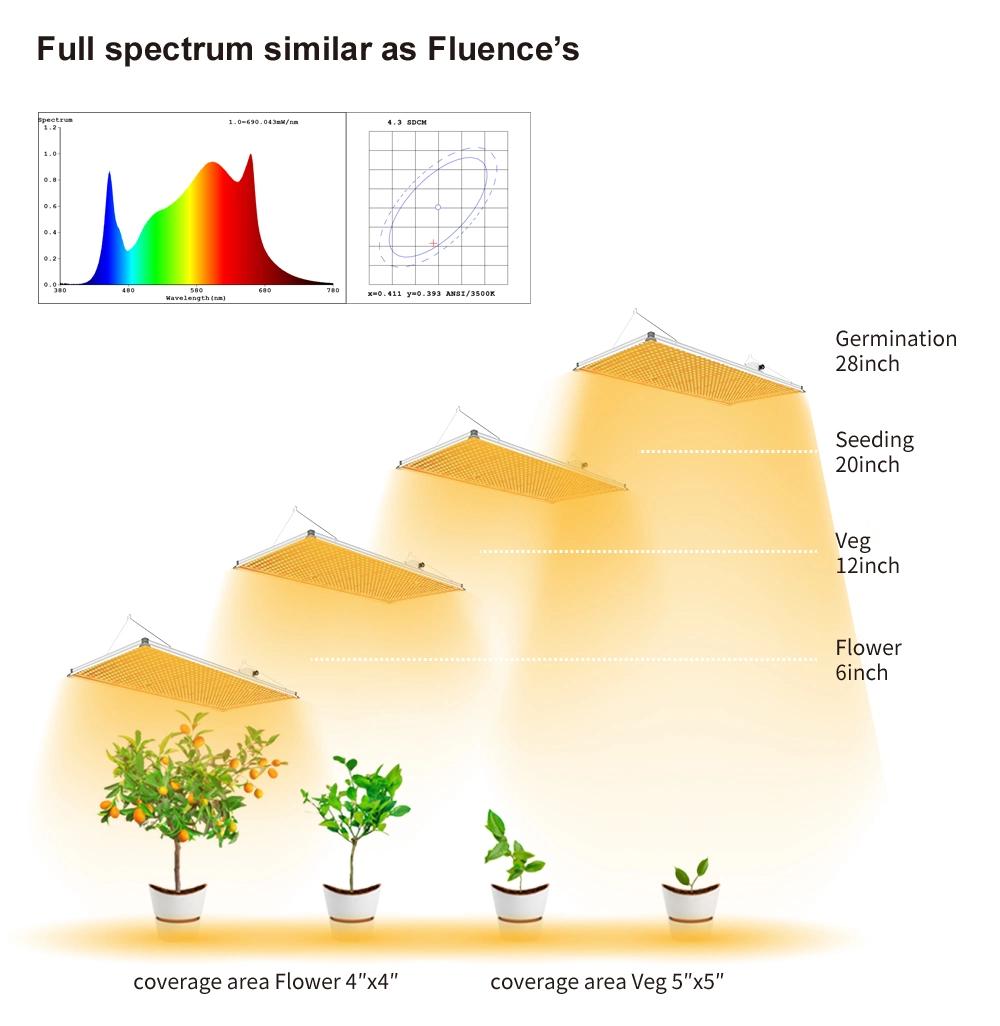

Spectrum



Testing Peport:

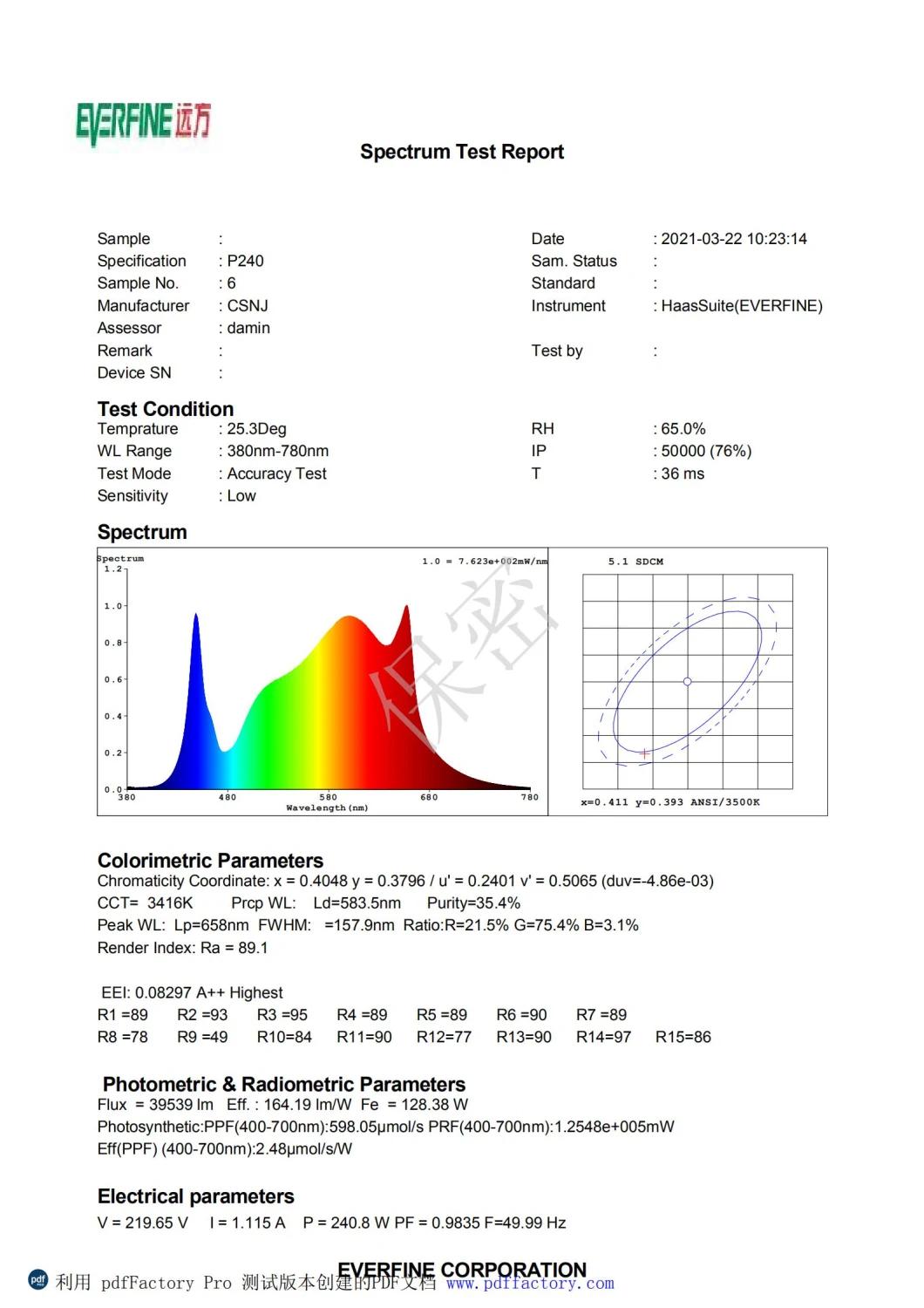

PPF Test report:

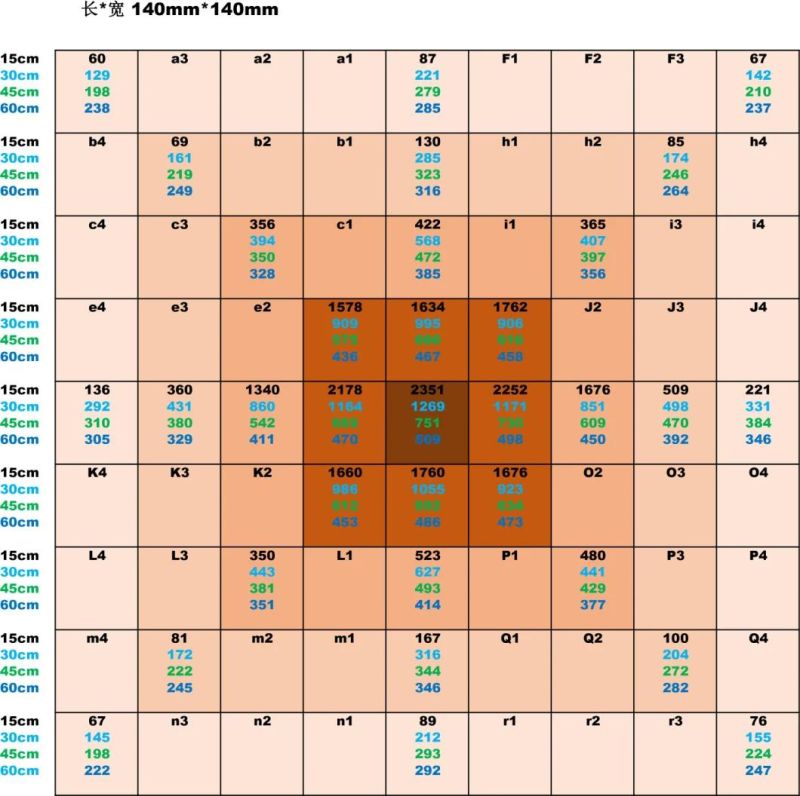

PPFD Test:



Package:
Super thick carton +EPE to make sure the safety of the products during transportation.
Lights Carton dimension: 75*35*48(cm), 4pcs /carton.
Total volume weight: 25.5kg/set including 4pcs lights

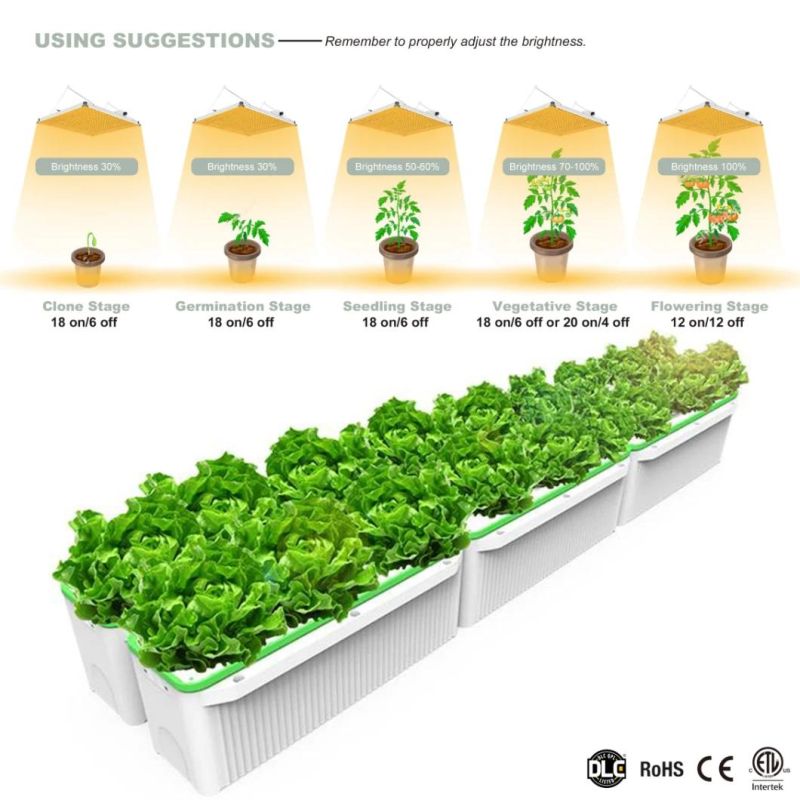

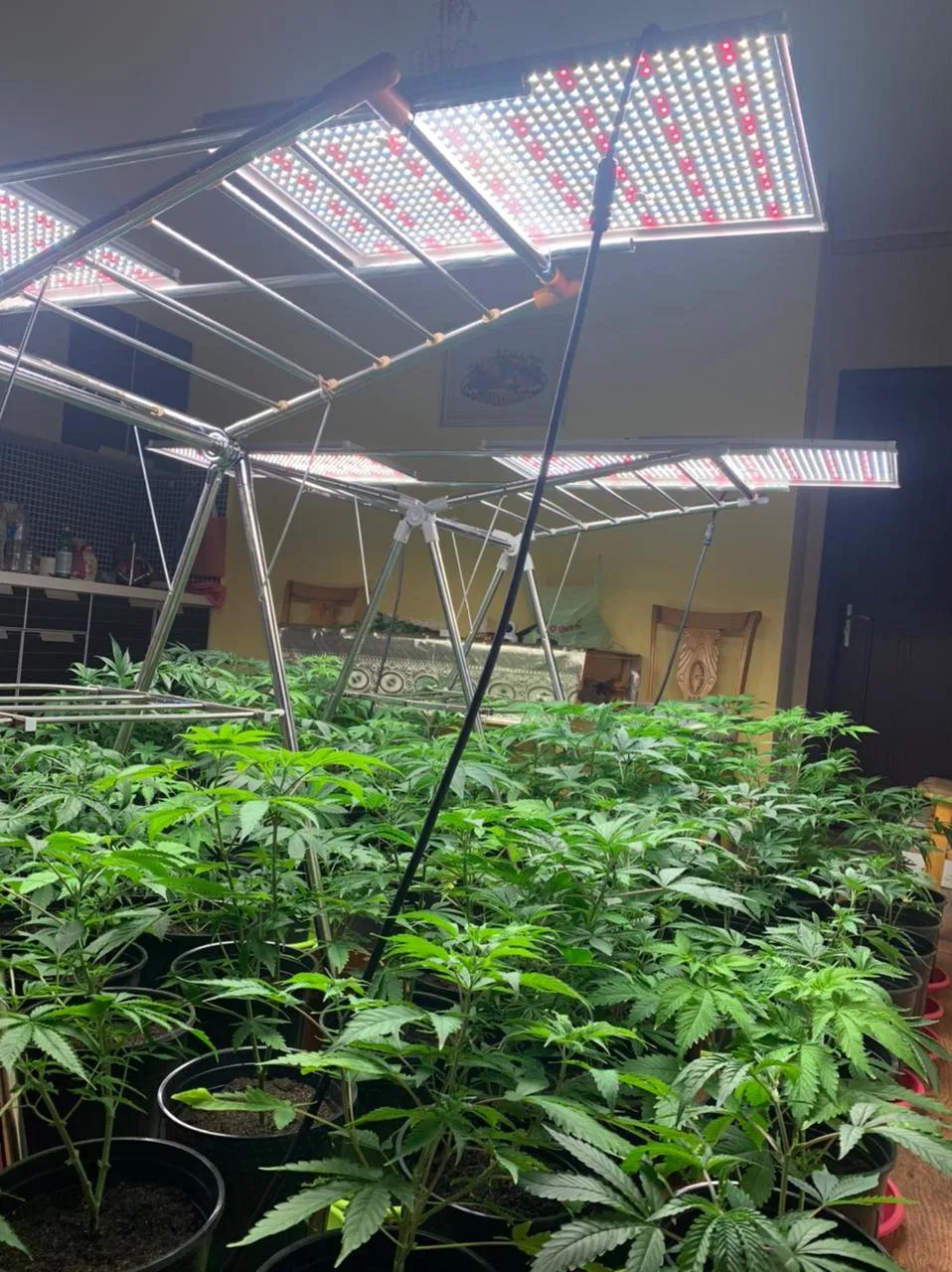

Application:

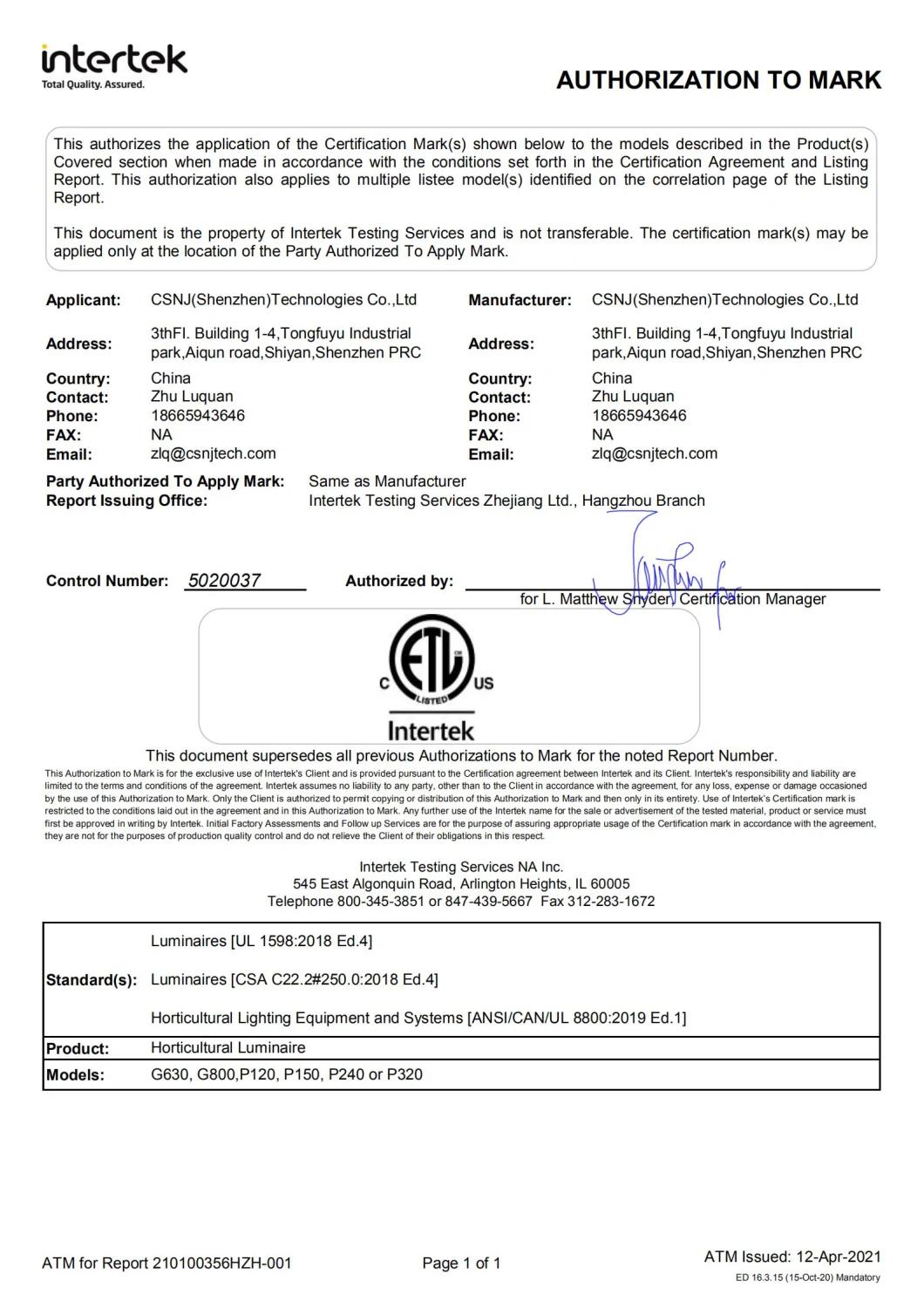

Certificate:


Customers' feedback:

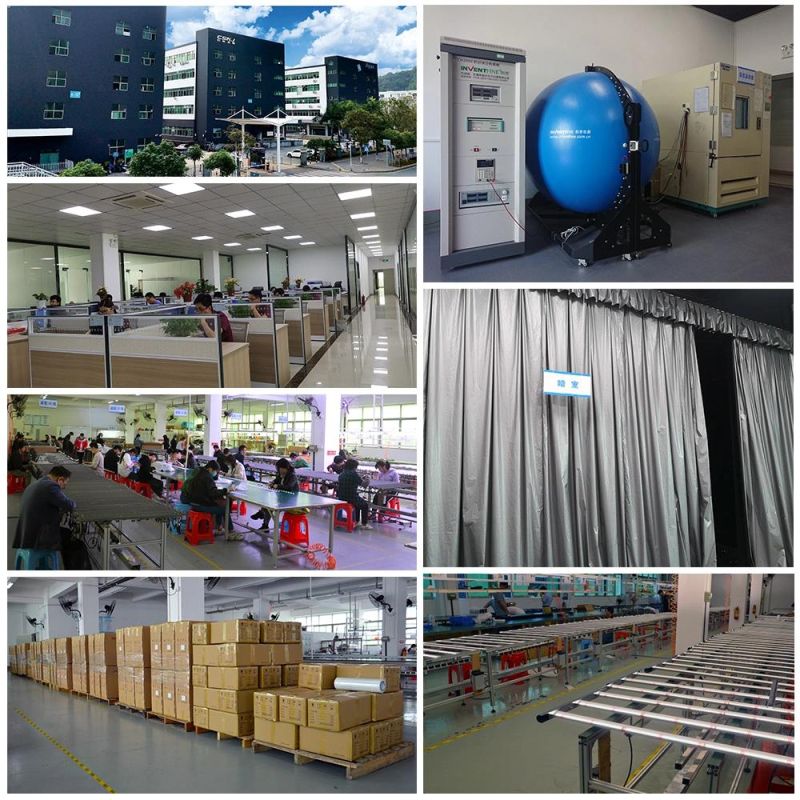

Company Information:

Shenzhen CSNJ Technologies Co.,Ltd is a Hi-tech enterprise and specialized in  researching , designing and manufacturing led lights and lighting products. Our main products including led grow light, wall washer, linear light, flood light and pixel point lighting products. And covers led grow lights, municipal projects,landscape lighting and lighting projects.

The Management team have over 10 years experience in led lighting industry field, adhere to innovative research and quality oriented guideline for management and being flexible and efficient to provide customers with high quality products and service.

The company owns complete lab devices to ensure the quality,performance and reliability of the products. Including Light-distribution Photometer, Integrating Sphere,High and low temperature reliability test box, Hi-pot Tester, Vibrostand, Salt Spray Tester, Waterproof Test Equipment and and some other related testing devices. These devices ensure that we have the ability to respond to customer requests at any time, while ensuring that every product we develop is validated and of high quality.




The company has passed the ISO9001 system certification, in strict accordance with the requirements of the ISO9001 system to establish the company's quality, production, research, supply chain and customer service standards and strict implementation.In addition to the above mentioned equipment, the company also set up an independent temperature and humidity controlled electronic warehouse and aging workshop to ensure the quality of our products

Since the establishment of CSNJ, the company adhering to the flexible and efficient, innovative enterprise philosophy;Keep improving, slow and steady, use advanced product design technology, flexible and diverse ways of cooperation, from technical consulting, plan implementation to installation and debugging, after-sales service and other aspects, to provide customers with zero-distance one-to-one service.

The company has established close cooperative relationship with Cree, OSRAM and Lumileds, and also cooperate with high reliability power suppliers closely to provide customers with customized solutions to meet special requirements.


Shenzhen CSNJ Technologies Co.,Ltd is committed to innovation, and strives to become a leading enterprise in LED lighting industry by providing customers with high-quality services with high efficiency and cost-effective products.



FAQ
Q1. Can you produce according to the samples or drawings?

• Yes, we can produce by your samples or technical drawings. We are capable of the Mold/Die development and design, as welll as the fixtures.

Q2. What is your terms of payment?

• Payment terms vary among different countries. Generally, 30% T/T in advance, 70% balance before shipment..

Q3. What is the lead time?

• Usually 7 days for samples and 15 to 35 days for bulk orders.

Q4. What is your terms of packing?

• Generally, we pack our goods in neutral cartons. we can also follow to your requirements.

Q5. What is your terms of delivery?

• We prefer to EXW Shenzhen but accept FOB etc. You can choose the one you like.

Q6. How to solve the quality problems after sales?

      Our products go through strict quality control system before shipment, 100% full function test and 100% aging test. The failuer rate is far less than 0.3%.

        Secondly, we offer our warranty 5 years to our products and we take full responsibility according to our wholesome after-sales support system..

Q7. Do you have any MOQ limit for led light order?

•  MOQ is 100pcs, and 1pc for sample checking is available.

Q8. Is it OK to print my logo on led light product?

• Yes. We provide OEM service.

Q9. You are manufacturer or trading company?

• We are manufacturer with factory 2000 squared meters . Welcome to visit our factory at anytime.

Q10: Do you offer guarantee for the products?

• Yes, we offer warranty 5 years to our products.
