• Model NO.：HX-WH280-252P
• Style：Modern Chinese Style
• Base Type：Wall Mounted,Recessed
• Technics：Drawbench
• Voltage：12V
• Certification：CE, EMC, FCC, LVD, RoHS, VDE
• Item Name：Resin Filled LED Surface Mounted Pool Light
• Installation：Wall Mounted,Recessed
• Power：18W,24W,30W,35W,42W
• LED Qty：252,333,441,531,630PCS
• Color：RGB,Single Color
• LED Type：SMD2835,SMD3014
• Warranty：Two Years
• Working Life：50, 000hours
• Transport Package：Foam Box, Then Cartons
• Specification：280*35MM
• Trademark：Huaxia
• Origin：Shenzhen, China
• HS Code：9405409000
• Production Capacity：1000PCS,Day

Basic Info.

Model NO. HX-WH280-252P Style Modern Chinese Style Base Type Wall Mounted/Recessed Technics Drawbench Voltage 12V Certification CE, EMC, FCC, LVD, RoHS, VDE Item Name Resin Filled LED Surface Mounted Pool Light Installation Wall Mounted/Recessed Power 18W/24W/30W/35W/42W LED Qty 252/333/441/531/630PCS Color RGB/Single Color LED Type SMD2835/SMD3014 Warranty Two Years Working Life 50, 000hours Transport Package Foam Box, Then Cartons Specification 280*35MM Trademark Huaxia Origin Shenzhen, China HS Code 9405409000 Production Capacity 1000PCS/Day

Product Description

16 Color LED Nicheless wall mount light for Vinyl Liner, Fiberglass, concrete or gunite Pool 's and Spa's
These are replacement color LED lights for Pentair Aqualumin lights
Available in 12 Volts with cord lengths from 15 to 150 Feet
High quality SMD LED's
Chrome outer rim
Steel mounting bracket
Dimensions are:
Diameter: 11.02Inches
Depth: 1.6 Inches
Available in12V
Lights consume 42 Watts of power and are the highest powered (brightest) nicheless lights available in the US
Lights are rated for 50,000 hours of operation
Comes with a 2 year warranty
There are a total of 16 color/show combinations
7 solid colors and 9 color shows
Lights are controlled by light switch, no separate controllers needed
To advance lights you simply turn off/on within 8 seconds to advance to next color option
Lights have a memory function so when turned off longer than 8 seconds they will remember the last setting when turned back on




Parameter of POOL TONE COLOR LED NICHELESS WALL POOL UNDERWATER SWIMMING LIGHT 12 VOLTS

Item No	LED QTY	Wattage	LED Type	Voltage	Material	Weight	Lumen
HX-RWH280-252S	252pcs	18W	SMD3014/2835	AC 12V/24V	316Stainless Steel	1.18	1400lm
HX-RWH280-333S	333pcs	24W	SMD3014/2835	AC 12V/24V	316Stainless Steel	1.19	1800lm
HX-RWH280-441S	441pcs	30W	SMD3014/2835	AC 12V/24V	316Stainless Steel	1.2kg	2600lm
HX-RWH280-531S	531pcs	35W	SMD3014/2835	AC 12V/24V	316Stainless Steel	1.21	2700lm
HX-RWH280-630S	630pcs	42W	SMD3014/2835	AC 12V/24V	316Stainless Steel	1.22	3000lm

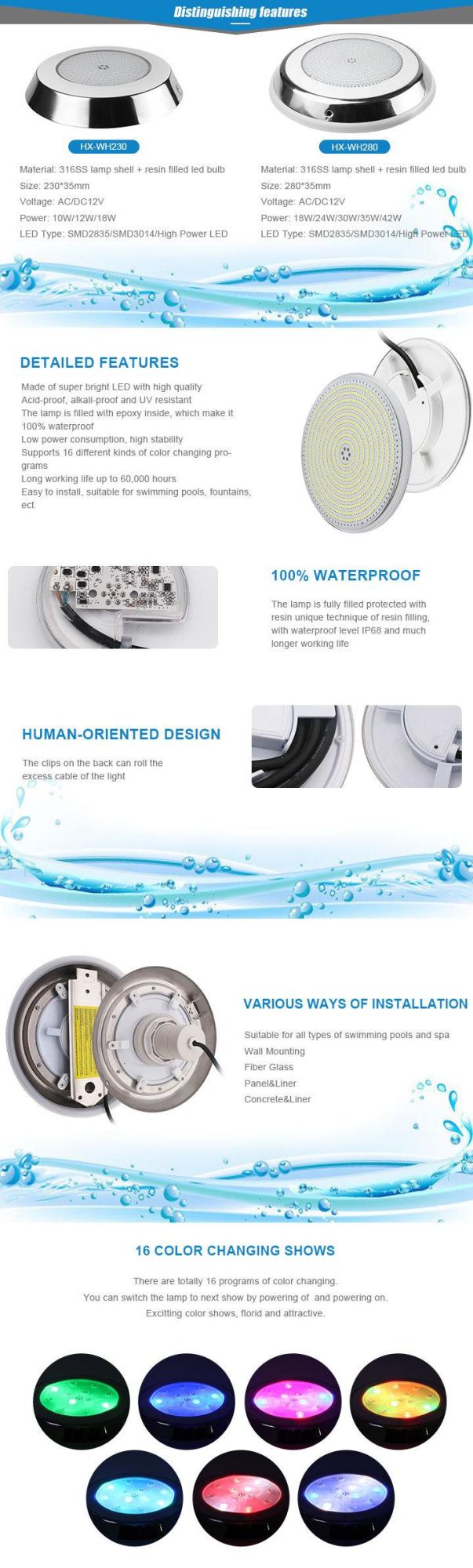

Products Show Of POOL TONE COLOR LED NICHELESS WALL POOL UNDERWATER SWIMMING LIGHT 12 VOLTS

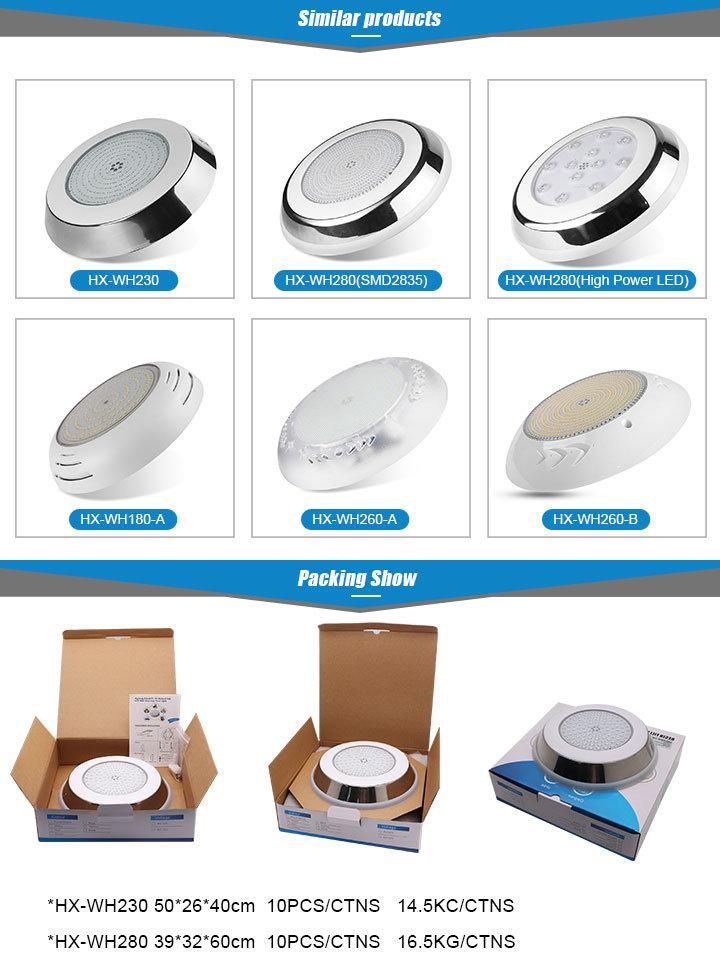

Packing Detail Of POOL TONE COLOR LED NICHELESS WALL POOL UNDERWATER SWIMMING LIGHT 12 VOLTS
1)Neutral inner color box(accept OEM&ODM)
2)Carton Size:38*30*58cm
3)Packing detail: 10PCS/CTNS

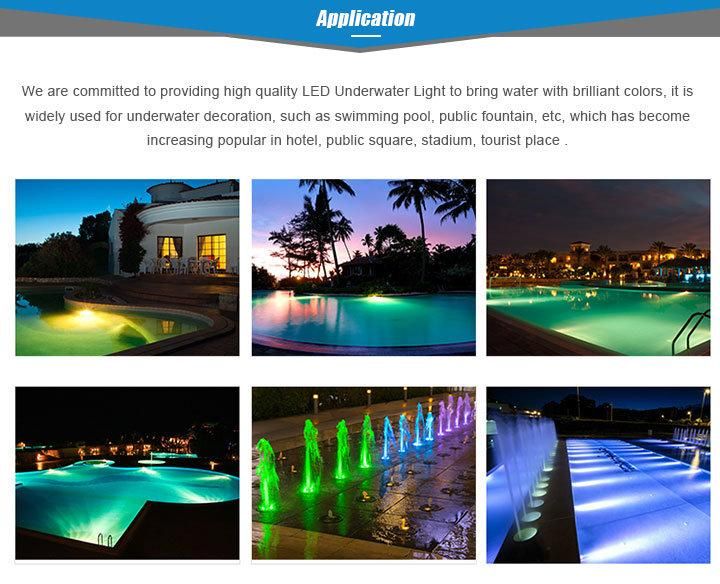

Application of POOL TONE COLOR LED NICHELESS WALL POOL UNDERWATER SWIMMING LIGHT 12 OR 120 VOLTS
This product is suitable for pool as the colorful illumination for water surface, water column and fountain, to produce reflection and color mixing, a beautiful and decorative lighting effect. It is enjoy a population in hotel, holiday inn, home swimming pool adaption.



If you have any inquiry or want to know more information of POOL TONE COLOR LED NICHELESS WALL POOL UNDERWATER SWIMMING LIGHT 12 OR 120 VOLTS
