• Model NO.：9429
• Style：Modern Chinese Style
• Technics：Electroplating
• Voltage：24V
• Certification：CE, RoHS
• Power：9X1w,9X3w
• Material：316 or 304 Stainless Steel
• Protection Level：IP68
• Color：RGB,Single Color
• Beam Angle：15,20,30,45 Degree
• Size：D160*36mm
• Net Weight：1.99kg
• Life Span：50000hours
• Warranty：2 Years
• Transport Package：Carton Size: 35X19X20cm, 4PCS,Carton, 10kg,Carton
• Specification：D160*H36mm
• Trademark：AM
• Origin：China
• HS Code：9405990000
• Production Capacity：50000PCS,Month

Basic Info.

Model NO. 9429 Style Modern Chinese Style Technics Electroplating Voltage 24V Certification CE, RoHS Power 9X1w/9X3w Material 316 or 304 Stainless Steel Protection Level IP68 Color RGB/Single Color Beam Angle 15/20/30/45 Degree Size D160*36mm Net Weight 1.99kg Life Span 50000hours Warranty 2 Years Transport Package Carton Size: 35X19X20cm, 4PCS/Carton, 10kg/Carton Specification D160*H36mm Trademark AM Origin China HS Code 9405990000 Production Capacity 50000PCS/Month

Product Description

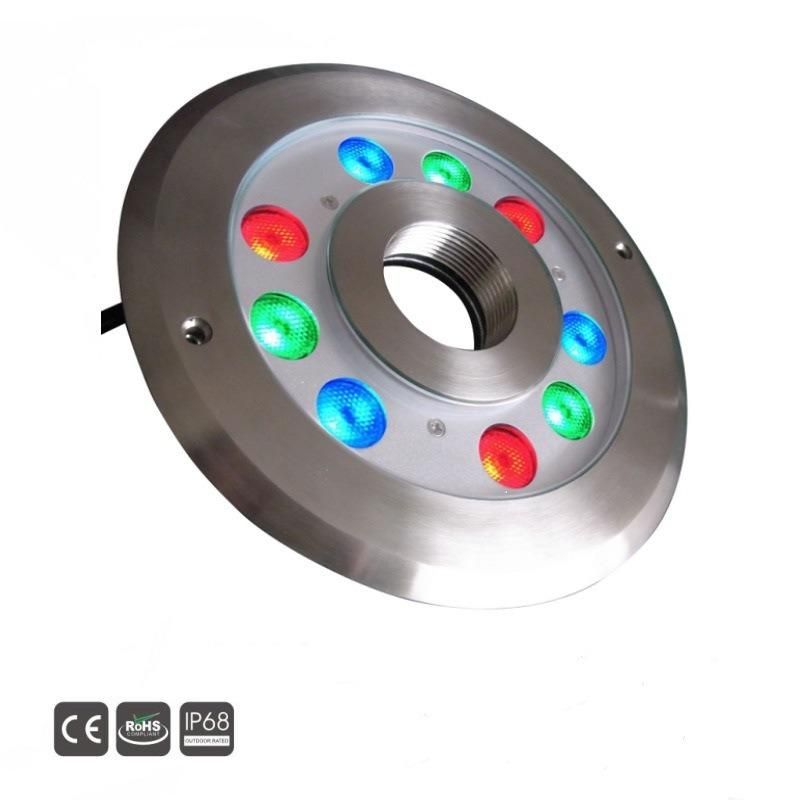

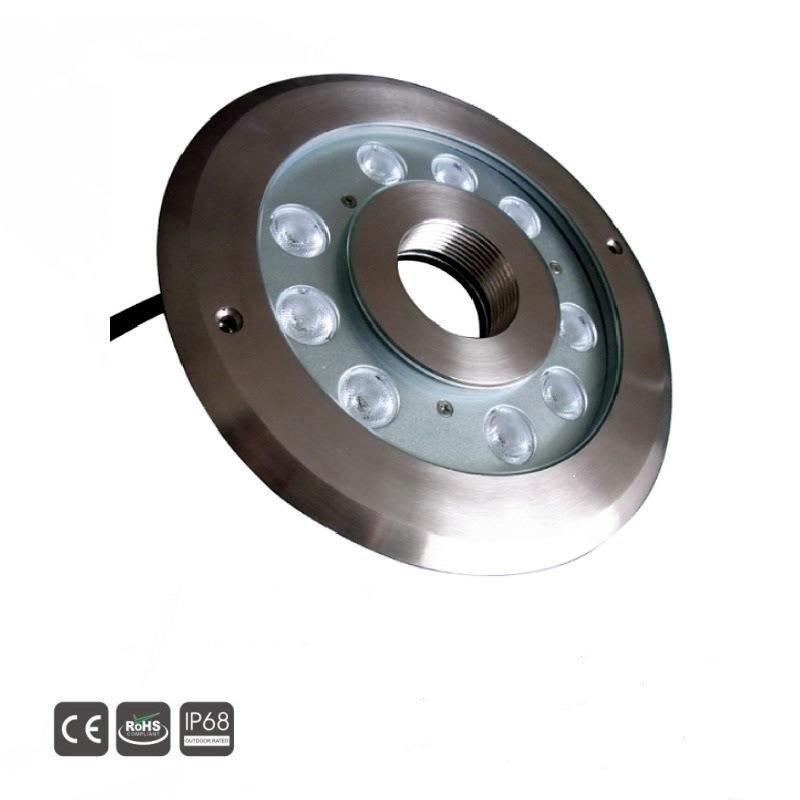

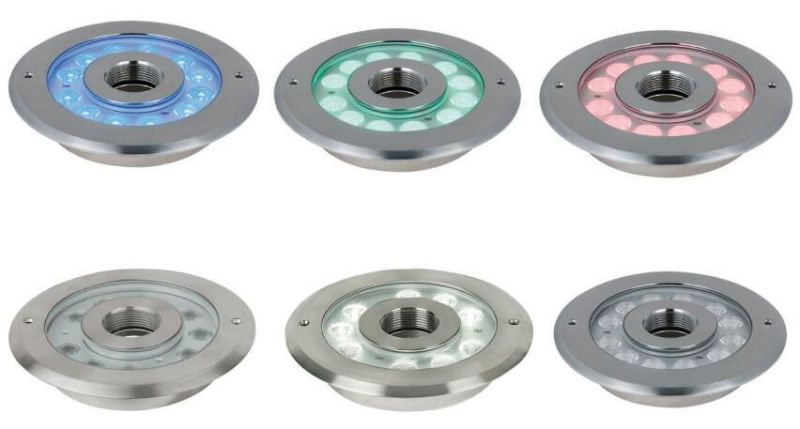

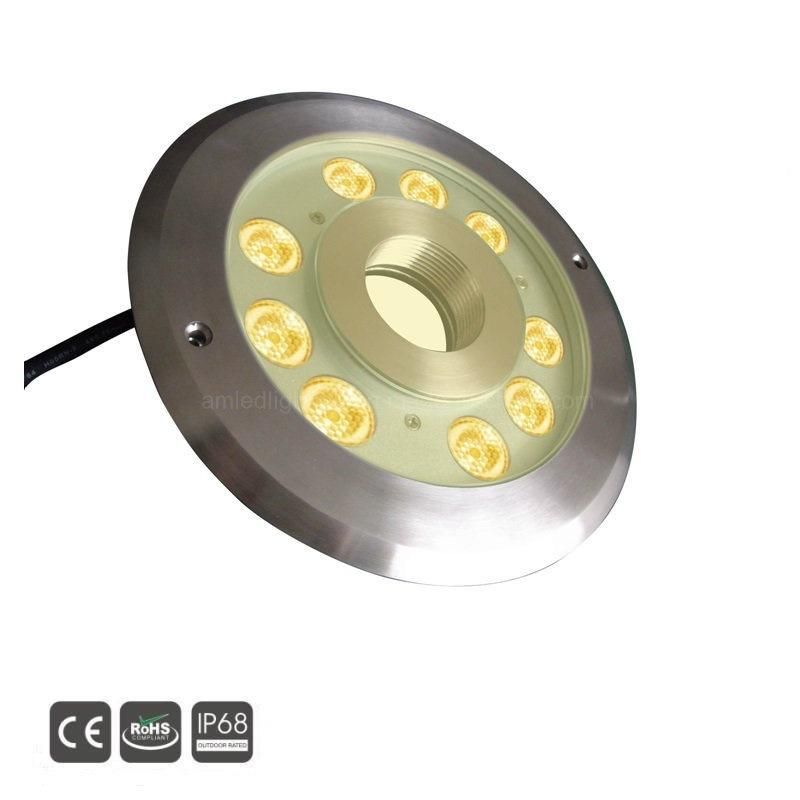

27W tricolor RGB LED dry fountain light,LED fountain lights,27W RGB3in1 square fountain light,land fountain LED light,underground LED fountain light,RGB LED 27w fountain ring light,plaza fountain RGB LED lights,27W RGB3in1 LED fountain lamp,walking street fountain LED lighting Outdoor specification:
1.Housing: 304#(316# is available) stainless steel;
2.Cover&center hole:304#(316# is available) stainless steel;
3.Body Size:¢200mm*H65mm;
4.Light source: 9x3W RGB3in1 LED color(consumption 27.1W);(9x1W,9x3W single color ;9*1W,9x3W RGB are availble);
5.LED Color:RGB3in1(tricolor LED);
6.Input Voltage:24VDC;
7.Glass: Tempered Glass T=10mm;
8.Lens beam angle: 15/25/30/45/60 degrees.Lens:Optional lens, Efficiency ≥ 85%;
9.IP68,CE certificated;
10.Waterproof Cable gland:IP68,PG-9 Copper and nickel coated,End-cap and housing are silicone sealed;
11..MPCB: Excellent heat conductivity aluminum, coefficient of  heat conductivity ≥ 2.0W/mk;
12.Waterproof seal:glass and housing are silicone sealed;
13.Operating temperature:-10~+40centigrade.
14.Manner of packing:1pc/inner box,4pcs/CTN,CTN size:35x19x20cm / G.W:13kgs.

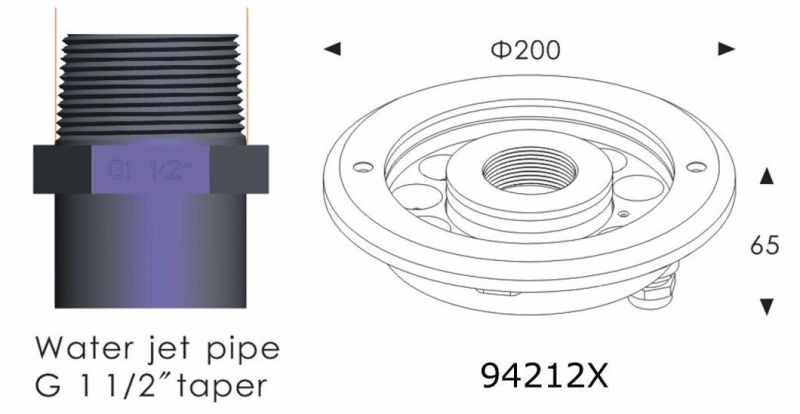

LED fountain ring for plaza,RGB LED lighting for dry fountain,LED lighting for dry land fountain,stainless steel LED fountain light line drawing:

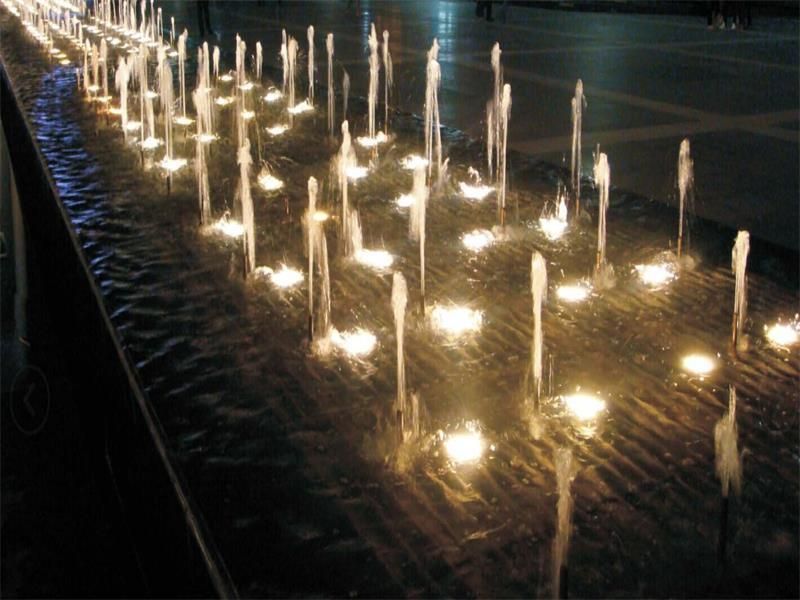

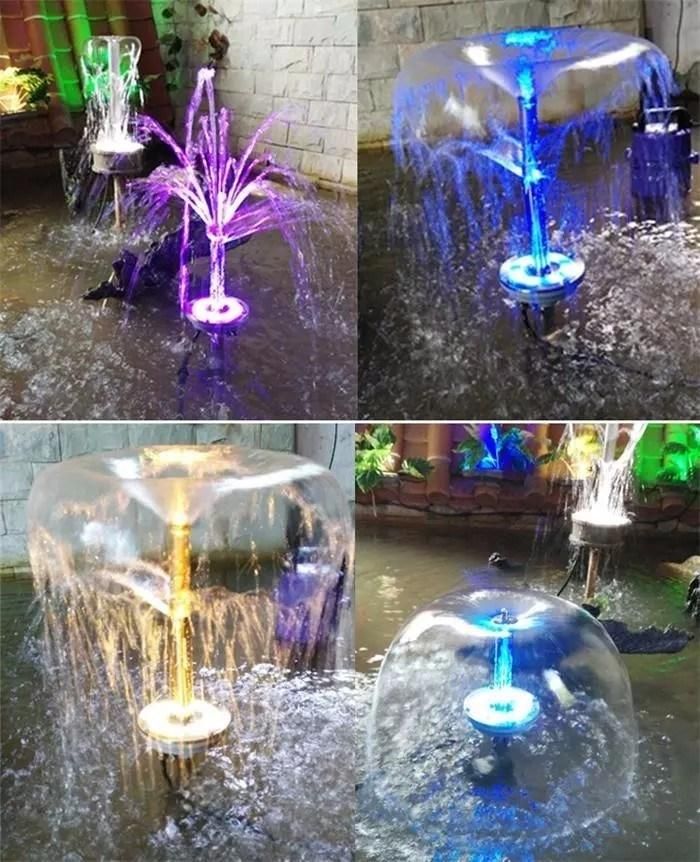

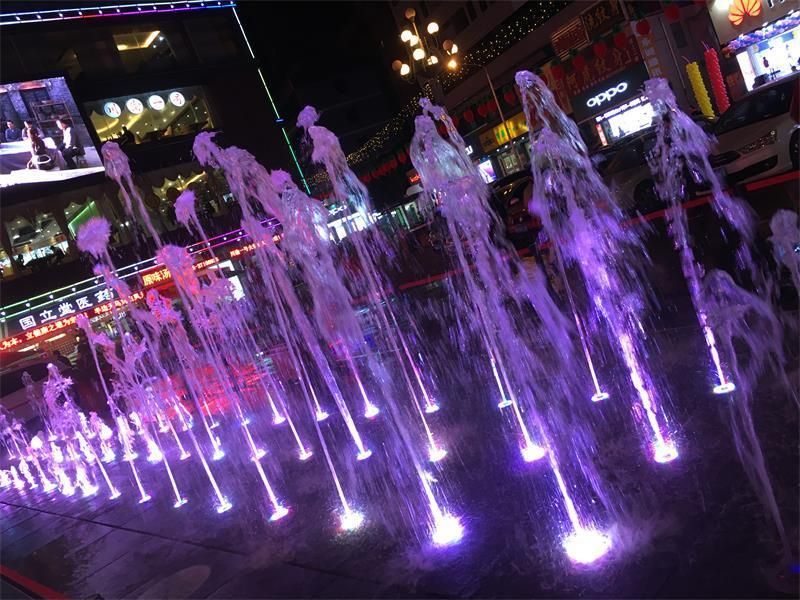

27W tricolor RGB LED fountain light,LED fountain ring light,27W RGB3in1 square fountain LED light,land fountain LED light,underground LED fountain light,plaza fountain RGB LED lights,inground RGB LED fountain lamp,surface mounting fountain LED light Engineering case





27W tricolor RGB LED dry fountain light,LED fountain lights,27W RGB3in1 square fountain light,land fountain LED light,underground LED fountain light,RGB LED 27w fountain ring light,plaza fountain RGB LED lights,27W RGB3in1 LED fountain lamp,walking street fountain LED lighting LED pond light,LED swiming pool light are widely used in Swimming Pool, Fountain, Rearing Pond, Waterland, Artificial Waterfall.
