• Model NO.：KL12MS
• Battery Type：Lithium Ion
• Certification：CE, RoHS, UL, NOM, PSE, EMC, LVD, FCC, Atex
• Warranty：2 Years
• Lead Time：3-7 Days
• MOQ：100PCS
• LED Working Voltage：3V
• Main Lighting Luminous：512lm
• Lighting Degree：28000lux
• Main Light Life Span：100000h
• Short Circuit Protect Time：<320µs
• Life Span of The Battery：1200 Cycles
• Waterproof：IP68
• Weight：535g,560g
• Transport Package：1PCS,Color Box; 20PCS,Carton,12kgs,0.038cbm
• Specification：85  × 94  × 36mm
• Trademark：WISDOM
• Origin：Shenzhen, China
• HS Code：8513109000
• Production Capacity：500000 PCS Per Month

KL12MS Technical SpecificationsFeaturesKL12MS SpecificationsModelStandard versionLong versionSuper LongRated capacity12.4 AhRated voltage3.7 VContinuous discharging time13 h16 h24 hMain light LED working voltage3.0 VMain light LED working current1 A0.8 A0.58 AMain light power3 W2.4 W1.8 WMain light luminous flux359 lm301 lm235 lmLamp lighting degree (Initial lighting degree in 1 m)25000 lx23000 lx16000 lxMain light life span100000 hAuxiliary light power0.4 WAuxiliary light life span40000 hShort circuit protect time< 320 usLife span of the battery (Recharges)1200 cycles (In reasonable working condition)Charging time8 hoursDimensions94 x 36 x 108 mm; 3.7 x 1.4 x 4.3 in (Size of the battery box)Main cable1.4 / 1.65 m; 4.59 / 5.41 ftWeight560/585 g; 19.40 oz

Wisdom LED Lamp ATEX Approved Mining Lamp, RoHS led Headlamp
http://newwisdom.en.made-in-china.com

KL12 MS

High-performance miner's cap lamp

Super Bright! Lighter!
Smaller! Higher reliability!

The magnetic power cord attaches securely and detaches cleanly.

Water proof, Dust proof

Fire-resistant, Shatter-proof

Diving, Inflaming retarding

Enduring and persistent.



12400mAh high capacity li-ion battery

High capacity li-ion battery make sure 13 hours working time for option, to meet the demand of longer working time in the underground.

KL12MS

1.4m cable and 1.65m cable for options. Most advanced and brightest LED light of Cree company of 359 lumens, 25000 lux brightness in one meter distance.

IP68 waterproof certificated, diving to more than 20 meters

IP68-the highest level waterproof certification standard for connectors.
KL12MS is workable in a long time under water of 20 meters!

http://newwisdom.en.made-in-china.com

For Industrial mining lighting

Professional LED miner's cap lamp, brightness of 25000 lux, 13 hours working time
(Standard version). Safe, reliable, long life span of 100000 h. IP68 diving certificated.

Brand and Production

"WISDOM" as a brand trademark has been registered in around 110 countries. Our products have been selling to around 80 countries and we have obtained patents on invention of several product items.

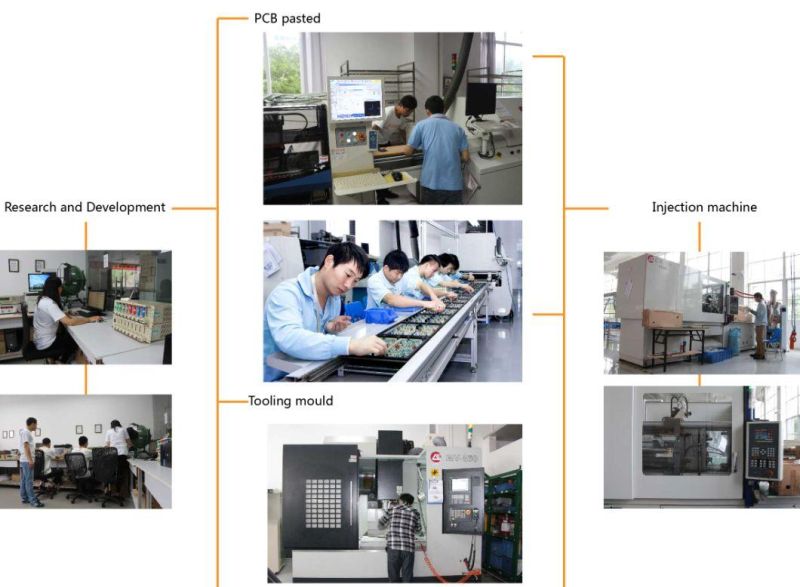

Manufacturing and Equipment

Our factory covers an area of 5,000 square meters and provides good working environment for our employee. We have the complete set of equipment, perfect production and quality management system. We manufacture our products by high standard and strict quality control and we fully follow out ISO quality management system standard.

Management

We manufacture our products by high standard and strict quality control and we fully follow out ISO quality management system standard.

Exhibition

New Wisdom Investment Limited attend many international mining equipment exhibitions before,  Also, we are going to attend the following international mining equipment exhibitions recently. Welcome to visit us to know more about our Lamps, we will show the nearest released models and share new technology and ideas of our future designs. You will find new business opportunities in the market and get a long-term and stable cooperation partner!

Wisdom LED Cap Lamp Dgms Approved Mining Lamp, RoHS headlamp
http://newwisdom.en.made-in-china.com

Top quality

Cree LED is applied as main light source and outstanding driving circuit make it work 13 hours continually after full charge



Panasonic battery model with same model as American Tesla Motos, which can be charged more than 1200 times



Germany Bayer bulletproof PC material make it explosion proof and durable
http://newwisdom.en.made-in-china.com


Wisdom LED Lamp ATEX Approved Mining Lamp, RoHS led Headlamp

Certificates



WISDOM is the first Asia company to apply for USA MSHA approval in 2009, ATEX  for European market and MA for China domestic market, we aim to open more and more markets with a world-famous brand WISDOM.



Wisdom LED Lamp ATEX Approved Mining Lamp, RoHS led Headlamp
http://newwisdom.en.made-in-china.com


Why choose us?

About us

1) 13 years of Professional manufacturing of LED miners cap lamp and charging devices, focus on quality and brand

2) We are the 1st one to apply LED to mining cap lamp, we are the 1st one in Asia to get USA MSHA Approval

3) WISDOM brand registered in 110 countries and products sold to 80 countries


Advanced equipment

1) SMT: Surface Mounted Technology, Wave Soldering

2) Smart Oscilloscopes: imported from USA, USD50,000, it is usually used in Academy

3) Battery Cycle Tester: 10 times of cycly test for 80 hours

4) CNC (Computer Numerical Control) and Injection machine: imported from Taiwan


Warranty and after-sales service

1) Warranty: 2 years, for defective one, we will replace a total new cap lamp during warranty time

2) After sales service: will deal with your complaint at first time, give you solution within 5 working days

3) Free samples: free samples will be provided when our new models come out

4) Market support: we can support you to do advertisment in local magazine and provide samples with big discount for exhibition


R & D

1) We have built a team of 5 qulified engineers to get all the certificates in the world

2) Every year we invest more than 10% annual turnover in our R&D
