• Model NO.：LEK03-6NC
• Battery Type：Ni-Cd Battery
• Emitting Color：Cool White
• Material：Aluminum
• Certification：CE, RoHS, CB
• Transport Package：Color Box
• Specification：140*125mm
• Trademark：flolite
• Origin：China
• HS Code：8504401400
• Production Capacity：3000PCS,Day

Basic Info.

Model NO. LEK03-6NC Battery Type Ni-Cd Battery Emitting Color Cool White Material Aluminum Certification CE, RoHS, CB Transport Package Color Box Specification 140*125mm Trademark flolite Origin China HS Code 8504401400 Production Capacity 3000PCS/Day

Product Description

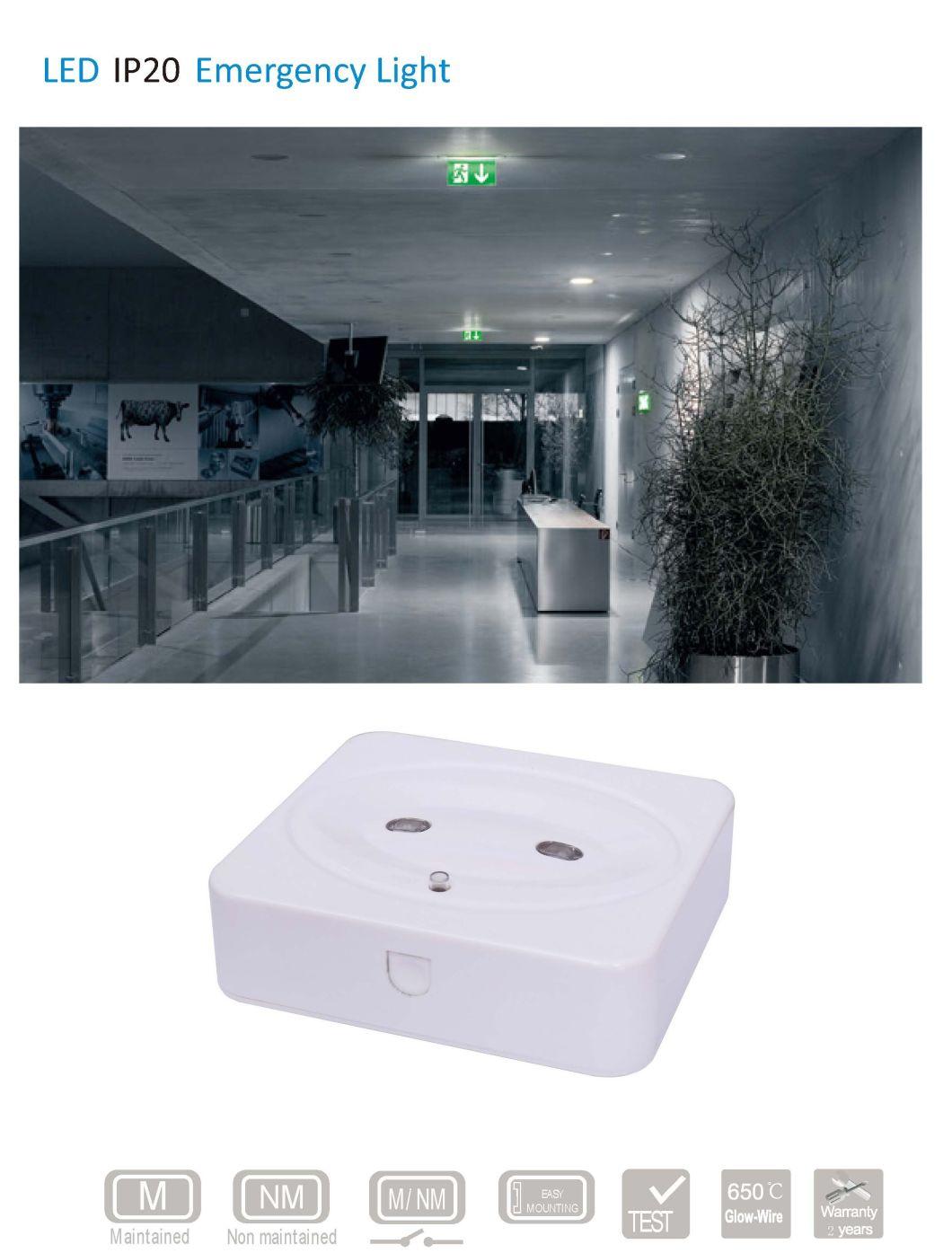

CB Approved 2x3W LED Emergency light with Ni-Cd batteries 3Hours Backup

Relevant Standard

EN 60598-1	EN 61000-3-2	IEC 60598-1	IEC61000-3-2
EN 60598-2-22	EN 61000-3-3	IEC 60598-2-22	IEC 61000-3-3
EN 61347-1	EN 62471	IEC 61347-1	IEC 62471
EN 61347-2-13	EN 62493	IEC 61347-2-13	IEC 62493
EN 61347-2-7	EN 55015	IEC 61347-2-7	IEC 55015
EN 62778	EN62031	IEC 62778	IEC62031

Product Parameter

Model No. :	LEK03-6NC	Battery:	Ni-Cd, 3.6V 2000mAh
LED Chips:	Cree xt-e	Luminous Flux:	150lm
Power Consumption:	2x3W	Input Voltage:	AC220-240V~50/60Hz
Charge time:	24Hours	Emergency duration:	3Hours
ta:	0~35ºC	Max. Case Temp.:	70ºC
Protection Class:	II	IP Rating:	IP20
Power factor:	0.5	Supply current:	0.04A
Operation:	Maintained or Non-maintained	Function:	MANUAL test
Light distribution:	Path way (Standard)
	Door way (Optional)

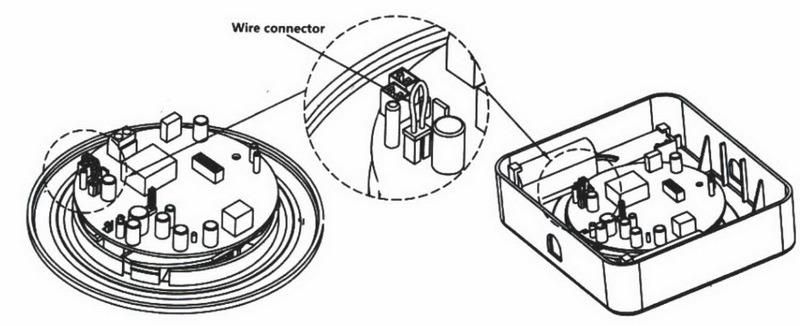

Maintained and Non-Maintained Function

 ∷  Maintained: Assemble wire connector

∷  Non-Maintained: Disassemble the wire connector

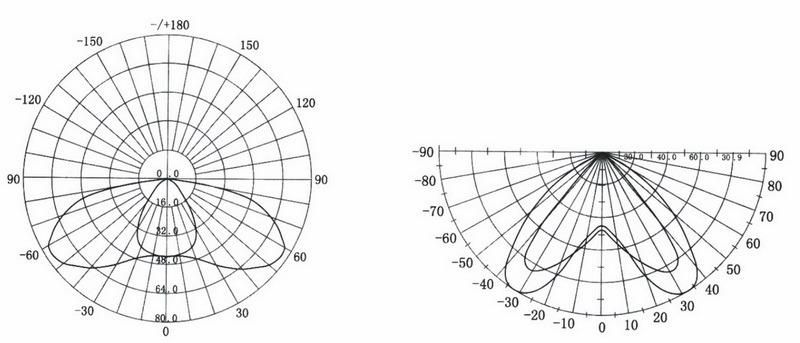

Photometrics

                      LEK03 Narrow Lens(Path Way)                                                          LEK03 Wide Lens(Door Way)

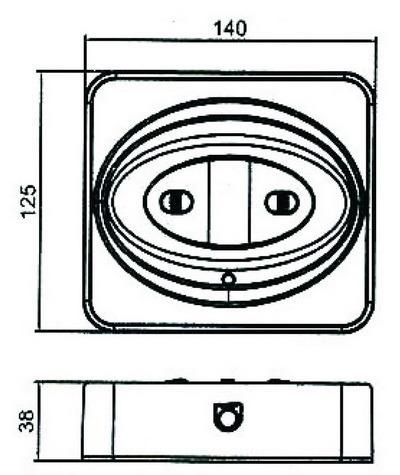

Dimension

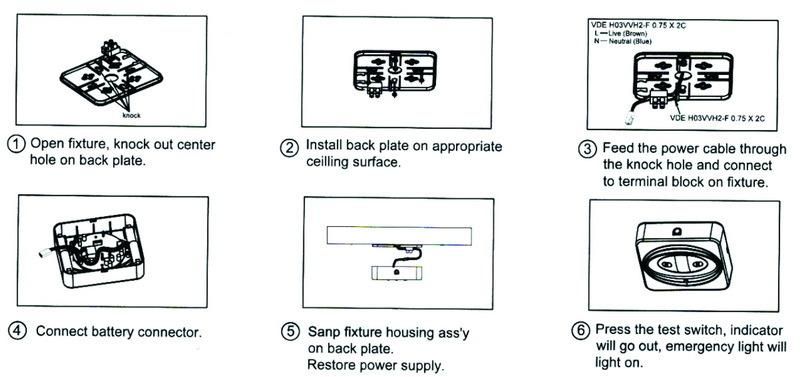

Installation Diagram

                                   Wire preparation:

                                   0.5~1.5mm²

Special Note

∷ This product should be installed by a registered electrician in accordance with local standard and electrical regulations.

∷ Take care to ensure the mains supply is isolated before installation, Check the unit label for correct supply voltage and frequency.

∷ The whole luminaire should be replaced when they no longer meet their rated duration of operation after the corresponding recharge period.

∷∷ Normal Operation: The green indicator light on the bottom unit stays on. The LED will go out if the mains supply fails, if the internal charger is malfunctions, or if the unit is in test mode. The fixture must be charge 24 hours after installation.

∷∷ Battery: The battery is not replaceable; When battery no longer meet its rated duration of operation, after corresponding recharge period, the whole luminaire shall be replaced.

∷∷ LED: The light source of this luminaire is not replaceable; when the light source reaches its end of life, the whole luminaire shall be replaced;

∷∷ Test Switch: If pressed the test switch, LED indicator will go out and the fixture will operate from its battery supply.

∷∷ Auto Self Testing: Every 7 days for function tests and every 26 weeks for duration tests.
