• Model NO.：TH-W0196C
• Voltage：9V~60V
• Voltage Type：DC
• LED Type：CREE
• Certification：CE, EMC, FCC, RoHS, ISO9001,Weee,IP68,Emark
• Operating Voltage：9~60V DC
• Power Output：96 Watts
• LEDs：32PCS*3W CREE
• Lumen：6400lm
• Optional Beam：Spot,Flood

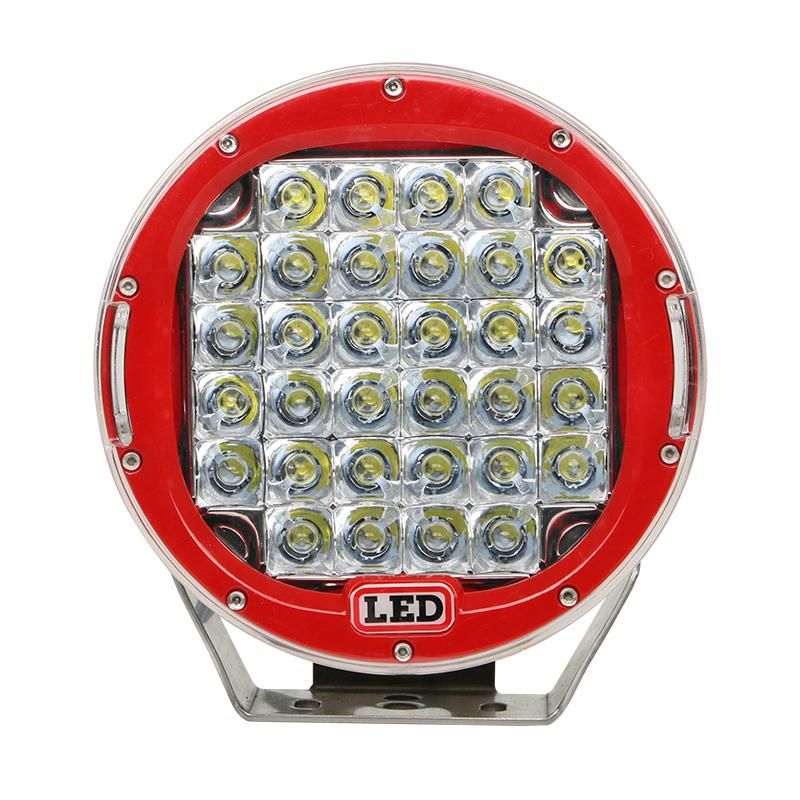

• Optional Front Frame Color：Black,Red
• Colour Temperature：6000K
• Bracket：Stainless Steel Bracket
• Materia：Diecast Aluminum Housing
• Lens：Polycarbonate
• Waterproof Rate：IP68K
• Warranty：12 Months
• Dimension：21.9(L)*21.8(W)*8.6(T)M
• Housing Shape：Round
• Net Weight：3kg
• Transport Package：One Piece One Box and Four Boxes in One Carton
• Specification：Carton size: 52*33*36cm
• Trademark：TEEHON
• Origin：Guangzhou China
• HS Code：8512201000
• Production Capacity：90000 PCS Per Month

Basic Info.

Model NO. TH-W0196C Voltage 9V~60V Voltage Type DC LED Type CREE Certification CE, EMC, FCC, RoHS, ISO9001,Weee,IP68,Emark Operating Voltage 9~60V DC Power Output 96 Watts LEDs 32PCS*3W CREE Lumen 6400lm Optional Beam Spot/Flood Optional Front Frame Color Black/Red Colour Temperature 6000K Bracket Stainless Steel Bracket Materia Diecast Aluminum Housing Lens Polycarbonate Waterproof Rate IP68K Warranty 12 Months Dimension 21.9(L)*21.8(W)*8.6(T)M Housing Shape Round Net Weight 3kg Transport Package One Piece One Box and Four Boxes in One Carton Specification Carton size: 52*33*36cm Trademark TEEHON Origin Guangzhou China HS Code 8512201000 Production Capacity 90000 PCS Per Month

Product Description

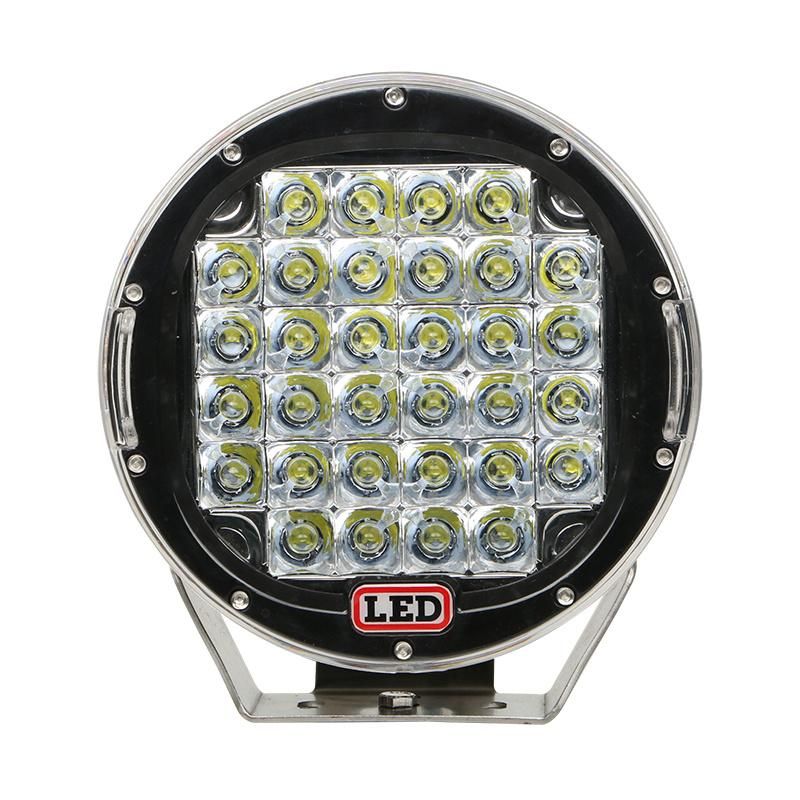

Round 96W LED Agriculture Vehicle Working Lights

1. DC 9~60V ultra-wide operating voltage, applies to various vehicles;
2. Concise & mature designed circuit board ensures high quality;
3. 0.2% extreme low defective rate
 due to the adoption of Korean components;
4. Diecast aluminum housing, stainless steel bracket, polycarbonate lens
5. IP68 waterproof.

The Specification of high power led flood light:

ITEM	DESCRIPTION
Model Number	TH-W0196C
Power Output	96 Watts
Operating Voltage	DC9~60V
LED Chip	32pcs*3W CREE
Lumens	6400LM
Color Temperature:	6000K
IP rating	IP67/IP68
Optional Beam	Spot/flood
Housing Material	Diecast aluminum housing
Bracket	Stainless steel bracket
Lens Material	Polycarbonate lens
Housing Shape	Round
Size	8.6"
Operating Temperature	-45°C - 60°C
Life Span	Above 50,000 hours
Wire Length	40cm
Warranty	12 months

24v led work light Application:
led vehicle light Detailed Image:

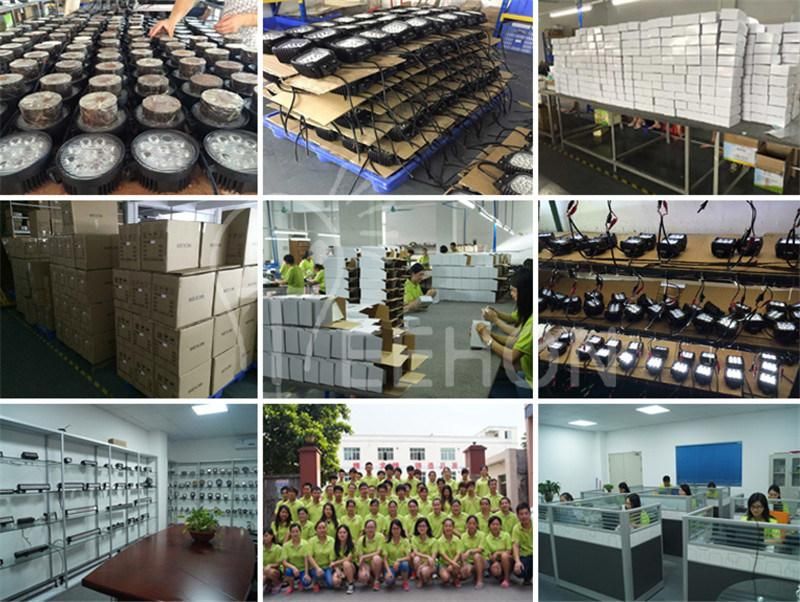

Company and Factory:
Established in 2008,Teehon has been dedicated in the research, development and manufacturing of LED light bar,LED Auto Lamp and  LED  Headlight. Our factory own 7 production lines : 1 LED packaging line, 2 SMT production lines and 4 LED light production lines. The cost is controlled accurately and the quality is guaranteed.



Size and Package Auto Lamps:

Name	piece	G.W	Size
One piece	1pcs	3.75kgs	30.8*24.5*16.5cm
One carton	4pcs/ctn	15kgs	52*33*36cm


Shipping for LED Car Light:

Sample order	Shipping by express like DHL, FEDEX, TNT, EMS about 3-5days
Bulk order	Shipping by sea about 7-15days


Why choose us:
1.Provide complete ODM&OEM solutions, which include LEDs producing, circuit board designing & producing, as well as housing designing
2.Strong R&D capabilities: to develop a new product costs only 30 days, we release at least 2 new products each month.
3.Powerful production strength: we can produce 15,000pcs LED light bar & 90,000pcs Rohs CE LED 4X4 Work Light each month.
4.Extraordinary quality & cost control ability: we are the only led work light manufacturer who makes the light from beginning to end, the defective rate of product is lower to 0.2%.
 The LEDs will be lighten up for 6 times before delivery, and each light will be tested strictly under water according to IP68 waterproof standard.

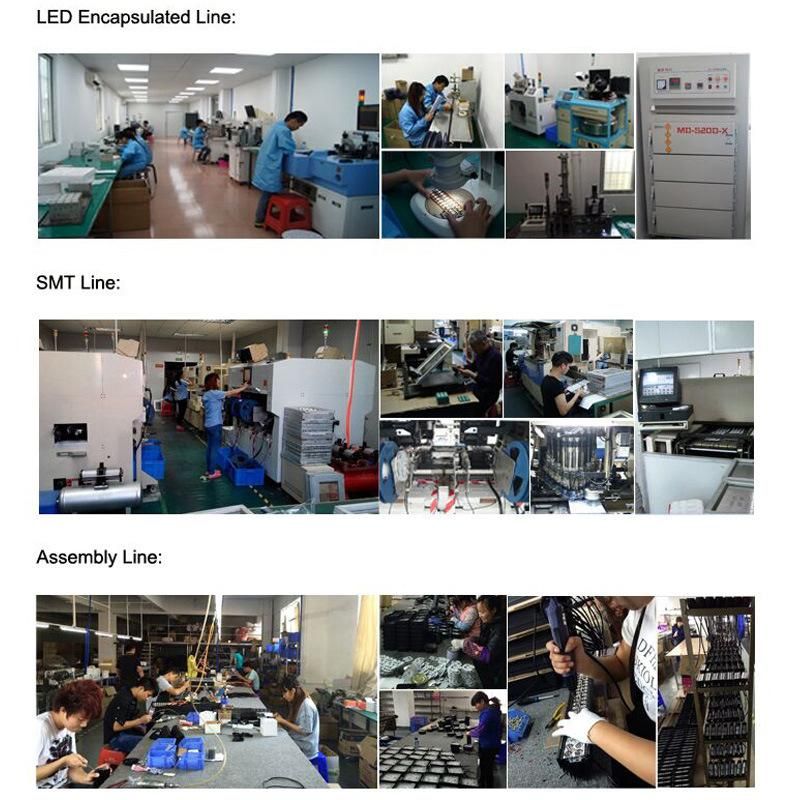

  A modern factory: owns a high-class LED encapsulation laboratory, and 5 high speed full automatic SMT machines, the whole factory is equipped with over 30   advanced producing & testing facilities

FAQ:
Q: What's your high power led flood light after-sales service and warranty?
A: we promise to bear the following responsibility when defective product is found:
1.12 months warranty from the first day of receiving goods
2. Replacements would be sent with goods of your next order
3. Refund for defective products if customers require
Q: What's the 24v led work light MOQ?
A: MOQ is 10pcs for standardized products; for customized products, MOQ should be negotiated in advance. There is no MOQ for sample orders.
Q: How long is led vehicle light lead time?
A: The lead time for sample orders is 3-5 days, for bulk orders is 5-15 days.
Q: How to place LED Auto Lamp orders?
A: 1. Email us the model, beam pattern and quantity, consignee information, shipping way
and payment terms
2. Proforma Invoice made and sent to you
3. Complete Payment after confirming the PI
4. Confirm Payment and arrange production
