• Model NO.：LED 1008,LED 1008A,1008B,1008C,1008D
• Electric Current Type：AC
• Input Voltage：220V
• Diffuser：Tempered Glass
• Shell Material：Aluminium Alloy
• LED Chips：Osram
• Certification：CE, EMC, LVD
• Outdoor Using：IP 65
• Control：DMX 512
• Ballast：Electronic
• Power Supply：Electronic Auto-Ranging,
• Display：LCD Display
• Lamp Luminous Efficiency(Lm/W)：99%
• CRI (Ra>)：95
• DMX Data in/out：XLR 3pin
• Electronic Dimmer：0-100% Linear Dimmer
• Electronic Strobe：1-30 Flashes,Second
• Transport Package：Carton,Flycase
• Specification：31*31*37cm
• Trademark：MSLighting
• Origin：Guangzhou, China
• HS Code：94054090
• Production Capacity：500pcs,week

Compatibility:1.  Color Range: 16.7 million additive RGB colors; continuously variable intensity (256×256×256=16777216)2. Dimming 0-100%with regulated constant color control3.Strobe: 10 Flashed per second (any color)4. Function: it is max mix color, color change, color's gradual change, flash, speed/luminance the adjustable, and save function5. 6channel Mode and 3channel Mode would change each other in every light6. 6CH Mode DMX ValueCH 1_General dimmer     (1-255, from dart to light)CH 2_Red                   (1-255, Dimmer, from dart to light)CH 3_Green                 (1-255, Dimmer, from dart to light)CH 4_Blue                   (1-255, Dimmer, from dart to light)CH 5_Strobe & Color change/ color gradual change openCH 6 _Strobe & Color change& color gradual change's speed adjustment (1-255, Speed adjustment, from slow to fast)7. 3CH Mode DMX ValueCH 1_Red              (1-255, Dimmer, from dart to light)CH 2_Green           (1-255, Dimmer, from dart to light)CH 3_Blue              (1-255, Dimmer, from dart to light)8. Control modes0: sound activity mode1. DMX control mode2. Adjusting the color manual3. Adjusting the brightness manual4. Adjusting the strobe manual5. Adjusting the strobe speed manual6. Master-slave control mode, as the master7. Sound activity synchronization mode8. Adjusting color's gradual change manual9. Adjusting gradual change's speed Each Package Included:1 * LED 1005A/1005B/1005C/1005D/1005E LED PAR CAN with Signal Cable :3-PinXLR DMX In and Out + Water Power cable: Power Cable screw water proof connectors in and out (2ft cable)1 * User Manual1*Power cable: 3 Pin plug and screw water proof connector on other side. (2ft cable)2* pyrocondensation.cannula (0.66ft = 20cm)1* Waterproof connector's cover for Power cable

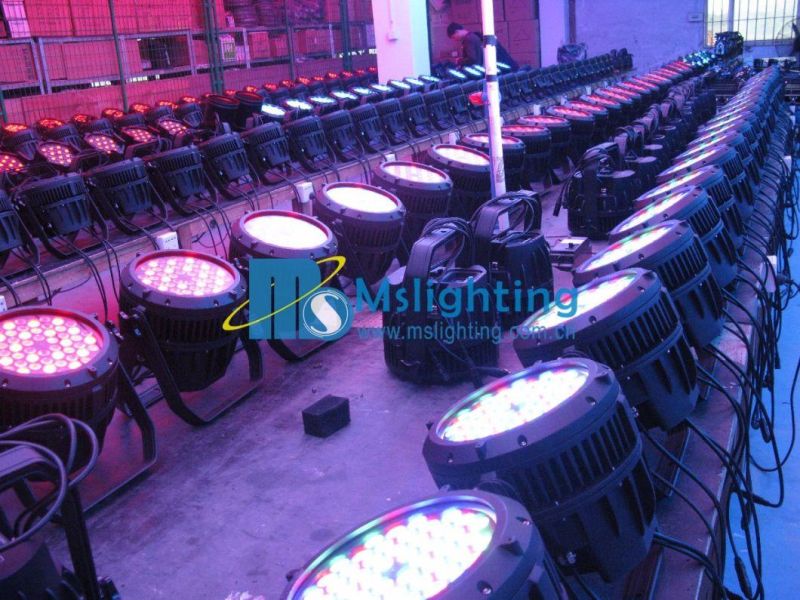

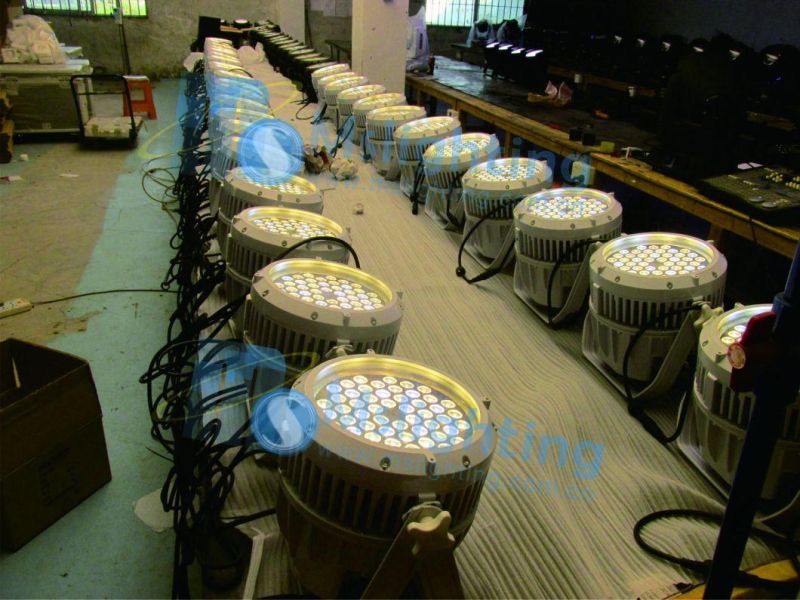

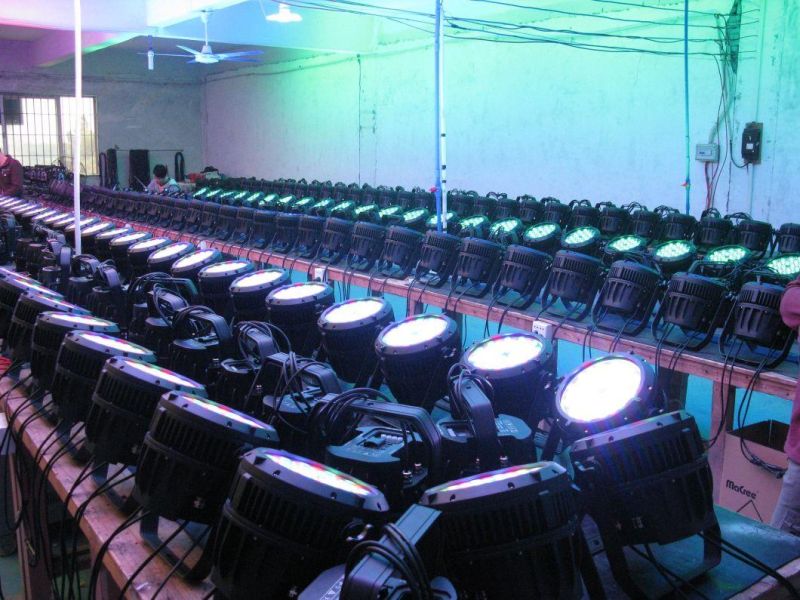

Production Line:

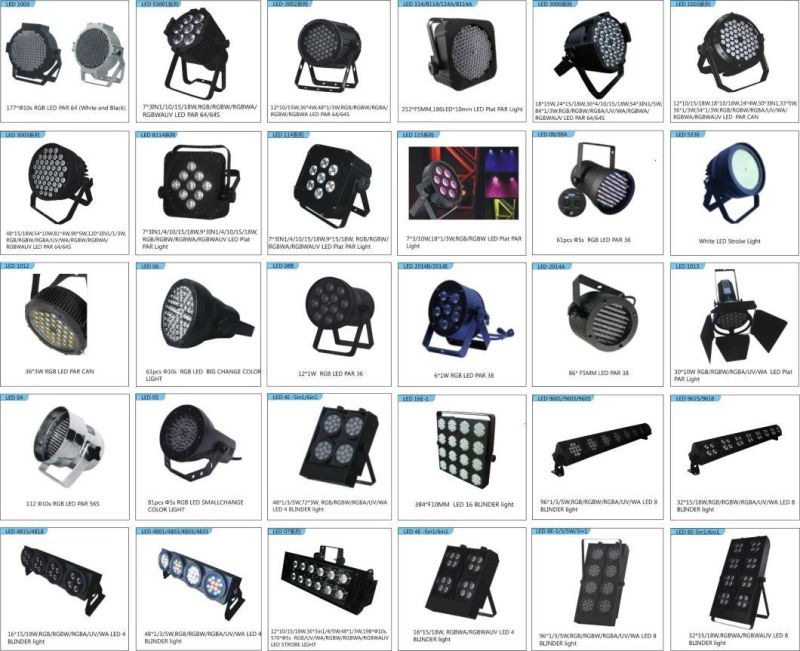

Catalog
