• Model NO.：TLC-1
• Warranty：5 Years
• Housing Material：Aluminum
• Life：80000h
• LED Chips：Samsung
• Certification：CE, RoHS, UL, FCC, EMC, LVD
• Connection：Rj11,Rj9 Network Cable
• Accessory：Works with Outer Temperature Sensor
• Transport Package：Individual Packing
• Trademark：Techone
• Origin：China
• Production Capacity：200000

Basic Info.

Model NO. TLC-1 Warranty 5 Years Housing Material Aluminum Life 80000h LED Chips Samsung Certification CE, RoHS, UL, FCC, EMC, LVD Connection Rj11/Rj9 Network Cable Accessory Works with Outer Temperature Sensor Transport Package Individual Packing Trademark Techone Origin China Production Capacity 200000

Product Description

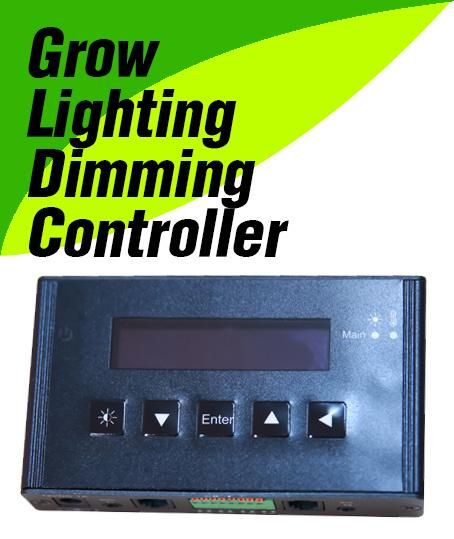

A smart choice for LED/HID grow light control!
- Real time control
- Timer control
- Reliable RJ9/RJ11 network cable connection
- Works with outer sensors
- Multiple warning functions
- LCD user interface for easy operation



1, Thank you for choosing Techone lighting controller products. The lighting controller is designed to provide a better solution for controlling one or more digital dimmable Techone ballasts in a convenient and precise way. Please kindly read and follow the instruction before operating the product. Thank you very much.


2, Product information

2.1 Product spec.
  Dimensions (L*W*H) 110*63*30.5mm
  Weight 0.46kg
  Input power 100~240vac, 0.5A, 50/60Hz
  Output Control Voltage 5~11.5vdc
  Max Current 2A (dry connect)
  Max connection length 100M
  Max connected unit quantity 40x Techone Ballast

2.2 Environmental spec
   Keep dry/clean/no flammable/no dusty circumstances.
   Operating temperature 0-35C
   Operating humidity <80%

2.3 Button definition




	Button	Function
	Func	Check Temperature, system time shifting
	Up	Up, increase value
Enter	Enter	Confirm OK
	Down	Down, decrease value
	Return	Return, backward

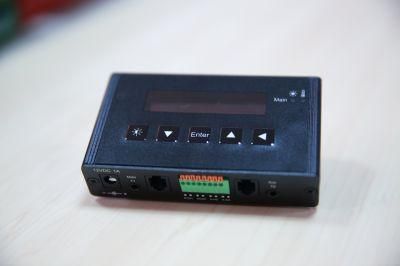

2.4 Connectors

  i. 12V DC Inlet
  ii. 3.5mm Inlet for temperature sensor T1  T2
  iii. RJ9 (4P4C) socket, for max 40x ballast connection and controlling
  iv. Alarm outlet 12V ECM1  ECM2
  v. Dry connects   Off-connect (A-NO)   On-connect (A-NC)

2.5 Accessories
Controller/ Control cordx2 /Mounting pad / 12Vdc adaptor / Splitter (optional) / Temperature sensor (optional)

2.6 Compatible ballasts
Techone 315/600/630/750/945/1000W ballasts with RJ11 inlet sockets
