• Model NO.：LC7255
• Input Voltage：2.8-3.2VDC,500mA
• Shade Type：Aluminum
• LED Chips Brand：Osram
• Certification：RoHS, LVD, CE
• Model：LC7255
• Cct：3000-6000k
• Beam Angle：15°,25°,45°
• Cut Hole：Dia 43mm

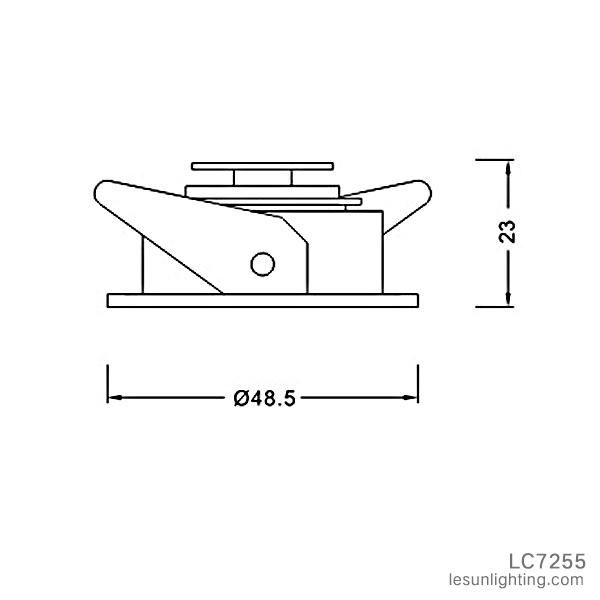

• Outsize：Dia 48.5mm
• Height：23mm
• Lumen：90-160
• Surface Color：Silver,Black
• CRI：More Than 80
• Chip：Osram
• Transport Package：Natural Packing, Lesun Package or Carton Package
• Specification：CE and Rohs
• Trademark：LESUN
• Origin：China
• HS Code：94054090
• Production Capacity：1000PCS,Day

Basic Info.

Model NO. LC7255 Input Voltage 2.8-3.2VDC/500mA Shade Type Aluminum LED Chips Brand Osram Certification RoHS, LVD, CE Model LC7255 Cct 3000-6000k Beam Angle 15°/25°/45° Cut Hole Dia 43mm Outsize Dia 48.5mm Height 23mm Lumen 90-160 Surface Color Silver/Black CRI More Than 80 Chip Osram Transport Package Natural Packing, Lesun Package or Carton Package Specification CE and Rohs Trademark LESUN Origin China HS Code 94054090 Production Capacity 1000PCS/Day

Product Description

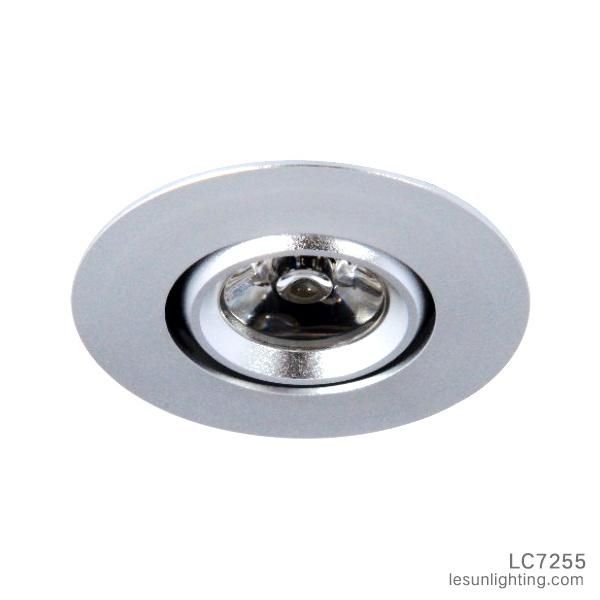

High quality silver/black 1W/2W led recessed cabinet spotlight LC7255

Led cabinet light quick details:
Light source: High power LED
Power: 1W/2W
Color: 3000-6000K
Color Rendering index: Ra>80
Cut Hole: Ø 43mm
Beam Angle: 15/45/25
Surface color: Silver/Black
Input parameter: 2.8-3.2Vdc/max 700mA


Led recessed cabinet spotlight  packing & details:

Packaging Detail: 50pcs/ctn
Delivery Detail: Delivery in 3-7 days upon payment received

 led recessed spotlight  specifications

1.1W /2W led recessed cabinet spotlight

2. Cree/osram chip
3. Aluminum housing
4. CE certifactions
5. Rotating body
6. DIY product

Led cabinet light features:

1) Adopt high brightness and low light decline led;
2) Wide voltage and constant current design;
3) Well-design of thermal structure;
4) 60-80% energy saving than traditional lamps;
5) Long lifetime, over 5, 0000 hours 6) Warranty quality: 2 years
7) Instant start, no flashing;
8) Pro-environment, no UV or other radiation;
9) Low maintenance cost;
10)Low electro-magnetic radiation
11)No mercury, environment friendly.
12)Luminescence without heat radiation.
13)No UV or IR radiation, Harmless to human body

Applications:

>Show window, jewelry store, Jewelry Counter, display counter
>Display cases, watches, exhibit hall, showroom, museum
>display shelves, hotels, lounges

Advantage:

1. With samll and exquisite appearance
2. Adjustable lamp bead, meet different angle of light requirements
3. Various styles, you can pick whichever freely
4. Long lifespan

Instructions:
1. Lamps input is a low-voltage DC, please mention the positive terminal (the red) and the negative terminal (the black) when connecting.
2. If you want to add or reduce lamp, it must use series connection.
3. When installing make sure the power is off. Before connecting lamp and LED driver, collide the two lines to release spare power. Only after this procedure, then to electrify.
4. Don't pull the line crudely.


Good servious:

1. Good after-sales service, warranty 2 years.
2. Your inquiry related to our products or prices will be replied in 24hrs.
3. OEM&ODM, any your customized lightings we can help you to design and put into product.
4. Distributoership are offered for your unique design and some our current model
5. Protection of your sales area, ideas of design and all your private information

Model	LC7255
Power	1W/2W
Light source	high power led
CCT	3000-6000K
Beam angel	15° / 45° / 25°
Height	23mmH
Cut hole	dia 43mm
Surface color	silver/black
