• Model NO.：TOP-SB80
• Installation：Table Putting
• Pringting Carrier：Synthetic Paper
• Style：Modern
• Certification：CE, RoHS
• Size：Medium
• Frame Material：Aluminum Alloy
• Light Source：LED Lighting
• Panel Material：5mm Tempered Glass
• Scrolling Type：One Side Scrolling, One Side Static
• Backlit：LED or Fluorescent Tubes
• Outdoor Use：Available
• Certficates：Ce, RoHS
• Guarantee：One Year
• Power Supply：110V-AC220V
• Transport Package：Carton & Wooden Box
• Specification：CE
• Trademark：TOP
• Origin：China
• HS Code：9406000010
• Production Capacity：200unit,Month

Basic Info.

Model NO. TOP-SB80 Installation Table Putting Pringting Carrier Synthetic Paper Style Modern Certification CE, RoHS Size Medium Frame Material Aluminum Alloy Light Source LED Lighting Panel Material 5mm Tempered Glass Scrolling Type One Side Scrolling, One Side Static Backlit LED or Fluorescent Tubes Outdoor Use Available Certficates Ce, RoHS Guarantee One Year Power Supply 110V-AC220V Transport Package Carton & Wooden Box Specification CE Trademark TOP Origin China HS Code 9406000010 Production Capacity 200unit/Month

Product Description

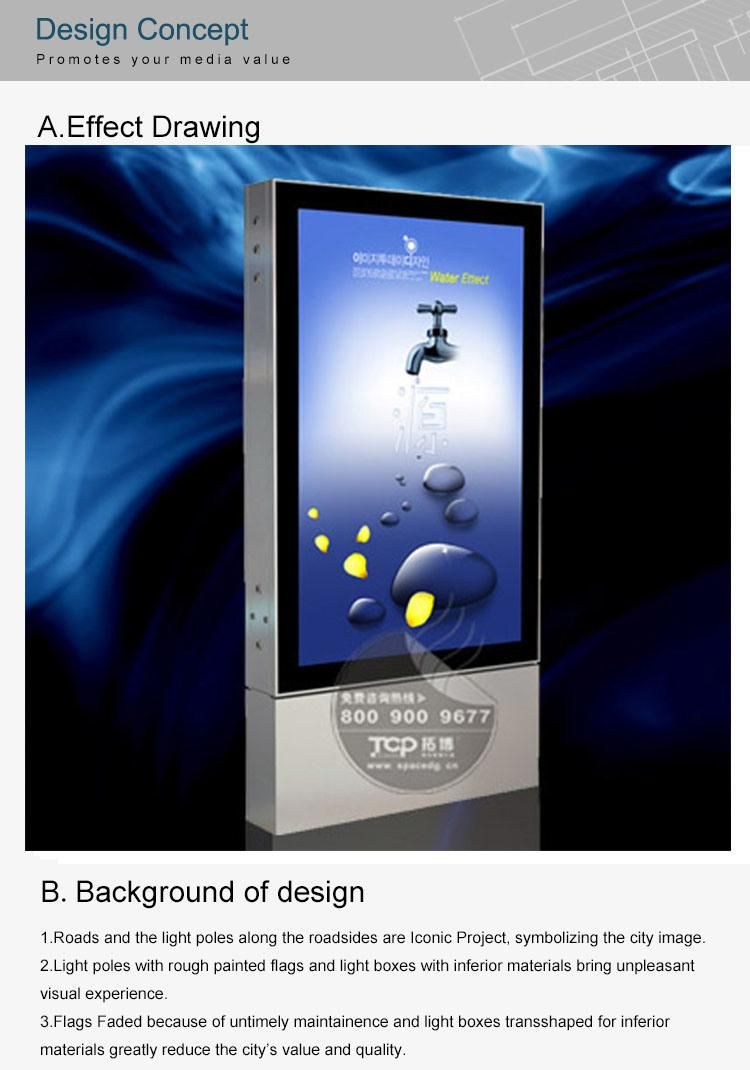

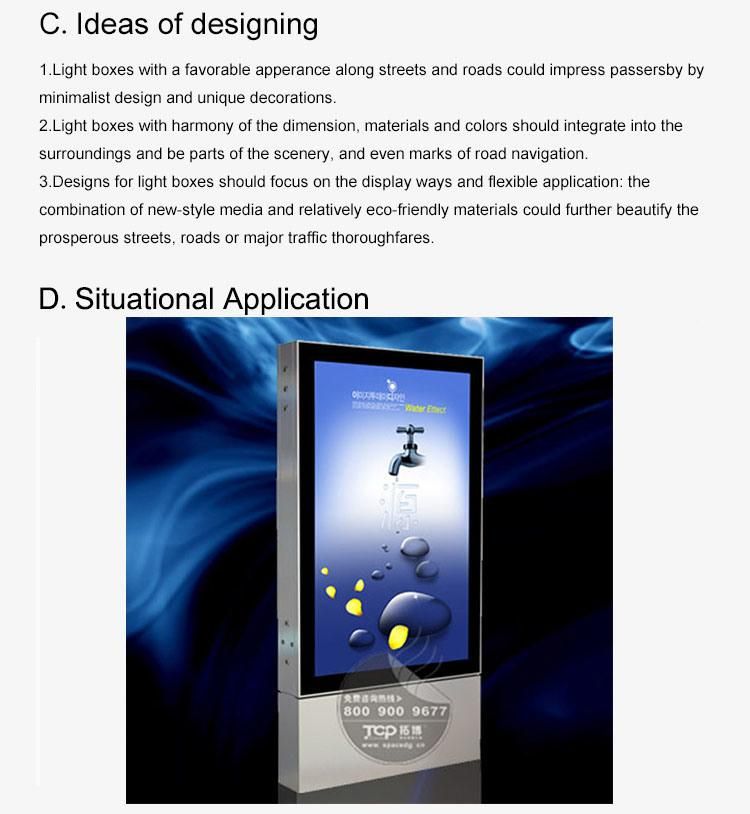

Medium LED Scrolling waterproof Light Box with base

1. Specification

Model	TOP-SB
Type	Double side scrolling, Single side scrolling, or One side scrolling, the other side staic
Overall Size	Customized
Poster Size	Customized
Scrolling system	TOP-BL53S (brushless system), the diameter of roller is 53mm
Frame material	Aluminum alloy, Galvanized Steel metal, or Stainless steel
Picture material	Lamp cloth, PVC Flex banner, slides, back lit film or PP photo paper
Color	Customized
Panel Material	Tempered glass or PC (polycarbonate) board, acrylic
Back light	LED lighting or Philip fluorescent lamp
Production Placement	Unipole or Stand support, Two legs support, Wall mounted
Poster capacity	2-6pcs
Power Supply	110V-AC220V
Power consumption	30W
Usage	Outdoor/Indoor
Package	Packed with Polyfoam bag + cardboard, carton or polywood box
Delivery from	Shenzhen or Guangzhou port
Certification	CE, Rosh, ISO, SGS

2. Features:

1. Display 6-8 posters, graphics and images, which can draw more attention
2. Anti-rust, Anti-corrosion, Shock resistance, heat radiation
3. One-year guarantee, arrange on-site installation guide engineer according to customers needs
4. Water-proof & dust-proof, weather-proof, heat radiation, wind resistance of 10 class/level
5. LED lighting, electric power-saving
6. Neat finish, light weight, corrosion resistant, easy to process and eco-friendly
7. Synchronized operation, don't need master machine
8. Short circuit protection, noise level down to 50dB
9. The time of turning off and turning on can be adjusted
10. Have 3 different scrolling speed from 60-220 round/min
11. Could work in the temperature between "-30ºC to +65ºC"
12. Automatic Poster Setting function

3. Application:

Airport, station, subway, metro, catering industry, entertainment industry, medical institution, golf course, supermarket, shopping mall, exhibition, stadium and gymnasium, financial industry, organ and enterprise, building adverting and billboard advertising, hotel, rail way station, bus station, lift, bank, Commercial center,
wedding photograph, large exhibition, mobile show, chain-store, restaurant, fast-food canteen, highway





4. Packaging Methods

For the Sample:    Wooden Case
For the Batch:  Polyfoam bag + cardboard, carton or polywood box




5. Foreign Fairs

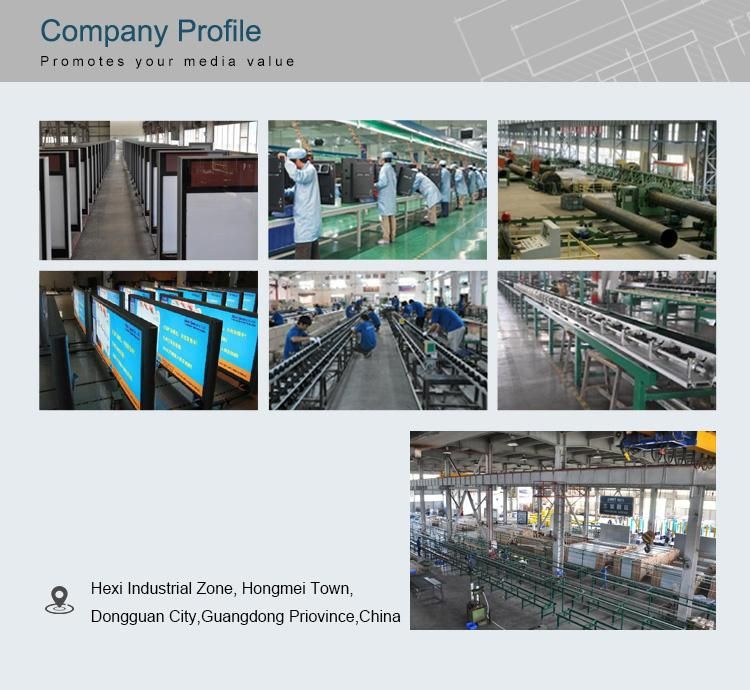

6.Company profile

Our company has been in the line of advertising equipment -trivision billboard and light box in China for almost 20 years. Our factory covers an area of 10,000 square meters in Dongguan City. Our business spreads to North America, Australia, Africa,Southeast Asia, middle East... . The business has won the trust of many well-known clients and successfully provided brands services for Samsung, Nokia,  and Carrefour in Dongguan, Knauf in Germany, Inter-medium in the Netherlands as well as POSH in Hong Kong POSH.





7.FAQ

Q:What is the advantage of SPACE Billboard?

A:1.Strong structure, wind resistance 150km/h
    2.Hot dip galvanized surface finished,good anti-rust and anti-corrosion
    3.Customized size
    4.With 20 years rich experence in this trade

Q:How about the after support?

A:SPACE will provide drawings for customers,the local installation team can install according to drawings.If necessary,SPACE will arrange engineers to construction site to guide installation
