• Power：40W
• Color Temperature(CCT)：2700-6500K
• MOQ：500PCS
• PF：0.9
• CRI：Ra>80
• Transport Package：Inner Box and Outside Carton
• Specification：1193*94*90mm
• Trademark：OEM
• Origin：China
• HS Code：9405409000
• Production Capacity：1000,15 Days

Basic Info.

Power 40W Color Temperature(CCT) 2700-6500K MOQ 500PCS PF 0.9 CRI Ra>80 Transport Package Inner Box and Outside Carton Specification 1193*94*90mm Trademark OEM Origin China HS Code 9405409000 Production Capacity 1000/15 Days

Product Description

FEATURES:



1. To improve on traditional lamp, so that the light efficiency is better

2. The shape uses the rounded design, has better ornamental value.

3. Clips adopts the design of screw holes have anti-theft function.

4. Lamp shade on the principle of optical design radian, let chimney has better smooth effect



Application:



Car parks, Industrial areas. Offices, corridors. Supermarkets and shops. Bakeries. Storage areas etc.




Specification :

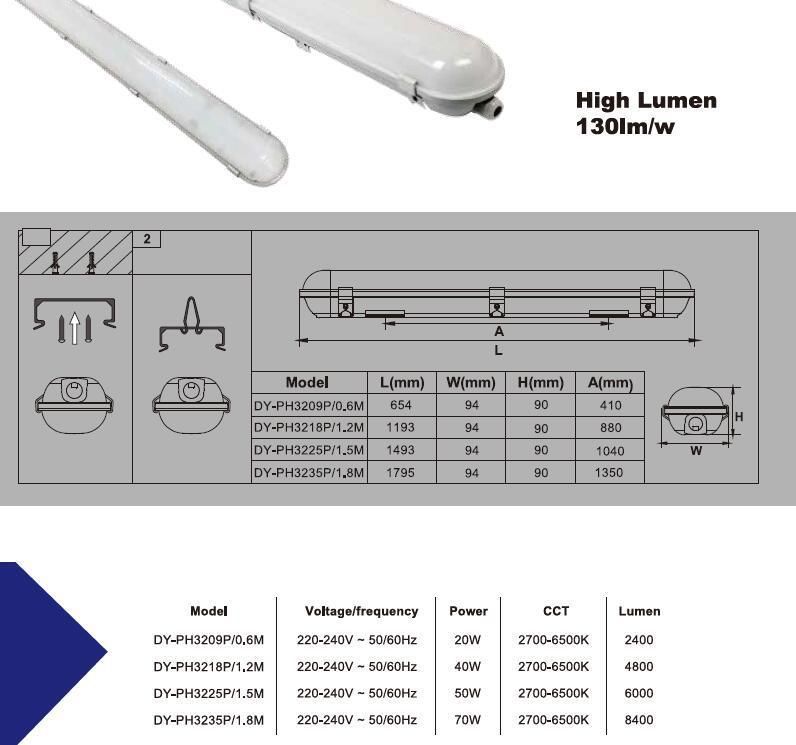

Model	Voltage/frequency	Power	CCT	Lumen	L(mm)	W(mm)	H(mm)	A(mm)
DY-PH3209P/0.6M	220-240V ~ 50/60Hz	20W	2700-6500K	2400	654	94	90	410
DY-PH3218P/1.2M	220-240V ~ 50/60Hz	40W	2700-6500K	4800	1193	94	90	880
DY-PH3225P/1.5M	220-240V ~ 50/60Hz	50W	2700-6500K	6000	1493	94	90	1040
DY-PH3235P/1.8M	220-240V ~ 50/60Hz	70W	2700-6500K	8400	1795	94	90	1350

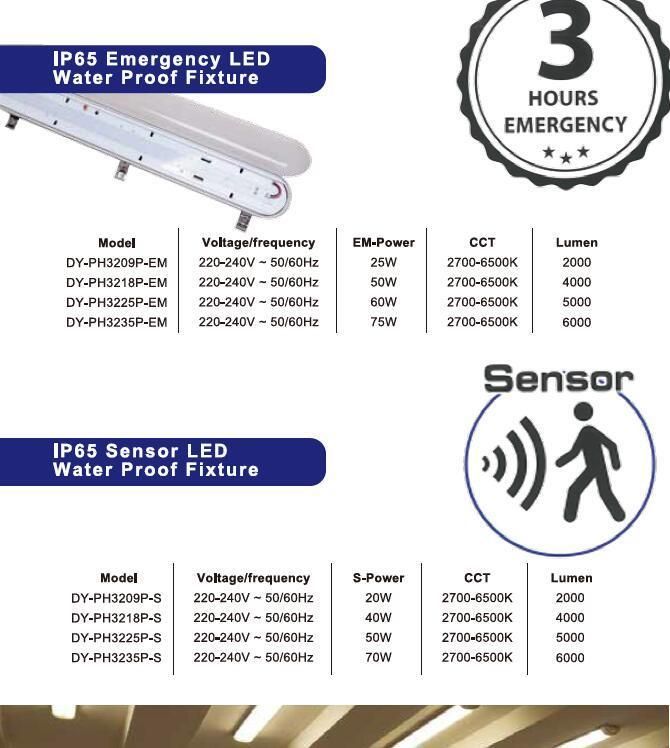

Model	Voltage/frequency	Power	CCT	Lumen	L(mm)	W(mm)	H(mm)	A(mm)
DY-PH3209P-EM	220-240V ~ 50/60Hz	25W	2700-6500K	2000	654	94	90	410
DY-PH3218P-EM	220-240V ~ 50/60Hz	50W	2700-6500K	4000	1193	94	90	880
DY-PH3225P-EM	220-240V ~ 50/60Hz	60W	2700-6500K	5000	1493	94	90	1040
DY-PH3235P-EM	220-240V ~ 50/60Hz	75W	2700-6500K	6000	1795	94	90	1350
Model	Voltage/frequency	Power	CCT	Lumen	L(mm)	W(mm)	H(mm)	A(mm)
DY-PH3209P-S	220-240V ~ 50/60Hz	20W	2700-6500K	2000	654	94	90	410
DY-PH3218P-S	220-240V ~ 50/60Hz	40W	2700-6500K	4000	1193	94	90	880
DY-PH3225P-S	220-240V ~ 50/60Hz	50W	2700-6500K	5000	1493	94	90	1040
DY-PH3235P-S	220-240V ~ 50/60Hz	70W	2700-6500K	6000	1795	94	90	1350
