• Model NO.：TH-W0445E
• Voltage：12V
• Voltage Type：DC
• LED Type：Epistar
• Certification：CE, EMC, FCC, RoHS
• Operating Voltage：9~60V DC
• Power Output：45 Watts
• LEDs：15PCS*2W Epistar
• Lumen：3000lm
• Optional Beam：High,Low Beam
• Waterproof Rate：IP68
• Bracket：Without Mounting Bracket
• Materia：Diecast Aluminum Housing, Polycarbonate Lens
• Dimension：19.8(L)*14(W)*7.4(T)Cm
• Net Weight：0.67kg
• Transport Package：One Piece in One Box, Eighteen Boxes in One Carton
• Specification：Carton size: 47*39*37cm
• Trademark：TEEHON
• Origin：Guangzhou China
• HS Code：8512201000
• Production Capacity：90000 PCS Per Month

Basic Info.

Model NO. TH-W0445E Voltage 12V Voltage Type DC LED Type Epistar Certification CE, EMC, FCC, RoHS Operating Voltage 9~60V DC Power Output 45 Watts LEDs 15PCS*2W Epistar Lumen 3000lm Optional Beam High/Low Beam Waterproof Rate IP68 Bracket Without Mounting Bracket Materia Diecast Aluminum Housing, Polycarbonate Lens Dimension 19.8(L)*14(W)*7.4(T)Cm Net Weight 0.67kg Transport Package One Piece in One Box, Eighteen Boxes in One Carton Specification Carton size: 47*39*37cm Trademark TEEHON Origin Guangzhou China HS Code 8512201000 Production Capacity 90000 PCS Per Month

Product Description

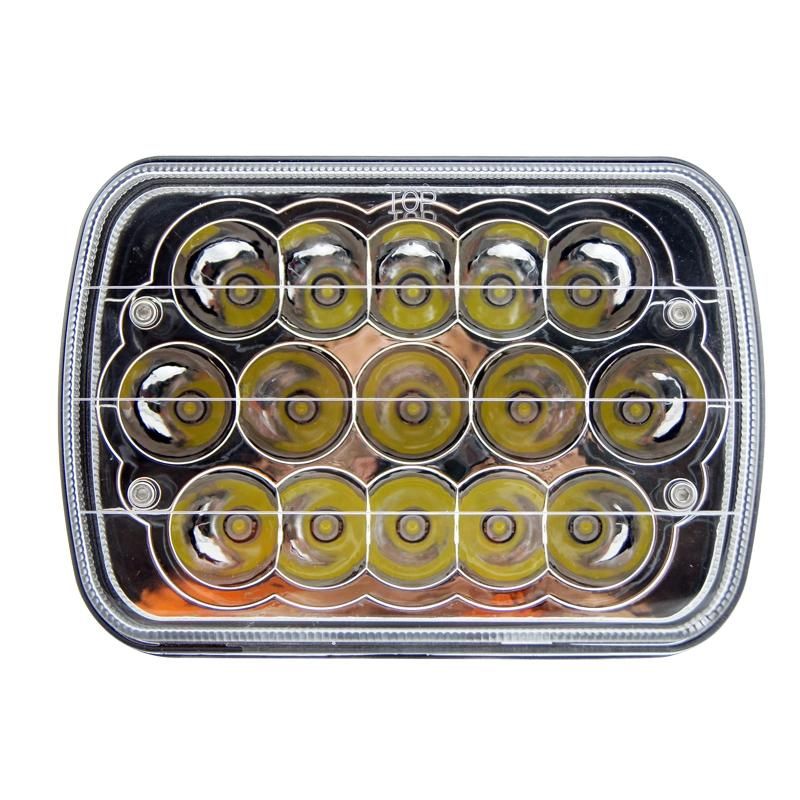

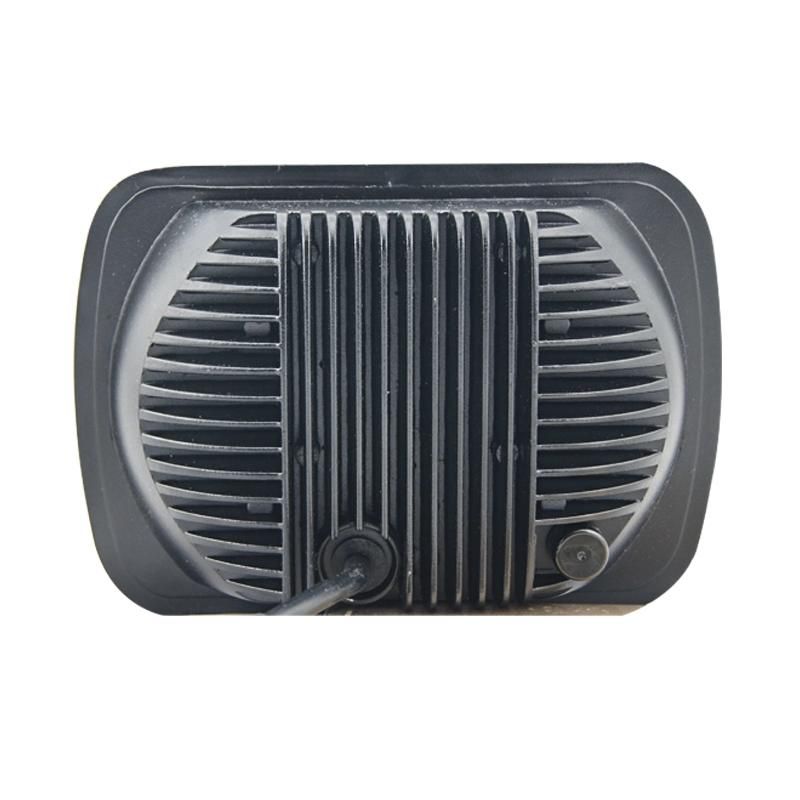

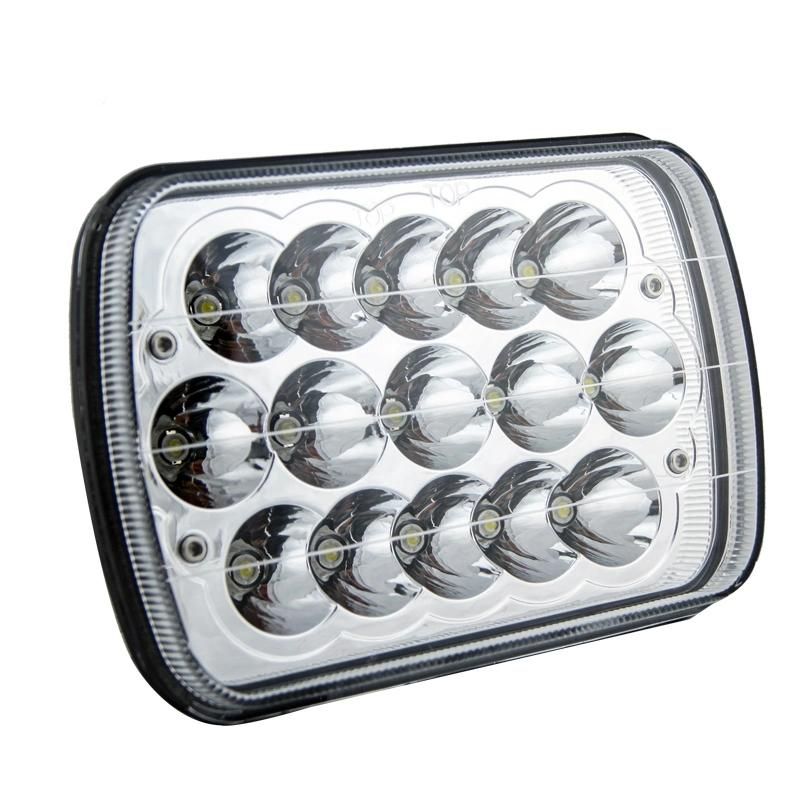

7X5 Inch 45W LED Headlight for Motorcycle with DRL

1. DC 9~60V ultra-wide operating voltage, applies to various vehicles;
2. Concise & mature designed circuit board ensures high quality;
3. 0.2% extreme low defective rate
 due to the adoption of Korean components;
4. Standard thickness of aluminum housing for quick heat dissipation;
5. IP68 waterproof.
6. High/low beam switchable
7. With a breathing hole
8. Without mounting bracket
9. With daytime running light (DRL)


The Specification of led auxiliary headlight:

ITEM	DESCRIPTION
Model Number	TH-W0445E
Power Output	45 Watts
Operating Voltage	DC9~60V
LED Chip	15pcs*2W Epistar
Lumens	3000LM
Color Temperature:	6000K
IP rating	IP67/IP68

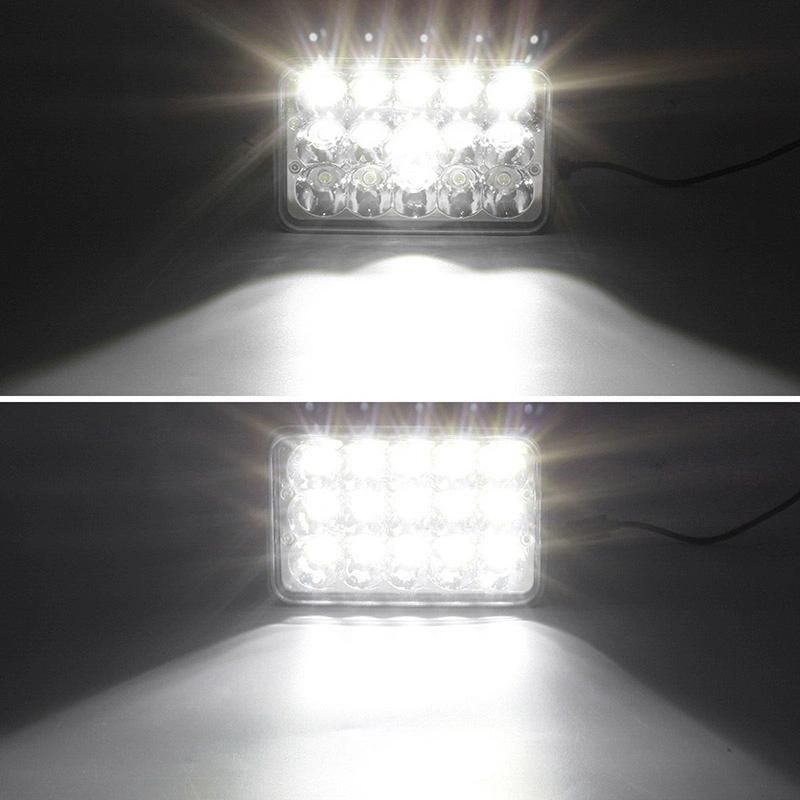

Beam Pattern	High/low beam switchable,With daytime running light (DRL)
Housing Material	Diecast aluminum housing,With a breathing hole
Mounting Bracket	Without mounting bracket
Lens Material	polycarbonate lens
Housing Shape	Rectangle
Housing Color	Black
Size	7"x5"
Operating Temperature	-45°C - 60°C
Life Span	Above 50,000 hours
Wire Length	40cm
Warranty	12 months

Industrial led light Application:
truck headlight Detailed Image:

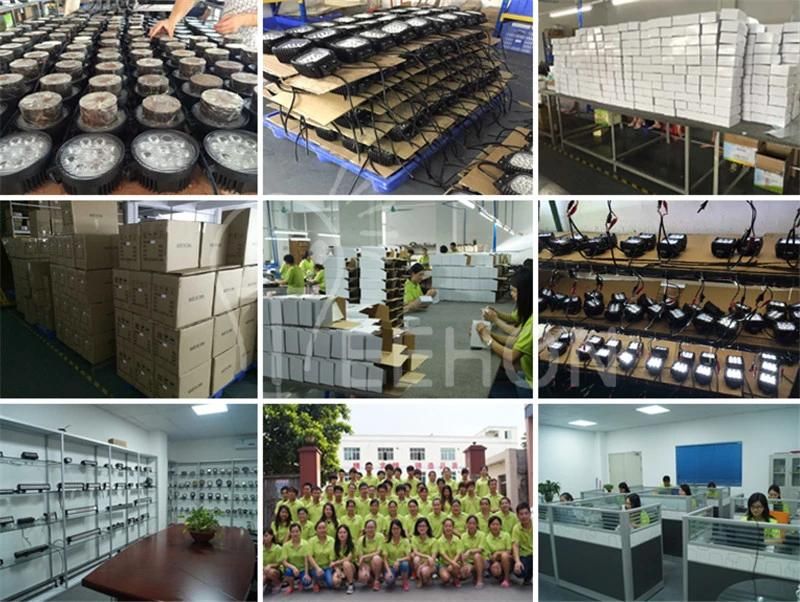

Company and Factory:
Established in 2008,Teehon has been dedicated in the research, development and manufacturing of LED light bar,High Power Working Light and LED High Power Light. Our factory own 7 production lines : 1 LED packaging line, 2 SMT production lines and 4 LED light production lines. The cost is controlled accurately and the quality is guaranteed.

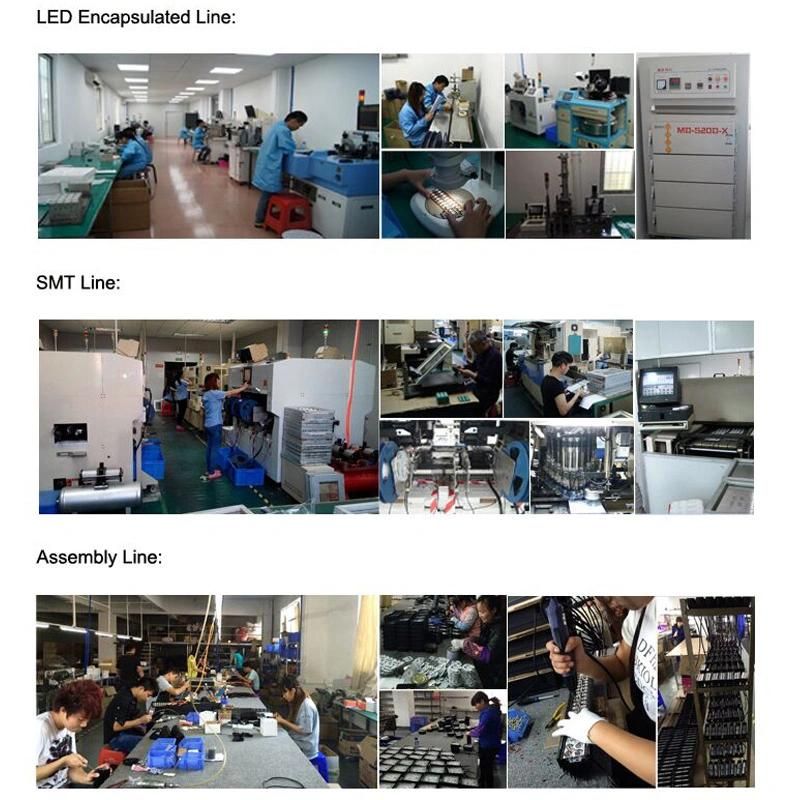

Production Facilities:

Name	No.	Name	No.
(Fuji, Panasonic, Casio) SMT machines	4	pressure testers	3
hot air-reflow systems	2	UV-VIS-Near IR Spectro photo colorimeter	2
wire peeling machines	4	LCR Digital Electric Bridges	3
laser carving machines	2	Oscilloscopes	5
automatic wire peeling machines	2	integrating sphere	1

Size and Package LED Motorcycle Headlight:

Name	piece	G.W	Size
One piece	1pcs	0.78kgs	19.8*14*7.4cm
One carton	18pcs/ctn	14kgs	47*39*37cm


Shipping for Auto Motorcycle Headlight:

Sample order	Shipping by express like DHL, FEDEX, TNT, EMS about 3-5days
Bulk order	Shipping by sea about 7-15days


Why choose us:
1.Provide complete ODM&OEM solutions, which include LEDs producing, circuit board designing & producing, as well as housing designing
2.Strong R&D capabilities: to develop a new product costs only 30 days, we release at least 2 new products each month.
3.Powerful production strength: we can produce 15,000pcs LED light bar & 90,000pcs Rohs Ce Heavy Duty LED each month.
4.Extraordinary quality & cost control ability: we are the only led work light manufacturer who makes the light from beginning to end, the defective rate of product is lower to 0.2%.
 The LEDs will be lighten up for 6 times before delivery, and each light will be tested strictly under water according to IP68 waterproof standard.
  A modern factory: owns a high-class LED encapsulation laboratory, and 5 high speed full automatic SMT machines, the whole factory is equipped with over 30   advanced producing & testing facilities

FAQ:
Q: What's your led auxiliary headlight after-sales service and warranty?
A: we promise to bear the following responsibility when defective product is found:
1.12 months warranty from the first day of receiving goods
2. Replacements would be sent with goods of your next order
3. Refund for defective products if customers require
Q: What's the Industrial led light MOQ?
A: MOQ is 10pcs for standardized products; for customized products, MOQ should be negotiated in advance. There is no MOQ for sample orders.
Q: How long is truck headlight lead time?
A: The lead time for sample orders is 3-5 days, for bulk orders is 5-15 days.
Q: How to place LED High Power Light orders?
A: 1. Email us the model, beam pattern and quantity, consignee information, shipping way
and payment terms
2. Proforma Invoice made and sent to you
3. Complete Payment after confirming the PI
4. Confirm Payment and arrange production
