• Model NO.：90016A
• Style：Modern simplism style
• Base Type：LED+MPCB
• Voltage：DC12V,DC24V
• Certification：CE, EMC, RoHS
• Working Lifetime：>30000hrs
• Beam Angle：25,30,45,60 Degrees
• LED Chip：Epistar,Bridgelux
• Working Temperature：-20-40 Centigrade
• LED Brand：Bridgelux,Edison,CREE
• Housing& Cover：304#(316# Is Available) Stainless Steel
• Light Source：1X2w LED
• Other Models：1W,2W,3W Single Color, RGB 3in1
• Transport Package：Shockproof Carton Box
• Specification：24PCS CTN
• Trademark：JP Lighting
• Origin：Dongguan, Guangdong, China
• HS Code：94054090
• Production Capacity：5000PCS,Month

Basic Info.

Model NO. 90016A Style Modern simplism style Base Type LED+MPCB Voltage DC12V/DC24V Certification CE, EMC, RoHS Working Lifetime >30000hrs Beam Angle 25/30/45/60 Degrees LED Chip Epistar/Bridgelux Working Temperature -20-40 Centigrade LED Brand Bridgelux/Edison/CREE Housing& Cover 304#(316# Is Available) Stainless Steel Light Source 1X2w LED Other Models 1W/2W/3W Single Color, RGB 3in1 Transport Package Shockproof Carton Box Specification 24PCSCTN Trademark JP Lighting Origin Dongguan, Guangdong, China HS Code 94054090 Production Capacity 5000PCS/Month

Product Description

Pool Lights Led Fishing Swimming Stainless 304 Or 316 Diving Boat Flash Marine Lighting Underwater Light
IP68 Mini Underwater LED Inground Light Pond Light Stainless Steel 1W 2W Recessed LED Swimming Pool Lamp Dimmable LED Underwater Lamps for Lawn Garden Fountain Swimming Pool Pond Lights

These tiny type LED recessed underwater lights are widely used in swimming pools, hotel fish ponds, landscape pools. Precision-made structural waterproof makes it suitable for long-term underwater work.

Main Features1.DC 12V/24V working voltage, conforms to the safety electricity standard for underwater lights.2.The lamp body is made of stainless steel 304# or 316#, excellent corrosion resistance.3.The structural waterproof grade is IP68, size of each component is precisely created, with matched waterproof silicone ring to achieve real waterproof.4.Lens: Made of PMMA, also known as Acrylic or Plexiglas optical lens, light efficiency ≥ 85%.5.Power cable is made of rubber with EU certification, wear resistance, corrosion resistance, heat resistance and not easily deformed. Default length is 1m, for convenient maintenance and repair.6.Multiple light color options: cold white, warm white, neutral white, red, green, yellow, blue, RGB etc.7.Multiple control methods are supported: constant light, RGB simple control, DALI, DMX512 parallel external control.8.Long life, up to 50,000 hours.
 Main Specifications
Front Cover & Housing: Molding shaped 304# or 316# stainless steel
LED Source: 1*1W/2W/3W RGB3in1
Lens: Optical lens, efficiency ≥85%
Glass: Tempered glass T=6mm
Cable gland: IP-68 PG-11 copper and nickel coated
Light Color: Single color / RGB
Working temperature: -20ºC to 40ºC
Driver: Constant current output
           Single color LED=1-circuit output
           RGB 3in1 LED=3-circuit output
MCPCB: Aluminum, coefficient of heat conductivity≥2.0w/mk
Power cable: H05RN-F 2x0.75mm² L=1m (for single color)
                      H05RN-F 4x0.75mm² L=1m (for RGB)
Mounting sleeve: Plastic

Product Models

Item No.	Lighting Source	Lens Beam Angle (°)	Consumption(Watt)	Input Voltage(V)	IK Rate
90011A	1x1W	25°/30°/45°/60°	1.1	DC12V/DC24V	06
90012A	1x2W	25°/30°/45°/60°	2.4	DC12V/DC24V	06
90016A	1x3W RGB3in1	25°/30°/45°/60°	3.2	DC12V/DC24V	06

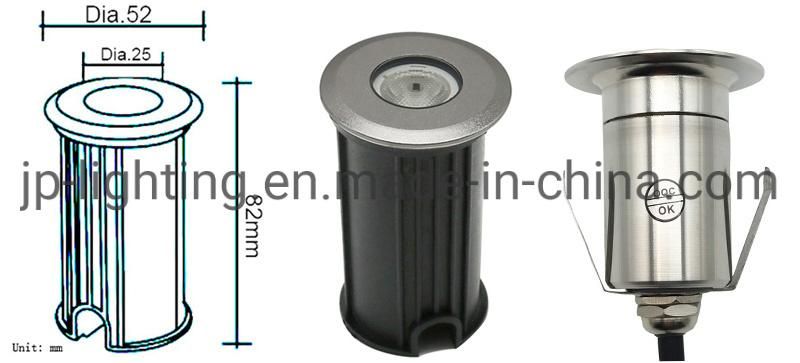

Product Dimension

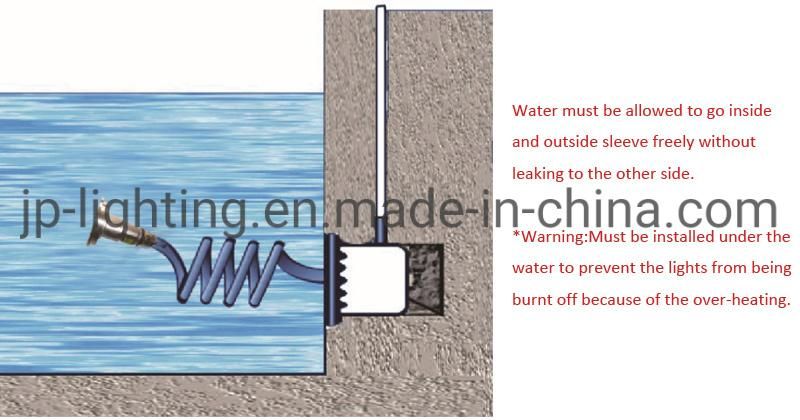

Product Installation

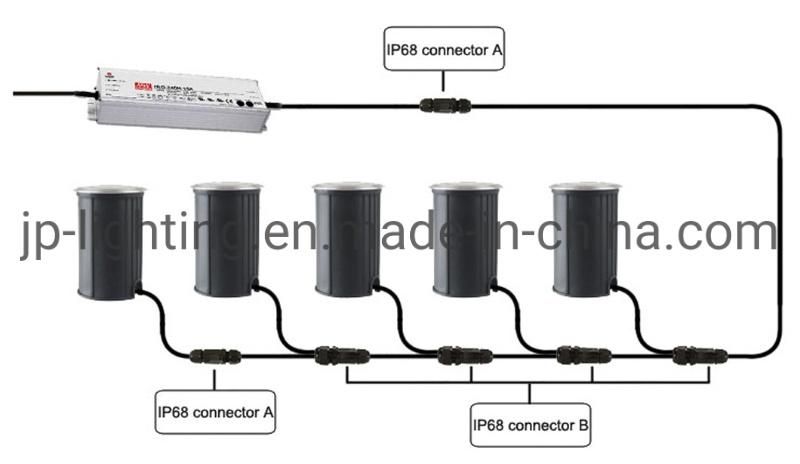

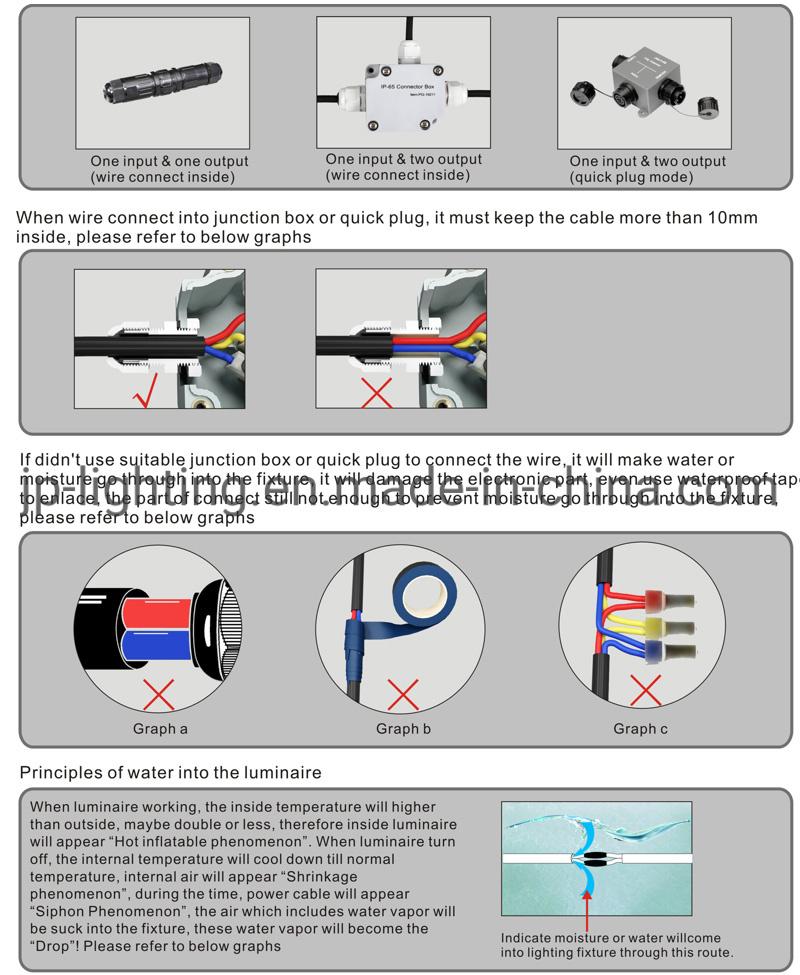

Product Wiring Diagram

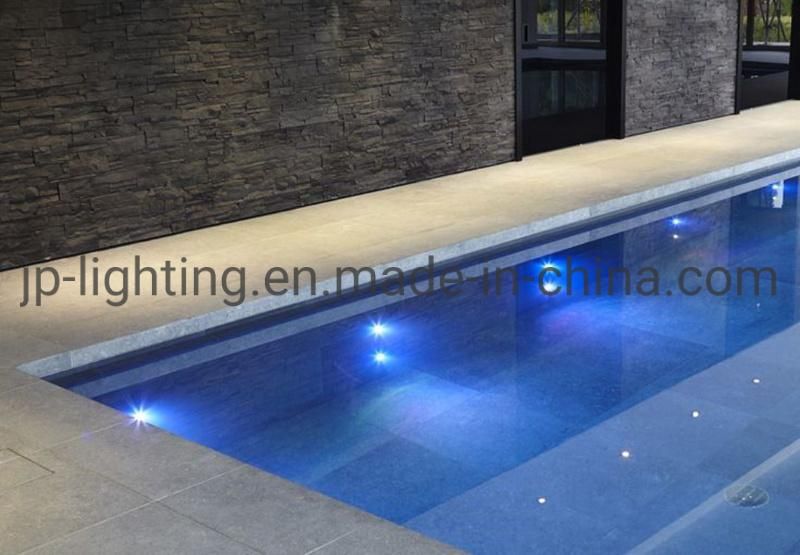

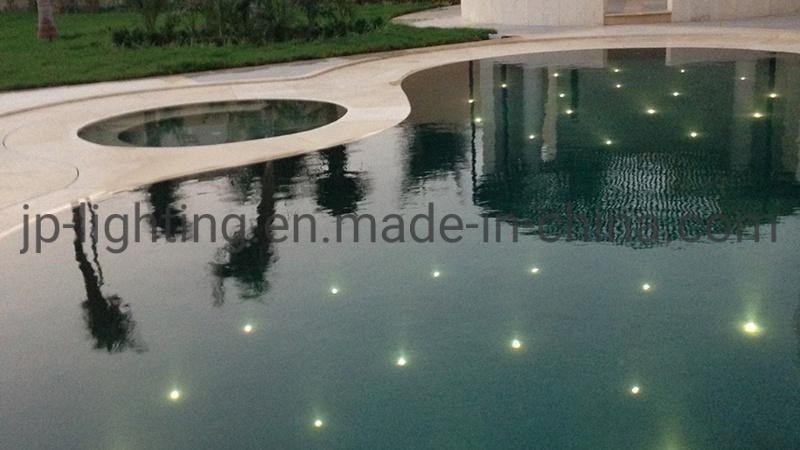

Product Application
