• Model NO.：TH-W0112E Thick
• Voltage：12V
• Voltage Type：DC
• LED Type：Epistar
• Certification：CE, EMC, FCC, RoHS
• Operating Voltage：9~60V DC
• Power Output：12 Watts
• LEDs：4PCS*3W Epistar
• Lumen：800lm
• Optional Beam：Flood Beam Only
• Waterproof Rate：IP68
• Bracket：Black Painted Iron Bracket
• Materia：Diecast Aluminum Housing, Polycarbonate Lens
• Dimension：8.2(D)*6.4(T)Cm
• Net Weight：0.32kg
• Transport Package：One Piece in One Box, Fourty Boxes in One Carton
• Specification：Carton size: 43*39*22cm
• Trademark：TEEHON
• Origin：Guangzhou China
• HS Code：8512201000
• Production Capacity：90000 PCS Per Month

Basic Info.

Model NO. TH-W0112E Thick Voltage 12V Voltage Type DC LED Type Epistar Certification CE, EMC, FCC, RoHS Operating Voltage 9~60V DC Power Output 12 Watts LEDs 4PCS*3W Epistar Lumen 800lm Optional Beam Flood Beam Only Waterproof Rate IP68 Bracket Black Painted Iron Bracket Materia Diecast Aluminum Housing, Polycarbonate Lens Dimension 8.2(D)*6.4(T)Cm Net Weight 0.32kg Transport Package One Piece in One Box, Fourty Boxes in One Carton Specification Carton size: 43*39*22cm Trademark TEEHON Origin Guangzhou China HS Code 8512201000 Production Capacity 90000 PCS Per Month

Product Description

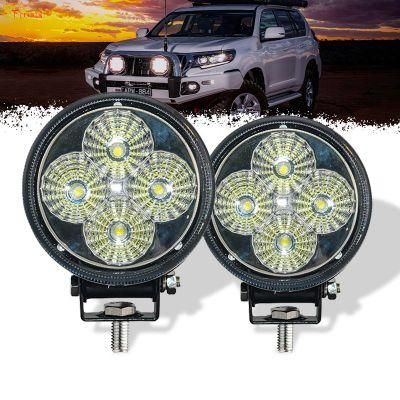

Round LED Auto Lamp Light 12W Flood LED Bulbs

1. DC 9~60V ultra-wide operating voltage, applies to various vehicles;
2. Concise & mature designed circuit board ensures high quality;
3. 0.2% extreme low defective rate
 due to the adoption of Korean components;
4. Standard thickness of aluminum housing for quick heat dissipation;
5. IP68 waterproof.
6. With an air breather

The Specification of Light LED Lamp:

ITEM	DESCRIPTION
Model Number	TH-W0112E Thick
Power Output	12 Watts
Operating Voltage	DC9~60V
LED Chip	4PCS*3W Epistar
Lumens	800LM
Color Temperature:	6000K
IP rating	IP67/IP68
Optional Beam	Flood Beam
Housing Material	Diecast aluminum housing
Bracket	Black painted iron bracket
Lens Material	polycarbonate lens
Housing Shape	Round
Size	3.2"
Operating Temperature	-45°C - 60°C
Life Span	Above 50,000 hours
Wire Length	40cm
Warranty	12 months

LED Application:

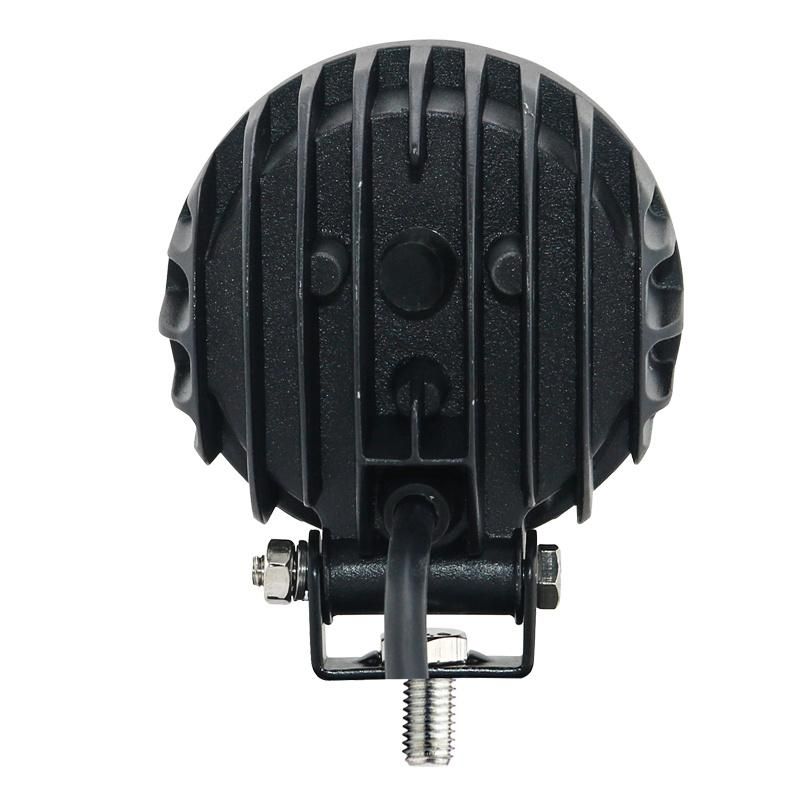

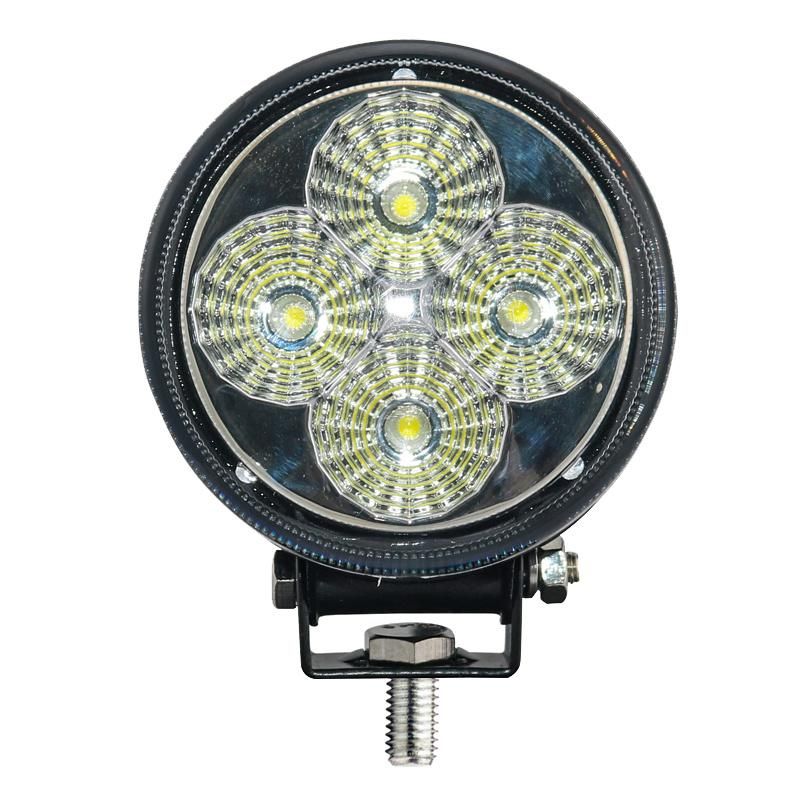

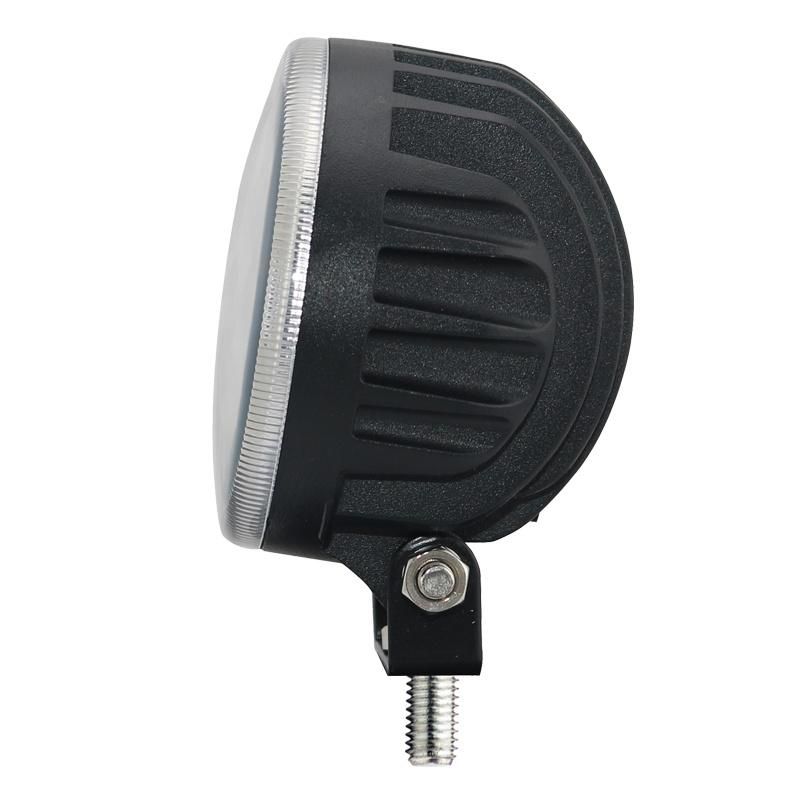

Car LED Working Lamp Detailed Image:

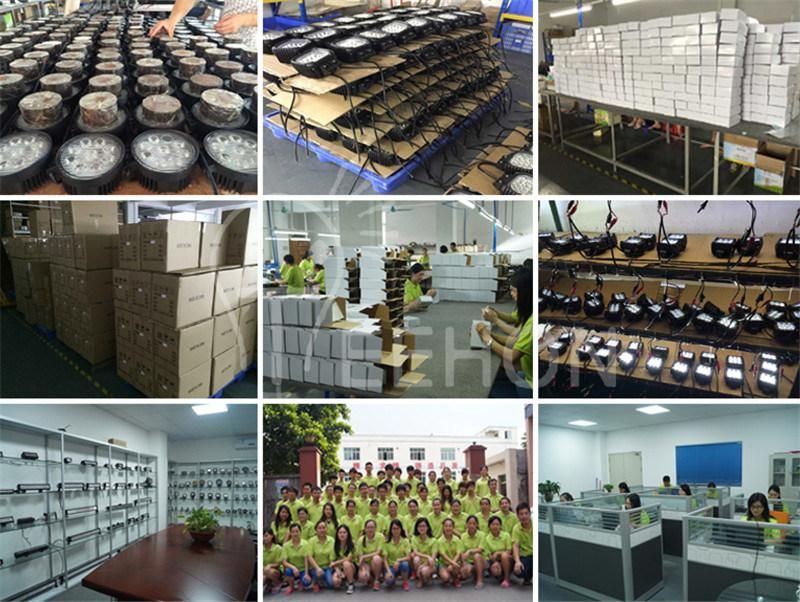

Company and Factory:
Established in 2008,Teehon has been dedicated in the research, development and manufacturing of LED light bar,Motorcycle Light Bulbs and  LED Truck Headlight. Our factory own 7 production lines : 1 LED packaging line, 2 SMT production lines and 4 LED light production lines. The cost is controlled accurately and the quality is guaranteed.

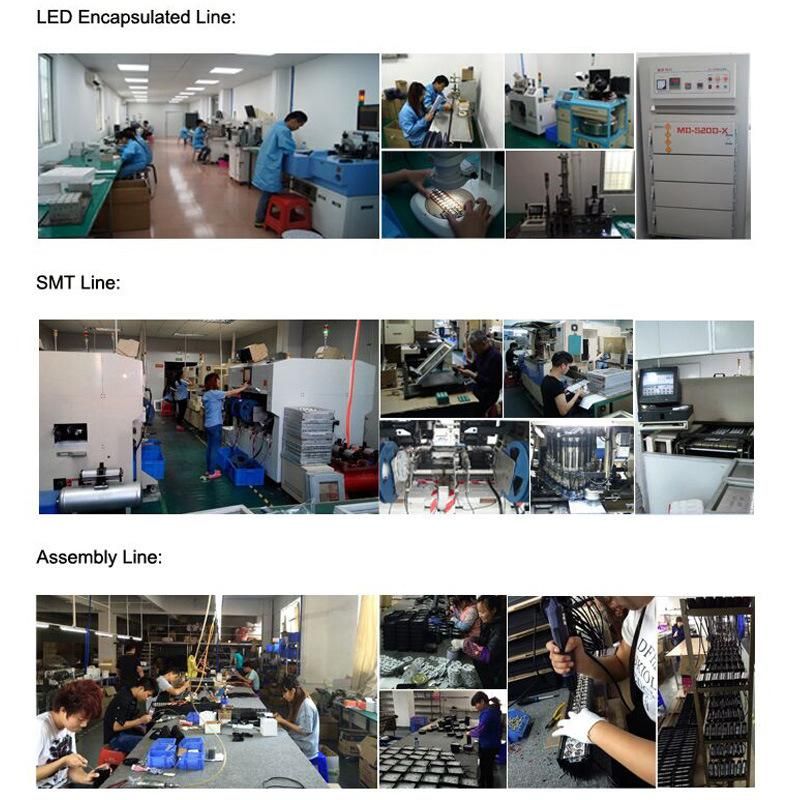

Production Facilities:

Name	No.	Name	No.
(Fuji, Panasonic, Casio) SMT machines	4	pressure testers	3
hot air-reflow systems	2	UV-VIS-Near IR Spectro photo colorimeter	2
wire peeling machines	4	LCR Digital Electric Bridges	3
laser carving machines	2	Oscilloscopes	5
automatic wire peeling machines	2	integrating sphere	1

Size and Package Light LED Bulb:

Name	piece	G.W	Size
One piece	1pcs	0.32kgs	9*7.5*10cm
One carton	40pcs/ctn	12.58kgs	43*39*22cm


Shipping for LED Bulb:

Sample order	Shipping by express like DHL, FEDEX, TNT, EMS about 3-5days
Bulk order	Shipping by sea about 7-15days


Why choose us:
1.Provide complete ODM&OEM solutions, which include LEDs producing, circuit board designing & producing, as well as housing designing
2.Strong R&D capabilities: to develop a new product costs only 30 days, we release at least 2 new products each month.
3.Powerful production strength: we can produce 15,000pcs LED light bar & 90,000pcs Rohs CE Auto Light Bulb each month.
4.Extraordinary quality & cost control ability: we are the only led work light manufacturer who makes the light from beginning to end, the defective rate of product is lower to 0.2%.
 The LEDs will be lighten up for 6 times before delivery, and each light will be tested strictly under water according to IP68 waterproof standard.
  A modern factory: owns a high-class LED encapsulation laboratory, and 5 high speed full automatic SMT machines, the whole factory is equipped with over 30   advanced producing & testing facilities

FAQ:
Q: What's your Light LED Lamp after-sales service and warranty?
A: we promise to bear the following responsibility when defective product is found:
1.12 months warranty from the first day of receiving goods
2. Replacements would be sent with goods of your next order
3. Refund for defective products if customers require
Q: What's the LED MOQ?
A: MOQ is 10pcs for standardized products; for customized products, MOQ should be negotiated in advance. There is no MOQ for sample orders.
Q: How long is Car LED Working Lamp lead time?
A: The lead time for sample orders is 3-5 days, for bulk orders is 5-15 days.
Q: How to place Motorcycle Light Bulbs orders?
A: 1. Email us the model, beam pattern and quantity, consignee information, shipping way
and payment terms
2. Proforma Invoice made and sent to you
3. Complete Payment after confirming the PI
4. Confirm Payment and arrange production
