• Model NO.：TY-G-100W-F
• Warranty：1 Year
• Housing Material：Film
• Life：50000h
• Certification：CE, RoHS
• Voltagevf(V)：32-34V
• Watts：100W
• Wavelength：380-850nm
• Transport Package：10PCS
• Trademark：UVTaoYuan
• Origin：Shenzhen, China
• HS Code：901390200
• Production Capacity：50000 Pieces,Year

Basic Info.

Model NO. TY-G-100W-F Warranty 1 Year Housing Material Film Life 50000h Certification CE, RoHS Voltagevf(V) 32-34V Watts 100W Wavelength 380-850nm Transport Package 10PCS Trademark UVTaoYuan Origin Shenzhen, China HS Code 901390200 Production Capacity 50000 Pieces/Year

Product Description

1.  LED Grow Light Chip 380-840nm 100W Product parameter table:

Part Number	Emitted Color	VoltageVf(V)	Current(mA)	Wave Length(nm)	Output power(LM)	Angle 2θ 1/2
TY-G-30-100W	Pink	30-34V	3400-3500mA	380-840nm	2600-2800LM	120

2.Full spectrum 100w led grow chip
LED grow chip details:
Power: 30-100W
Chip Qty: 30-100pcs
Chip brand: Epileds
Holder:high quality red copper holder
Wire:pure 1.2mm gold wire
Current:3.5A
Voltage:30-34V

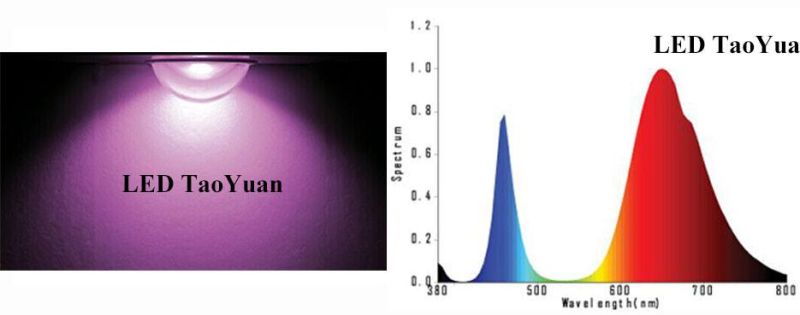

Color ratio:full spectrum 380nm-840nm
Lifespan:50000h

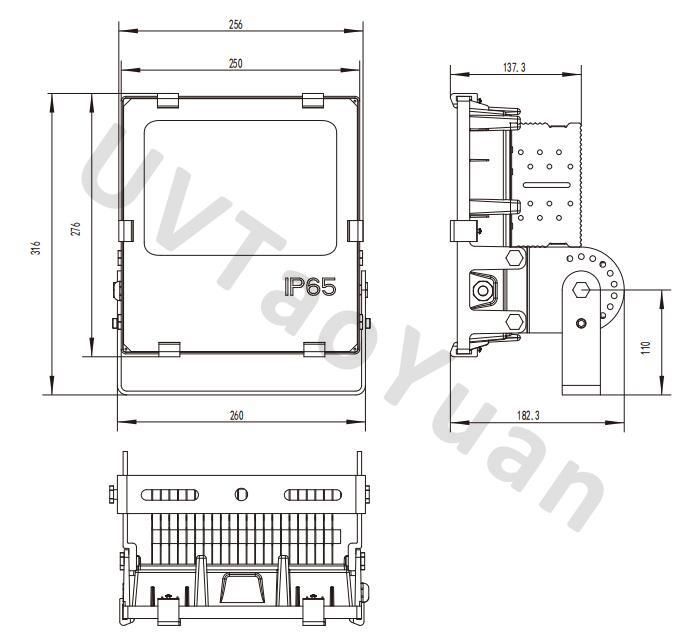

Casing Dimensions(Unit:mm)

Packaging Photo
Application:

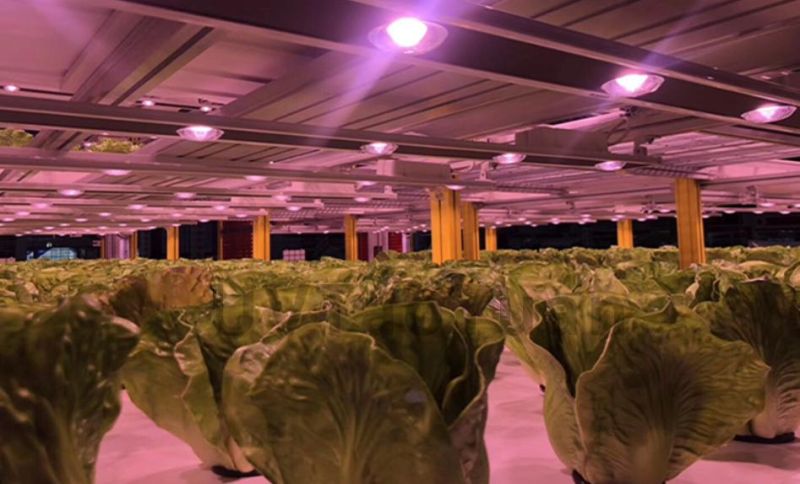

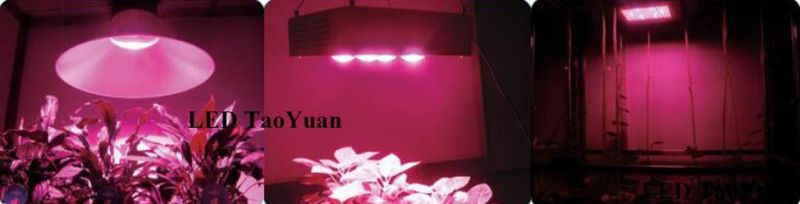

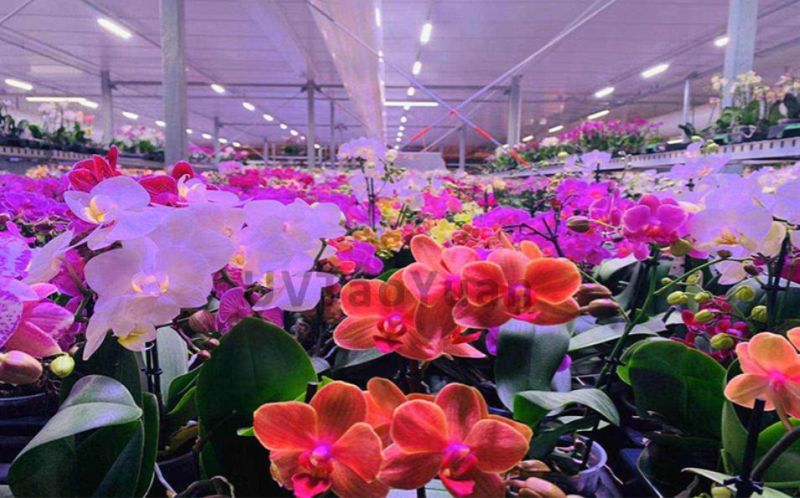

The wavelength of the plant light is very suitable for the growth, flowering and fruiting of plants. Generally, indoor plants and flowers will grow worse and worse over time. The main reason is the lack of light irradiation. It can promote its growth, prolong the flowering period and improve the quality of flowers; and applying this high-efficiency light source system to agricultural production in greenhouses, greenhouses and other facilities, on the one hand, can solve the problem of lack of sunlight leading to the decrease in the taste of greenhouse vegetables such as tomatoes and cucumbers. On the other hand, it can also make winter greenhouse solanaceous vegetables go on the market before and after the Spring Festival in advance, so as to achieve the purpose of off-season cultivation.

1. As a supplementary light, the light can be enhanced at any time of the day, which can prolong the effective lighting time.

2. Whether at dusk or at night, it can effectively extend and scientifically control the light required by plants.

3. In the greenhouse or plant laboratory, it can completely replace natural light and promote plant growth.

4. Completely solve the situation of watching the sky and eat in the seedling stage, and arrange the time reasonably according to the delivery date of the seedlings.

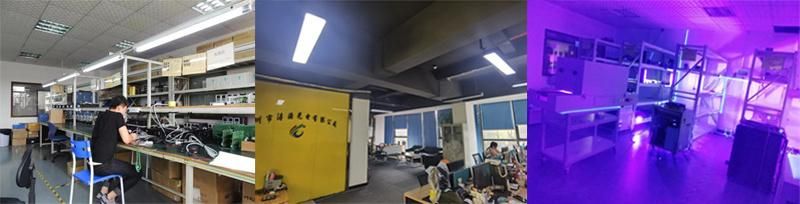

TAOYUAN ELECTRON (HK) LIMITED is specializing in the production and sales. Our main products include high power LED,
COB LED,UV LED series (LED 1W, LED 3W, LED 5W, 10W, LED 30W, LED 50W, LED 100W), LED Flood lights, LED Drivers,
UV curing lamps and LED light strip. Collected advantages of exquisite technology and experienced talents, we are committed
to further researching and manufacturing, to create a new LED world.
