• Model NO.：TH-W0181E
• Voltage：12V
• Voltage Type：DC
• LED Type：Epistar
• Certification：CE, C-tick, EMC, FCC, RoHS
• Working Voltage：9~60V DC
• Power Output：81W
• Lumen：5400lm
• LEDs：27PCS*3W Epistar
• Dual-Colour：Blue,Red,Amber,Green,White LEDs in Center
• Optional Beam：Spot Beam or Flood Beam
• Housing Color：Black,Red,Yellow
• Shape：Round
• Size：7 Inch
• Material：Diecast Aluminum Housing, Stainless Steel Bracket,
• Transport Package：Foam Protection Inside, Neutral Paper Box Packing
• Specification：CE FC ROHS IP68 and CE approved
• Trademark：Teehon
• Origin：Guangzhou China
• HS Code：8512201000
• Production Capacity：30000PCS Per Month

Basic Info.

Model NO. TH-W0181E Voltage 12V Voltage Type DC LED Type Epistar Certification CE, C-tick, EMC, FCC, RoHS Working Voltage 9~60V DC Power Output 81W Lumen 5400lm LEDs 27PCS*3W Epistar Dual-Colour Blue/Red/Amber/Green/White LEDs in Center Optional Beam Spot Beam or Flood Beam Housing Color Black/Red/Yellow Shape Round Size 7 Inch Material Diecast Aluminum Housing, Stainless Steel Bracket, Transport Package Foam Protection Inside, Neutral Paper Box Packing Specification CE FC ROHS IP68 and CE approved Trademark Teehon Origin Guangzhou China HS Code 8512201000 Production Capacity 30000PCS Per Month

Product Description

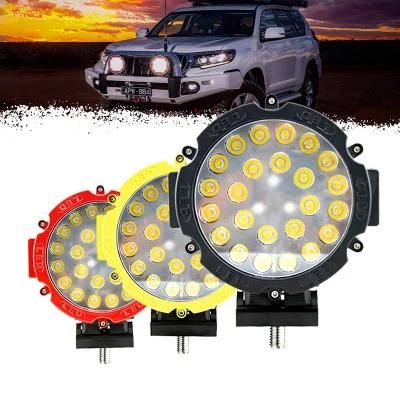

2017 Offroad LED Work Light 81W for driving car





Specification:

ITEM	DESCRIPTION
Model Number	TH-W0181E
Power Output	81Watts
Operating Voltage	DC9~60V
LED Chip	3W Epistar*27pcs
Lumens	5400LM
Color Temperature:	6000K
IP rating	IP67/IP68
Beam Pattern	Spot beam/Flood beam
Dual-colour	blue/red/amber/green/white LEDs in center
Housing Material	Aluminum
Mounting Bracket	Stainless steel
Lens Material	PC
Housing Shape	Round
Housing Color	yellow/black/red
Size	7"
Operating Temperature	-45°C - 60°C
Life Span	Above 30,000 hours
Wire Length	40cm
Warranty	12 months

Product Feature:
1. DC 9~60V ultra-wide operating voltage, applies to various vehicles;
2. Concise & mature designed circuit board ensures high quality;
3. 0.2% extreme low defective rate due to the adoption of Korean components;
4. Standard thickness of aluminum housing for quick heat dissipation;
5. IP67, IP68K waterproof.
6.Dual-colour, blue/red/amber/green/white LEDs in center
Application:
LED work lights are widely applied to agricultural machinery, harvester, tractor, bulldozer, snowplow,
construction industries, heavy-duty trucks, trailer, crane, excavator, mining, forklifts, off-road vehicles,
4X4 vehicle, SUV, ATV, UTV, jeep, transportation, bus, trains, vessels/marine, motorcycle, tanks,
fire engines, etc

 Company and Factory:
Established in 2008,Teehon has been dedicated in the research, development and manufacturing of LED light bar, LED work light and LED headlight. Our factory own 7 production lines : 1 LED packaging line, 2 SMT production lines and 4 LED light production lines. The cost is controlled accurately and the quality is guaranteed.

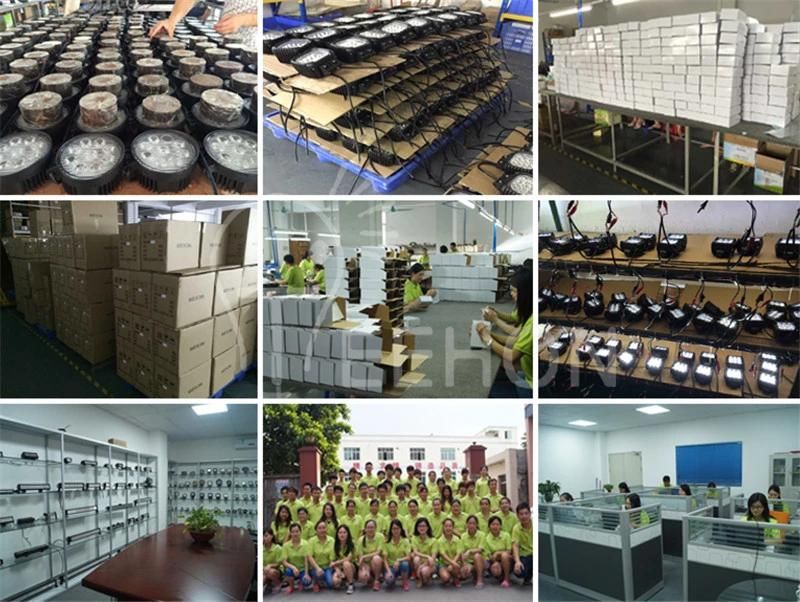

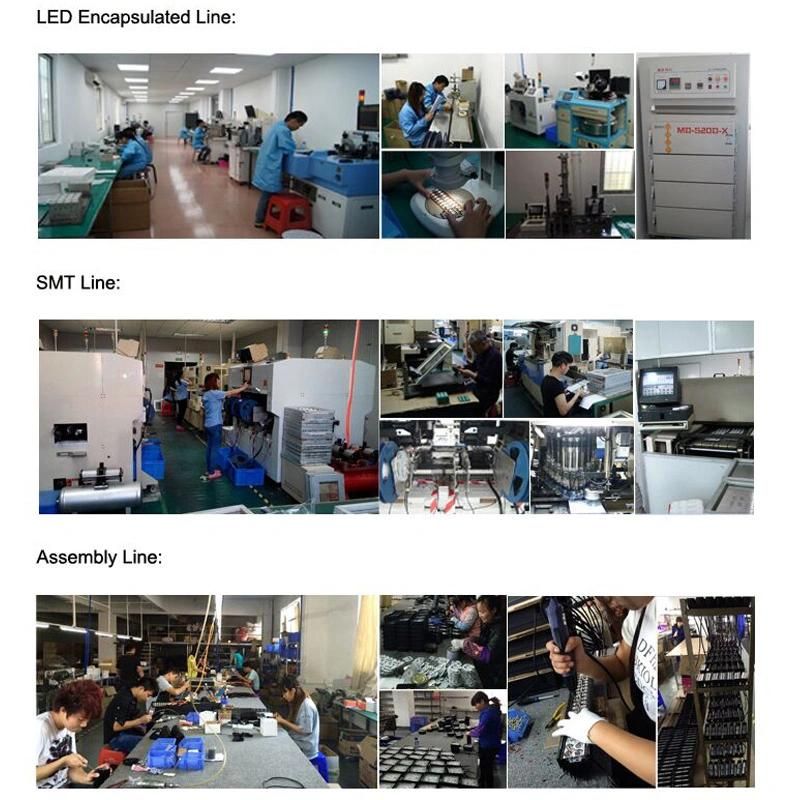

Production Facilities:

Name	No.	Name	No.
(Fuji, Panasonic, Casio) SMT machines	4	pressure testers	3
hot air-reflow systems	2	UV-VIS-Near IR Spectro photo colorimeter	2
wire peeling machines	4	LCR Digital Electric Bridges	3
laser carving machines	2	Oscilloscopes	5
automatic wire peeling machines	2	integrating sphere	1

Size and Package 81W Led Work Light:

Name	piece	G.W	Size
One piece	1pcs	2kgs	23*20*11m
One carton	12pcs/ctn	14kgs	42*25*35.5cm


Shipping for 81W led work light:

Sample order	Shipping by express like DHL, FEDEX, TNT, EMS about 3-5days
Bulk order	Shipping by sea about 7-15days


Why choose us:
1.Provide complete ODM&OEM solutions, which include LEDs producing, circuit board designing & producing, as well as housing designing
2.Strong R&D capabilities: to develop a new product costs only 30 days, we release at least 2 new products each month.
3.Powerful production strength: we can produce 15,000pcs LED light bar & 90,000pcs LED work light each month.
4.Extraordinary quality & cost control ability: we are the only auto LED light manufacturer who makes the light from beginning to end, the defective rate of product is lower to 0.2%.  The LEDs will be lighten up for 6 times before delivery, and each light will be tested strictly under water according to IP68 waterproof standard.
  A modern factory: owns a high-class LED encapsulation laboratory, and 5 high speed full automatic SMT machines, the whole factory is equipped with over 30 advanced producing   & testing facilities

FAQ:
Q: What's your after-sales service and warranty?
A: we promise to bear the following responsibility when defective product is found:
1.12 months warranty from the first day of receiving goods
2. Replacements would be sent with goods of your next order
3. Refund for defective products if customers require
Q: What's the MOQ?
A: MOQ is 10pcs for standardized products; for customized products, MOQ should be negotiated in advance. There is no MOQ for sample orders.
Q: How long is the lead time?
A: The lead time for sample orders is 3-5 days, for bulk orders is 5-15 days.
Q: How to place orders?
A: 1. Email us the model, beam pattern and quantity, consignee information, shipping way
and payment terms
2. Proforma Invoice made and sent to you
3. Complete Payment after confirming the PI
4. Confirm Payment and arrange production
