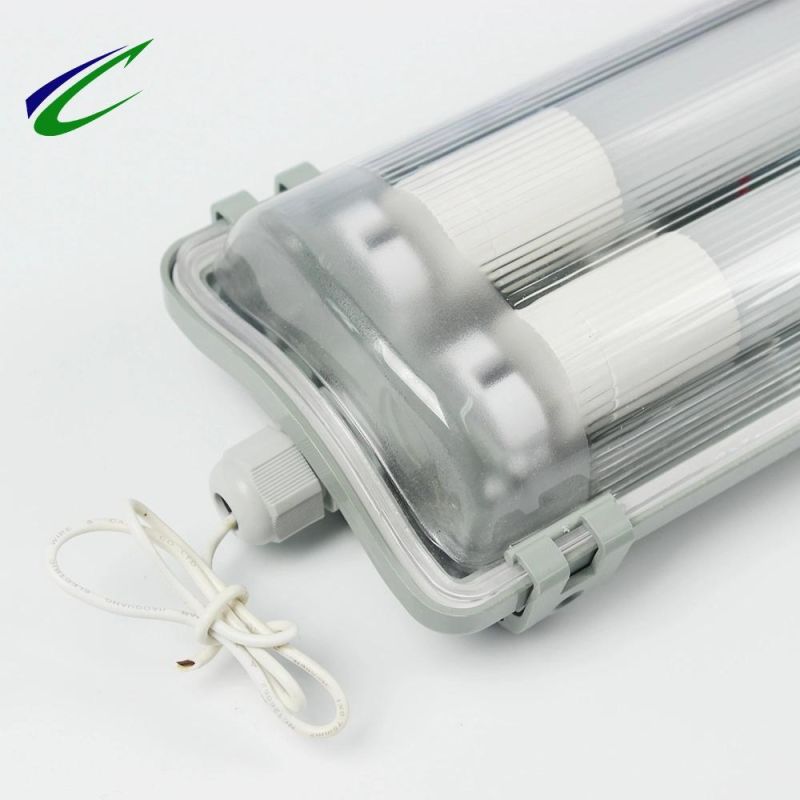

LED Professional Lighting

LED Triproof Fixtures Office Supermarket Storage Corridors Warehouse Car Parks Light Vapor Tight Light Waterproof Lighting Fixtures

Changzhou D & Y Electrical Lighting Co., Ltd.
  • Application:Parking Lot
  • Type:Tri-Proof Light
  • Feature:Anti-corrosion, Dust-Proof, Waterproof
  • Light Body Material:Plastic
  • Product Name:LED Tri-Proof Light
  • Material:PC

Base Info

  • Power:44W
  • Color Temperature(CCT):2700-6500K
  • MOQ:500PCS
  • PF:0.9
  • CRI:Ra>80
  • Transport Package:Inner Box and Outside Carton
  • Specification:1570*125*94mm
  • Trademark:OEM
  • Origin:China
  • HS Code:9405409000
  • Production Capacity:1000,15 Days

Description

LED Triproof Fixtures Office Supermarket Storage Corridors Warehouse Car Parks Light Vapor Tight Light Waterproof Lighting Fixtures

 1. Outer Casing: ABS or PC Materials

 2. Cover: Clear PS or PC Materials

 3. Metal Plate: Chemical treated and powder coated

 4. Locks: ABS,PC or Stainless Steel Clips

 5.Housing: White Iron fixing board,with cooper wire,CE lamp holders and CE terminal block

 6. Including whole set of fixing accessories and rubber nylon waterproof plug

 7. Supplied fully wired, no electronic Ballast,no starter.for led tube

 8. IP Rate: IP65

 9. Voltage: 220-240V

 10. Safety Class: Class I

 11. Application: Car parks, Industrial areas, Offices,

corridors,Supermarkets and shops, Bakeries, Storage areas etc






FEATURES



  1. Smart design especially for LED tube.

  2. The diffuser can be hanging when customers replace LED tube. It is convenient for the customer when installing lamp and reducing installation time.

  3. Clips with anti-theft screw holes, after nstalling. can lock screw, and then make the whole lamps and lanterns has a good anti-theft system.

  4. The dffuser has transparent and striated, so that customers have more selections.



Application



Car parks, Industrial areas. Offices, corridors. Supermarkets and shops. Bakeries. Storage areas etc



LED Triproof Fixtures Office Supermarket Storage Corridors Warehouse Car Parks Light Vapor Tight Light Waterproof Lighting Fixtures



Specification



ModelPowerLumenL(mm)W(mm)H(mm)A(mm)
DY-8118B9W810lm6607080315-385
DY-8218B18W1620lm66011080315-385
DY-8136B18W1620lm12607080855-925
DY-8236B36W3240lm126011080855-925
DY-8158B24W1980lm15708594950-970
DY-8258B48W3960lm157012594950-970


ModelPowerLumenL(mm)W(mm)H(mm)A(mm)
DY-8118BS9W810lm6607078340-415
DY-8218BS18W1620lm66010078340-415
DY-8136BS18W1620lm12607078790-865
DY-8236BS36W3240lm126010078790-865
DY-8158BS22W1980lm15607078975-1050
DY-8258BS44W3960lm156010078975-1050


ModelPowerLumenL(mm)W(mm)H(mm)A(mm)
DY-8118BT9W900lm6547163388
DY-8218BT18W1800lm65410863388
DY-8136BT18W1800lm12647163834
DY-8236BT36W3600lm126410863834
DY-8158BT22W2200lm156471631144
DY-8258BT44W4400lm1564108631144



LED Triproof Fixtures Office Supermarket Storage Corridors Warehouse Car Parks Light Vapor Tight Light Waterproof Lighting Fixtures
