• Model NO.：GT17213
• Voltage：10-30V DC
• Certification：CREE, CE, EMC, LVD, RoHS, E-MARK E9, IP68
• AMP Draw：5A@12V DC;2.5A@24V DC
• Mounting Brackets：3.5mm 304# Stainless Stee Mounting Brackets&Screws
• Cover Material：Polycarbonate with Anti UV(Lexan)
• Lumens：5720lm
• Housing Color：Black
• Beam Pattern：Driving Light Beam

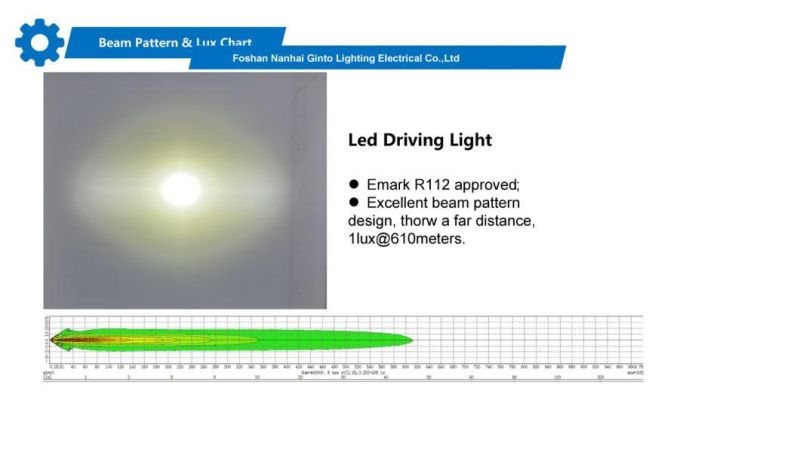

• 1 Lux Reading：610m
• Beam Combination：6PCS Pencil Beam+16PCS Spot Beam
• Operating Temperature：-40~+60 Cleius
• Wire Line：Silicone Rubber Line
• Breather Vent：Yes
• Connector Type：Deutsch Connector Is Available
• Warranty：1 Year
• Beam Angle：Pencil Beam 25 Degree, Spot Beam 3.5 Degree
• More Application：Marine, Forklift, ATV, UTV, 4X4, Excavator, Tractor
• Transport Package：Plain White Box+EPE Foam

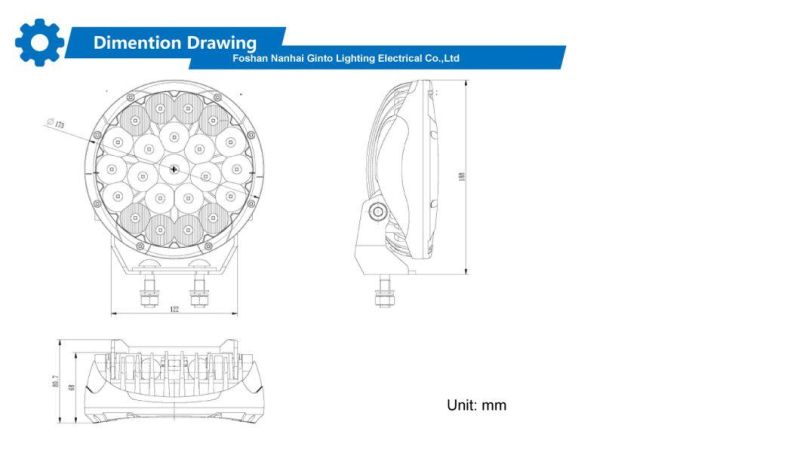

• Specification：173*173*80.0mm(7 inch)
• Trademark：GINTO
• Origin：Foshan, China
• HS Code：8512201000
• Production Capacity：30000PCS,Month

Basic Info.

Model NO. GT17213 Voltage 10-30V DC Certification CREE, CE, EMC, LVD, RoHS, E-MARK E9, IP68 AMP Draw 5A@12V DC;2.5A@24V DC Mounting Brackets 3.5mm 304# Stainless Stee Mounting Brackets&Screws Cover Material Polycarbonate with Anti UV(Lexan) Lumens 5720lm Housing Color Black Beam Pattern Driving Light Beam 1 Lux Reading 610m Beam Combination 6PCS Pencil Beam+16PCS Spot Beam Operating Temperature -40~+60 Cleius Wire Line Silicone Rubber Line Breather Vent Yes Connector Type Deutsch Connector Is Available Warranty 1 Year Beam Angle Pencil Beam 25 Degree, Spot Beam 3.5 Degree More Application Marine, Forklift, ATV, UTV, 4X4, Excavator, Tractor Transport Package Plain White Box+EPE Foam Specification 173*173*80.0mm(7 inch) Trademark GINTO Origin Foshan, China HS Code 8512201000 Production Capacity 30000PCS/Month

Product Description

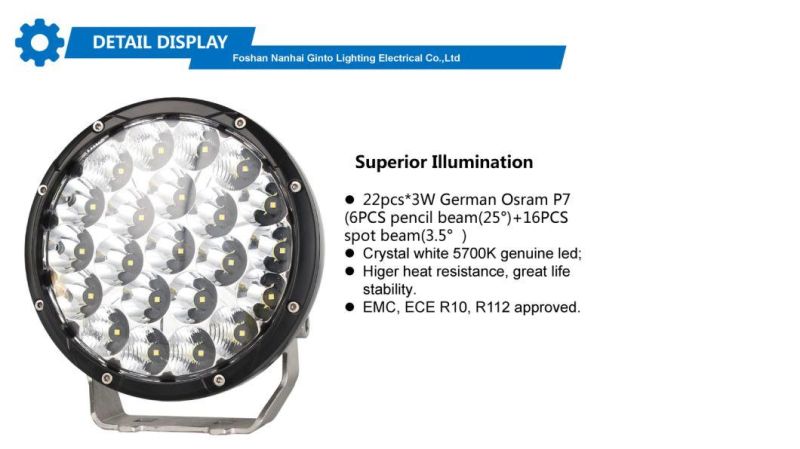

 Our GT17213 round led driving light, adopts 22pcs*3W German Osram P7(6PCS pencil beam(25°)+16PCS spot beam(3.5°), combined with the upgraded reflector cup, provides super luminorsity and perfect driving light pattern, Emark R10 and R112 approved.

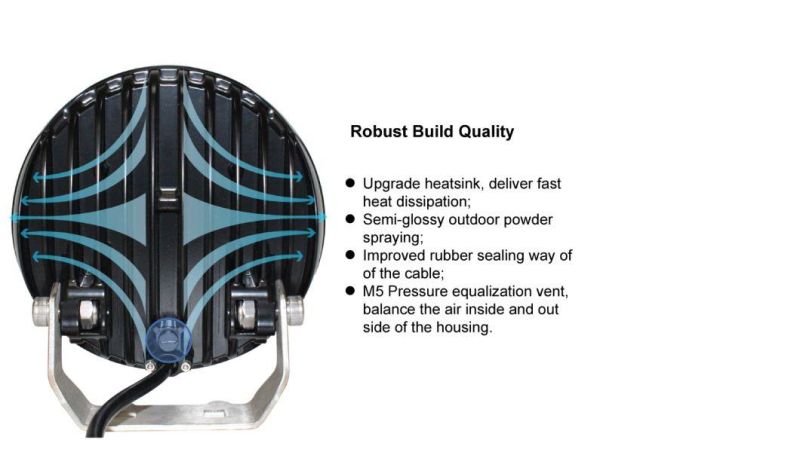

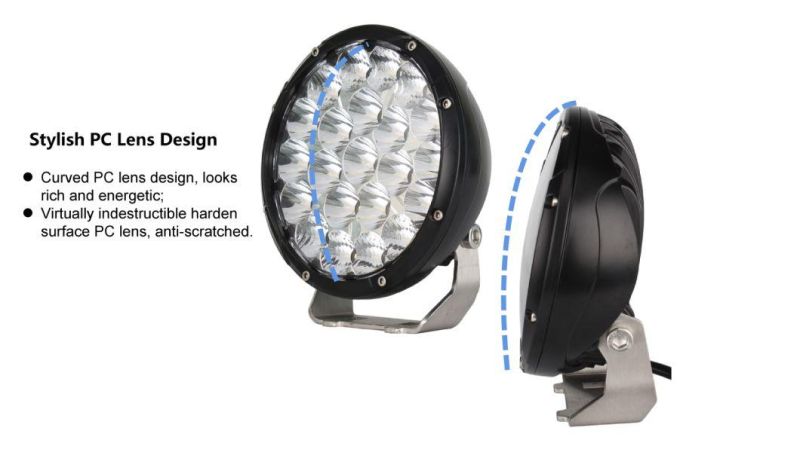

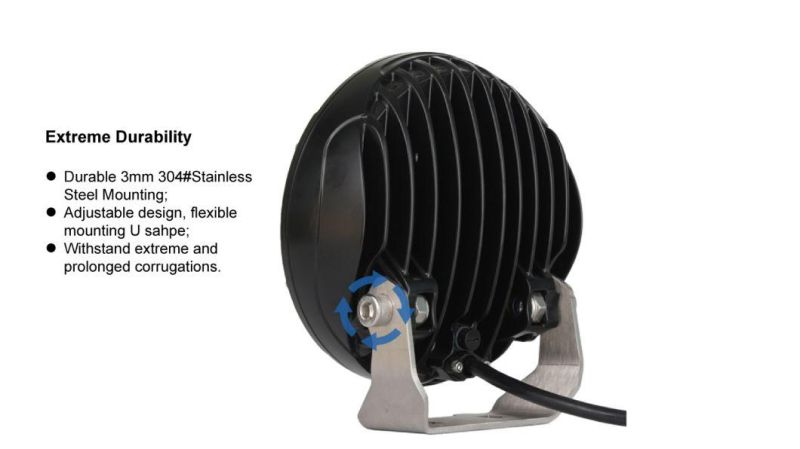

The structure is well constructed, energetic curved harden PC lens, semi-glossy black power coated die-casting aluminum heatsink, adjustable 3mm thickness 304#stainless U shape bracket and anti-vibration stainless steel pad, DT plugs for a quick plug-and-play installation, M5 military grade press equalization vent, ensure it is 100% waterproof, dust-proof, anti-corrosion for over 50000+ hours usage.


Applications:
1. Off road vehicles: 4×4, ATV, SUV, UTV, Trucks, Jeep, Pick-up, Caravan, Vans, Boat, Marine, hunting, camping;
2.Engineering vehicles: Tractor, Trailer, Fork lift, Excavator, Road roller, Bulldozer, Crane, mining machinery and agricultural machinery etc;
3.Specialized vehicles: Fire truck, police cars, rescue vehicle, communication vehicle, military command vehicle, Construction lighting etc.

Company information:
1.Business model: Manufacturer (Specialized in designing and producing premium Led light bar, led work light, mounting clamps/brackets and wiring harness/kits.)
2. Main Markets: Australia /Western Europe / North America/ South America/Southeast Asia/ Africa/ Mid East/ Eastern Asia

Why choose Ginto?
1.Have a group of experienced optic, structure and graphic engineers;
2.Provide high resolution product pictures/videos, professional lux chart, product specific drawing etc
3.Waterproof Test,  EMC Test, Drop Test,  Aging TEST, Vibration Test, Salt spraying test etc.
4.CE, RoHS, ECE, E-mark(R10, R23, R149, R112), IP67, IP68, UL, WEEE certification, or any other certification that will help increase customer's sales etc;

What to prepare before placing an order?
Please send us the model name, beam pattern and quantity, detailed shipping address and post code, preferred shipping way and payment way.

FAQ:
1. What are your payment terms?
T/T, Paypal, Western Union are all available.
2. What are your shipping terms?
Small sample orders: By express courier (DHL, UPS, TNT, Fedex)
Bulk orders: By air / By see
3. Do you offer free samples?
Normally, we need to charge customer sample fee. If their subsequent orders can reach to a certain quantity, we will return them the sample fee.
4. What customized services do you offer?
We can supply customized sticker, usage manual, color box, customized cartons, logo laser/pad printing etc...
5. Delivery Time?
3-5 working days for sample, 15-30days for bulk order.
6. What is your warranty?
Defective rate of Ginto led light is less than 0.5%, please don't worry in case you encounter product problem. Contact us with clear photos or video, we will send new lights in your next order after evaluation.


High quality is not only a marketing slogan, it rooted from our every details to our products.

Contact us for a quote now!
