• Model NO.：LLX-J200
• Input Voltage：100-277V
• Power：185W
• Color Temperature：5500-6000K
• Emitting Color：Cool White
• LED Chips Brand：Top LED Brand
• Certification：CE, CQC, EMC, Energy Star, ETL, FCC, SAA, UL, VDE
• LED Qty：156PCS
• Packing Size：460X460X240mm
• N.W.：11.5kg
• G.W.：12.5kg
• Efficiency：115lm,W
• Lumen：21275
• Transport Package：Carton
• Specification：400*400*185mm
• Trademark：longlux
• Origin：China
• Production Capacity：100000

Basic Info.

Model NO. LLX-J200 Input Voltage 100-277V Power 185W Color Temperature 5500-6000K Emitting Color Cool White LED Chips Brand Top LED Brand Certification CE, CQC, EMC, Energy Star, ETL, FCC, SAA, UL, VDE LED Qty 156PCS Packing Size 460X460X240mm N.W. 11.5kg G.W. 12.5kg Efficiency 115lm/W Lumen 21275 Transport Package Carton Specification 400*400*185mm Trademark longlux Origin China Production Capacity 100000

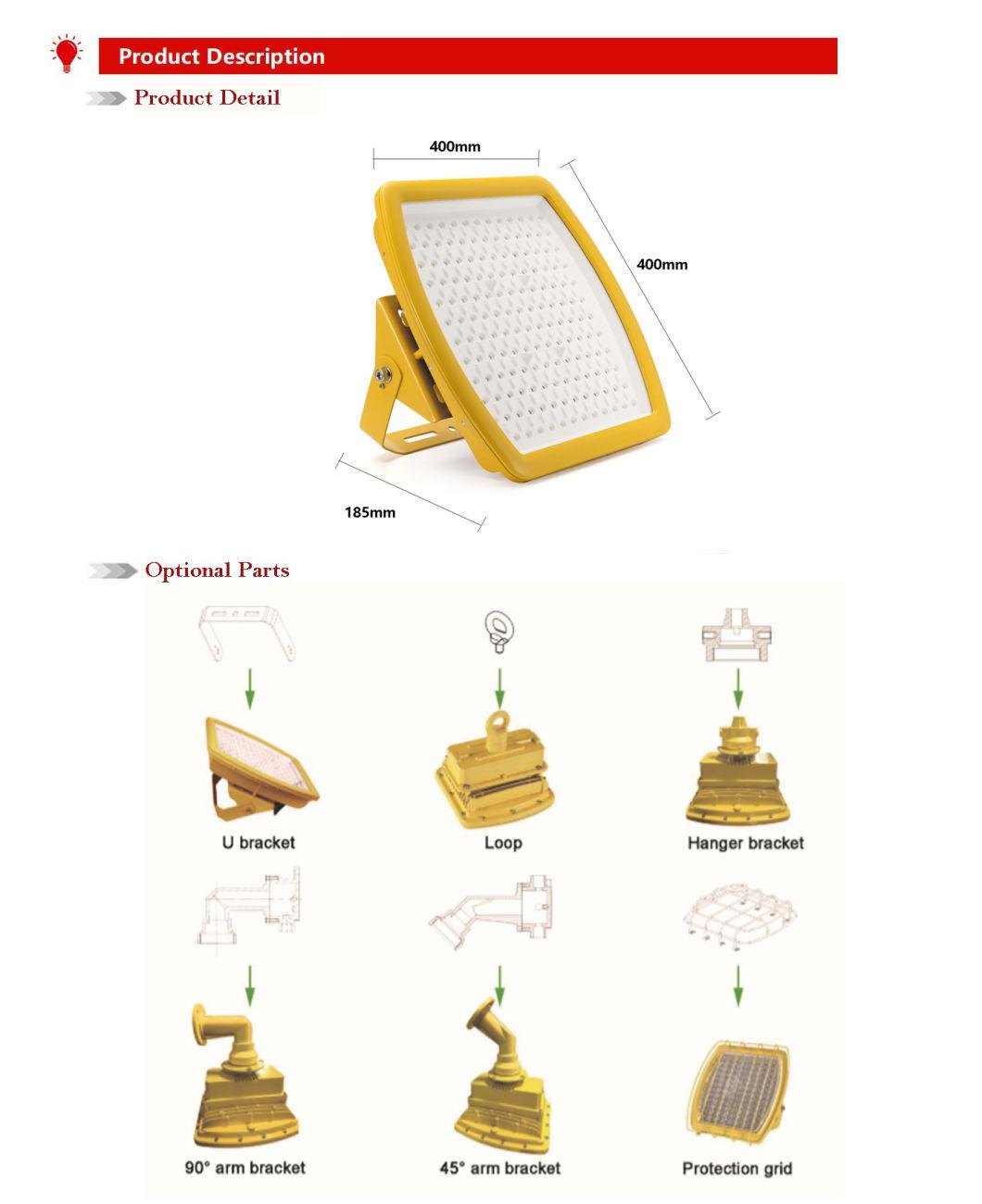

Product Description

Feature

Housing: Explosion proof aluminum alloy.
Glass: Tempered glass. >95% light transmit, shock & vibration resistant..Led: LM80 certified, high efficacy, low decay. Super long life >50,000hrs.PCB: Aluminum thickness 2.5mm, Copper 2oz, heat transmit >2.5.
Driver: Meanwell HLG series, >90% driver effiac, UL Certify.
Specification

Item	Power	Size of Lamp	Voltage	Efficiency	Lumen	CRI	Current	Bean angle	THD	PF	IK
LLX-J40	40W	200*200*270mm	AC100-277V	115Lm/W	4600	>73	0.4A	60°x30°(RF) /120°x120°	<10%	98%	IK09
LLX-J100	100W	300*300*175mm	AC100-277V	115Lm/W	11500	>73	0.55A	60°x30°(RF) /120°x120°	<10%	98%	IK09
LLX-J200	185W	400*400*185mm	AC100-277V	115Lm/W	21275	>73	0.75A	60°x30°(RF) /120°x120°	<10%	98%	IK09

Company Profile

Longlux Electronic Technology LIMITED(hereafter refers to Longlux), founded in 2011, is a  comprehensive enterprise focusing on professional  R&D, manufacturing, sales and service of  lighting products. Longlux has 12000 square metres modernized workshops with more than 100 workers, and 800 square metres testing labs & R&D office with more than 15 engineers.

To enhance the user experience, Longlux not only focuses on high-quality lighting fixture design and production, but also provides comprehensive lighting solutions and professional services. Products and lighting solutions by Longlux could adjustly satisfy your demands from different occasions.

Customer-oriented and creating values for customers, Longlux complies with the rule of "Quality comes priority, Service conducted professionally", and sticks to provide high-quality and convenient products and services to customers.

Longlux Lighting, lighting the way.


Why Us

100% Original quality.

Top supplier in Made-in-China.

Low Prices Direct From Factory Suppliers.

Fast Delivery Around The Globe.

High Quality With Global Standards.

Goods must be passed QC and test before shipping out.

After-sales: 3 year warranty.In this period,we will provide free repair for problem caused by non-human factors.

Safe shipping way and payment.

Convenient & Friendly Customer Service.



FAQ

Q1. What is your terms of payment?

A:Usually,we accept T/T,irrevocable L/C at sight.For regular orders,we prefer 30% in advance,70% against the   of B/L.For long term business relations, we have more advantage terms for payment.



Q2. What is your terms of delivery?

A: We accept FOB,CIF,etc. You can choose the one which is the most convenient or cost effective for you.



Q3: What is the lead time?

A:It usually takes 25 to 35 days after sample confirmation and receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. If the item was non standard, we have to consider extra 10-15days for tooling/mould made.



Q4: How about tooling Charge?

A: Tooling charge only charge once when first order, all future orders would not charge again even tooling repair or under maintance.



Q5. What is your sample policy?

A: We are glad to send wholesale led street lights samples for your inspection.Standard samples can be free, but the clients need to cover the freight cost.



Q6. Can you produce according to the samples or drawings?

A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.



Q7: How to confirm the quality with us before starting to produce?

1) We can provide wholesale led street lights samples and you can  choose one or more, and then we make the quality according to that. 2) Send us your samples, and we will make it according to your quality.



Q8: How to solve the quality problems after sales?

A: Take photos of the problems and send to us. We will make a satisfied solution for you within three days after we  confirm the problems.



Q9. What is your terms of packing?

A: Generally, we pack our goods in neutral cartons. If you have legally registered patent,  we can pack the goods by your logo after getting your authorization letters.



Q10. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery. We have QC team comply with TQM,each step is in compliance to the  standards.
