• Model NO.：YG-P003A
• Electric Current Type：AC
• Input Voltage：220V
• Diffuser：Polycarbonate
• Shell Material：Aluminium Alloy
• LED Chips：Epistar
• Certification：CE, RoHS, CCC, GS, CSA, Energy Star, FCC, SAA, C-tick, NOM, PSE, GOST, EMC, LVD, KEMA, IMQ
• Application：Stage, Swimming Pool, Fountain
• Voltage：AC110V,220V, 50Hz-60Hz
• Total：200W
• Lighting Source：54*3W LED
• Beam Angle：15-60 Degree Optional
• Fuse：3A
• Channel：8CH
• Rated Life：100, 000 Hours
• Signal Input/Output：3-Pin-XLR Output
• Dimmer：0-100% Electronic Linear Dimmer
• Strobe：1-20 Times,Seconds Strobe
• Transport Package：Packing with Standard Export Carton
• Specification：CE, RoHs
• Trademark：GZ Yuelight
• Origin：Guangzhou
• HS Code：9405409000
• Production Capacity：10000PCS,Month

Basic Info.

Model NO. YG-P003A Electric Current Type AC Input Voltage 220V Diffuser Polycarbonate Shell Material Aluminium Alloy LED Chips Epistar Certification CE, RoHS, CCC, GS, CSA, Energy Star, FCC, SAA, C-tick, NOM, PSE, GOST, EMC, LVD, KEMA, IMQ Application Stage, Swimming Pool, Fountain Voltage AC110V/220V, 50Hz-60Hz Total 200W Lighting Source 54*3W LED Beam Angle 15-60 Degree Optional Fuse 3A Channel 8CH Rated Life 100, 000 Hours Signal Input/Output 3-Pin-XLR Output Dimmer 0-100% Electronic Linear Dimmer Strobe 1-20 Times/Seconds Strobe Transport Package Packing with Standard Export Carton Specification CE, RoHs Trademark GZ Yuelight Origin Guangzhou HS Code 9405409000 Production Capacity 10000PCS/Month

Product Description

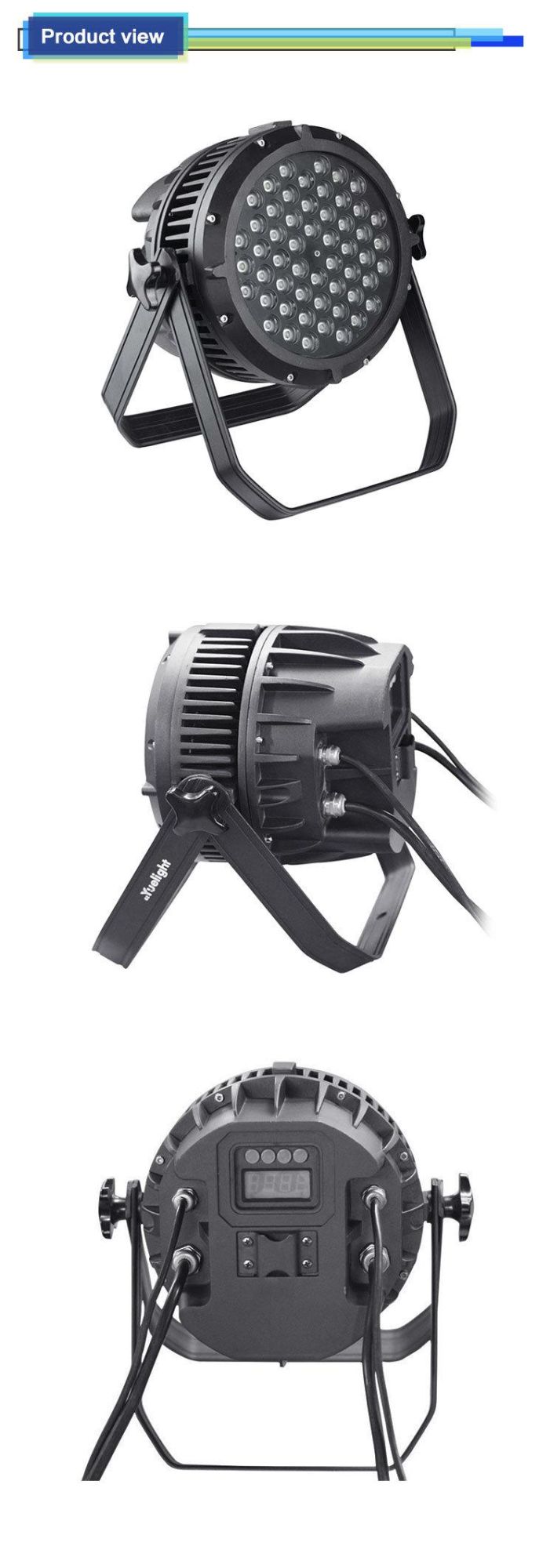

54pcs*3W RGBW LED PAR Light Waterproof Outdoor Using

Advantage:
1. Hot product &best service
2. Manufacture &Factory price
3. FCC, CE&RoHS
4. Two years warranty

Specifications:
1. Voltage: AC90V-240V, 50-60Hz
2. Power: 200W
3. Fuse: 3A
4. Light source: 54x3W LED
5. Channel: 8CH
6. Rated Life: 100, 000 hours
7. Beam Angle: 15° -60° (optional)
8. Dimmer: 0-100% electronic linear dimmer
9. Strobe: 1-20 times/seconds strobe
10. Signal input/output: 3-pin-XLR output
11. Housing material: Die Cast-Aluminum
12. Convection Heat Transfer Cooling System without Fan
13. Control Mode: DMX512, Automatic, Sound activated, Master-slave
14. Power in and Daisy Chain Power out Cable with IP65 Connectors
15. Dual Mounting Yoke Allows Flexibility in Positioning
16. Inner packing size: 380*270*350mm
17. Outer packing size: 570*400*370mm(2PCS)
Net weight: 17.2kgs
Application: Performing arts, auditorium, city light, etc

Channels Function Details
CH1 Dimmer R, G, B, W dimmer, linear, dark bright
CH2 Strobe R, G, B W strobe, slow fast
CH3 Function Choose
0- 50: DMX 8 channels control; 51--100: Jump; 101- 150: Gradual change, 151- 200: Pulse change, 201- 255: Sound-active
CH4 Speed Function Speed, slow fast
CH5 Red R dimmer, linear, dark bright
CH6 Green G dimmer, linear, dark bright
CH7 Blue B dimmer, linear, dark--bright
CH8 White W dimmer, linear, dark--bright

Channel	Display	Function Declaration
1	D0001	8CH of  Address Code,(001-512)B, C button to up or down address
2	CC00	7 colors jump change, (01-99)B, C button to adjust the speed
3	CP00	7 colors pulse change, gradual change(01-99)B, C button to adjust the speed
4	DE00	7 colors change together (01-99)B, C button to adjust the speed
5	BEBE	Seven Colors change by sound activated
6	R220	Choose red color(000-255)B, C button to adjust brightness
7	G220	Choose green color(000-255)B, C button to adjust t brightness
8	B220	Choose blue color(000-255)B, C button to adjust brightness
9	W220	Choose white color(000-255)B, C button to adjust brightness

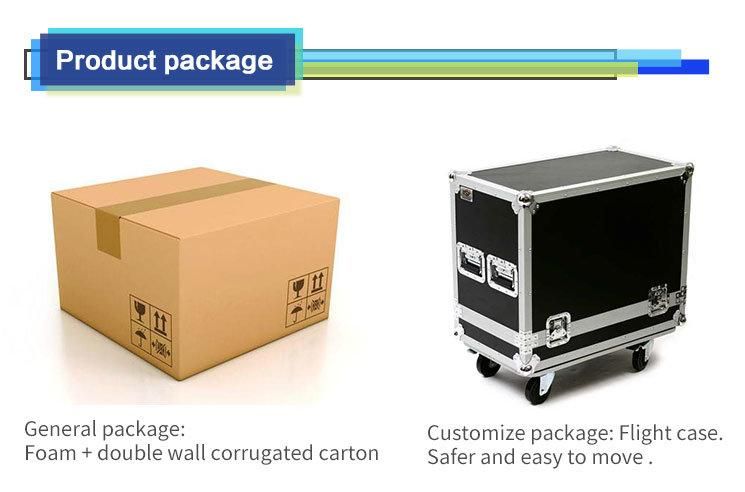

Packing Detail:
Standard export carton box with foam is provided. Flight case and color box is also available if needed.

Shipping Options:
By Express: DHL, FedEx, UPS, TNT (door to door ); By Air: To airport; By Sea: FCL or LCL;

Delivery Time:
Mini order, 3-5 working days. Under 1000 PCS, 10-20 days normally. More than 1000 PCS, 20-35 days.

Payment Terms:
T/T, Western Union, Paypal: 30% down payment and 70% paid before delivery;

Warranty Period:
All our products have one year warranty period. If there's any problems with the light, (without improper operation and outside force) during the first year, free parts and after service will be provided.

Our Service:
1. Provide professional person to communicate with you before the order.
2. Provide strict quality check for each part, each process before export.
3. Provide optimum system solution based on each client's specific requirement.
4. Provide complete post-sale service, including installation, technical guide and training
