• Model NO.：94199
• Style：Modern simplism style
• Base Type：LED+MPCB
• Technics：Stainless Electrolytic Polishing
• Voltage：DC12V,DC24V
• Certification：CE, EMC, LVD, RoHS
• Working Lifetime：>50000hrs
• Beam Angle：8,15,25,30,45,60 Degree
• LED Chip：CREE,Bridgelux,Epistar
• Working Temperature：-20-40 Centigrade
• Driver：Built-in Constant Current Output
• Transport Package：Shockproof Carton Box
• Specification：4PCS,CTN
• Trademark：JP Lighting
• Origin：Dongguan, Guangdong, China
• HS Code：94054090
• Production Capacity：10000PCS,Month

Basic Info.

Model NO. 94199 Style Modern simplism style Base Type LED+MPCB Technics Stainless Electrolytic Polishing Voltage DC12V/DC24V Certification CE, EMC, LVD, RoHS Working Lifetime >50000hrs Beam Angle 8/15/25/30/45/60 Degree LED Chip CREE/Bridgelux/Epistar Working Temperature -20-40 Centigrade Driver Built-in Constant Current Output Transport Package Shockproof Carton Box Specification 4PCS/CTN Trademark JP Lighting Origin Dongguan, Guangdong, China HS Code 94054090 Production Capacity 10000PCS/Month

Product Description

IP68 RGBW 4in1 Stainless Steel Led Fountain Light Underwater Light Central Ejective LED Outdoor Pond Light
These high power LED central ejective fountain lights are designed to provide long-lasting and colorful lighting for any various of applications. 9 LEDs could be made to emit warm white, cold white, neutral white, green, blue, red and changing RGB color. Each light is made of optical lens and tempered front cover glass with high light transmittance >85%.

1. Material of Housing: 304#(316# is available) stainless steel;
2. Material of Cover and hole: 304#(316# is available) stainless steel;
3. Glass: Tempered Glass T=5mm;
4. Lens: Optional lens, Efficiency ≥ 85%;
5. Waterproof Cable gland: IP68, PG-11 Copper and nickel coated, End-cap and housing are silicone sealed;
6. MPCB: Excellent heat conductivity aluminum, coefficient of heat conductivity ≥ 2.0W/mk;
7. Waterproof seal: Glass and housing are silicone sealed;
8. Dimming Control: RF/IR/DMX 512/DALI control.

Product Models

Item No.	Lighting Source	Lens Beam Angle (°)	Consumption(Watt)	Input Voltage(V)	IK Rate
94191	9x1W	8°/15°/20°/30°/45°/60°/90°	9.4	DC12V/DC24V	06
94192	9x2W	8°/15°/20°/30°/45°/60°/90°	19.2	DC12V/DC24V	06
94193	9x1W RGB	8°/15°/20°/30°/45°/60°/90°	9.0	DC12V/DC24V	06
94194	9x2W RGB	8°/15°/20°/30°/45°/60°/90°	17.4	DC12V/DC24V	06
94196	9x3W RGB 3in1	25°/30°/45°/60°/90°	26.1	DC12V/DC24V	06
94199	9x4W RGBW 4in1	25°/30°/45°/60°/90°	36	DC12V/DC24V	06

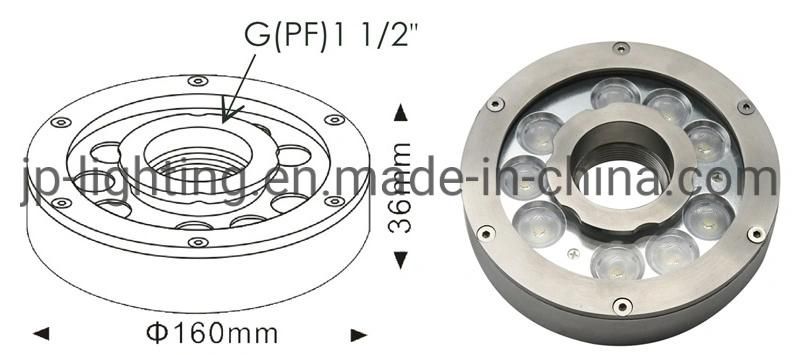

Product Dimension

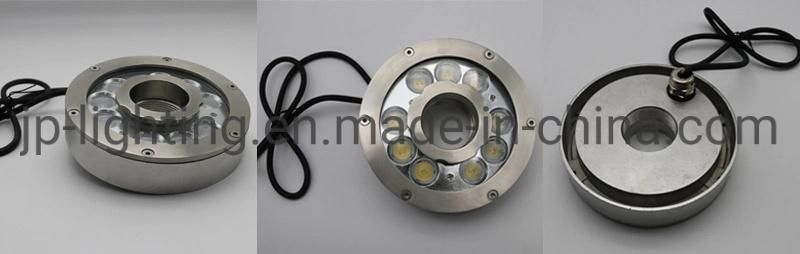

Product Image

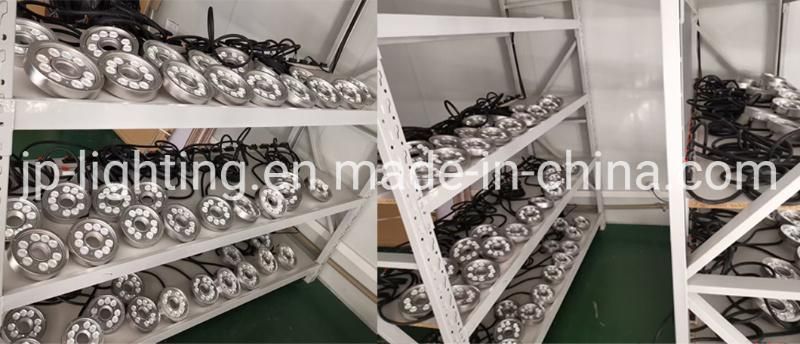

Production Test

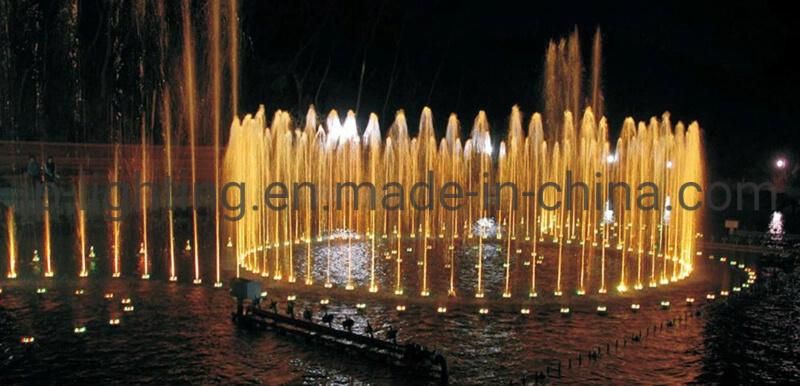

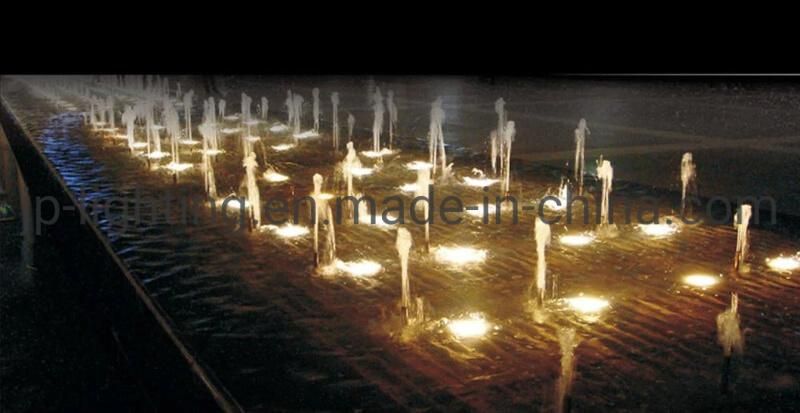

Product Application
Central Ejective LED fountain light is the perfect solution for lighting water landscape, it is widely used in square fountain, water park fountain, pool fountain,
water show, shopping center pool, water hotel fountain, seaside fountain, landscape lighting, etc.

*Warning:
Must be installed under the water to prevent the lights from being burnt off because of the over-heating.

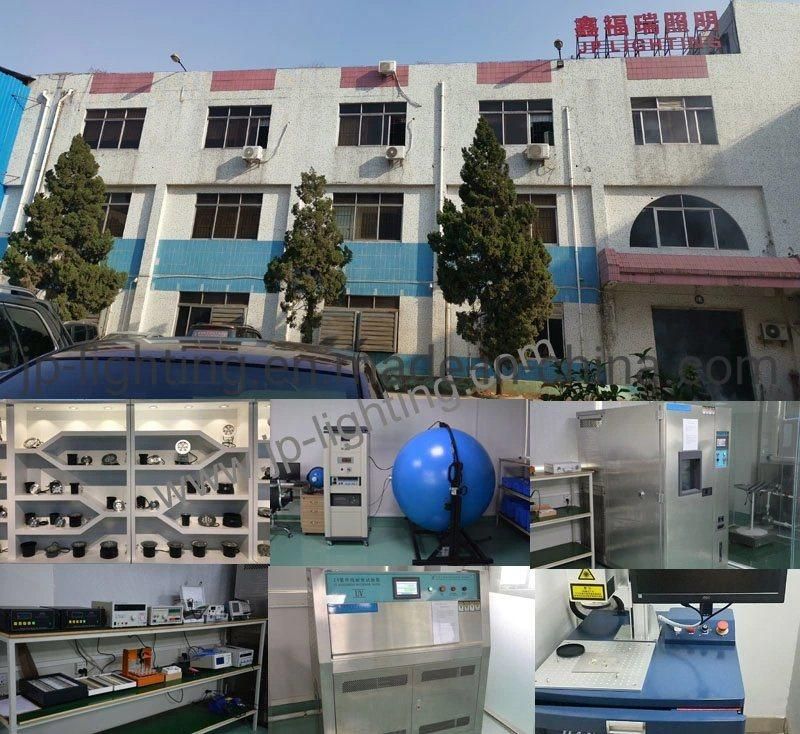

Factory Picture


Packaging and shipping


FAQ

Are you a manufacturer?
Yes, We are a professional manufacturer with 15 years experience.

What are your main products?
1.Outdoor LED wall light
2.LED garden spot/spike light
3.LED inground light
4.LED underwater light(fountain light, swimming poool light, underwater spot light)
5.LED wall washer light

What is the company sample system?
1.Sample charge should prepaid.
2.Sample can be customized,If the order QTY is more than 1000Pcs.

How we can pay for?
1.30% advanced payment. 70% balance payment.
2.We accept L/C, T/T, Western Union, and Paypal.
3.Our shipping terms is EXW, FOB, CIF

How about the delivery time?
1.About 5 working days for sample making.
2.15-30 working days for mass products production time. It is up to the quantity.

What information should I let you know when I want to make a inquiry?
1.Which body color do you want?
2.What kind of light color do you prefer?
3.How long do you need about light cable?
4.Which voltage ( low voltage or high voltage)?
5.What kind of beam angle do you need?
6.What's the quantity do you need?

Why choose us?
1.One-stop services:  Innovative design, professional product light effect. Excellent product quality, sincere service concept. For exterior lighting provides an integrated, one-stop integrated lighting solution!

2.Experience R&D, production and sales team: We have an mature and experienced team. Some members have more than 15 years of work experience in the field of lighting. JP Lighting factory covers an area of 2,000 square meters and the annual sales of more thank $10 million.

3.Strict quality control process: JP lights use the high quality components. All material must be strictly screened. All JP lights will undergo strict testing before shipping, including integrating sphere testing, aging test, waterproof test, etc. Due to rich experience and professionalism, JP Lighting's product defect rate is strictly controlled within 1%.

4.Products worldwide with high reputation: We participate in various industry lighting exhibitions, our products are all over Asia, Europe, Oceania, Africa and Central and South America, Middle East. All products have got great comments for high quality and excellent service.
