• Model NO.：HX-WH240-630P
• Style：Modern Chinese Style
• Base Type：N,a
• Technics：Drawbench
• Voltage：12V
• Certification：CE, EMC, FCC, LVD, RoHS, VDE
• Waterproof Standard：IP68
• Warranty：Two Years
• Technological Process：Resin Filled
• Control：Auto Control
• LED Qty：630PCS
• LED Type：SMD3014,2835
• Power：42W
• Transport Package：10PCS,Cartons
• Specification：CE, RoHS, SGS, LVD, IP68
• Trademark：huaxia
• Origin：Shenzhen, China
• HS Code：9405409000
• Production Capacity：500PCS,Day

Item No.LED Qty  (PCS)Lumen  (LM)Power  (W)Voltage
  (V)     Color  Type MaterialDimension
  (MM)WarrantyHX-WH240-252P    252
SMD30141700(WW)
600(RGB) 18AC12/24V Warm White
 Cool White
   White
   Red
   Blue
   Green
   Yellow
   RGBRecessed
    or
 MountedPC/316SS240*55MM 2 yearsHX-WH240-333P   333
SMD30142500(WW)
858(RGB) 24HX-WH240-441P   441
SMD30142950(WW)
1015(RGB) 30HX-WH240-531P   531
SMD30143050(WW)
1128(RGB) 35HX-WH240-630P   630
SMD30143200(WW)
1204(RGB) 42

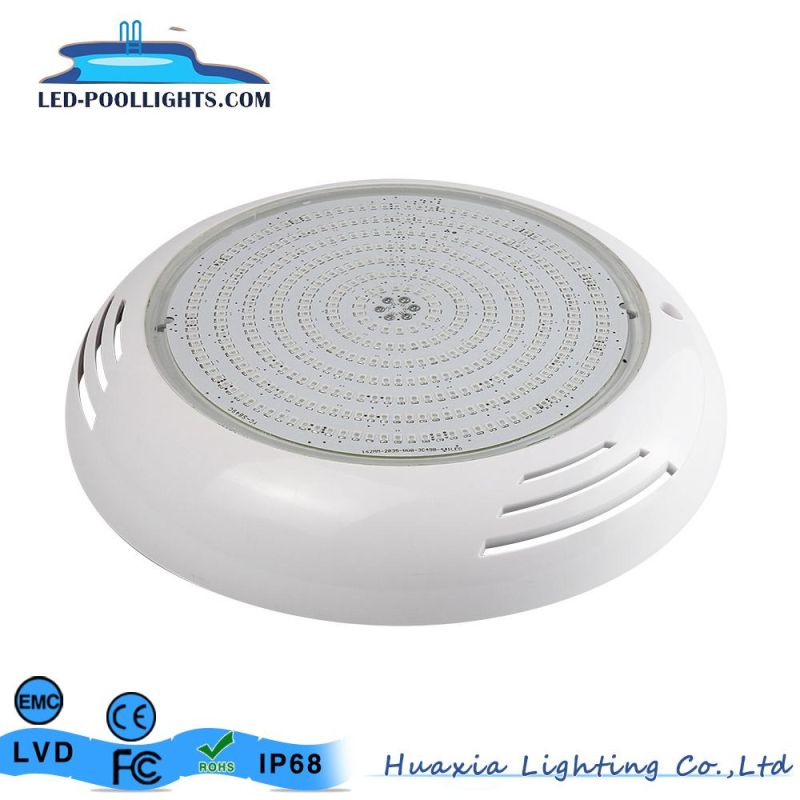

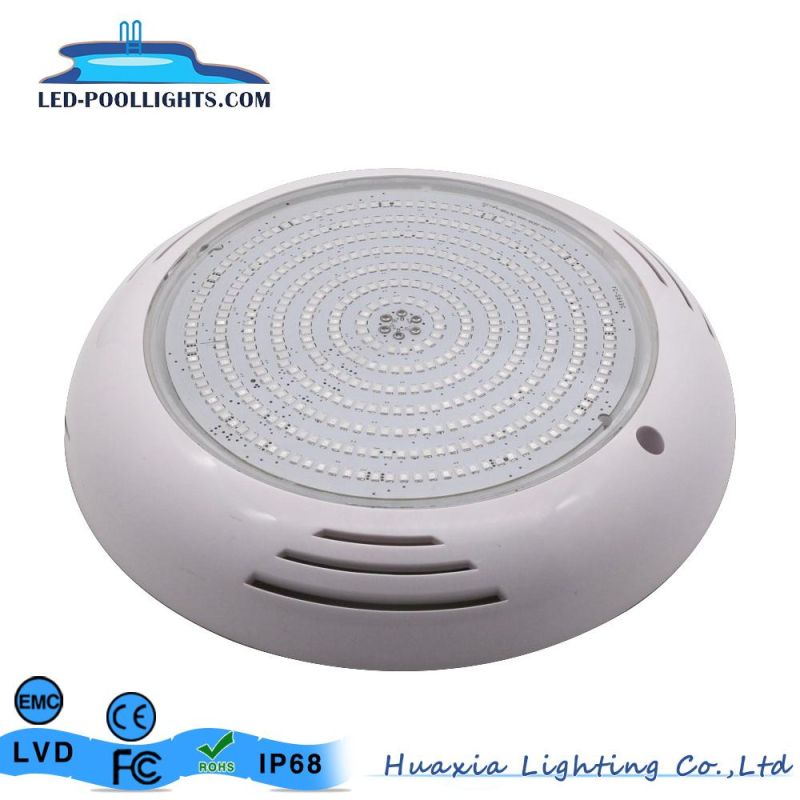

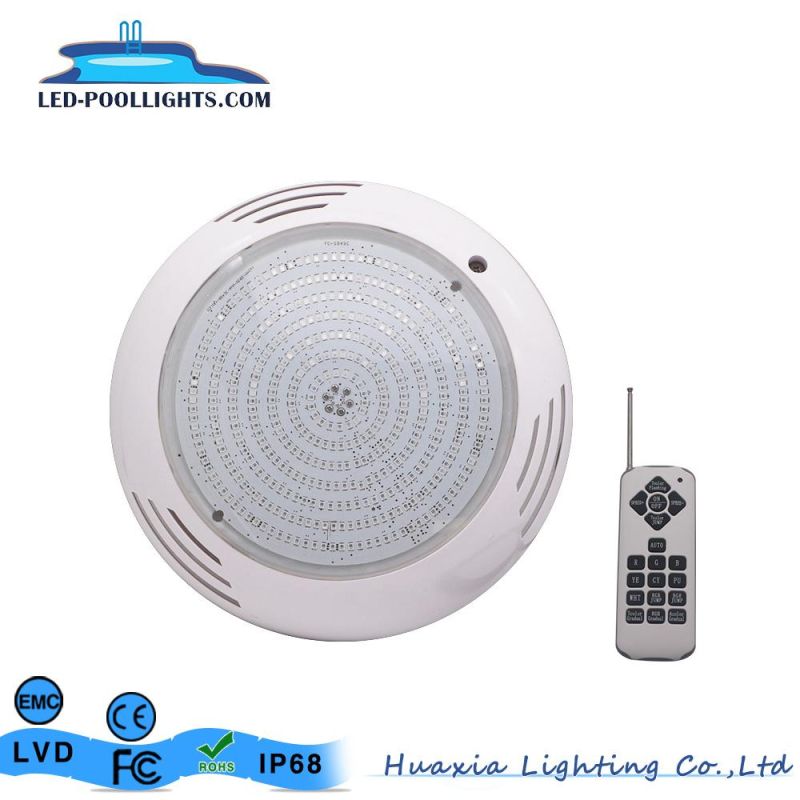

Product Show Of 2019 New Model IP68 Waterproof PC Resin Filled Swimming LED Pool Light

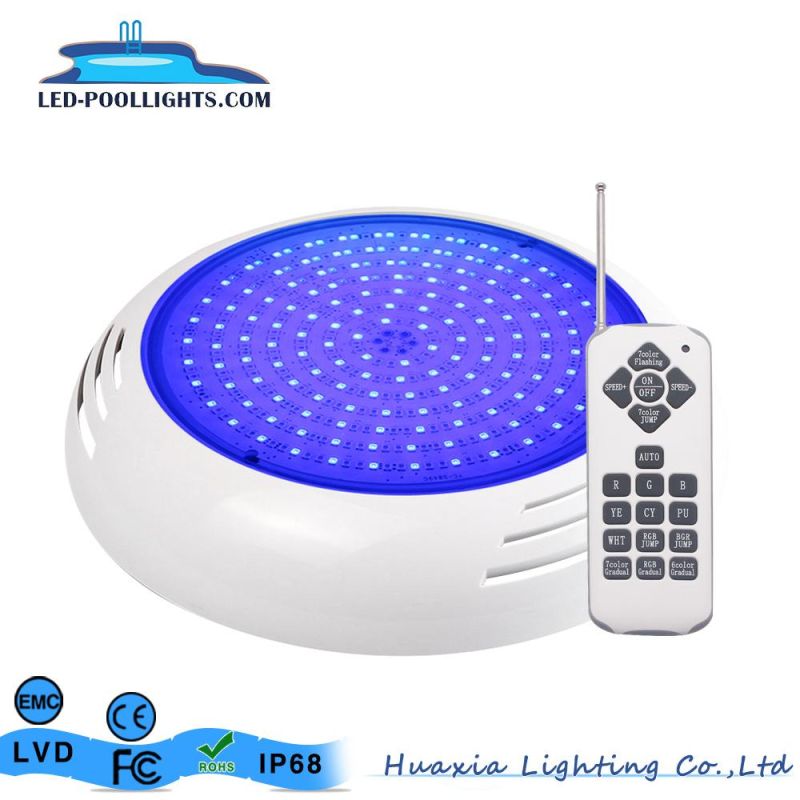

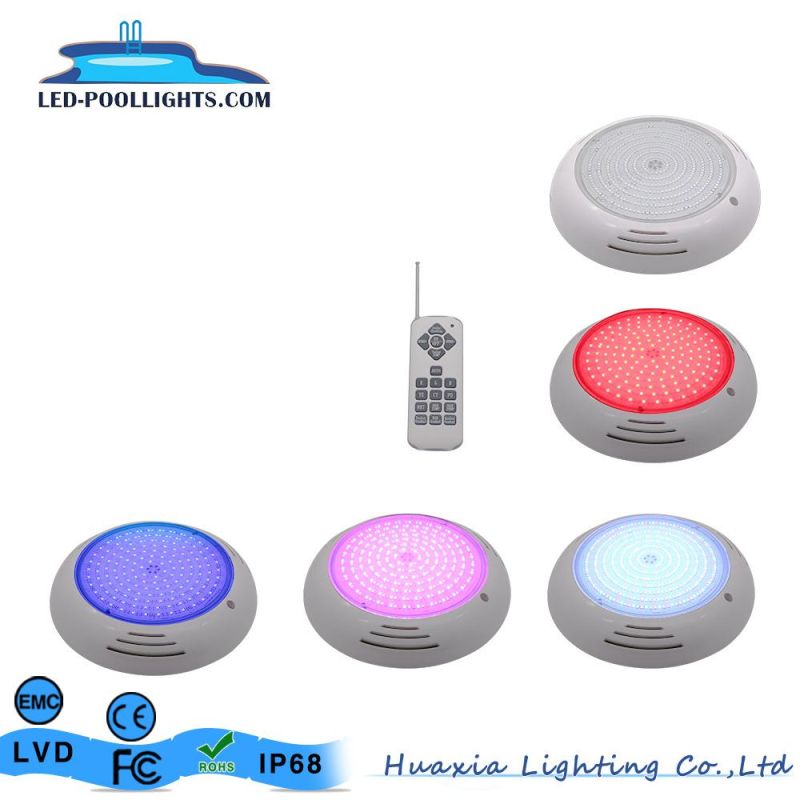

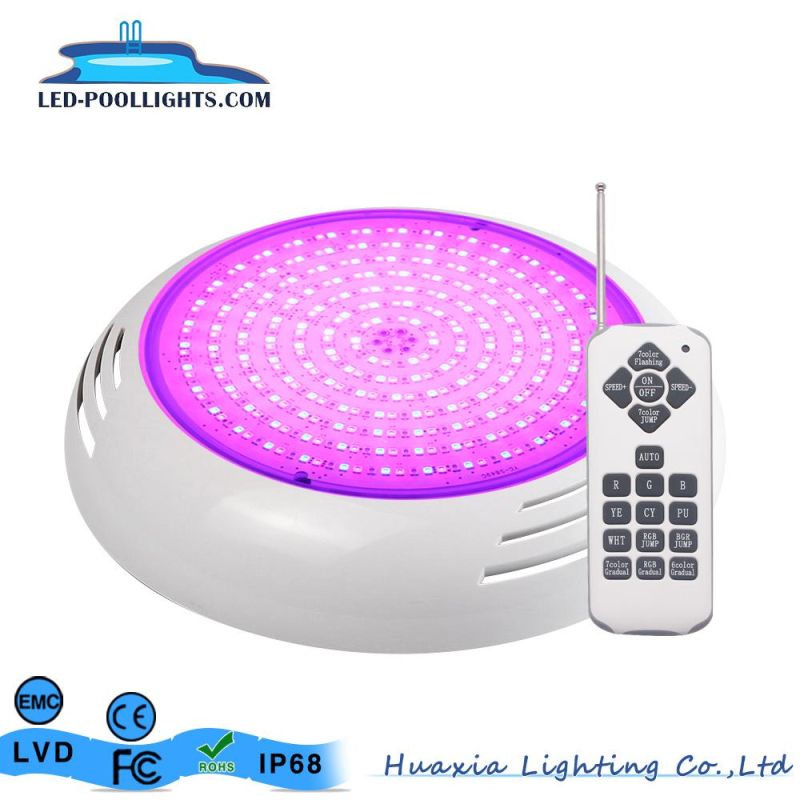

Color RGB Changing Show Of IP68 Waterproof PC Resin Filled Swimming LED Pool Light

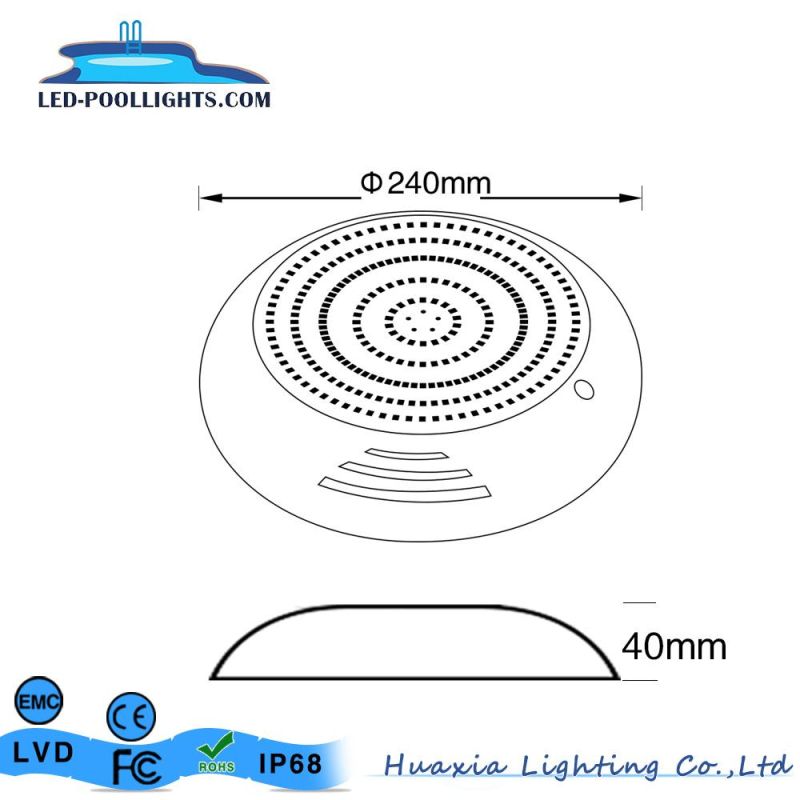

Size Drawing Of IP68 Waterproof PC Resin Filled Swimming LED Pool Light

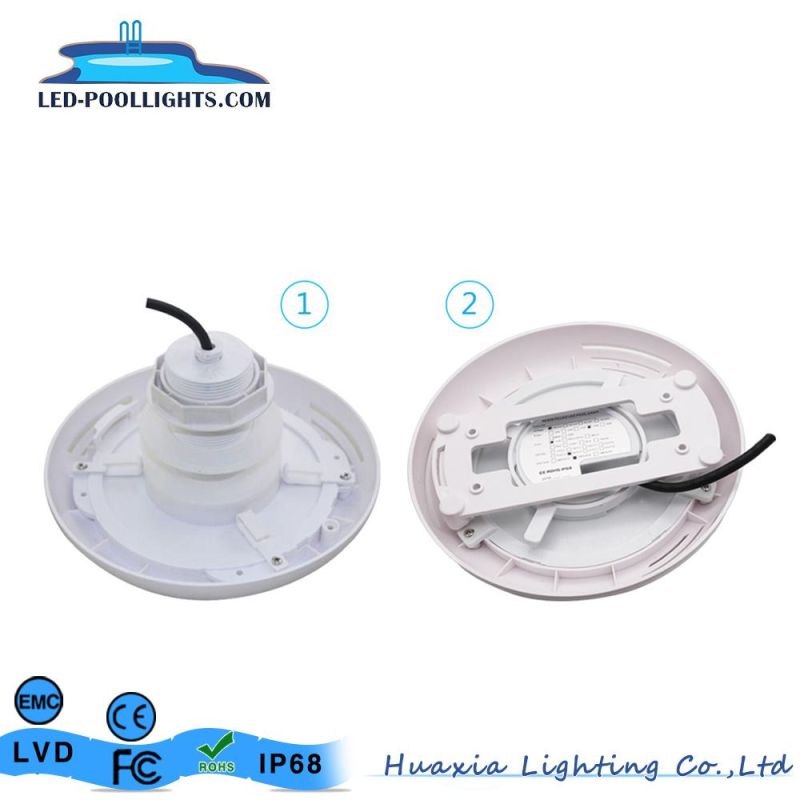

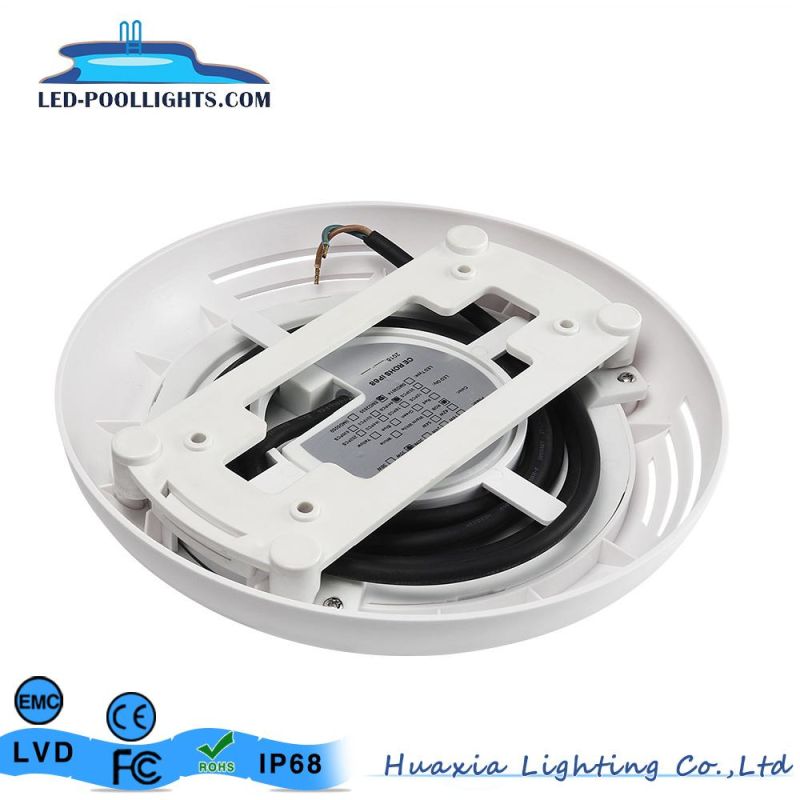

Bracket Of IP68 Waterproof PC Resin Filled Swimming LED Pool Light

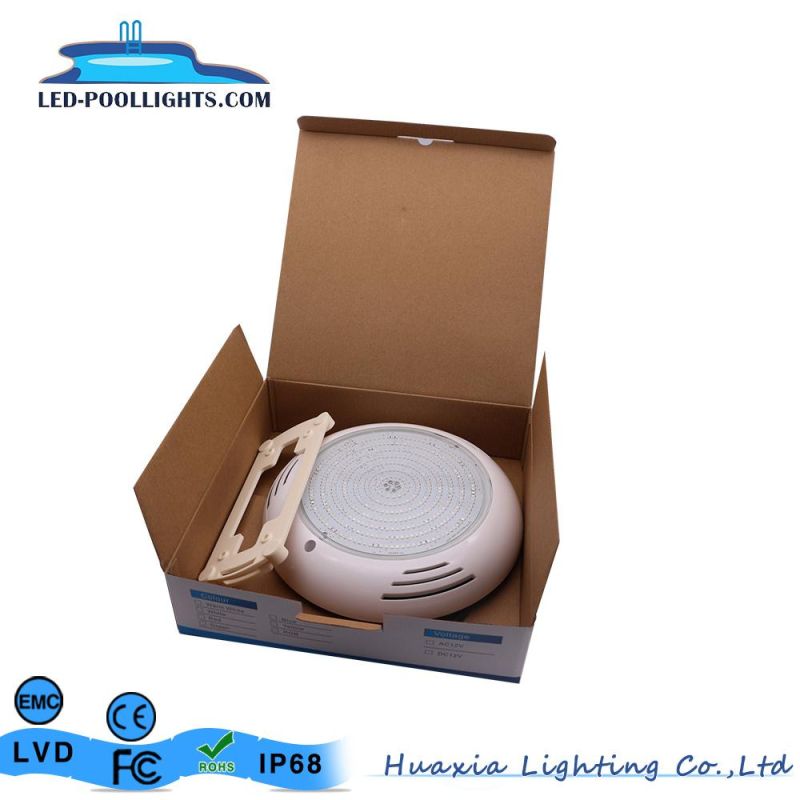

Packing Show Of IP68 Waterproof PC Resin Filled Swimming LED Pool Light




Applications of Resin Underwater Led Simming Pool Light
1.Swimming pool
2.water-fall, park
3.fountain spring
4.garden
5.park
6.other outdoor place...

Color of Resin Underwater Led Simming Pool Light
Single color or RGB
(1) Single color: White (pure white, warm white, cool white), Red, Green, Blue, Yellow.
(2) RGB: 14 kinds of RGB color Change patterns
1. Red (solid color red)
2. Green (solid color green)
3. Blue (solid color blue)
4. Red + green
5. Green + blue
6. Red + blue
7. Red + green + blue = white
8. Dynamic change: red change to green
9. Dynamic change: green change to blue
10. Dynamic change: red change to blue
11. Dynamic RGB change
Dynamic color change: from Red to Green, then Blue
12. Dynamic & Colorful change
Dynamic color change: from Red to Green, then Blue, Red+ blue, Green+ blue, Blue+ red, RGB
13. RGB fading effect
Fading from Red to Green, then Blue
14. Colorful fading effect
Control method: Remote control w/RGB controller, WiFi control, DMX control, Remote & switch control Auto control.

Caution of Resin Underwater Led Simming Pool Light
1.Please read product manual carefully and make sure the working circumstance is compliant with the condition requests in the manual before use the lamps.
2.Make sure that power is cut off before connect the lamps to power supply systems.
3.The lamp should be used under water
4.Lamps require Toroid transformer, electronic transformer is not applicable.
5.Can not be operated out of water over 15minutes(cooling)
