• Model NO.：WFL08S
• Style：Modern simplism style
• Base Type：Weefine Design
• Technics：Chrome-plating
• Voltage：12V
• Certification：CE, EMC, FCC, LVD, RoHS
• Mounting：M67 X P0.75
• Depth Rated：60m
• Weight：590g
• Dome Lens：Optical Grade Polycarbonate Resin
• Glass / Coating：Optical Glass , Multi-Layer Bbar Coating
• Lens Barrel：Aluminum with Type II Anodizing
• Lens Type：Automatic
• Focus Mode：Af, Mf
• Transport Package：Cartons
• Specification：Φ 71.9 x 54 mm
• Trademark：Weefine
• Origin：Foshan, China
• HS Code：9002113900
• Production Capacity：5000PCS, Per Month

Basic Info.

Model NO. WFL08S Style Modern simplism style Base Type Weefine Design Technics Chrome-plating Voltage 12V Certification CE, EMC, FCC, LVD, RoHS Mounting M67 X P0.75 Depth Rated 60m Weight 590g Dome Lens Optical Grade Polycarbonate Resin Glass / Coating Optical Glass / Multi-Layer Bbar Coating Lens Barrel Aluminum with Type II Anodizing Lens Type Automatic Focus Mode Af, Mf Transport Package Cartons Specification Φ 71.9 x 54 mm Trademark Weefine Origin Foshan, China HS Code 9002113900 Production Capacity 5000PCS/ Per Month

Product Description

Production Description

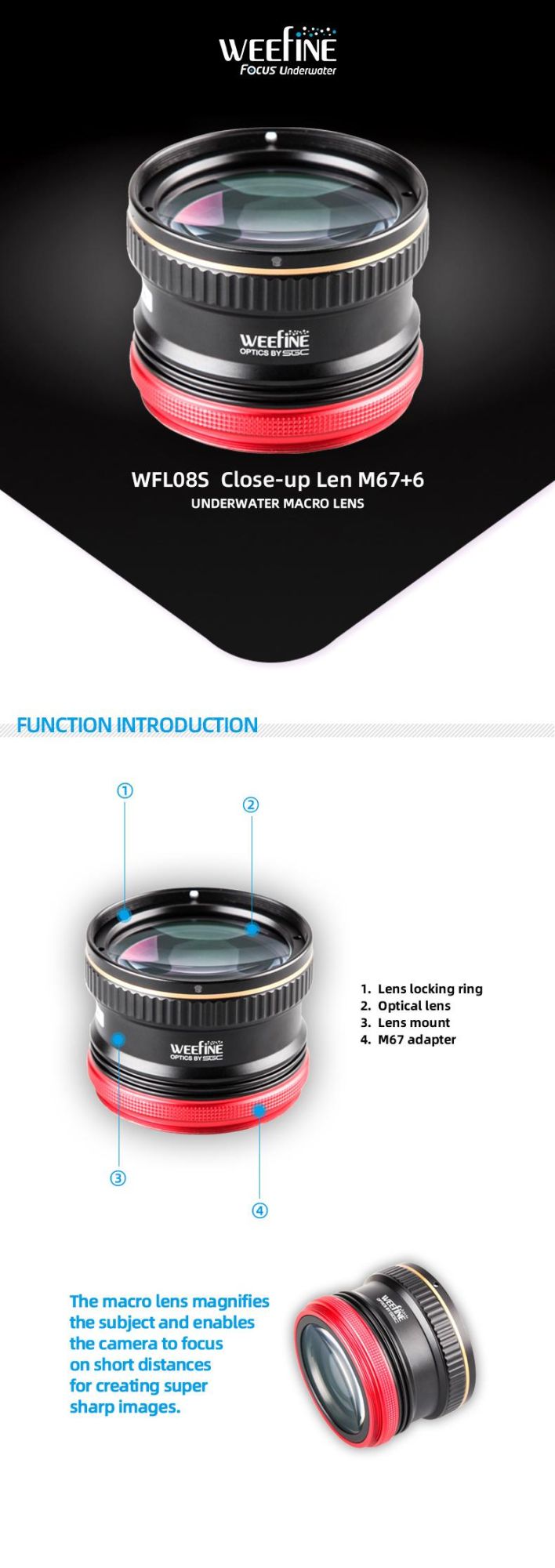

The Diving Equipment Weefine WFL08S Magnifier +6 (for DSLR with 60-105mm use) is a high-quality close-up lens of diving gear specifically designed for underwater photographers and videographers, optimized for sensor sizes 36 mm x 24 mm (135 mm full frame).

The Diving Supplies Weefine WFL08S +6 Close-up Macro lens is perfect for shooting close-up images of fish, corals, textures and more. The macro lens magnifies the subject and enables the camera to focus on short distances for creating super sharp images.

Features

* Magnification: x1.5 (Area Ratio x2.25) with 105mm F2.8 Macro Lens
* Optical power in Water: +23 dioptres
* Coated with broadband anti-reflecton coating
* M67x P0.75 thread mounting
* Fit for M67 waterproof housing
* Aluminum body Hard anodized coated 40 microns
* Two flat glass BK7 with anti scratch and anti-glare
* Very close working Distance: 80mm-160mm (from the front lens surface)
* Compatible cameras: Optimized for sensor sizes 36 mm x 24 mm (135 mm full frame)
* Depth rated to 60m

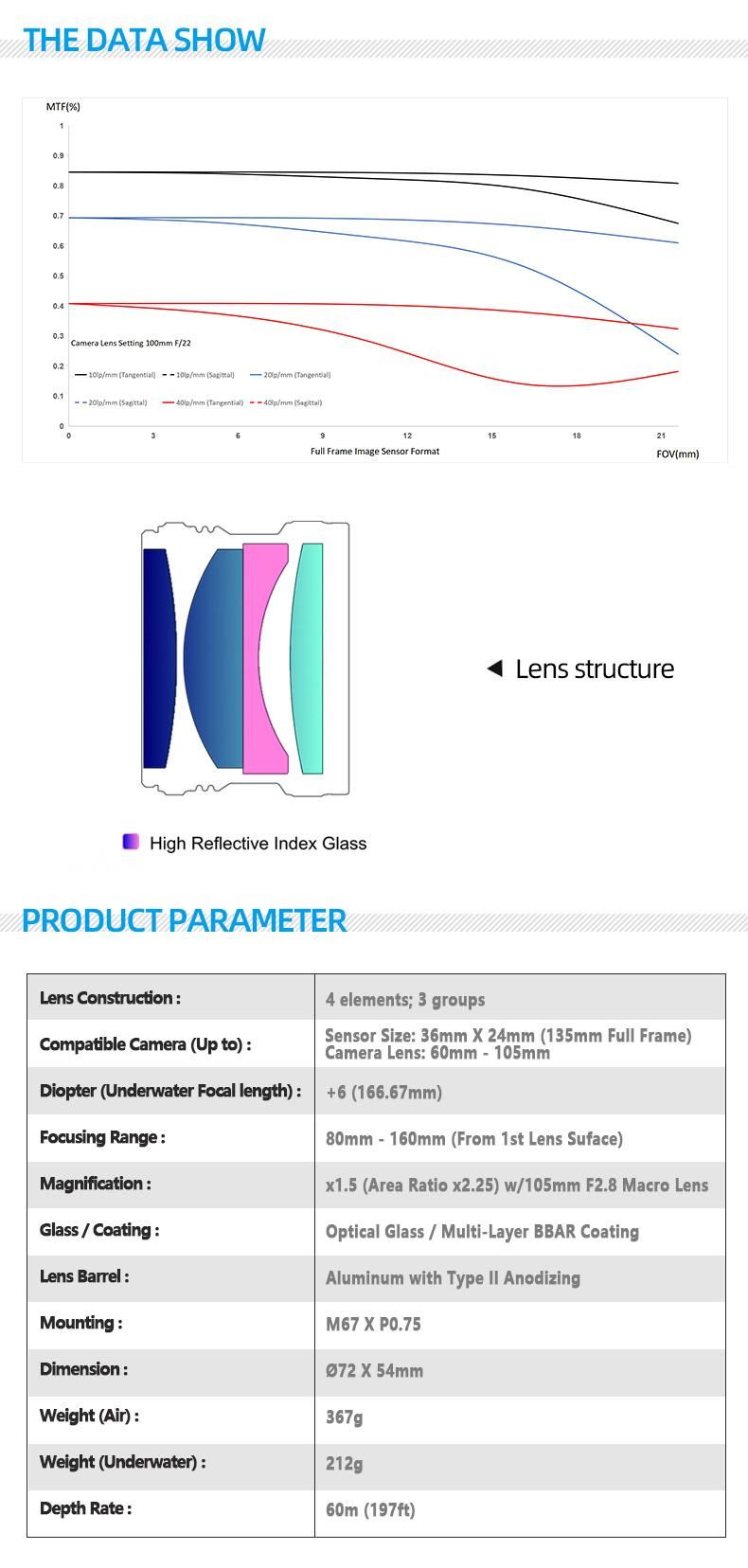

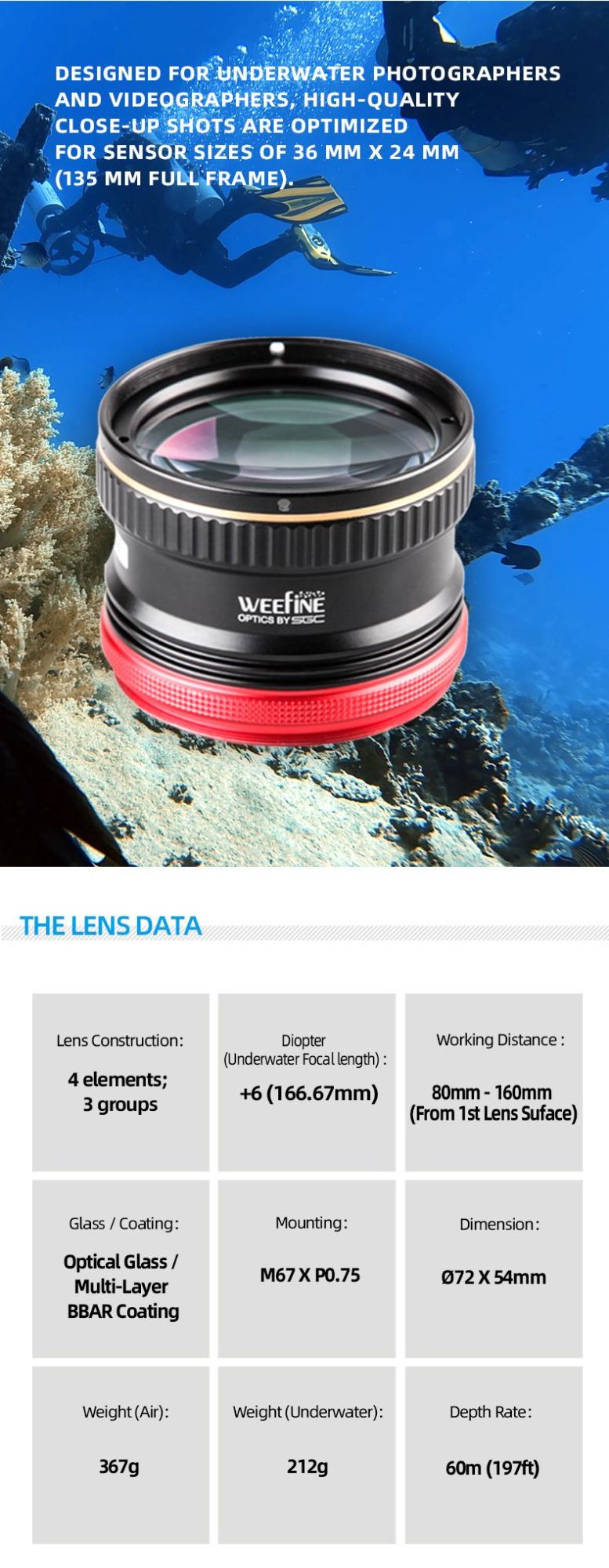

Specification

Model	WFL08S  M67 +6
Product Description	Underwater Achromatic Close-up Lens
Lens Construction	4 elements; 3 groups
Compatible Camera (Up to)	Sensor Size: 36mm x 24mm (135mm Full Frame) Camera Lens: 60mm - 105mm
Diopter(Underwater Focal Length)	6(166.67mm)
Working Distance	80mm-160mm (From the Front Lens Surface)
Max.Magnification	x 1.5(Area Ratio x2.25) with 105mm F2.8 Macro Lens
Glass	Optical Glass
Coating	Multi-Layer BBAR Coating
Lens Barrel	Aluminum with Type II Anodizing
Mounting	M67 x P0.75
Dimension	Φ71.9 x 54 mm
Weight (Air)	396.5g
Weight (Underwater)	215g
Depth Rate	60m (197ft)

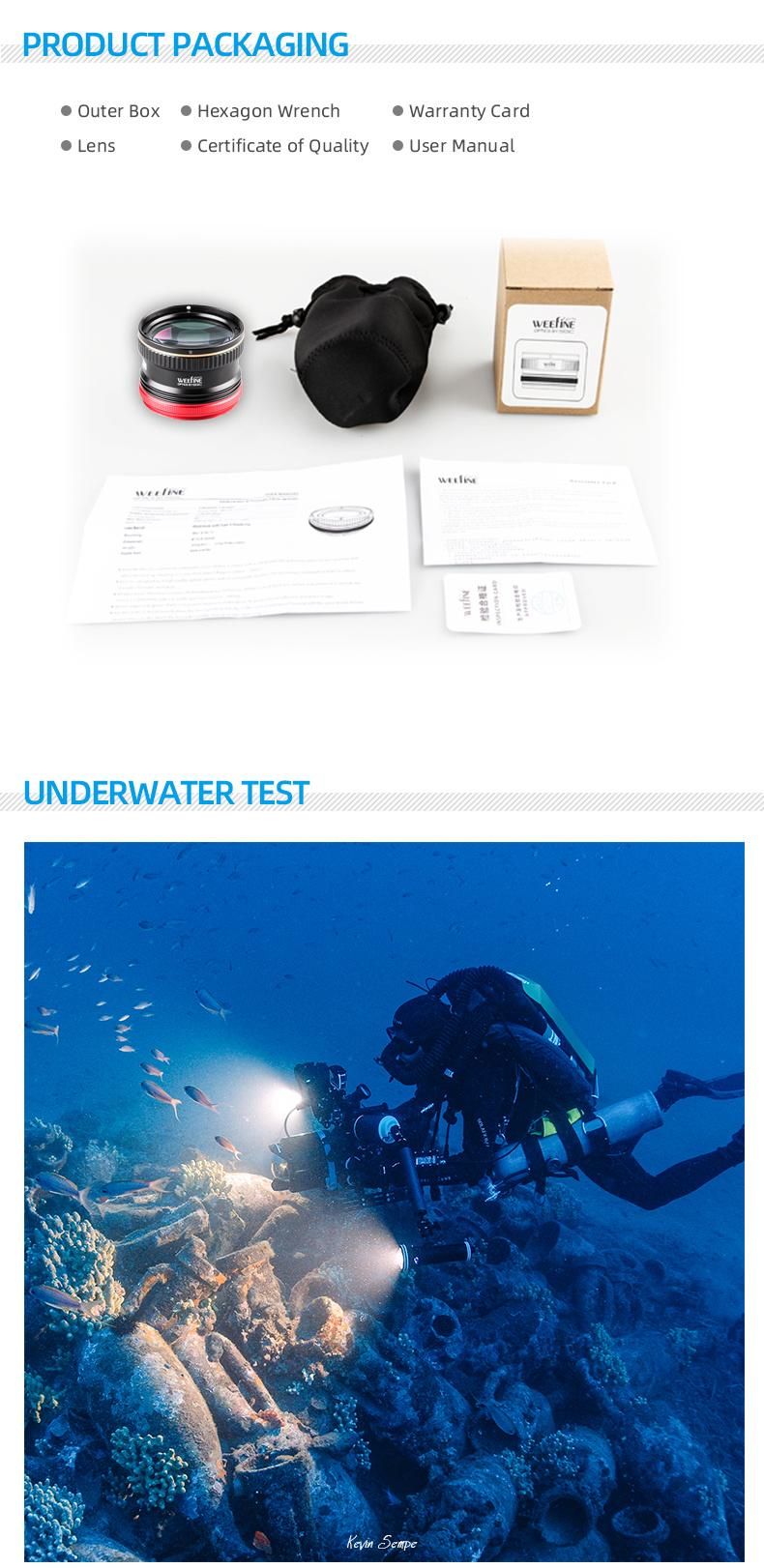

  Package

1X Lens
1X User Manual
1X Warranty Card
1X Certificate of Quality
1X Hexagon Wrench
1X Outer Box


Application

Underwater for photography in Ocean, Freshwater lake, sea, swimming pool, river.
