• Model NO.：LLX236F
• Light Body Material：Plastic
• Cover：Polycarbonate
• Body：Polycarbonate
• IP：65
• Ik：08
• Lifespan：50000hours
• Cable Gland：PC Brass or Stainless
• Lock：PC or Stainless Steel Clips
• Warranty：5years
• Length：2FT,4FT,5FT
• Width：Single,Double T8
• Transport Package：Carton
• Specification：PC PC
• Trademark：longlux
• Origin：China
• Production Capacity：1000000

Basic Info.

Model NO. LLX236F Light Body Material Plastic Cover Polycarbonate Body Polycarbonate IP 65 Ik 08 Lifespan 50000hours Cable Gland PC Brass or Stainless Lock PC or Stainless Steel Clips Warranty 5years Length 2FT/4FT/5FT Width Single/Double T8 Transport Package Carton Specification PC PC Trademark longlux Origin China Production Capacity 1000000

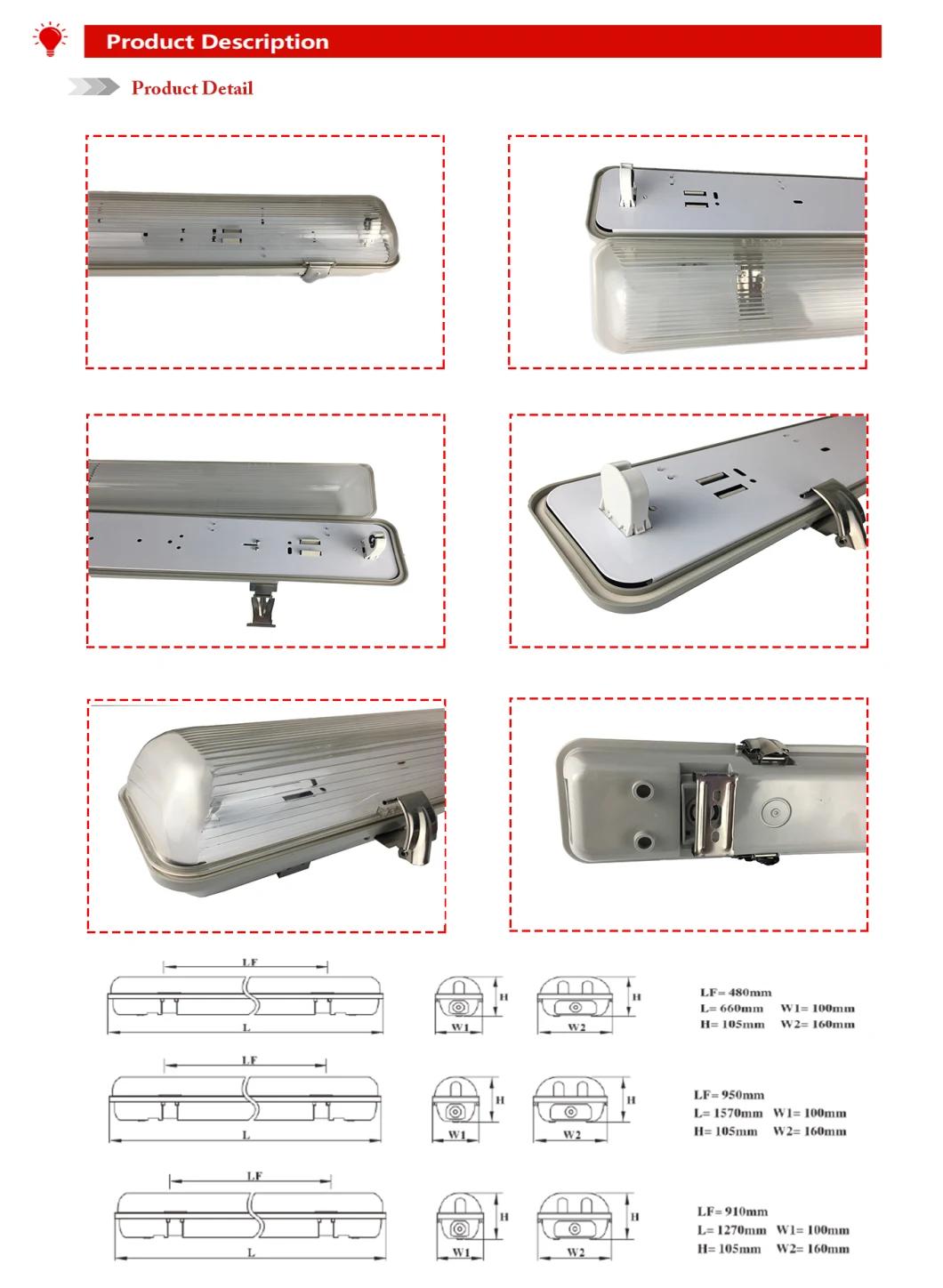

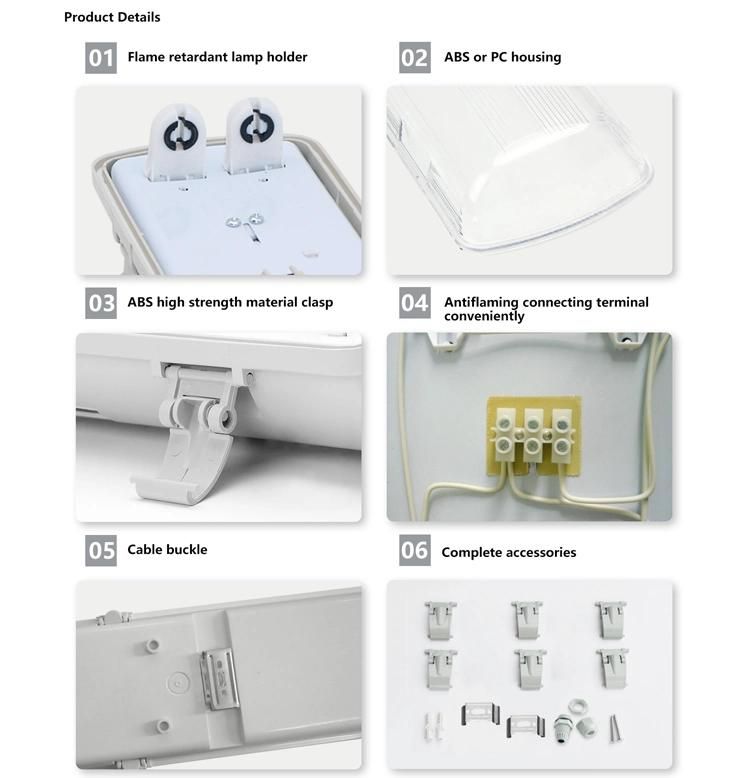

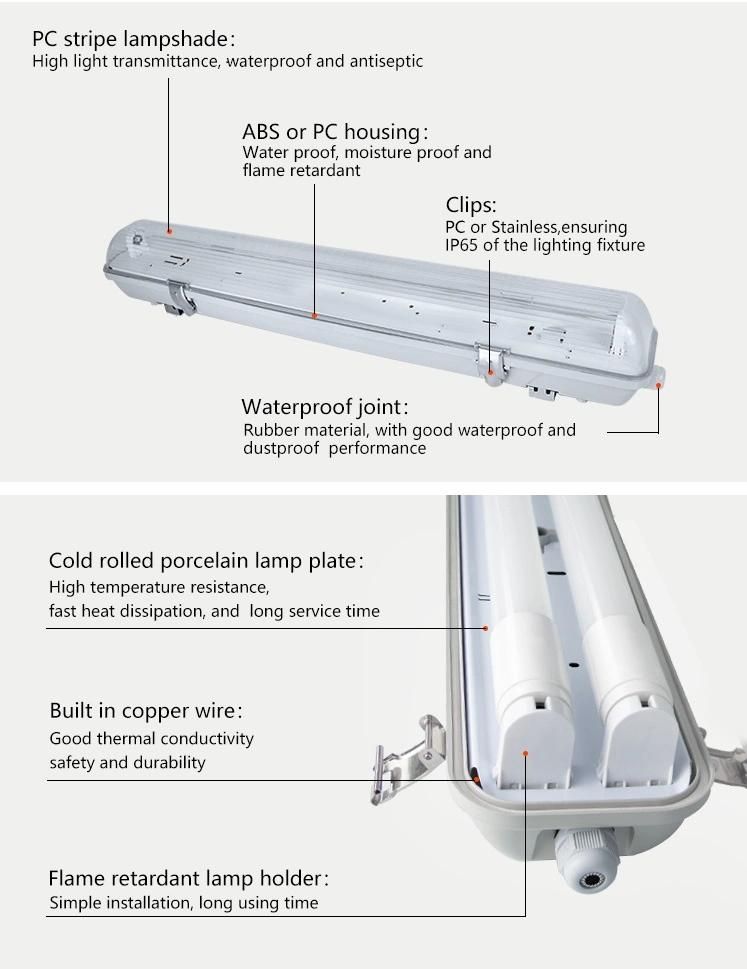

Product Description

Feature1. Unique design,CE, ROHS listed.
2. Water-proof , Dust-proof, Vapor - proof.
3. Body and diffuser meet IK08 and 850ºC glow wire test requirement
4. PC Transparent diffuser & Micky diffuser, PC & stainless steel for your option

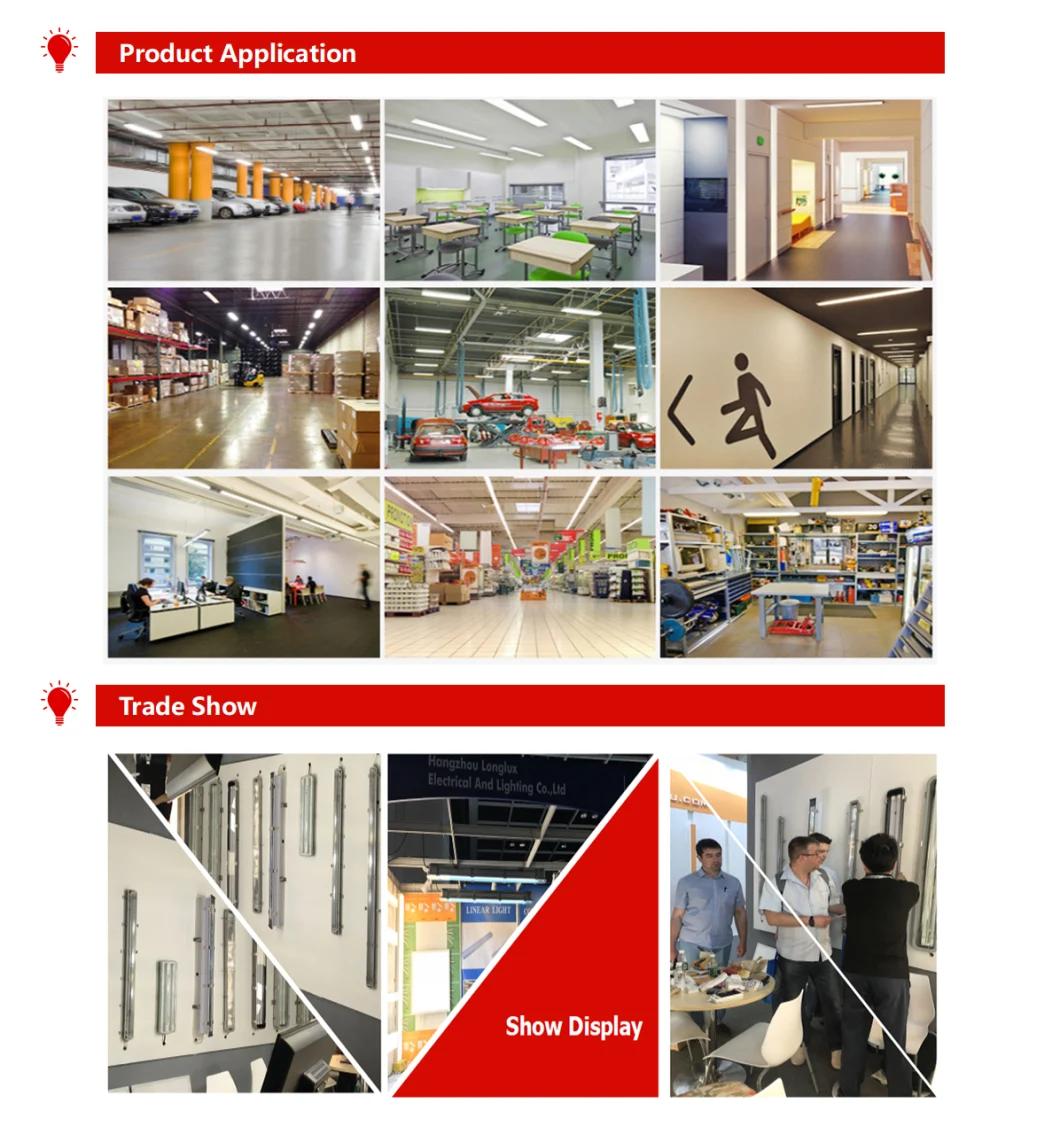

5. Application: Parking place, Tunnel, Railway Station,Warehouse.

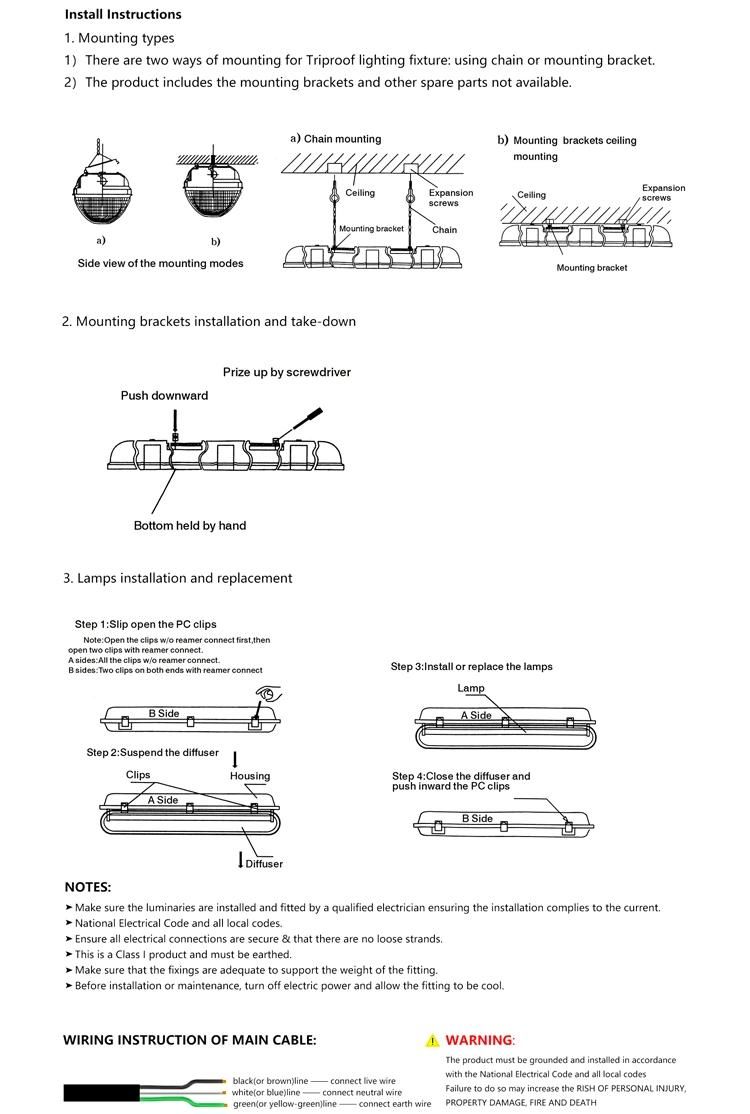

6. Easy and fast ceiling installation
7. Also suitable for different ballast and tube according to client's requirements
 Specification

Model	LLX-TriProof-118F	LLX-TriProof-218F	LLX-TriProof-136F	LLX-TriProof-236F	LLX-TriProof-158F	LLX-TriProof-258F
Watt(W)	1*18	2*18	1*36	2*36	1*58	2*58
IP Rating	IP 65	IP 65	IP 65	IP 65	IP 65	IP 65
N.W.(Kg/Ctn)	9	9	12.8	13.5	16	14.5
G.W.(Kg/Ctn)	10.5	11	14.8	15.5	17.5	15.5
Box Dim(L*W*H)	680*105*70	680*165*70	1290*105*70	1290*165*70	1590*105*70	1590*165*70
Carton Dim(L*W*H)	690*220*370	690*300*350	1300*300*230	1300*230*350	1600*230*230	1600*300*185
Qty/Carton(PCS)	10	8	8	6	6	4
