• Model NO.：PG03-640
• Life：50000h
• LED Chips：Samsung
• Certification：CE, RoHS, CCC, Energy Star, FCC, SAA, EMC, LVD
• CRI (Ra>)：80
• Ppfd Efficacy：2.8 Umol,J
• Ppfd：1800umol,S
• Colors：Red, Blue, Green, White, IR and UV
• Lamp Luminous Flux(Lm)：210lm,W
• Wavelength：3500K+660nm
• Dimmable：0~10V
• Waterproof：Yes
• Heat Dissipation：Good
• Light Bars：8 Light Bars
• Customized：Available
• G/W：2.5g,W
• Full Spectrum：Yes
• Wattage：640W
• Keywords：LED Grow Light Spectrum LED Indoor Garden Amazon
• Transport Package：Carton
• Specification：120*110*50CM
• Trademark：Iluminni
• Origin：Shenzhen Guangdong China
• HS Code：9405409000
• Production Capacity：10000 Per Month

Features

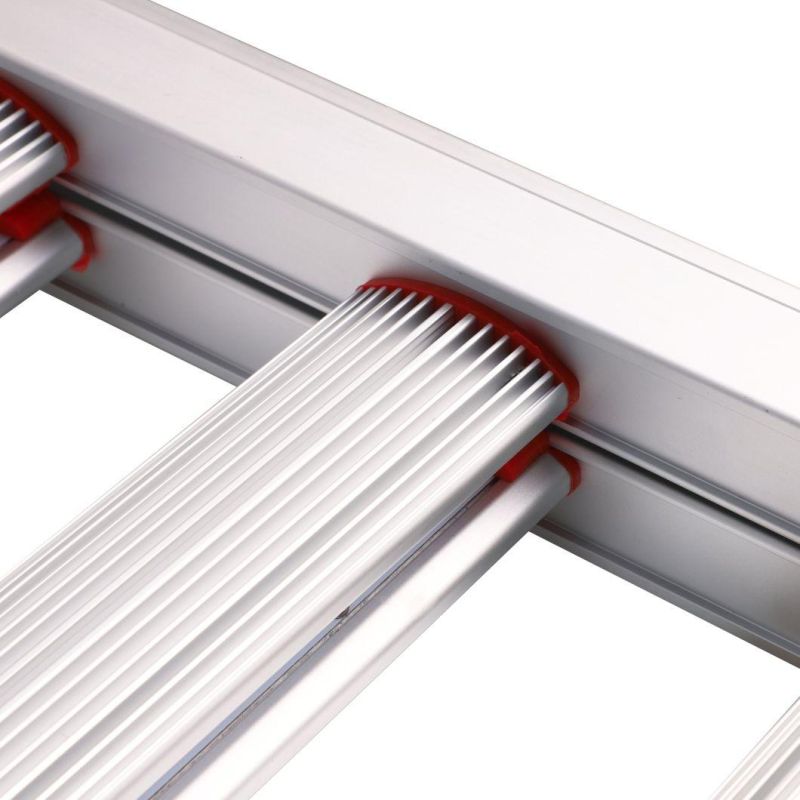

Structure & Material
·Anodized silver finish, more strips to enlarge heatsink space
·High conductivity aero aluminum alloy material 6063
·Good design for heat dissipation
·Glue spraying technique on LEDs for waterproof

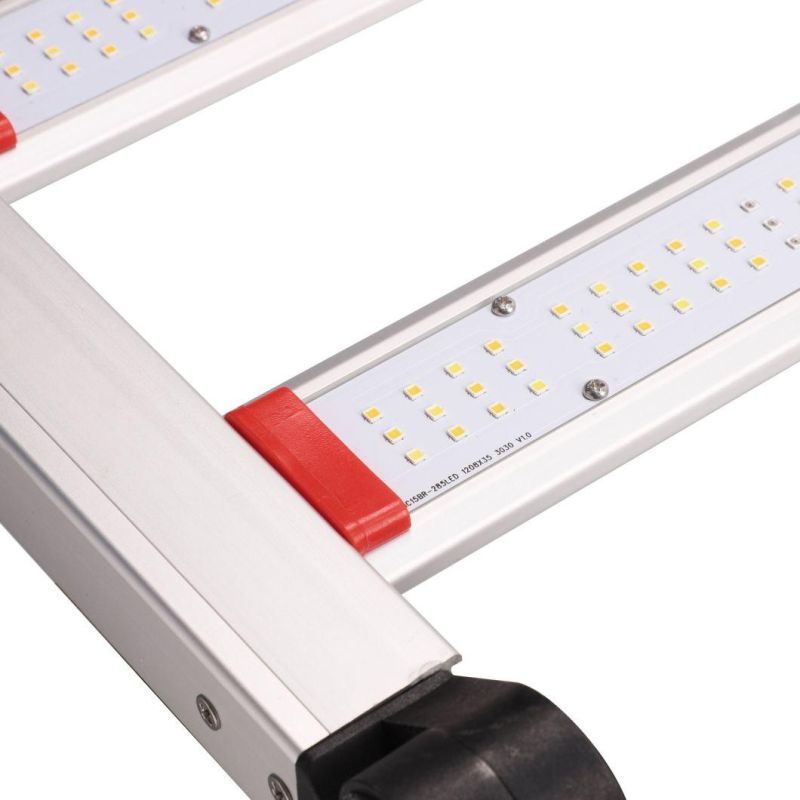

LED & Spectrum
·Samsung LEDs realize high PPF efficacy & low optical decay
·50,000 hours design lifespan, 5 times than HPS
·Simulate natural light color 3500K,warm for growing
·Full spectrum plus 660nm, good for seedling,VEG,blooming

Electrics
·High-efficiency LED driver >98%,less light loss
·Input Voltage: AC100-277V, 50/60Hz
·Power Factor: >0.98
·Knob dimming control box,easy to manage
·RJ45 port allows to connect 40 units of grow light
·Any of the light bar can be the master controller with a switch

Plant Friendly
·No mercury and other hazardous substances
·No noise
·Less heat, less fan extra

DIY Fun
·Increase bar easy, get high PPDF easy
·Fun for dimming with control box 10%-100%
·Fun for control of PPFD and radiation

Affordable
·Less cost than spydr bar fixture
·Less freight cost with tight packing box
·Less maintenance cost

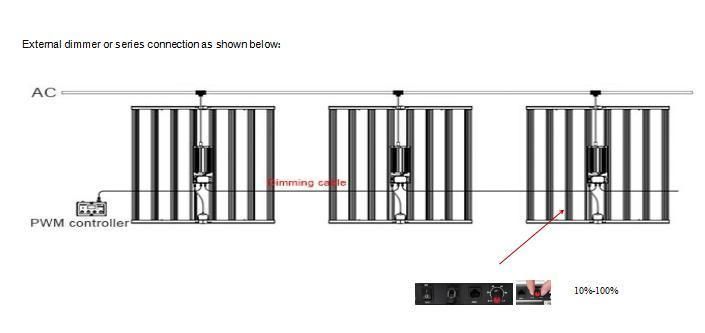

Control

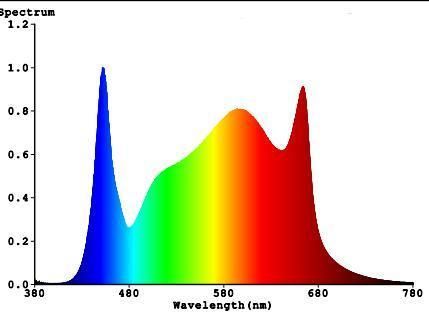

Spectrum

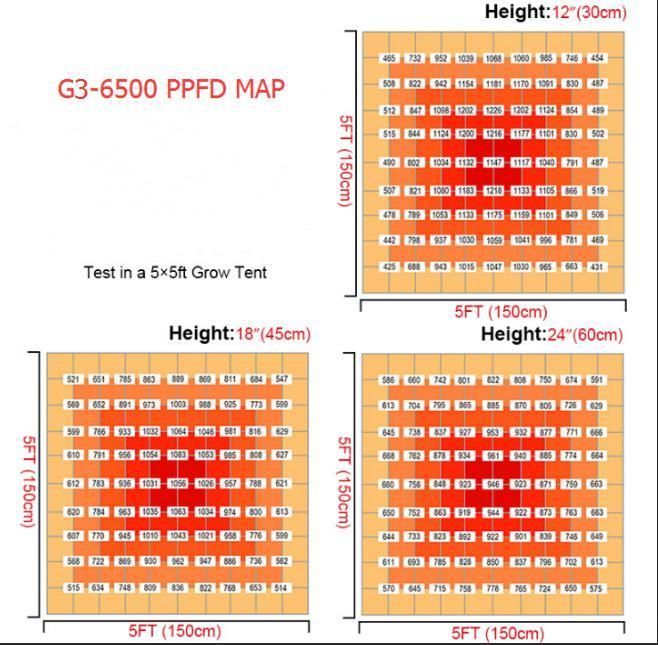

PPFD MAP

Installation Instructions
1. Fixtures must be operated by a licensed electrician.
2. Check if fixtures are in good condition once the packaging is open.
3. Do not let fixture fall down from ceiling system or clash to hard staff.
4. Make sure that the cable of fixture is long enough to connect.Do not knot or pull the cable strongly.
5. Do connect input end of fixture to output end of LED driver.
6. Wiring must be firm and tight with insulation protection well.Be aware of electricity shock.
7. Keep fixture and LED driver away from water or liquid,free from electric leakage and eletricity shock.

Packaging

Light Size: 1150*1110*100MM
Package Size:1185*785*130MM
Net Weight:15.7 KG
Gross Weight:19.4KG


Application case and project feedback

We recommend the led grow lights deployed in environments with CO2 supplementation between 800-1400 ppm in reproductive growth stage due to high PPFD level. PL series can be used in the vertical farm, farm, home grow, and indoor grow, grow tent. It is your best choice for your grow light

FAQ

Q1: Which certificates does your LED Plant grow Light have?

A1 : CE,RoHS,ETL

Q2: What's your LED chip brand?

A2: Sanan,Samsung.

Q3: What's the waterproof grade?
A3: IP65.

Q4: How to deal with the faulty?
A4: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 1%.
Secondly, during the guarantee period, we will send components or new lights with new order for small quantity.
For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.

Q5:How about customized service ?
A5:Customized service always available,301H/UV LED available.especially,customized spectrum
