• Model NO.：SLWP-FI81-212E
• Light Body Material：Plastic
• IP Rating：IP65
• Housing Color：White
• Lifespan：10000 Hours-50000 Hours
• Warranty：3 Years
• Certification：Ce, CQC, EMC, FCC, GS, RoHS, SAA, UL
• with Light Source：with Light Source
• Lamp Body Material：PC
• Beam Angle：120
• Voltage：100-240V
• Size(mm)：See The Description
• Power：9 18 24 18 36 48
• Input Voltage：100-130, 220-240V 50,60Hz
• Diffuser Material：PC+ Milk White
• LED Model：SMD 2835
• Luminous Flux：90lm,W
• Transport Package：Carton Box
• Specification：CE, RoHs
• Trademark：Sunnylux
• Origin：Ningbo China
• HS Code：9405409000
• Production Capacity：50000PCS,Month

Basic Info.

Model NO. SLWP-FI81-212E Light Body Material Plastic IP Rating IP65 Housing Color White Lifespan 10000 Hours-50000 Hours Warranty 3 Years Certification Ce, CQC, EMC, FCC, GS, RoHS, SAA, UL with Light Source with Light Source Lamp Body Material PC Beam Angle 120 Voltage 100-240V Size(mm) See The Description Power 9 18 24 18 36 48 Input Voltage 100-130, 220-240V 50/60Hz Diffuser Material PC+ Milk White LED Model SMD 2835 Luminous Flux 90lm/W Transport Package Carton Box Specification CE, RoHs Trademark Sunnylux Origin Ningbo China HS Code 9405409000 Production Capacity 50000PCS/Month

Product Description

LED Waterproof Light LED Triproof Lighting IP65 CE UL


Feature

Item Type	LED Waterproof Light IP65	LED Waterproof Light IP65	LED Waterproof Light IP65	LED Waterproof Light IP65	LED Waterproof Light IP65	LED Waterproof Light IP65
Model Number	SLWP FI81E-106	SLWP FI81E-112	SLWP FI81E-115	SLWP FI81E-206	SLWP FI81E-212	SLWP FI81E-215
Input Voltage	AC220~240V ± 10 % ; 50/60HZ	AC220~240V ± 10 % ; 50/60HZ	AC220~240V ± 10 % ; 50/60HZ	AC220~240V ± 10 % ; 50/60HZ	AC220~240V ± 10 % ; 50/60HZ	AC220~240V ± 10 % ; 50/60HZ
Input Power	9W	18W	24W	2X9W	2X18W	2X24W
LED	SMD 2835	SMD 2835	SMD 2835	SMD 2835	SMD 2835	SMD 2835
Luminous Flux	830LM	1660LM	2210LM	1660LM	3360LM	4200LM
LED Qty	48	96	120	96	192	240
Protection Level	IP65	IP65	IP65	IP65	IP65	IP65
Safety Level	II Type	II Type	II Type	II Type	II Type	II Type
Temperature	-20 °C ~+50 °C	-20 °C ~+50 °C	-20 °C ~+50 °C	-20 °C ~+50 °C	-20 °C ~+50 °C	-20 °C ~+50 °C
Size/mm (L*W*H-A)	653*85*87 -416	1263*85*87 -838	1863*85*87 -1036	653*130*87 -416	1263*130*87 -838	1563*130*87 -1036
Packing size/mm	680*375*300	1290*286*300	1590*286*300	680*416*300	1290*416*203	1590*416*203

Note:1) Power and voltage can be adjusted as per requirement.
     2)The"A" size means the installation dimension.



1. Item Type: SLWP-FE01
2. LED Light Source: SMD2835
3. Input Voltage(V): 220-240
4. Lamp Power(W): 9 18 24 18 36 48
5. Lamp Luminous Efficiency(lm/w): >80
6. CRI (Ra>): 80
7. Color Temperature(CCT): 2700-6500K
8. Working Life time(Hour): 50000
9. Lamp Body Material: PC base + PC diffuser
10. IP Rating: IP65
11. Certification: CE, ROHS, UL
12. Warranty(years): 2

Advantage:
-LED: International first-class quality LED light source with a variety of color temperature for choice.
- Lamp body: Injection moulded with strengthening ribs, opaque UV stabilized
PC material, sealing strip in natural silicone rubber.
- Clips: with PC clips.
- Lamp cover: Injection moulded, high impact resistant PC material with light
diffusing agent which could shed soft light. Light transmittance ≥85%.
- Reflector: Metal.

Application:
Can be applied in wet interior, dusty place and outdoor places, such as
factory, warehouse, cold store, car parking, pharmaceutical&food industry,
tunnel, bathroom, etc.

Packaging & Delivery
  Packaging Detail: 1pcs in one box 6pcs in one carton
  Delivery Detail: 10-15 work days for sample, 25-30 work days for 1000 pieces.



Term of Trade:
FOB, CFR, CIF could be negotiation,

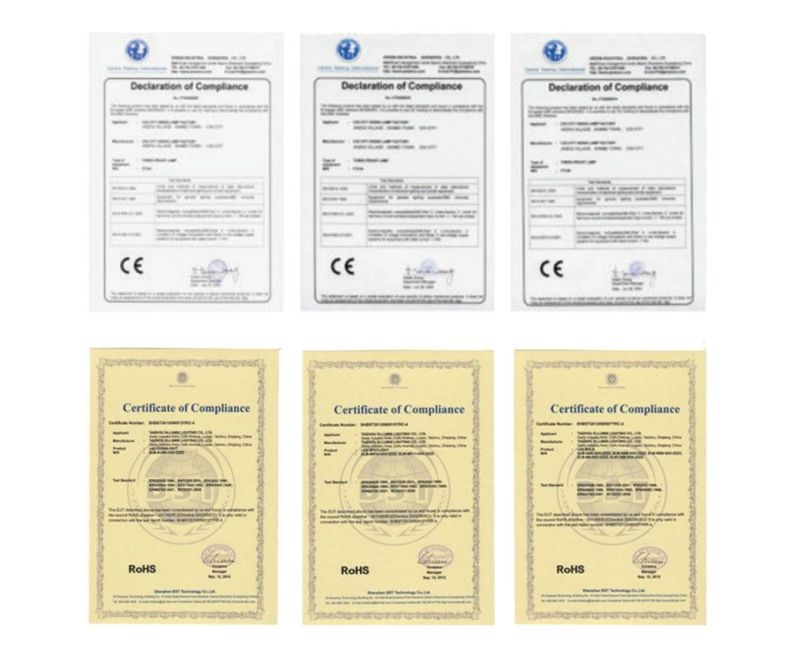

Certification:
  CCC, CE, CQC, FCC, GS, RoHS, SAA, UL
