• Power：36W
• Color Temperature(CCT)：2700-6500K
• MOQ：500PCS
• PF：0.9
• CRI：Ra>80
• Transport Package：Inner Box and Outside Carton
• Specification：114*7.5*6.6cm
• Trademark：OEM
• Origin：China
• HS Code：9405409000
• Production Capacity：1000,15 Days

Basic Info.

Power 36W Color Temperature(CCT) 2700-6500K MOQ 500PCS PF 0.9 CRI Ra>80 Transport Package Inner Box and Outside Carton Specification 114*7.5*6.6cm Trademark OEM Origin China HS Code 9405409000 Production Capacity 1000/15 Days

Product Description

 FEATURES

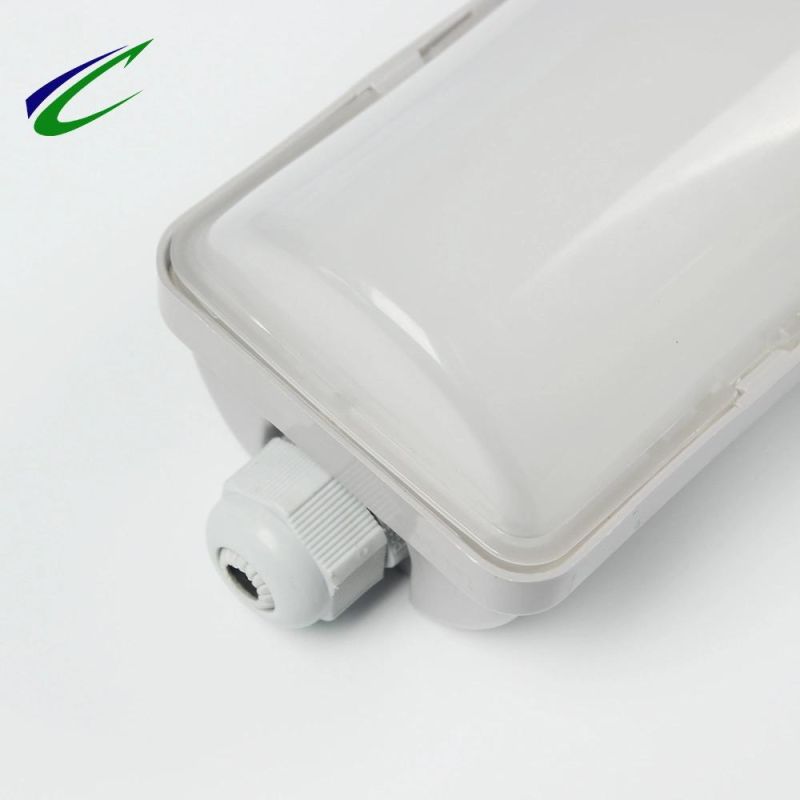

1. Injection for PC housing(round) and PC cover offering IP65 protection against moisture and dust, and an impact rating of IK08,inside 6063 aluminium reflector.

2. No closing clips for cover and housing, cost saving , installation easy.

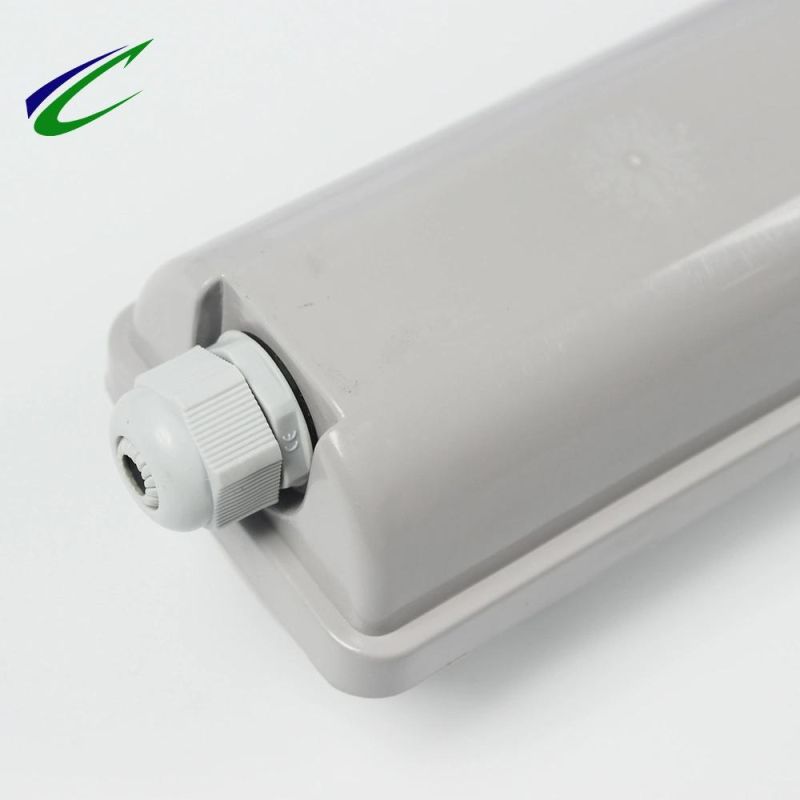

3. Easy for wire connection at back side of the housing.

4. LED based provides energy efficient solution and reduces maintenance cost.



Application



Car parks, Industrial areas, Offices, corridors, Supermarkets and shops, Bakeries, Storage areas etc.

Specification

Model	Voltage/frequency	Power	CCT	Lumen	L(mm)	W(mm)	H(mm)	A(mm)
DY-LED3109P/G	220-240V ~ 50/60Hz	10W	2700-6500K	900lm	580	60	66	290
DY-LED3209P/G	220-240V ~ 50/60Hz	18W	2700-6500K	1620lm	580	75	66	290
DY-LED3118P/G	220-240V ~ 50/60Hz	18W	2700-6500K	1620lm	1140	60	66	700
DY-LED3218P/G	220-240V ~ 50/60Hz	36W	2700-6500K	3240lm	1140	75	66	700
DY-LED3125P/G	220-240V ~ 50/60Hz	24W	2700-6500K	2160lm	1480	60	66	1040
DY-LED3225P/G	220-240V ~ 50/60Hz	50W	2700-6500K	4500lm	1480	75	66	1040
