• Model NO.：YG-P006
• Electric Current Type：AC
• Input Voltage：220V
• Diffuser：Polycarbonate
• Shell Material：Aluminium Alloy
• LED Chips：CREE
• Certification：CE, RoHS, CCC, GS, CSA, Energy Star, FCC, SAA, C-tick, NOM, PSE, GOST, EMC, LVD, KEMA, IMQ
• Voltage：AC 90-240V, 50-60Hz
• Lighting Source：200W High Brightness COB
• Control Mode：DMX512, Auto, Sound Activated AMD Master-Slave
• Control Channel：2CH
• Transport Package：Carton or Flycase
• Specification：CE Rohs, FCC ISO9001: 2008
• Trademark：GZ Yuelight
• Origin：Guangzhou
• HS Code：9405409000
• Production Capacity：10000PCS Per Month

Basic Info.

Model NO. YG-P006 Electric Current Type AC Input Voltage 220V Diffuser Polycarbonate Shell Material Aluminium Alloy LED Chips CREE Certification CE, RoHS, CCC, GS, CSA, Energy Star, FCC, SAA, C-tick, NOM, PSE, GOST, EMC, LVD, KEMA, IMQ Voltage AC 90-240V, 50-60Hz Lighting Source 200W High Brightness COB Control Mode DMX512, Auto, Sound Activated AMD Master-Slave Control Channel 2CH Transport Package Carton or Flycase Specification CE Rohs, FCC ISO9001: 2008 Trademark GZ Yuelight Origin Guangzhou HS Code 9405409000 Production Capacity 10000PCS Per Month

Product Description

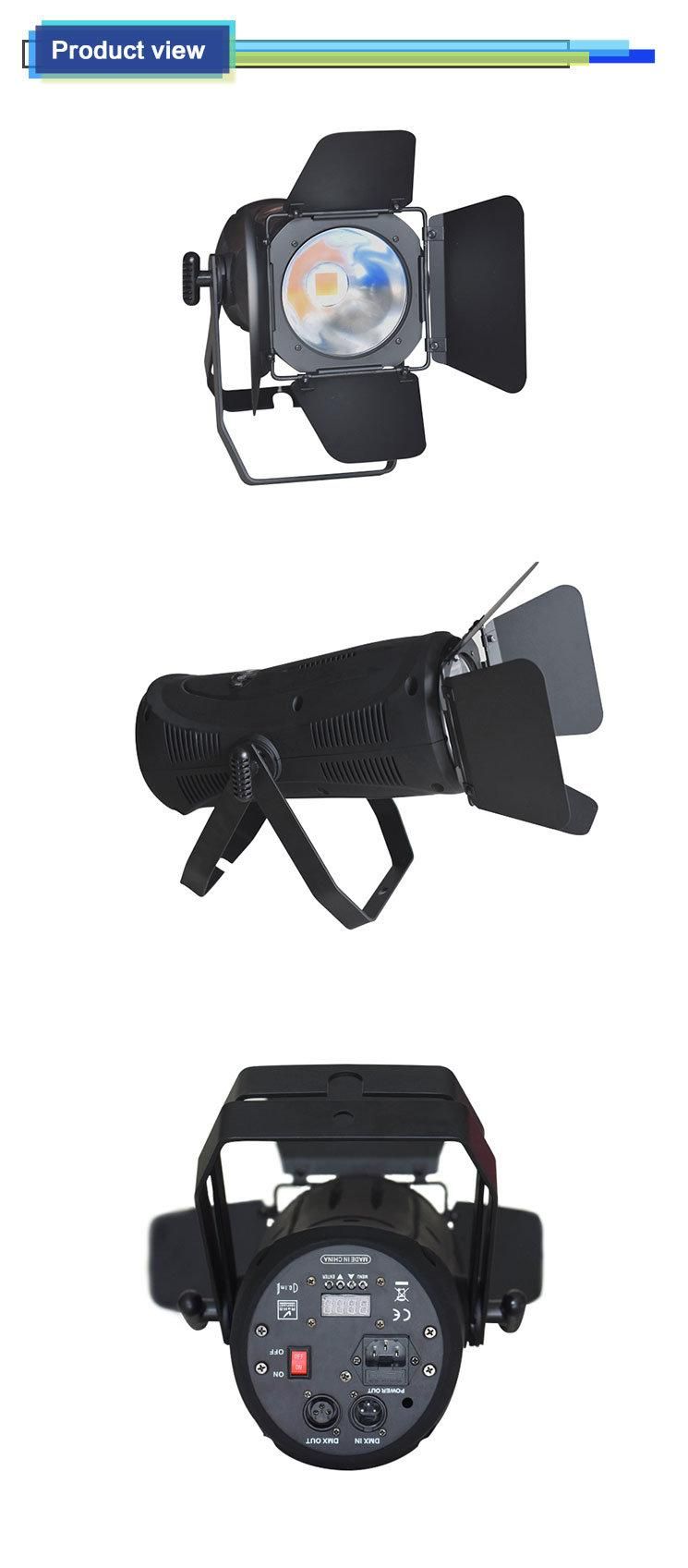

LED 200W Profile Video Wall Washer Light for Stuido/Photography/Theatre/Cinema



Voltage: AC110V-240V  50Hz-60Hz
Lighting Source:  Warm White 200W LED
Power: 250W
Lighting Color: Warm White
Control channel: 2 channels
Control Signal: DMX512
Lens Angel: 19 degrees

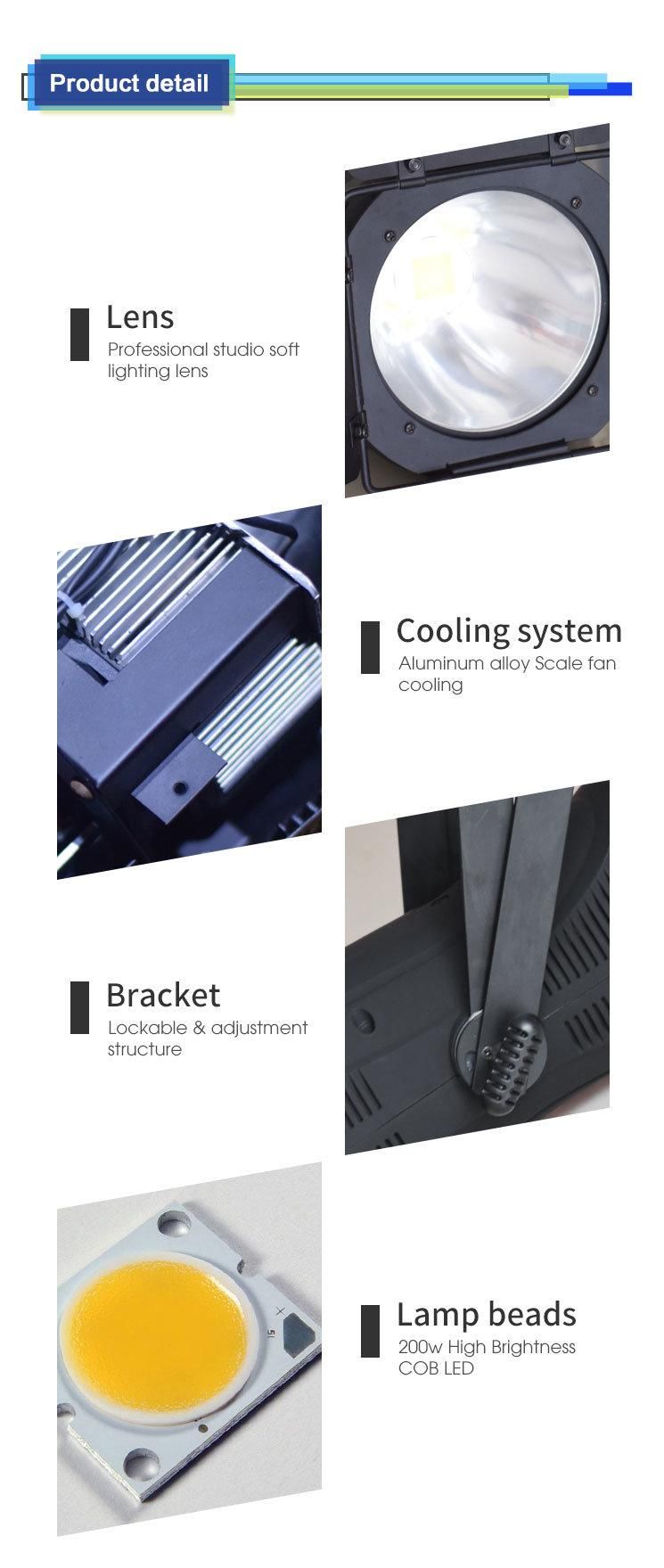

Feature

1. Use 200W LED high brightness COB LED.
2. Even brightness and no flash.
3. Adapted high strength aluminum alloy for housing.
4. Great cooling system, reduce light failure longer life time.
5. Suitable for stage, theater, disco, church, hotel etc

Installation:

1. When installation, keep the device far away the heat sensitive objects and explosives sensitive objects, leave at least 50CM of free space around the device.
2. When the device put on horizontal place, the device must be placed directly on the place, and device must be secured with a mounting holder.3.
3. When rigging the devices on the truss and the head face to the floor. Screw one clamp each via a M12 screw and nut onto the mounting holder. Insert the quick-lock fasteners of the first mounting holder into the respective holes on the bottom of the device. Tighten the quick-lock fasteners fully clockwise. Install the second mounting holder. And the safety rope must be used at same time
4. Please use qualified safety-rope, which can hold at lease 10 times the weight of the fixture. You must only use safety-ropes with quick links with screw cap. Pull the safety-rope through the hole on the bottom of the base and over the trussing system etc. Insert the end in the quick link and tighten the fixation screw. A safety rope which already hold the strain of a crash or which is defective must not be used again.
