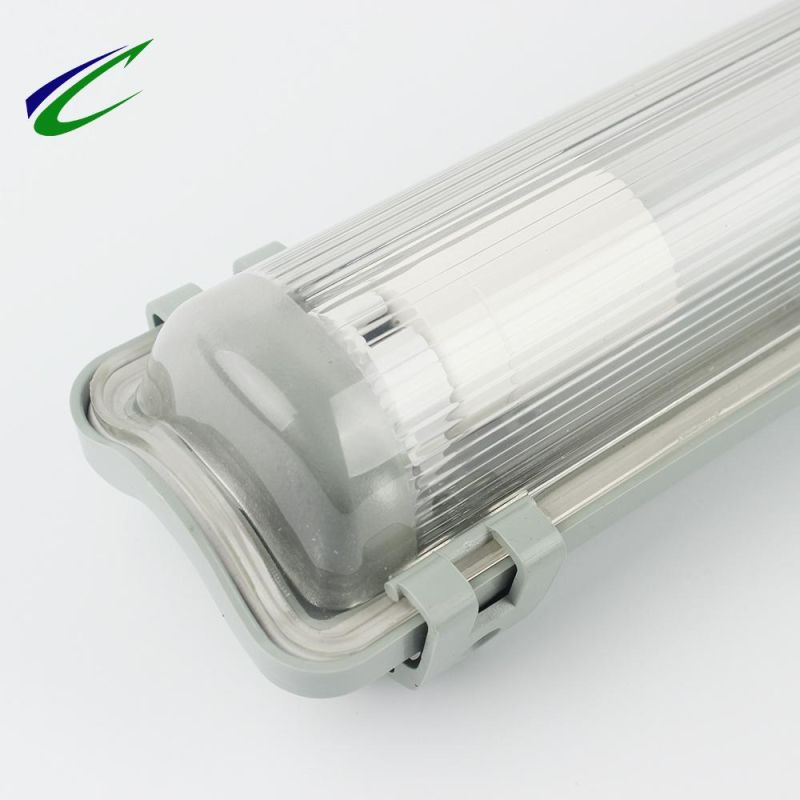

LED Tube Lighting Fixtures Waterproof Light Outdoor Wall Light
Changzhou D & Y Electrical Lighting Co., Ltd.- Application:Parking Lot
- Type:Tri-Proof Light
- Feature:Anti-corrosion, Dust-Proof, Waterproof
- Light Body Material:Plastic
- Product Name:LED Tri-Proof Light
- Material:PC
Base Info
- Power:9W
- Color Temperature(CCT):2700-6500K
- MOQ:500PCS
- PF:0.9
- CRI:Ra>80
- Transport Package:Inner Box and Outside Carton
- Specification:66*7*8cm
- Trademark:OEM
- Origin:China
- HS Code:9405409000
- Production Capacity:1000,15 Days
Description
1. Outer Casing: ABS or PC Materials
2. Cover: Clear PS or PC Materials
3. Metal Plate: Chemical treated and powder coated
4. Locks: ABS,PC or Stainless Steel Clips
5.Housing: White Iron fixing board,with cooper wire,CE lamp holders and CE terminal block
6. Including whole set of fixing accessories and rubber nylon waterproof plug
7. Supplied fully wired, no electronic Ballast,no starter.for led tube
8. IP Rate: IP65
9. Voltage: 220-240V
10. Safety Class: Class I
11. Application: Car parks, Industrial areas, Offices,
corridors,Supermarkets and shops, Bakeries, Storage areas etc
FEATURES
Smart design especially for LED tube.
The diffuser can be hanging when customers replace LED tube. It is convenient for the customer when installing lamp and reducing installation time.
Clips with anti-theft screw holes, after nstalling. can lock screw, and then make the whole lamps and lanterns has a good anti-theft system.
The dffuser has transparent and striated, so that customers have more selections.
Application
Car parks, Industrial areas. Offices, corridors. Supermarkets and shops. Bakeries. Storage areas etc
Specification
Model | Power | Lumen | L(mm) | W(mm) | H(mm) | A(mm) |
DY-8118B | 9W | 810lm | 660 | 70 | 80 | 315-385 |
DY-8218B | 18W | 1620lm | 660 | 110 | 80 | 315-385 |
DY-8136B | 18W | 1620lm | 1260 | 70 | 80 | 855-925 |
DY-8236B | 36W | 3240lm | 1260 | 110 | 80 | 855-925 |
DY-8158B | 24W | 1980lm | 1570 | 85 | 94 | 950-970 |
DY-8258B | 48W | 3960lm | 1570 | 125 | 94 | 950-970 |
Model | Power | Lumen | L(mm) | W(mm) | H(mm) | A(mm) |
DY-8118BS | 9W | 810lm | 660 | 70 | 78 | 340-415 |
DY-8218BS | 18W | 1620lm | 660 | 100 | 78 | 340-415 |
DY-8136BS | 18W | 1620lm | 1260 | 70 | 78 | 790-865 |
DY-8236BS | 36W | 3240lm | 1260 | 100 | 78 | 790-865 |
DY-8158BS | 22W | 1980lm | 1560 | 70 | 78 | 975-1050 |
DY-8258BS | 44W | 3960lm | 1560 | 100 | 78 | 975-1050 |
Model | Power | Lumen | L(mm) | W(mm) | H(mm) | A(mm) |
DY-8118BT | 9W | 900lm | 654 | 71 | 63 | 388 |
DY-8218BT | 18W | 1800lm | 654 | 108 | 63 | 388 |
DY-8136BT | 18W | 1800lm | 1264 | 71 | 63 | 834 |
DY-8236BT | 36W | 3600lm | 1264 | 108 | 63 | 834 |
DY-8158BT | 22W | 2200lm | 1564 | 71 | 63 | 1144 |
DY-8258BT | 44W | 4400lm | 1564 | 108 | 63 | 1144 |
