LED Batten Light Box Fitting with Ce RoHS
NINGBO SUNNYLUX IMPORT & EXPORT CO., LTD.- Type:Anti-glare Tri-proof Light
- Feature:Anti-corrosion, Dust-Proof, Waterproof
Base Info
- Model NO.:SLWP1236C
- Light Body Material:Plastic
- IP Class:65
- Watt:36W
- Ra:80
- Lm:100lm,W
- LED:SMD2835
- Input Voltage:220-240V
- Size:1140*75*66mm
- Transport Package:Carton Box
- Specification:10w, 18w, 24w, 36W, 50W
- Trademark:Sunnylux
- Origin:China Ningbo
- HS Code:94054090
- Production Capacity:20, 000PCS,Month
Description
Basic Info.
Model NO. SLWP1236C Light Body Material Plastic IP Class 65 Watt 36W Ra 80 Lm 100lm/W LED SMD2835 Input Voltage 220-240V Size 1140*75*66mm Transport Package Carton Box Specification 10w, 18w, 24w, 36W, 50W Trademark Sunnylux Origin China Ningbo HS Code 94054090 Production Capacity 20, 000PCS/MonthProduct Description
led betten tri-proof light with CE SAA CBwatts:36w
input voltage:220-240v 50/60hz
beam angle: 120 degree
model number: slwp1236c
light source: smd 2835
warranty(years): 3
ra: 80
lm: 100lm/w
colour temperature: 2700-6500k
size: 1140*75*66mm
led quatity: 90pcs
certification:CE SAA CB
material: grey base and opal diffuser
working temperature: -45 - 50 degree
product features:
input: ac 220-240v, 50-60hz
driver: osram, meanwell or other options
reflector: mcpcb or high temperature resistant pcb for your option
body and diffuser could meet the ik08, and 850 degree glow wire test requirement
perfect replacement for the whole set of t8 fluorescent luminaire.
save up to 60% in electricity consumption compared to fluorescent lighting fixture
lifetime:50000hrs, warranty: 3 years
it could be with sensor (turn on/off sensor, dim sensor), emergency kit.
suitabel for supermarket, underground parking, warehouse, function well in waterproof and dustproof, suitable for outdoor and wet location lighting application

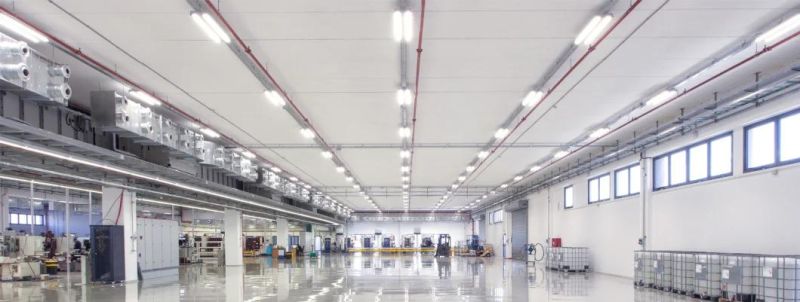

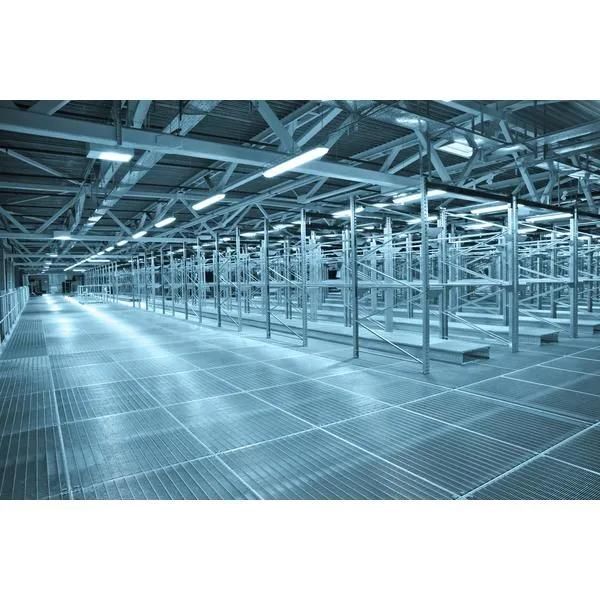

application
1. production line lighting in factory
2. subway, bus, station
3. office building, shops, shopping mall
4. school, hospital, exhibition hall
5. advertisement lighting and decoration
our service:
1. your inquiry related to our products or prices will be replied in 24hrs.
2. well-trained and experienced staffs to answer all your inquires
3. delivery time: 3-4 days for sample, 25-30 days for bulk order usually.
Model | Voltage/Frequency | Lamp Power | Main material | LED | QTY of LEDs | Colour Temperature | CRI | Lumens | Beam angle | Lifespan(h) | IP Rating | Net Size(mm) | QTY/CTN | CTN Size(mm) |
SLWP0610C | 220-240V/ 50-60Hz | 10w | PC+PC | SMD2835 0.2W | 60 | 2700-6500K | 80 | 1000LM | 120° | 50000 | 65 | 580*60*66 | 12 | 630*280*235 |
SLWP0618C | 220-240V / 50-60Hz | 18W | PC+PC | SMD2835 0.5W | 48 | 2700-6500K | 80 | 1800LM | 120° | 50000 | 65 | 580*75*66 | 9 | 630*250*235 |
SLWP1218C | 220-240V / 50-60Hz | 18W | PC+PC | SMD2835 0.2W | 96 | 2700-6500K | 80 | 1800LM | 120° | 50000 | 65 | 1140*60*66 | 12 | 1190*280*235 |
SLWP1236C | 220-240V / 50-60Hz | 36W | PC+PC | SMD2835 0.5W | 90 | 2700-6500K | 80 | 3600LM | 120° | 50000 | 65 | 1140*75*66 | 9 | 1190*250*235 |
SLWP1524C | 220-240V / 50-60Hz | 24W | PC+PC | SMD2835 0.2W | 120 | 2700-6500K | 80 | 2400LM | 120° | 50000 | 65 | 1480*60*66 | 9 | 1530*230*235 |
SLWP1550C | 220-240V / 50-60Hz | 50W | PC+PC | SMD2835 0.5W | 120 | 2700-6500K | 80 | 5000LM | 120° | 50000 | 65 | 1480*75*66 | 9 | 1530*250*235 |
