3W 365nm Surece Uses UV Torch Light
TaoYuan Optoelectronics Shenzhen Co., Ltd.- IP Rating:IP67
- Emitting Color:Purple
- With Light Source:With Light Source
- Application:Curing and Testing
- Lamp Body Material:Aluminum
- Lampshade Material:Aluminum
Base Info
- Model NO.:TY-365nm-3W-A
- Style:Modern simplism style
- Voltage:3.8-4.3V
- Certification:CE, RoHS
- The Power:3W
- Current:700-1200mA
- Wavelength:365nm
- Transport Package:Carton
- Trademark:LED TaoYuan
- Origin:China
- HS Code:8531200000
- Production Capacity:8000sets,Year
Description
Basic Info.
Model NO. TY-365nm-3W-A Style Modern simplism style Voltage 3.8-4.3V Certification CE, RoHS The Power 3W Current 700-1200mA Wavelength 365nm Transport Package Carton Trademark LED TaoYuan Origin China HS Code 8531200000 Production Capacity 8000sets/YearProduct Description

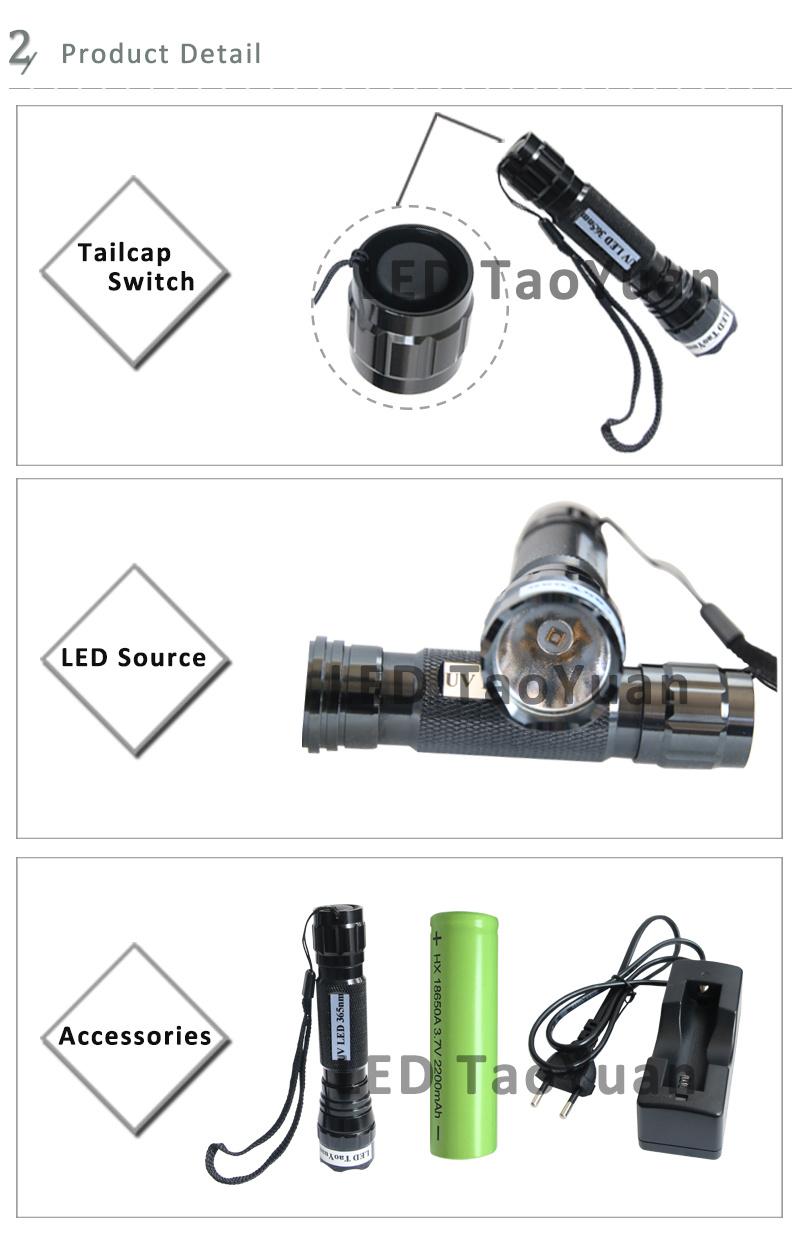

1.TY-365-3W host
2.Rechargeable lithium battery 1pcs
3.Charger
Specializing in the development,production UV LED flashlights,bright UV LED flashlight,high power LED flashlight,aluminum UV LED flashlight.TY all of our products by High power LED UV 365nm,375nm-385nm,395nm,405nm, products using 6061-T6 aircraft-grade magnesium alloy case,high capacity 3000mA lithium-ion battery,the top of the configuration to ensure that the products of high quality.

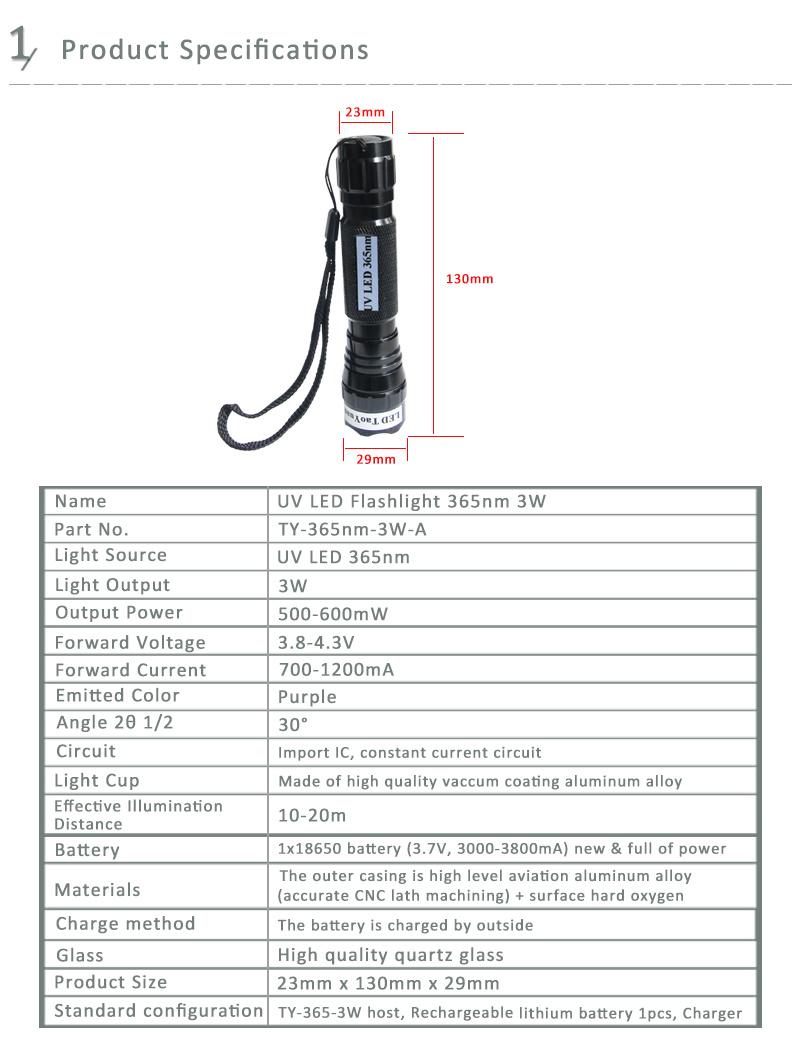

Name | UV LED Flashlight 365nm 3W |
Part No. | TY-365nm-3W-A |
Light Source | UV LED 365nm |
Light Output | 3W |
Output Power | 500-600mW |
Forward power | 3.8-4.3V |
Forward Voltage | 700-1200mA |
Emitted Color | purple |
Angle 2θ 1/2 | 30° |
Circuit | Import IC, constant current circuit |
Light Cup | Made of high quality vacuum coating aluminum alloy |
Effective illumination Distance | 10-20m |
Battery | 1 x 18650 battery (3.7v, 3000-3800mA) new & full of power |
Materials | The outer casing is high level aviation aluminum alloy (accurate CNC lath machining) + surface hard oxygen |
Charge method | The battery is charged by outside |
Glass | High quality quartz glass |
Product Size | 23mm x 130mm x 29mm |
Standard Configuration | TY-365nm-3W host, Rechargeable lithium battery 1pcs, Charge |
Is widely used in: fluorescent penetrant testing, fluorescent magnetic particle inspection, fluorescent leak detection, Criminal Investigation detection, UV curing, archaeological research, mineral test, jewelry appraisal.
