Gavita Full Spectrum Samsung Lm301b Lm301h Lm561c Osram 320W 640W Linear LED Grow Light for Medical Plants
Shenzhen Lumin Lighting Co., Ltd.- Application：Fruit and Vegetable, Flowers, Special Crops, Leafy, Fruit, Seedling
- IP Rating：IP65
- Emitting Color：White and Red
- Input Voltage：85V-265V
- Power：320W
- Shape：Linear
Base Info
- Model NO.：PG05-320
- Warranty：5 Years
- Housing Material：Aluminum
- Life：80000h
- LED Chips：Samsung
- Certification：CE, RoHS, EMC, LVD
- CRI (Ra>)：80
- Ppfd Efficacy：2.7~3umol,J
- Ppfd：900 Umol,S
- Wavelength：3500K+5000K+660nm
- Dimmable：1~10V
- Waterproof：Yes
- Heat Dissipation：Good
- Customized：Available
- G/W：2.5g,W
- Full Spectrum：Yes
- Wattage：320W
- Spectrum：Sun Spectrum
- LED：Samsaung Lm301b Lm301h
- Driver：Inventronics,Meanwell,Sosen
- OEM/ODM：Available
- Transport Package：Carton
- Specification：660mm
- Trademark：Ilumnini
- Origin：Shenzhen Guangdong China
- HS Code：9405409000
- Production Capacity：10000 Per Month
Description
Structure & Material

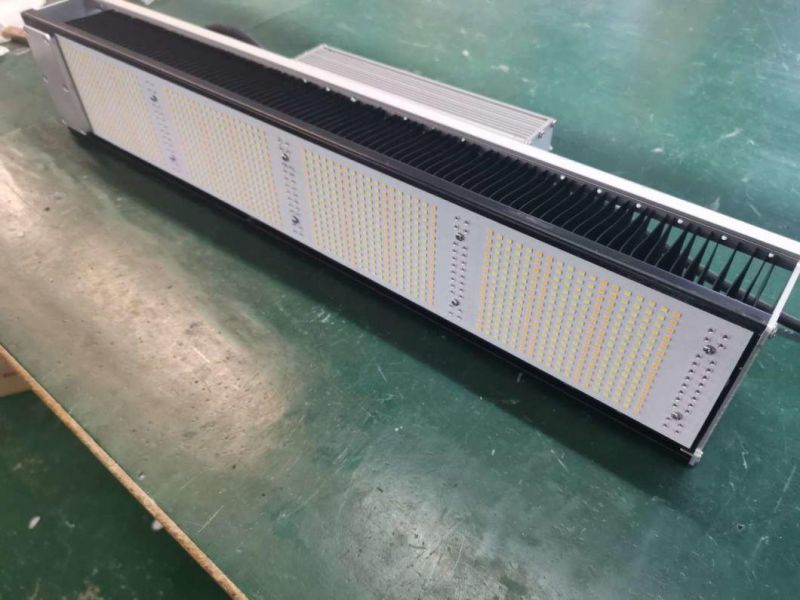

· Heat sink fin design. Anodizing back finish for heat dissipation
· High hardness aero aluminum alloy material 6063
· IP65 design
· Used for damp place such as greenhouse
LED & Spectrum
· LM-80 listed LEDs realize high luminous efficacy & low opticaldecay
· 80,000 hours design lifespan, long lifetime
· High efficacy LEDs 210lm/w

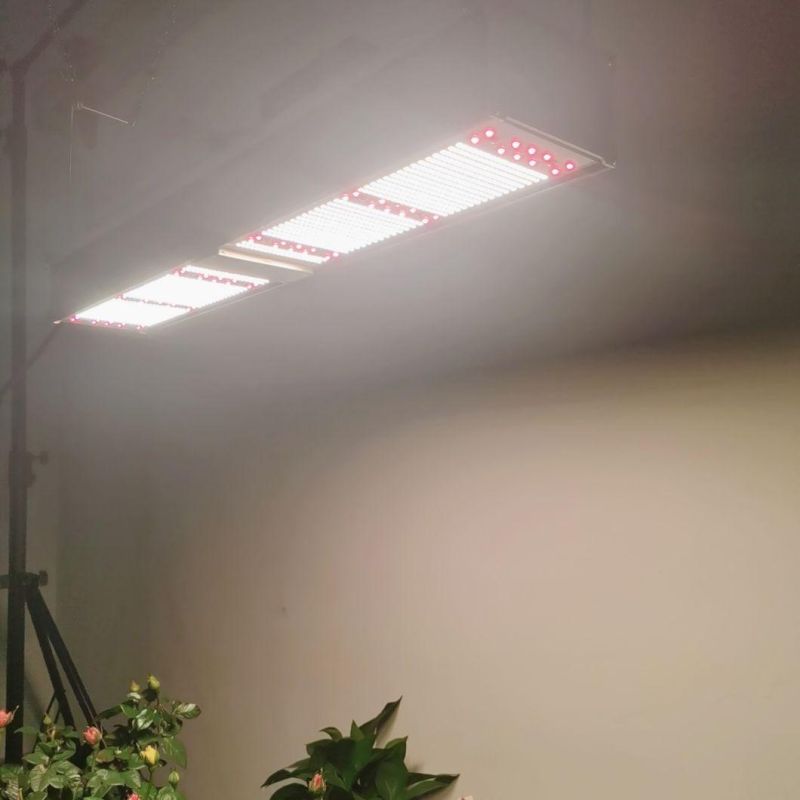

· Full Spectrum: White+ Red; Custom
· Beam Angle: 120º

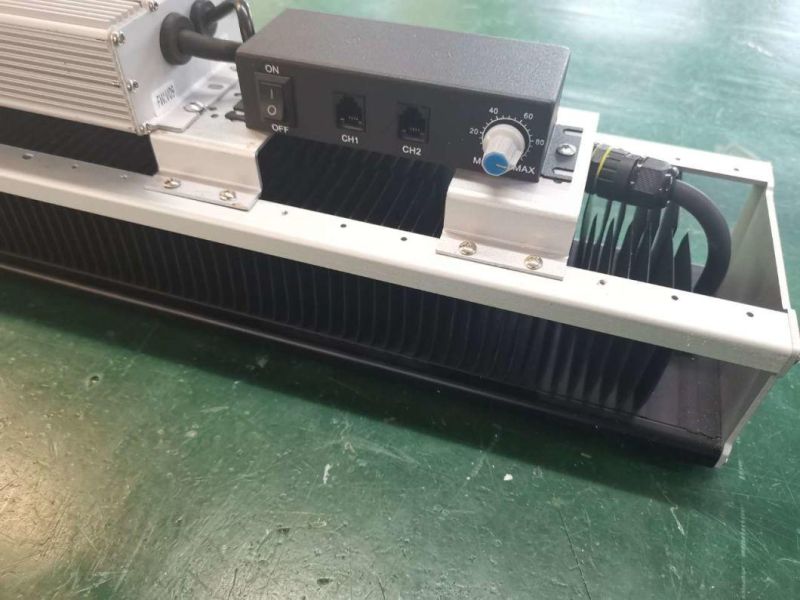

Electrics & Dimming
· High efficiency power supply, UL listed
· Input Voltage: AC100-277V, 50/60Hz
· Power Factor: >0.98 · 1-10V dimmable
Environmentally friendly
· No glare, mercury, ultraviolet, infrared or other hazardoussubstances
· Working Temperature: -25ºC to 65ºC

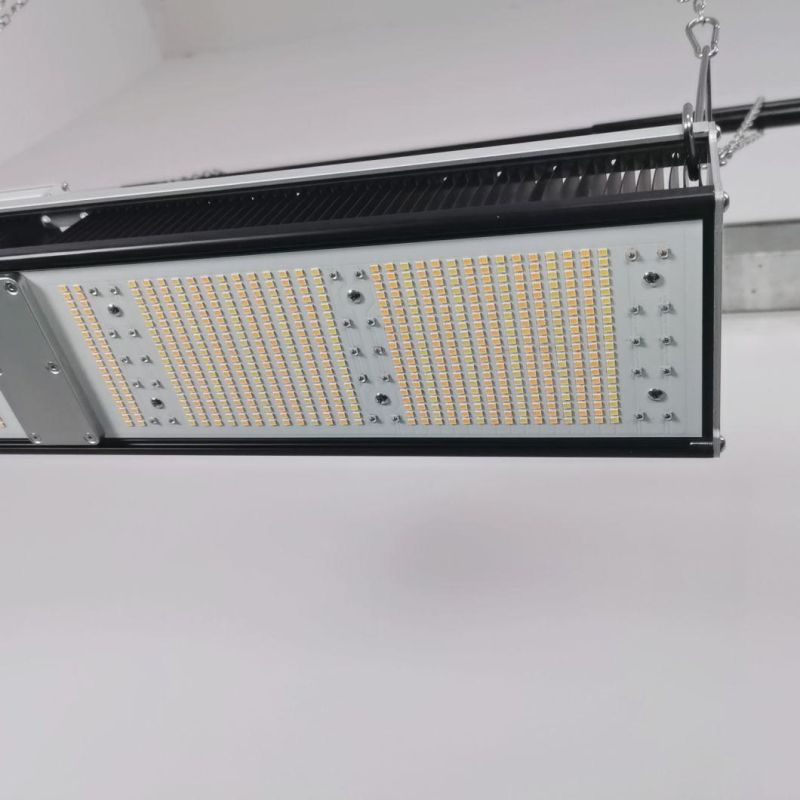

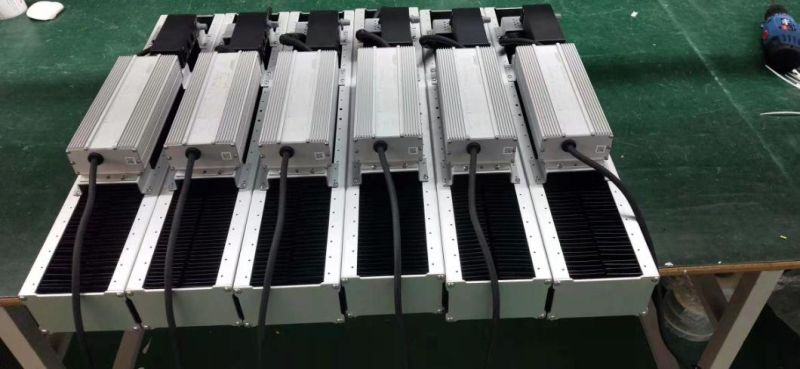

Grow Light Details
Application

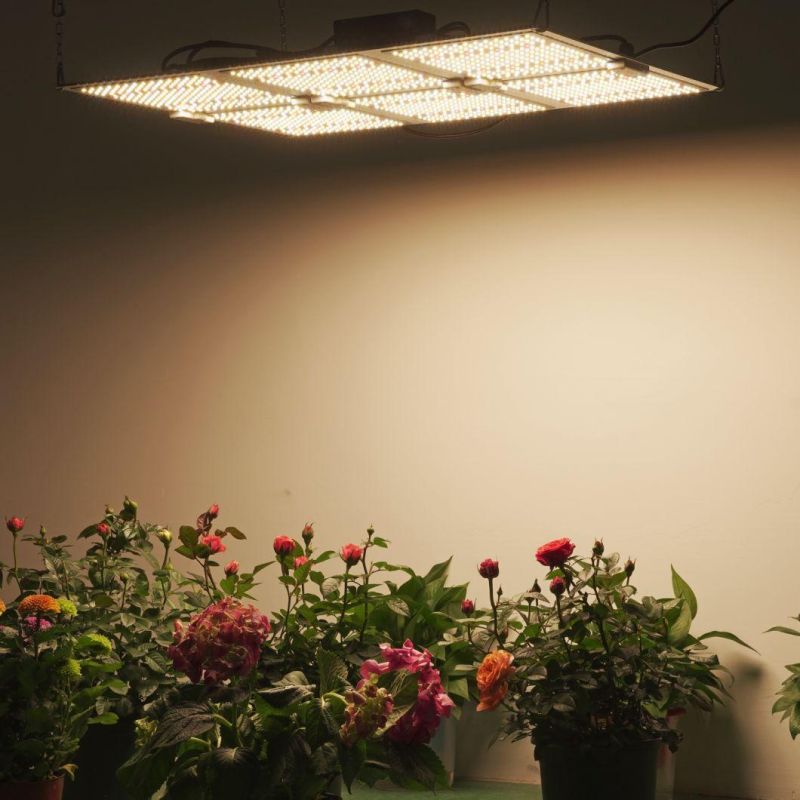

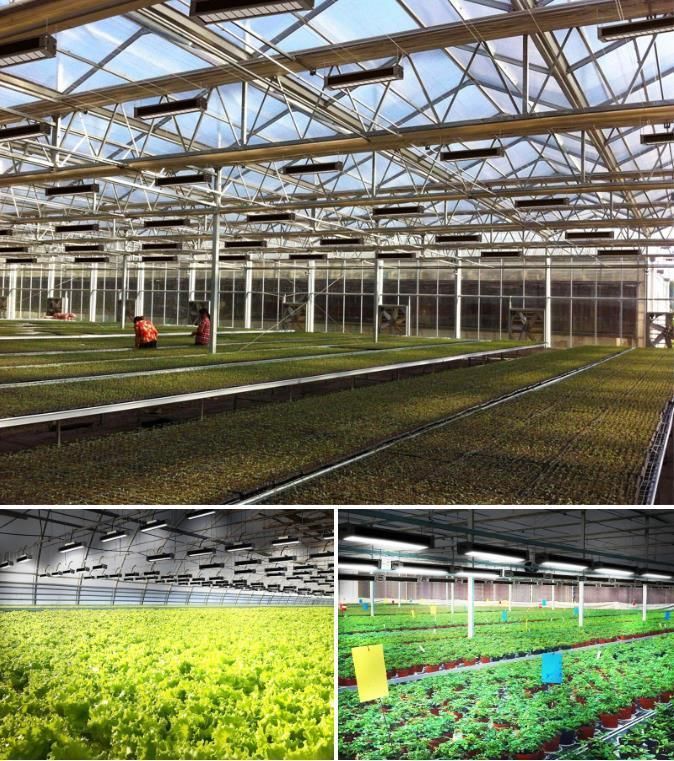

It is widely used in the commercial greenhouse cultivation, indoor plant growing, and private garden horticulture.
Replacement Replacing traditional lights such as high pressure sodium of supplement of light for horticulture
Installation Instructions
1. Fixtures must be operated by a licensed electrician.
2. Check if fixtures are sloid and in good condition once packaging is open.
3. Do not let fixture fall down from ceiling system or clash to hard stuff.
4. Make sure that the cable of fixture is long enough to connect. Do not knot or pull the cable strongly whilewiring.
5. Do connect input end of fixture to output end of LED driver.
6. Wiring must be firm and tight with insulation protection well. Be aware of electricity shock.
7. Keep fixture and LED driver away from water or liquid, free from electric leakage and electricity shock.
8. Must use LED driver approved by Lumin, otherwise, fixtures may not work normally, and may be damaged, may cause unexpected incidents.
Lumin will not bear any responsibilities due to such deeds.
Related Products
FAQ
Q1: Which certificates does your LED Plant Light have?
A1 : CE,RoHS,ETL
Q2: What's your LED chip brand?
A2: Samsung.
Q3: What's the waterproof grade?
A3: IP65.
Q4: How to deal with the faulty?
A4: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 1%.
Secondly, during the guarantee period, we will send components or new lights with new order for small quantity.
For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
Q5:How about customized service ?
A5:Customized service always available,301H/UV/IR LED available
More details,welcome to contact me
