• Model NO.：90031
• Style：Modern simplism style
• Base Type：LED+MPCB
• Technics：Stainless Electrolytic Polishing
• Voltage：DC12V,DC24V
• Certification：CE, EMC, LVD, RoHS
• Working Lifetime：50000hrs
• Beam Angle：8,15,25,30,45,60 Deg
• Working Temperature：-20-40 Centigrade
• Transport Package：Shockproof Carton Box
• Specification：8PCS,CTN
• Trademark：JP Lighting
• Origin：Dongguan, Guangdong, China
• HS Code：94054090
• Production Capacity：10000PCS,Month

Basic Info.

Model NO. 90031 Style Modern simplism style Base Type LED+MPCB Technics Stainless Electrolytic Polishing Voltage DC12V/DC24V Certification CE, EMC, LVD, RoHS Working Lifetime 50000hrs Beam Angle 8/15/25/30/45/60 Deg Working Temperature -20-40 Centigrade Transport Package Shockproof Carton Box Specification 8PCS/CTN Trademark JP Lighting Origin Dongguan, Guangdong, China HS Code 94054090 Production Capacity 10000PCS/Month

Product Description

China Hot Sale 316 Stainless Steel 3W 3000K IP68 Recessed LED Underwater Swimming Pool Light

This is a 3 SMD LEDs underwater light with bracket, the wattage could be selected according to the specific situation, standard diameter 91mm x height 130mm (including the bracket).

The lamp body and bracket are both made of high quality stainless steel, body is structurally waterproof with the silicone ring seal, so that this LED underwater light is waterproof (IP68 rating) and submersible.

Main Features

1. Stainless steel 304# or 316# housing and bracket, front cover is polished stainless steel.
2. Step tempered glass 7mm thickness, clear and heat resistant.
3. Adjustable mounting arm provides aiming light.
4. Constant current driver, no flash, fast response to reach the current, safe use.
5. Single color and RGB color are available.
6. Rated IP68 for underwater use, CE and RoHS proved.
7. CREE or OSRAM LEDs, high efficient light source, low power consumption.
8. Long life up to 50,000 hours.
9. 2m rubber cable is included. Longer lengths are available.

Product Models

Item No.	Lighting Source	Lens Beam Angle (°)	Consumption(Watt)	Input Voltage(V)	IK Rate
90031	3x1W LED	8°/15°/25°/30°/45°/60°/90°	3.2	DC12V/DC24V	05
90032	3x2W LED	8°/15°/25°/30°/45°/60°/90°	6.3	DC12V/DC24V	05
90033	3x1W RGB LED (1R 1G 1B)	8°/15°/25°/30°/45°/60°/90°	3.0	DC12V/DC24V	05
90034	3x2W RGB LED (1R 1G 1B)	8°/15°/25°/30°/45°/60°/90°	6.1	DC12V/DC24V	05
90036	3x3W RGB 3in1 LED	25°/30°/45°/60°/90°	3.3	DC12V/DC24V	05
90039	3x4W RGBW 4in1 LED	25°/30°/45°/60°/90°	12	DC12V/DC24V	05

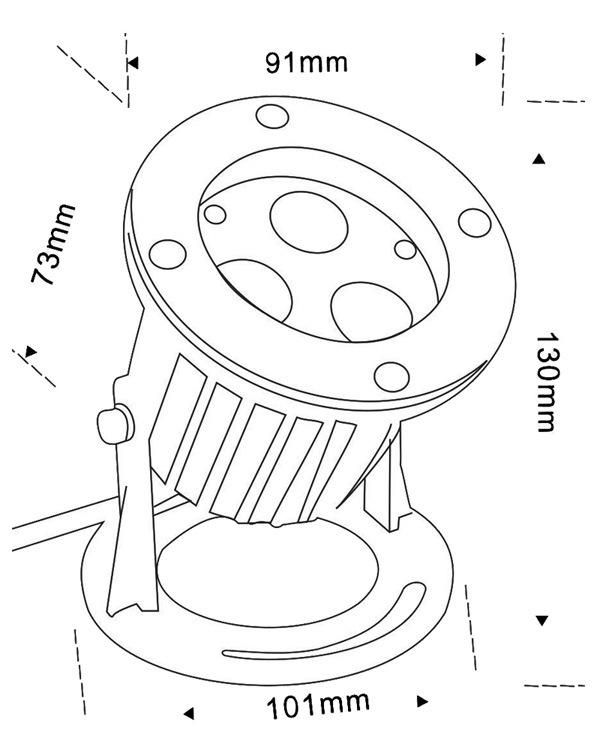

Product Dimension

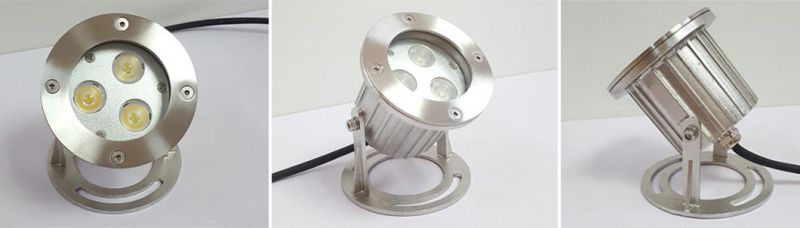

Product Image

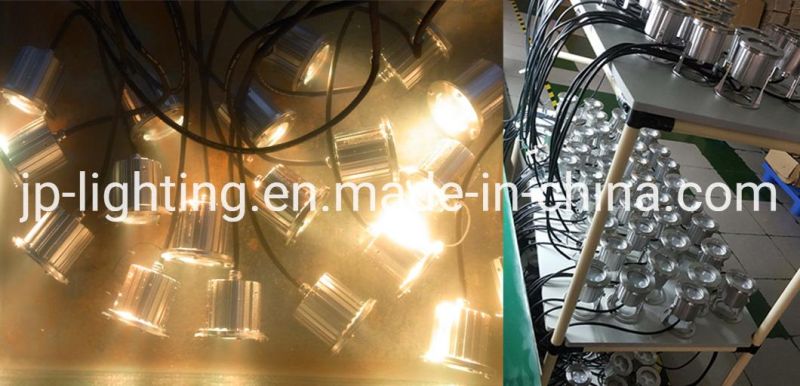

Production and Test

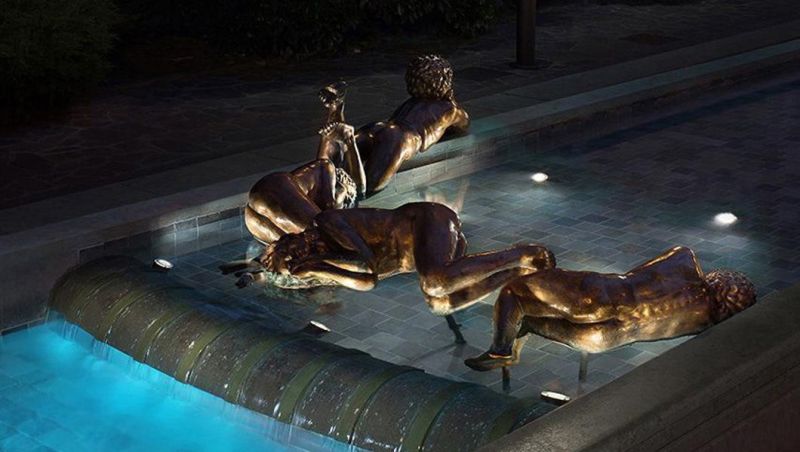

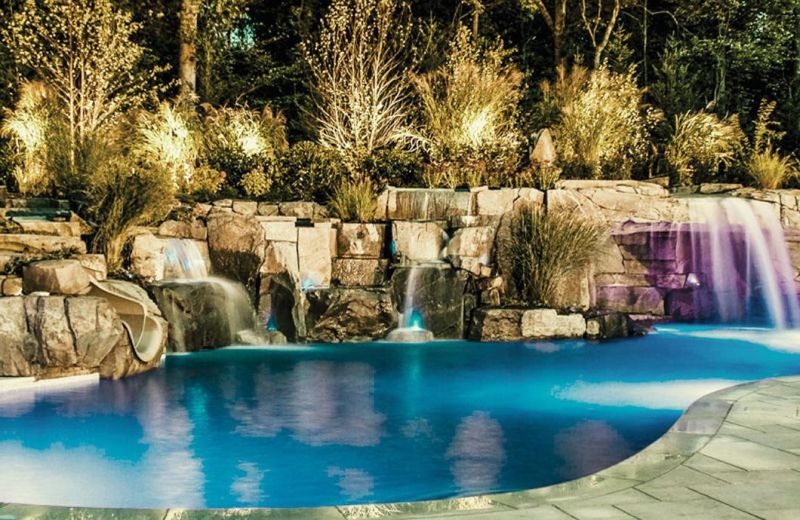

Product Application
Joy and Partner's underwater LED lights are bright, energy-saving, and modern design, they are widely used for fish ponds, swimming pools, hotel pools, water shows, park fountains, waterfalls, shopping centers, amusement parks, sea aquariums...Anywhere there is water and lighting required.

*Warning:
Must be installed under the water to prevent the lights from being burnt off because of the over-heating.

FAQ

Are you a manufacturer?
Yes, We are a professional manufacturer with 15 years experience.

What are your main products?
1.Outdoor LED wall light
2.LED garden spot/spike light
3.LED inground light
4.LED underwater light(fountain light, swimming poool light, underwater spot light)
5.LED wall washer light

What is the company sample system?
1.Sample charge should prepaid.
2.Sample can be customized,If the order QTY is more than 1000Pcs.

How we can pay for?
1.30% advanced payment. 70% balance payment.
2.We accept L/C, T/T, Western Union, and Paypal.
3.Our shipping terms is EXW, FOB, CIF

How about the delivery time?
1.About 5 working days for sample making.
2.15-30 working days for mass products production time. It is up to the quantity.

What information should I let you know when I want to make a inquiry?
1.Which body color do you want?
2.What kind of light color do you prefer?
3.How long do you need about light cable?
4.Which voltage ( low voltage or high voltage)?
5.What kind of beam angle do you need?
6.What's the quantity do you need?
Why choose us?
1.One-stop services:  Innovative design, professional product light effect. Excellent product quality, sincere service concept. For exterior lighting provides an integrated, one-stop integrated lighting solution!

2.Experience R&D, production and sales team: We have an mature and experienced team. Some members have more than 15 years of work experience in the field of lighting. JP Lighting factory covers an area of 2,000 square meters and the annual sales of more thank $10 million.

3.Strict quality control process: JP lights use the high quality components. All material must be strictly screened. All JP lights will undergo strict testing before shipping, including integrating sphere testing, aging test, waterproof test, etc. Due to rich experience and professionalism, JP Lighting's product defect rate is strictly controlled within 1%.

4.Products worldwide with high reputation: We participate in various industry lighting exhibitions, our products are all over Asia, Europe, Oceania, Africa and Central and South America, Middle East. All products have got great comments for high quality and excellent service.
