Power Distribution Cabinet Lighting Industrial LED Machine Lighting

Wenzhou Natural Automation Equipment Co., Ltd.
  • Power：5w
  • Color Temperature：Pure White
  • Emitting Color：White
  • Installation Mode：Magnet Fixing
  • Switch Type：Touch On,Off Switch
  • IP Rating：IP20

Base Info

  • Model NO.：LED025
  • Input Voltage：100-240VAC
  • Certification：RoHS, CE
  • Power Consumption：Max. 5W
  • Casing：Plastic, Transparent

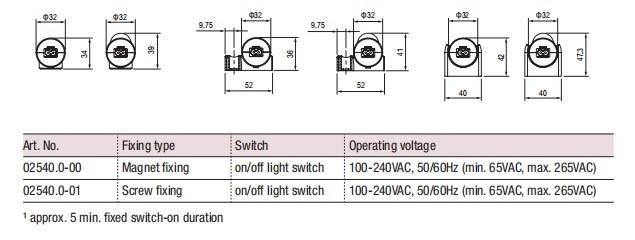

  • Dimensions：See Drawings
  • Weight：0.2kg
  • Operating/Storage Humidty：Max. 90% Rh (Non-Condensing)
  • Protection Type/Protection Class：IP20 , II (Double Insulated)
  • Transport Package：Carton
  • Trademark：Natural, OEM, neutral
  • Origin：China
  • Production Capacity：5000PCS,Month

Description

LED 025Power consumptionmax. 5WLuminosity400Lm at 120° (1,200Lm at 360° or equivalent 95W light bulb)Lamp typeLED, angle of radiation 120° light color: daylight, color temperature: 6,000K to 7,000KService life60,000h at +20°C (+68°F) Connection2-pole connector with snap lock AC: max. 2.5A / 240VAC, color: white DC: max. 2.5A / 60VDC, color: blueMountingmagnet fixing or screw fixing (M5), clip fixing (M6), torque 2Nm max.Casingplastic, transparentDimensionssee drawingsWeight0.2kg Operating/Storage temperature-30 to +60°C (-22 to +140°F) / -40 to +85°C (-40 to +185°F)Operating/Storage humidtymax. 90% RH (non-condensing)Protection type/Protection classIP20 / II (double insulated)Mounting options: The lamps are available with magnet fixing for easy positioning in any steel cabinet or enclosure. A classic is the LED 025 with screw fixing. The clip holders exclusively designed for clip fixing of the LED 025 can be positioned anywhere in the cabinet by simply screwing the holders to the cabinet wall. The lamp is snapped into the clip holders and can be turned in both directions. With a total rotation angle of 180° it provides perfect illumination within the cabinet or enclosure.
Note: The lamp must not be used for household lighting.
