• Model NO.：TY-S1605-60W
• Specification：180.2*36.2*88.7mm
• Trademark：UVTaoYuan
• Origin：China
• HS Code：9405409000
• Production Capacity：50000PCS,Year

Basic Info.

Model NO. TY-S1605-60W Specification 180.2*36.2*88.7mm Trademark UVTaoYuan Origin China HS Code 9405409000 Production Capacity 50000PCS/Year

Product Description

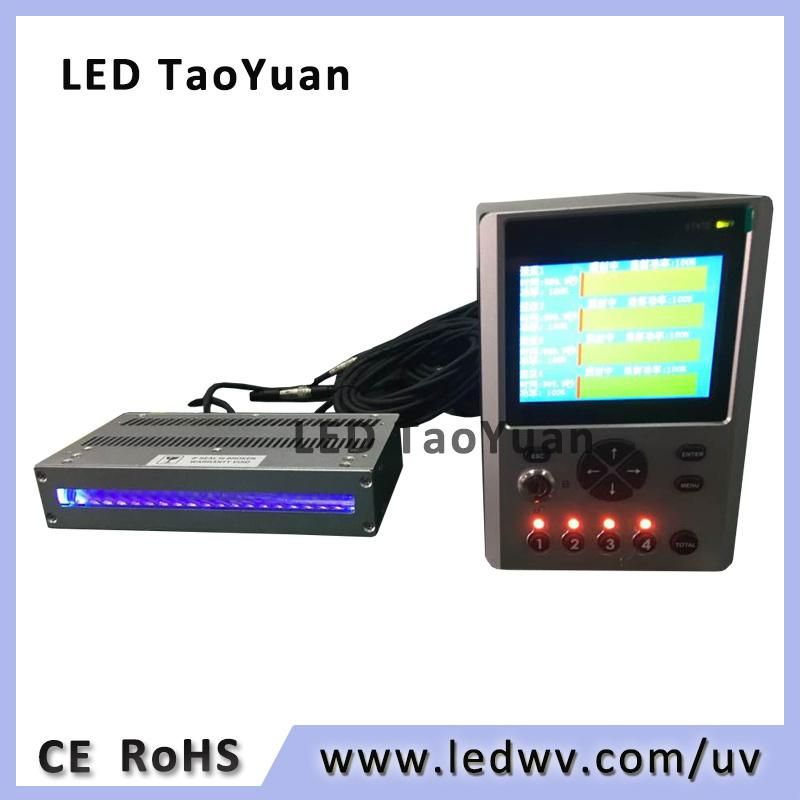

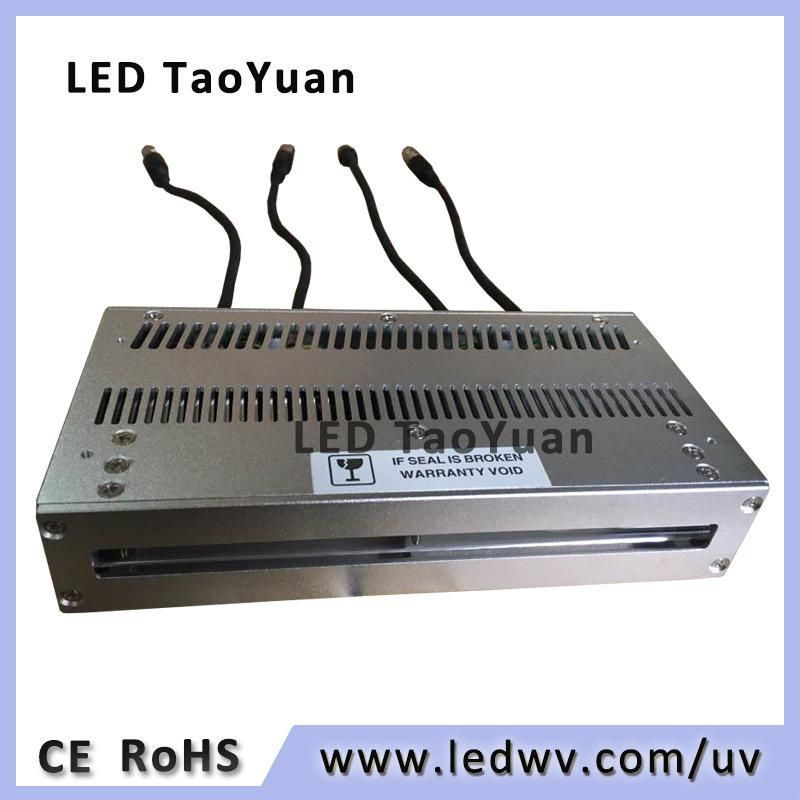

UV Curing Lamp for UV Print 365nm 60W Parameters:

Wavelength	365mm
Irradiance	≥2000mW/cm²
Valid Emitting Area	160*5mm
Radiation Distance	10-15mm
Cooling Method	Wind Cooled
Dimension	180.2*88.7*36.2mm
Weight	≤5KG
Control Method	Switch Control
Power Supply	Constant Current

Application
Widely use in label printing curing, uv ink curing, OLED curing, Polarizer curing and so on.

Conventional UV technology has beed used for over 30 years, with the shortcomings of high energy consumption, high heat and high cost that increasingly reflected. UV LED curing technology in the printing is booming, its better economic benefit, system capacity, effeicient performance and environment benefinit are compelling. TaoYuan's UV LED curing technology provides a ideal choice for the curing of digital, silk screen, flexography, offset printing, coating and other printing inks. we devote ourselves to UV LED business, and advancing greener, cheaper and high efficient ink curing technology as well. TaoYuan's entire serial products cover the whole printing industry, and the led chips wavelengths contain 365nm 385nm, 395nm and 405nm, we can provide accurate design for more dimensions and specifications.
UV LED advantages: environment friendly efficient performance  simple operating cost saving.

TaoYuan 's advantages
1. product advantages: complete chip packaging technology, more economic
2. technical strength: professional product development, services team and industry experience
3. solution: our schemes cover the whole UV industry.
