• Model NO.：CES-EX-LN-02N-36B
• Irradiated Area：15-30m²
• Input Voltage：100-277V
• Power：30W , 36W , 40W , 50W
• Color Temperature：3000K to 6500K
• Emitting Color：White,Yellow
• LED Chips Brand：Ces
• Certification：CE, RoHS, UL
• Model：Ces-Ex-Ln-02n-30A
• Type：LED Explosion Proof Linear Light
• Mounting：Ceiling Mount , Wall Mounting
• Power (W)：30W , 36W , 40W , 50W
• Voltage - Frequency：100-277VAC 50-60Hz
• CCT：Provides 3000K to 6500K
• CRI (Ra) (Typ.)：Over 70
• Luminous Flux (Lm)：120~140lm,W
• Bare Lamp Efficacy (Lpw)：140
• Beam Angle：90
• Power Factor：>0.95
• Rated Lifetime - L70 (Hrs.)：50000

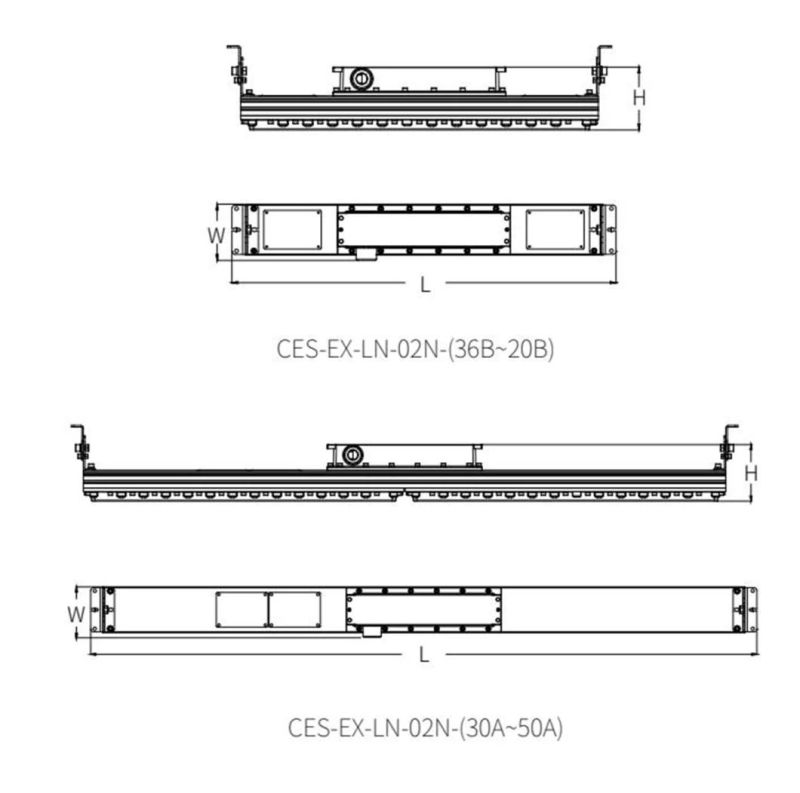

• Product Size (L×w×h)：1289*97*109mm
• Housing：ADC12 and 6063 Aluminum+Tempered Glass
• Net Weight：10.2kg Kg,22.5 Lbs
• Transport Package：Neutral
• Specification：1289*97*109mm
• Trademark：ces
• Origin：China
• HS Code：9405409000
• Production Capacity：1000000

Overview Product DescriptionHanging Double Tube Fitting Lamp Explosion Proof Fluorescent Explosion-proof Linear Light

Applications:

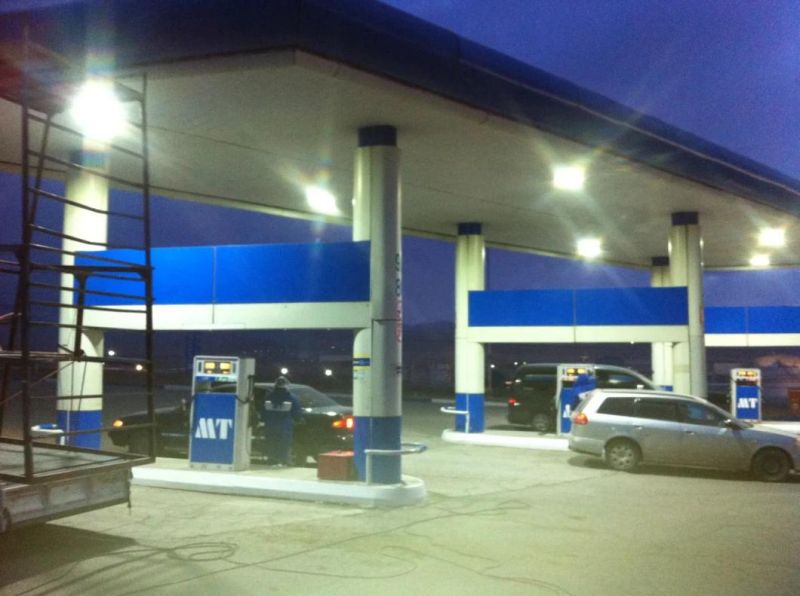

Wastewater treatment, oil and gas refineries, drilling rigs, petrochemical facilities, food and beverage facilities, tunnels, outdoor wall and stanchion mounted general area lighting, and where flammable vapors, gases are present.

• Available from 24W (≥2,880lm )- 50W ( ≥6,000lm );

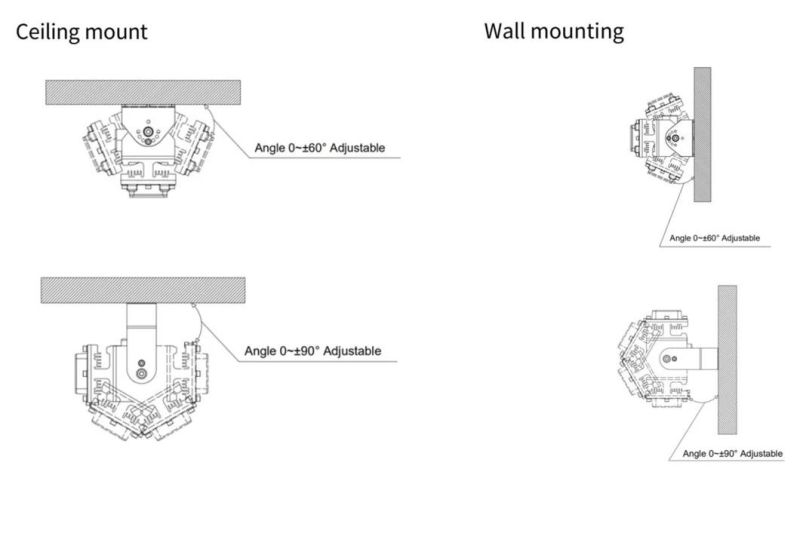

• Offered with 2 mounting options: Ceiling Mount, Wall mounting;
• Wide optics for uniform illumination;
• Entry Size: 3/4"-14 NPT or M25 X1.5 or M26 X1.5;
• 50,000+ hours LED lifespan;
• Class I, Division 2, Groups A, B, C and D;
• Damp and wet locations;

Standard :
US: UL 844; UL 1598;
Canada: CSA C22.2 No. 137; CSA C22.2 No. 250.0;

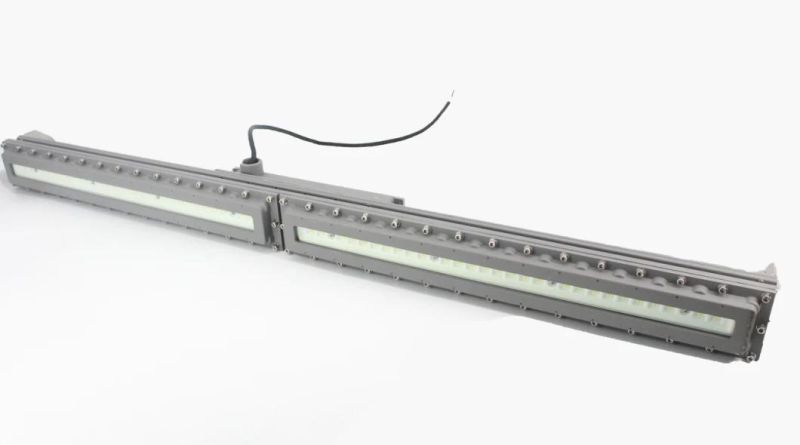

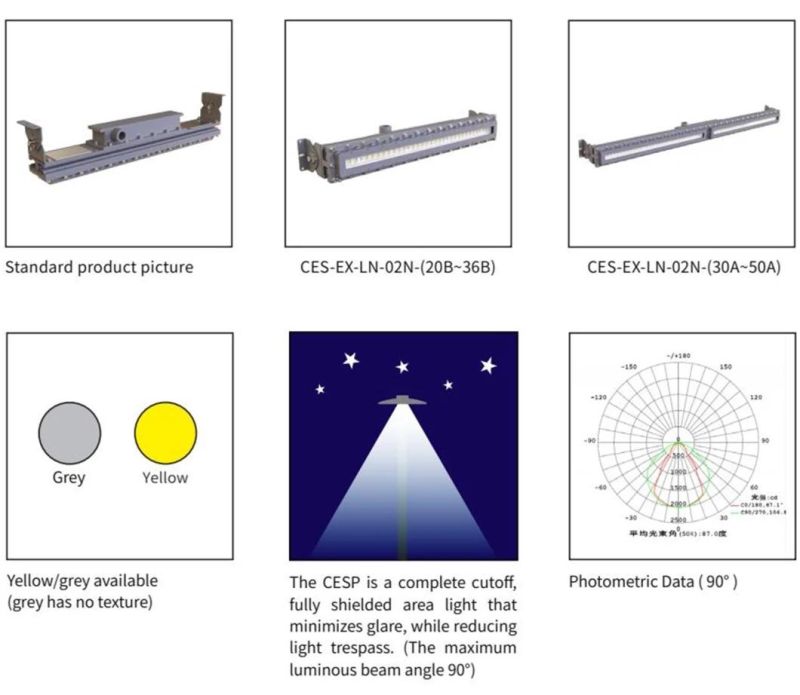

Detailed Photos

Instructions

Certifications

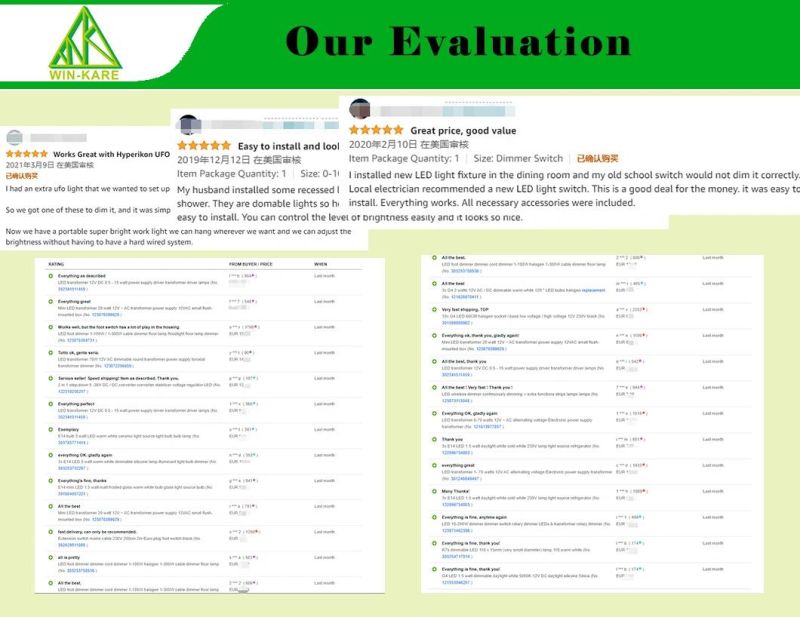

Evaluation

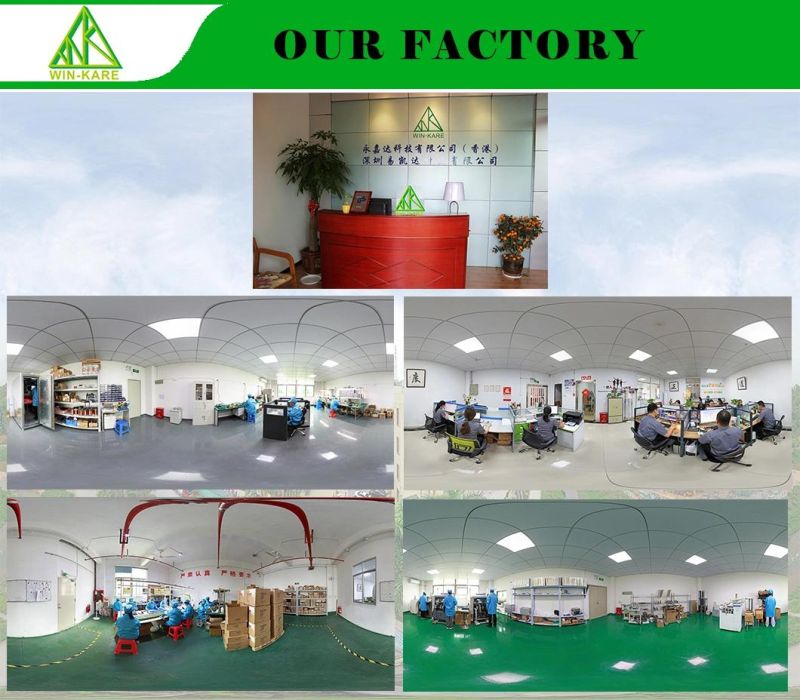

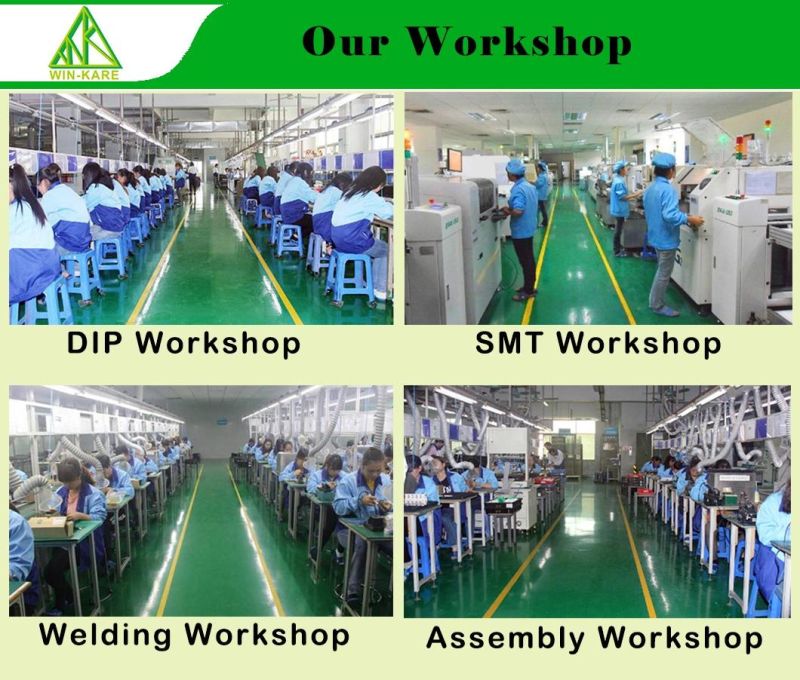

Factory

Partner

FAQ

FAQ:
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A:Sample needs 1-2 weeks, mass production needs 4-5 weeks.

Q3. Do you have any MOQ limit for dimmer order?
A: Low MOQ, 1pc for sample is available.

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-7 days to arrive. Airline and sea shipping is also optional.

Q5. How to proceed an order?
A: Firstly let us know your requirements or application.
    Secondly We quote according to your requirements or our suggestions.
    Thirdly customer confirms the samples and places deposit for formal order.
    Fourthly We arrange the production.

Q6. Is it OK to print my logo on the product?
A: Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.

Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
    Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products,        we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
