130lm/W Waterproof, Dust and Corrosion Proof LED Tri-Proof Lightings
Winstar Power Technology Limited- Application：Parking Lot, Warehouse, Metro Station..etc
- Type：Anti-glare Tri-proof Light
- Feature：Anti-corrosion, Dust-Proof, Waterproof
- Light Body Material：Plastic Model
- Input Voltage：AC200-240V or AC220-265V
- Freqency Range：50Hz~60Hz
Base Info
- Model NO.：WS-LI12S36W-7th
- IP Grade：IP66, Ik10, IP69K
- Driver：Osram, Flicker Free
- Color Temp：3000-6000K
- Install Method：Suspending,Ceilling
- Warranty：5 Years
- Dimmable：No
- Linkable：No
- LED Power：36W
- Power Optional：20,25,30,36W
- LED Quantity：288PCS
- Luminous Efficiency：130lm,W
- Color Rendering Index：>80
- Certification：Ce,RoHS
- Transport Package：Brown Box
- Specification：inner box 1270x80x70, outer box 1300x355x240
- Trademark：customized
- Origin：Dongguan, China
- HS Code：9405409000
- Production Capacity：10000pieces,Month
Description

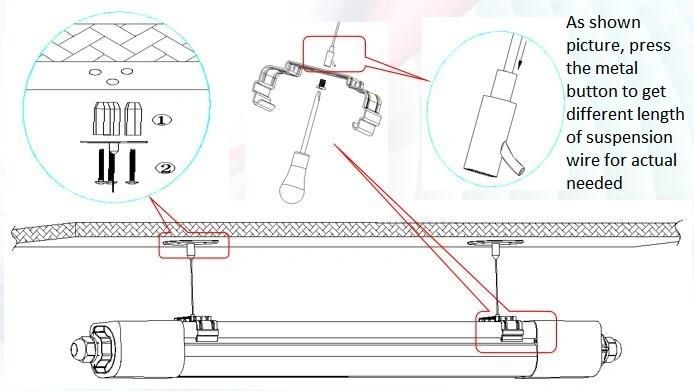

Then put the expansion tube into the drilled hole.
Lastly, using screws to lock the sling fixings.
Power

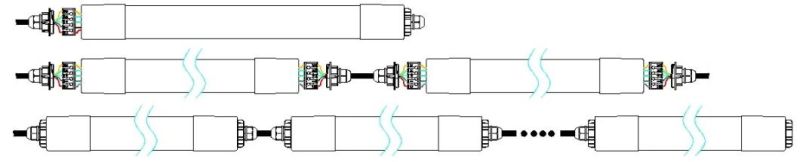

Max. Linkable Lamps
This product is equipped with 16AWG wire as standard. Do not overload it when linking. The input wire of the above linking quantity must be thicker than 16AWG wire.

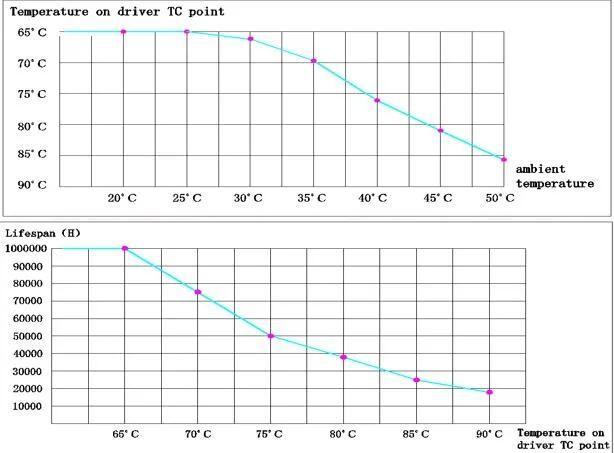

Life curve:
WHAT WE DO?
We have over 11 years experience in LED Light manufacturing.
WE ARE FOCUSED ON: LED tube light, LED Panel, LED high bay and LED tri-proof linear light.
WHY WINSTAR?
Passionate about saving energy lighting products, our LED lights are up to 80% more efficient than traditional lighting.
PREMIUM QUALITY AND SERVICE: Always respond within the same day.
FAQ:
Q1: What is LED Tri Proof Light?
LED Tri-proof light are durable and eco-friendly alternative lighting systems to traditional fluorescent tubes. the designed to withstand severe environments and will help you reduce your energy consumption by up to 80%.
Q2: Is the installation easy to do?
YES, it is. The installation clip is reversed hook design. Product can easily directly lock into the clip (without any screws). Fast easy installation to save cost and time.
Q3: I need to install these led light in a place at -20 celsius. Do they work at that temperature?
YES, the Operating Temperature for this light is between -20ºC ~ +45ºC.
Q4: Are these lights a bright white cast or do they produce more of a yellowed cast of light?
This is a question about What color temperature should I use?
> Guest rooms typically fall in the 2700-3000K range, creating a warm, inviting atmosphere.
> Neutral to cool color temperatures (3000-4000K) are generally appropriate in office space.
> Cooler color temperatures (3500K to 5000K) are good for setting a clean crisp atmosphere and creating alertness in a hospital
Q5: I bought four of these. Can I connect them together end to end.
Yes. There are two option for order -Linkable, or non-Linkable. Please place your order to LINKABLE version.
They are symmetrical. Each end pulls off and you then unscrew the inner part to reveal a loose junction block for your wire. A cable grip is also within the fitting.
Don't forget to thread your cable through the end cover before connecting up. It's easier than wiring a plug.

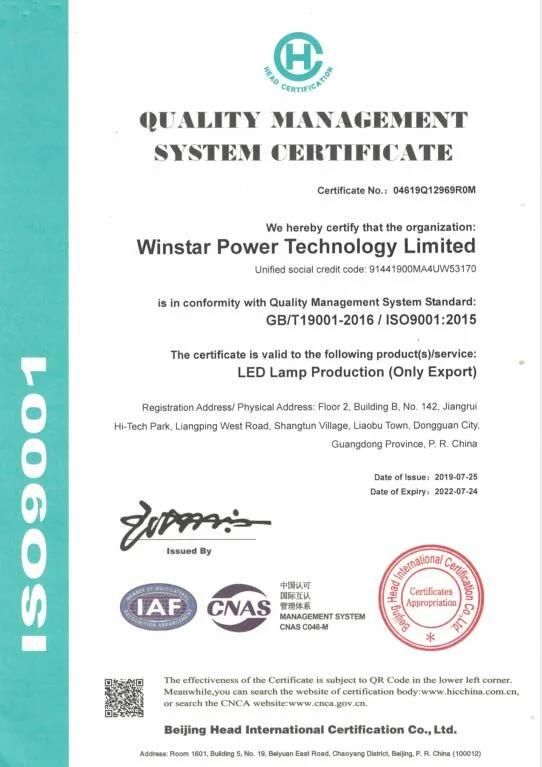

Product Report & Certification Management:
Package Details:
Model
Inner box Size
(mm)
N.W
Carton Size
(mm)
QTY/CTN
G.W/CTN
WS-LI06H18W-7th
670*80*70
0.58kg
700*355*240
12piece/Carton
10kg
WS-LI12H36W-7th
1270*80*70
0.92kg
1300*355*240
12piece/Carton
15.7kg
WS-LI15H50W-7th
1570*80*70
1.04kg
1600*355*240
12piece/Carton
18.5kg
Need a best solution for this product? Contact me right now.
