• Model NO.：SLWP212T
• Light Body Material：Plastic
• Color Temperature：Pure White
• Lamp Body Material：Plastic
• IP Rating：IP65
• Housing Color：White
• Lifespan：>50000 Hours
• Warranty：2 Years
• Certification：Ce, C-Tick, EMC, GS, LVD, RoHS, SAA, UL
• Voltage：220V
• with Light Source：Without Light Source
• Beam Angle：120 Deg;
• T8 LED Tube：2X18W
• Transport Package：CTN
• Specification：T5 or T8 LED tube
• Trademark：SUNNYLUX
• Origin：China
• HS Code：94054090
• Production Capacity：100000PCS,Month

Basic Info.

Model NO. SLWP212T Light Body Material Plastic Color Temperature Pure White Lamp Body Material Plastic IP Rating IP65 Housing Color White Lifespan >50000 Hours Warranty 2 Years Certification Ce, C-Tick, EMC, GS, LVD, RoHS, SAA, UL Voltage 220V with Light Source Without Light Source Beam Angle 120 Deg; T8 LED Tube 2X18W Transport Package CTN Specification T5 or T8 LED tube Trademark SUNNYLUX Origin China HS Code 94054090 Production Capacity 100000PCS/Month

Product Description

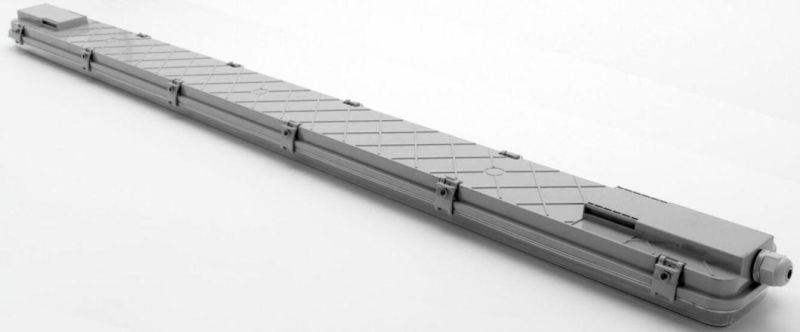

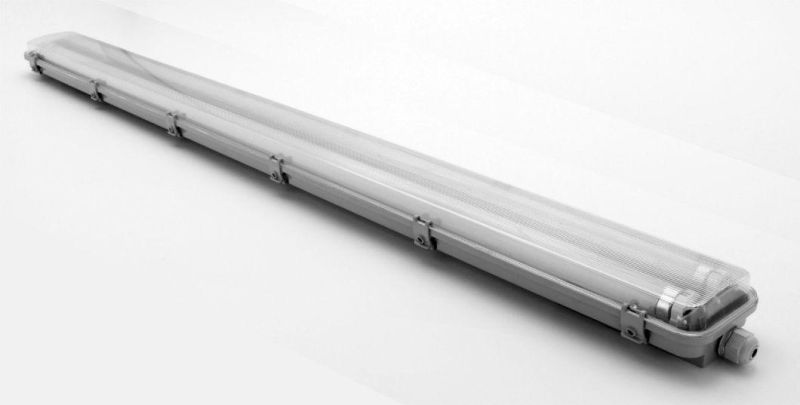

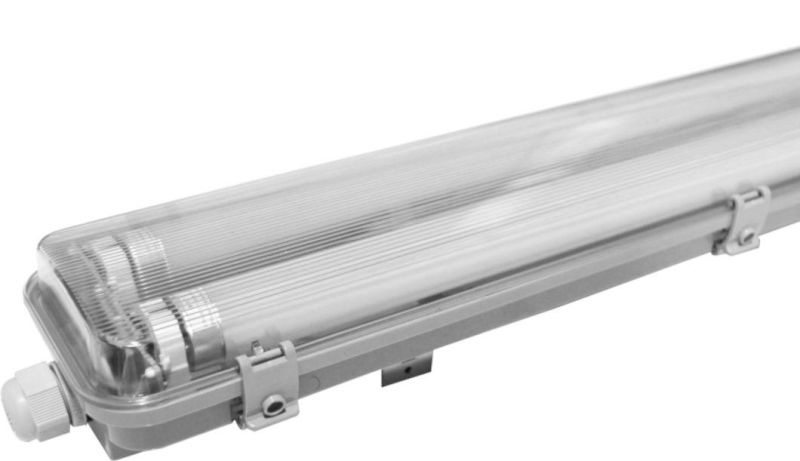

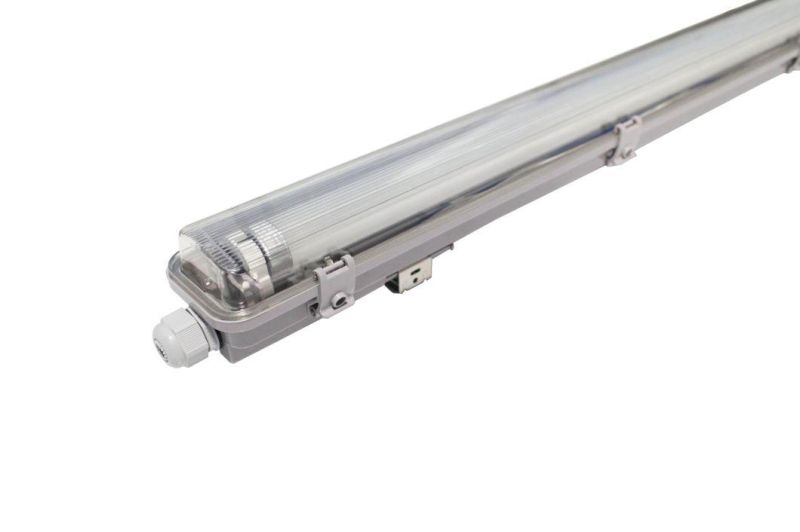

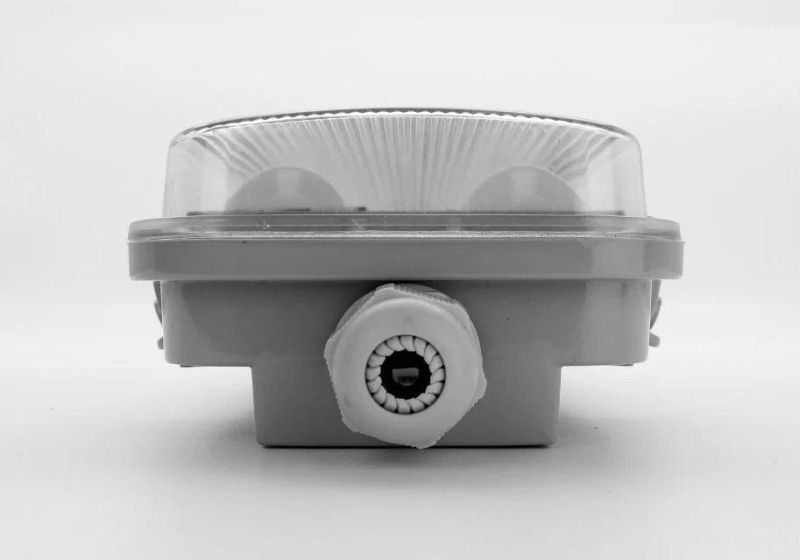

LED Waterproof lighting fixture IP65.for T8 tube







1. Lighting body: PC or ABS material body with high impact resistance, non-deformable structure for installations in environments with vibration.

2. Lighting cover: PC or PS safety msterial with 1.8mm on the body by means of metal clips, protects it against knocks or water flood.

3. Reflector: no reflector

4. Applications: Indoor & outdoor areas with high IP requirement, food industry chemical plants, heavy mining industries environments with the presence of cuting oil & other aggressive substances, oil industries, offshore industry, petrochemical industries, swimming pool areas, dusty humid and corrosive environments, washing houses, breweries, under canopy areas, pharmaceutical factories, loading bays, food industries, packing areas, garages, cellars and industrial complex, ware house, under-bridge, tunnel, ship, bathe center, packing lot, railway platforms, lobbies, refrigeratory and city environment luminance field ect.

5. Operating voltage: 220V ~ 240V, 50Hz ~ 60Hz.

6. Type of lamps: T8 & T5 LED-tube.

7. Wattage:
T8 series ---- 1*9W, 2*9W, 1*16W, 2*16W, 1*18W, 2*18W, 1X25W, 2X25W
T5 series ---- 1*8W, 2*8W, 1*13W, 2*13W, 1*22W, 2*22W

8. Operating temperature: -20C ~ 50C

9. IP rating: IP65, outstanding stability of water tight gasket, waterproof, explosion proof, dustproof.

10. Electrical equipment: Firstly quality inductive ballasts, starters and capacitor or electronic ballast (upon request).

11. Wiring: Copper wire, cross section 0.5 square meter, PVC insulation resistance up to 105C, terminal block with maxmum allowed lead cross section of 0.25 square meter.

12. Lamp holder: G13 G5

13. Clip: PC or stainless steel clip

14. Certificate: CE, GS, RoHS, SAA, UL.
