• Model NO.：C402
• Installation：Self-Assembly
• Pringting Carrier：Flex Banner
• Style：Cartoon
• Certification：CE, FCC, RoHS
• LED Light Source：Csp 1818
• LED Chips：Genesis
• Color：Warm White,White,Cool White
• Power：25W
• Waterproof：No-Waterproof
• Lumen：3000lm
• Voltage：DC24V

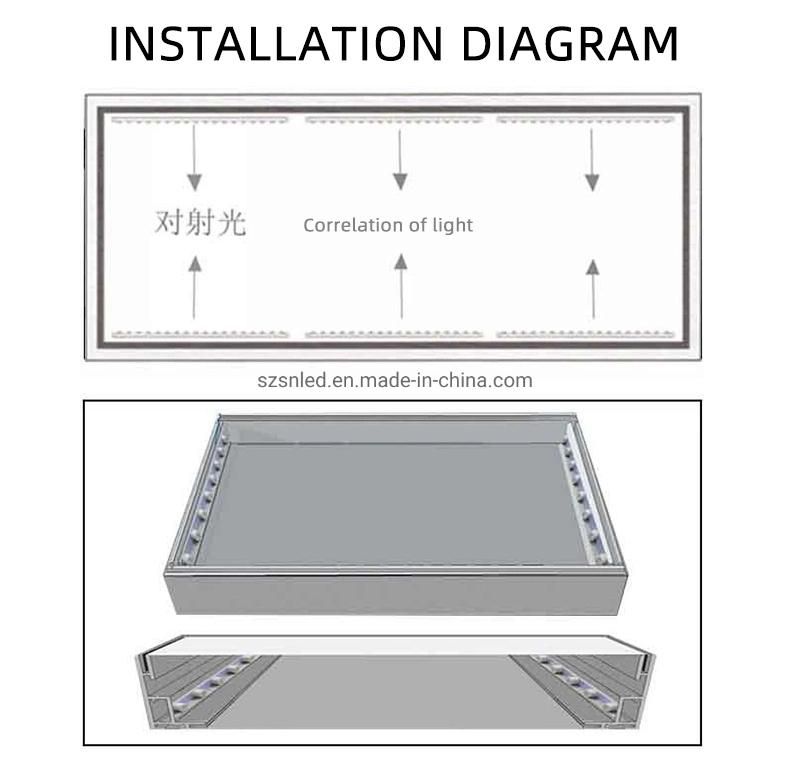

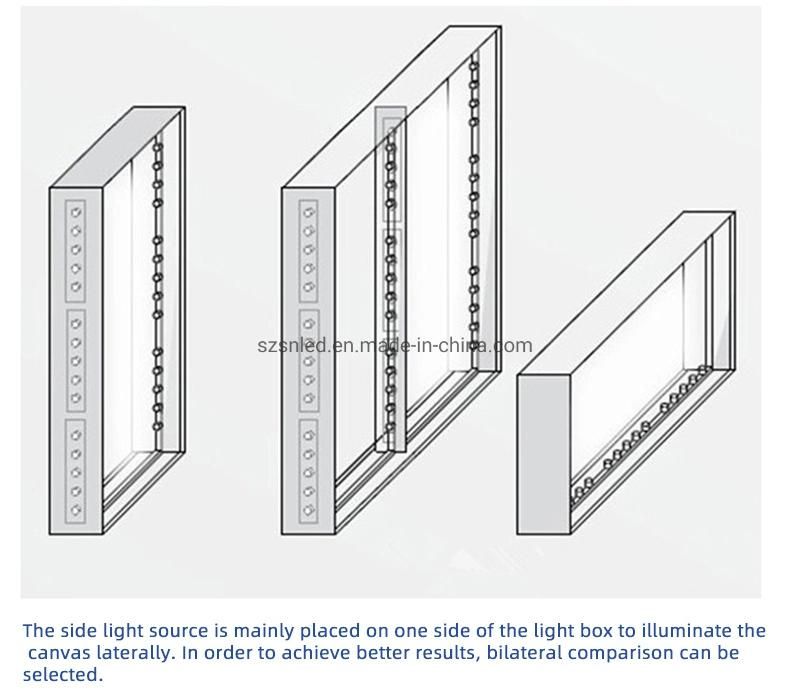

• Application：Recommended Depth 10-30cm Internal Double Sided Li
• Warranty：3years
• Transport Package：Carton

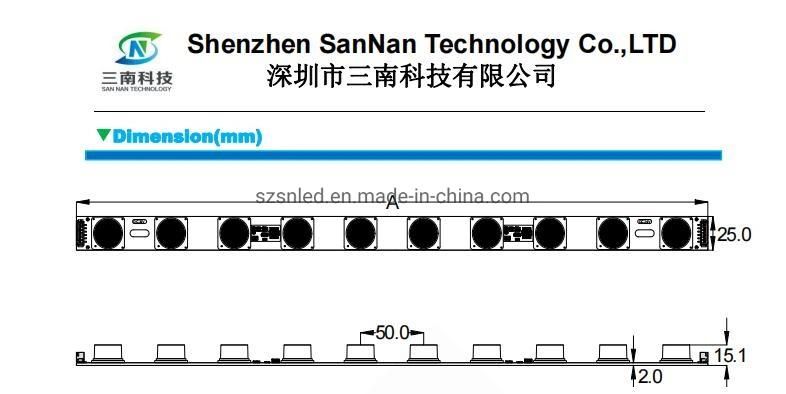

• Specification：500*32.5*21mm
• Trademark：Sannan
• Origin：Shenzhen, China
• HS Code：9405409000
• Production Capacity：500000,Month

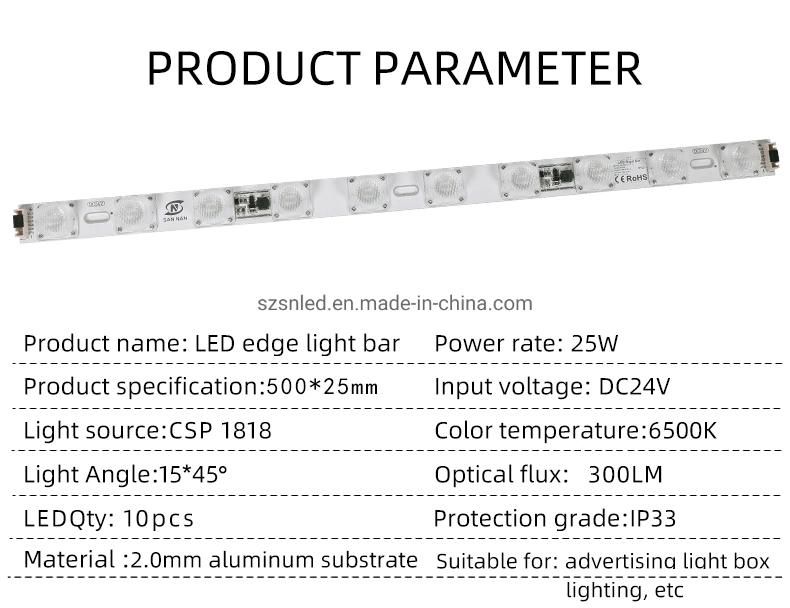

Basic Info.

Model NO. C402 Installation Self-Assembly Pringting Carrier Flex Banner Style Cartoon Certification CE, FCC, RoHS LED Light Source Csp 1818 LED Chips Genesis Color Warm White/White/Cool White Power 25W Waterproof No-Waterproof Lumen 3000lm Voltage DC24V Application Recommended Depth 10-30cm Internal Double Sided Li Warranty 3years Transport Package Carton Specification 500*32.5*21mm Trademark Sannan Origin Shenzhen, China HS Code 9405409000 Production Capacity 500000/Month

Product Description

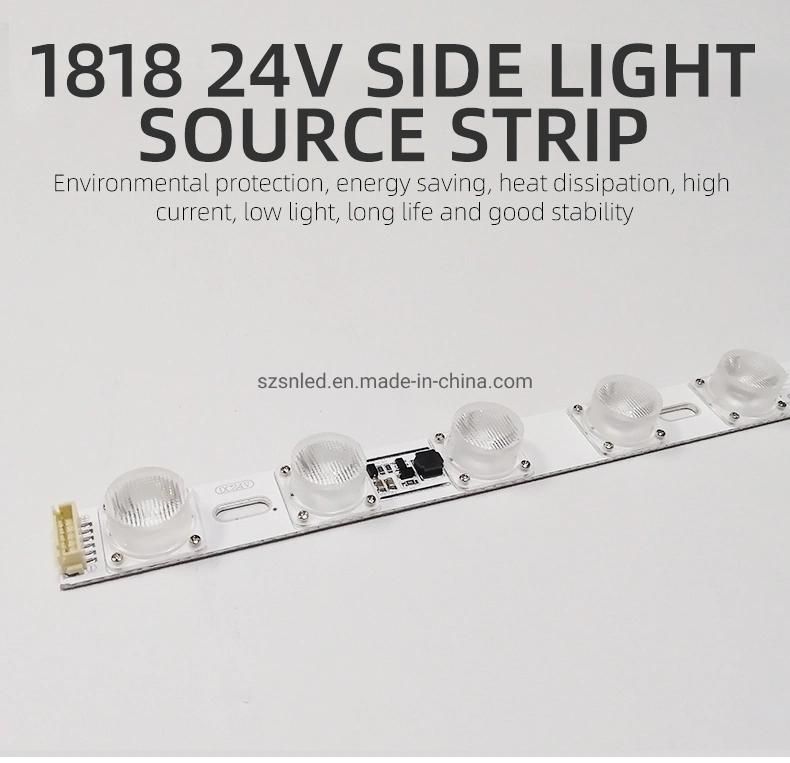

Product Features
1. DC24V voltage input, safe and reliable, a wide range of applications.
2. High-power constant-current drive ensures the brightness consistency of LED and the evenness of the lightbox.
3. GENESIS CSP1818 high-power LED, good heat dissipation, large current, high reliability.

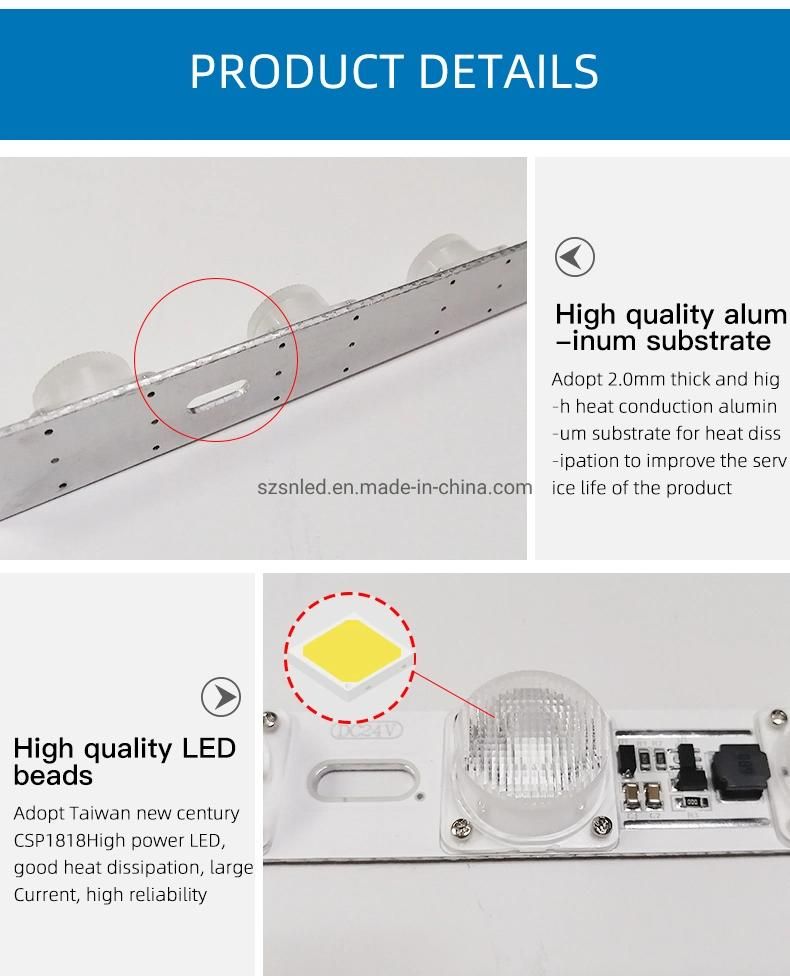

4. Adopt 2.0mm thick and high heat conduction aluminum substrate for heat dissipation, provide reliable heat dissipation for the light source, and improve the service life of the products.

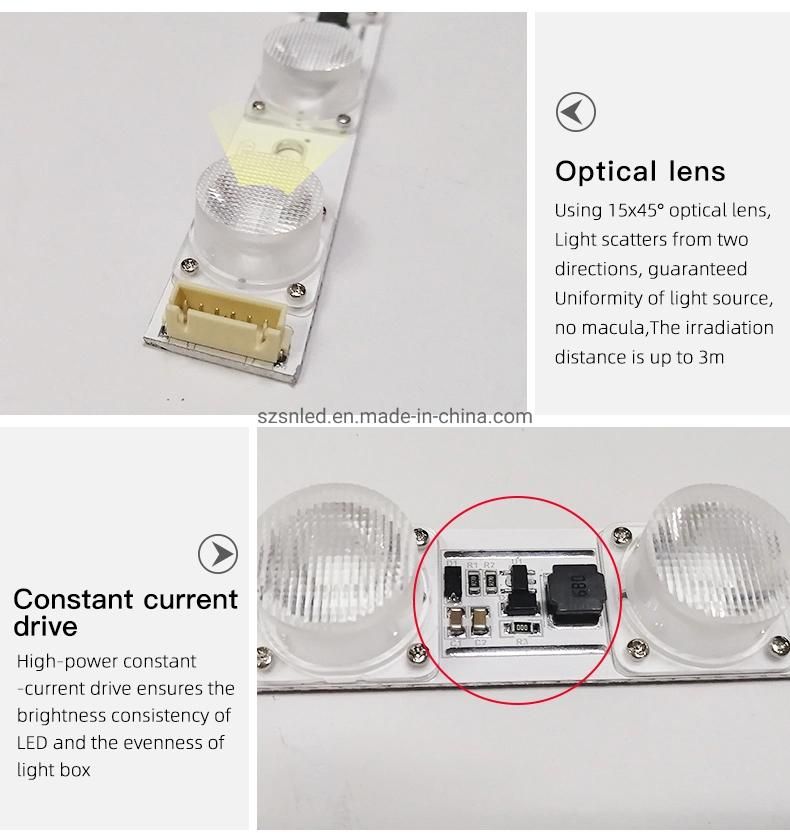

5. Using a 15X45° optical lens, light is scattered from two directions to ensure the uniformity of the light source, no macular spot, and the irradiation distance is up to 3m.

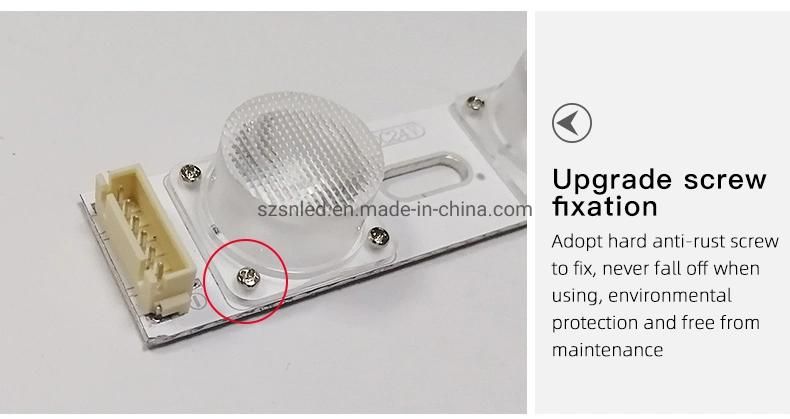

6. Patch terminal connection for easy installation and maintenance.

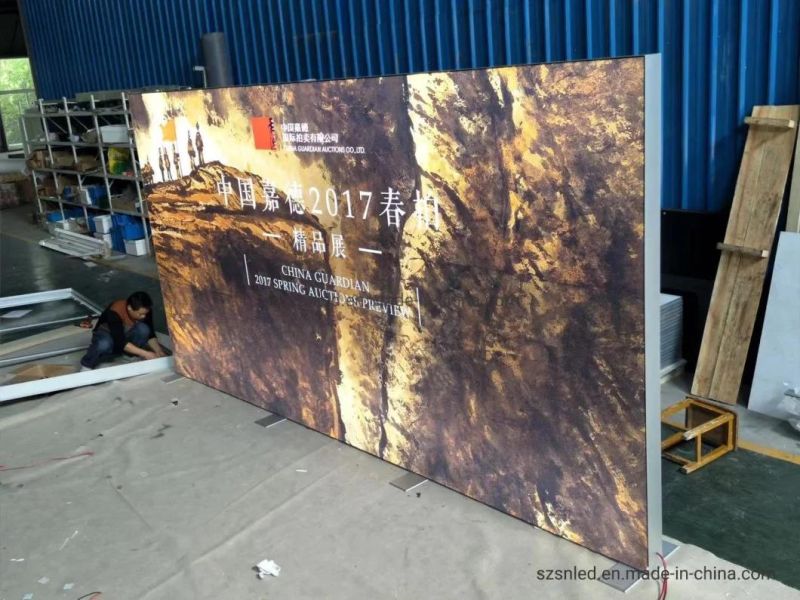

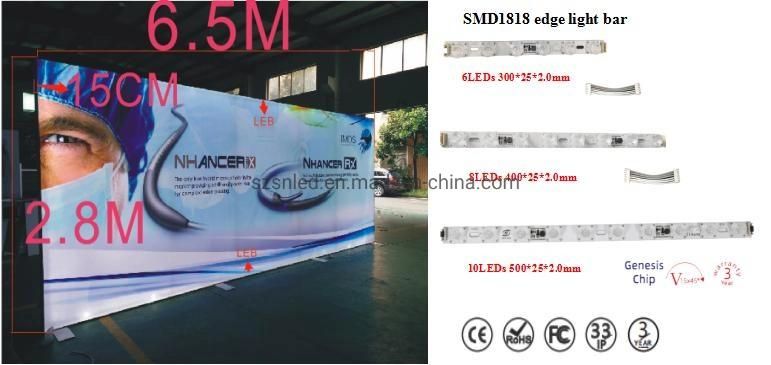

Lightbox :

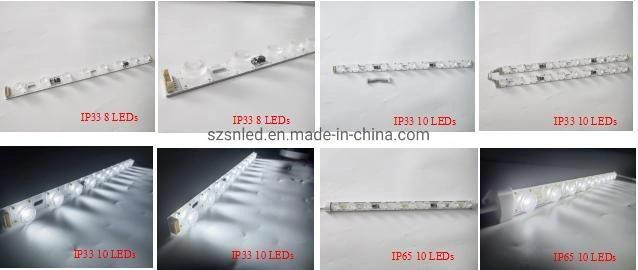

Details Images:

Why choose SNLED

1. We have 8 years of developing & manufacturing high-quality led modules.

2. You will get a reply within 24 hours

3. The strictly quality control system

4. Make sure the consistency of each batch of orders, including the same bin color temperature

5. OEM & ODM services



FAQ

1. What is MOQ?

    We can support you with any quantity, including the samples order.



2. Can I get free samples?

    Yes, we are glad to send you one type of sample or mixed types of samples.



3. What is the delivery time?

    For our hot products, we have in stock. Other products take around 5-7days.

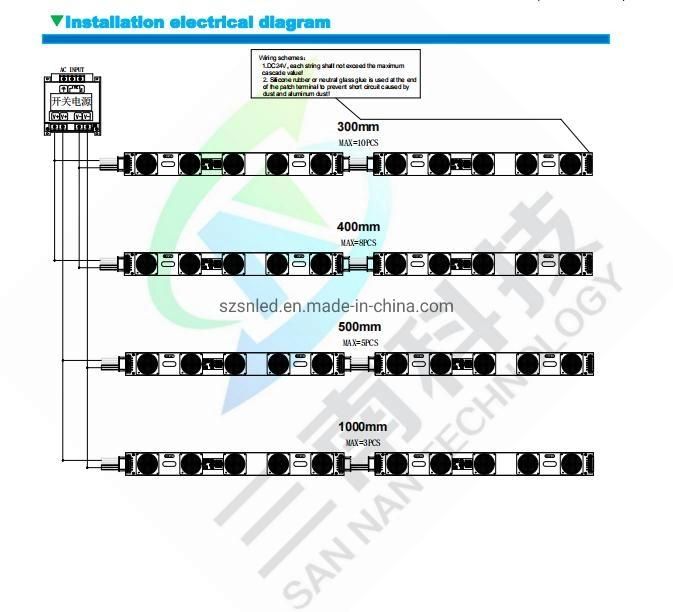

4. How many pieces of led modules can I connect most by a led power supply?

    If the power is supplied from a single end, Max. The number is one chain.

    If the power is supplied from both ends, Max. The number is two chains.



5. Can I also buy an LED Power supply from you?

    Yes, we are the one-stop solution provider of illuminated advertising signs, we can supply Mean Well led power supply and other led transformers.



6. How can I get the best solution for channel letters or lightbox?

    Please advise your channel letters or lightbox size to our sales, they will send you the best solution for illuminated signs within 24 hours.
