LED Professional Lighting

Home > Product > LED Grow Light

Plus*10 LED PAR 1000W Full Spectrum and Red Blue Ratio Grow Work Light for Greenhouse to Supplement Lighting Medical Plants Herb USA

Shenzhen ATA Technology Co., Ltd.
  • Emitting Color：Customized
  • Input Voltage：AC100-277V

Base Info

  • Model NO.：ATA-1000WB-FD
  • Power：1000W
  • Shape：Bar
  • Warranty：3 Years
  • Housing Material：Aluminum
  • Life：50000h
  • LED Chips：Epiled
  • Certification：CE, RoHS, UL, CCC, GS, CSA, Energy Star, FCC, SAA, C-tick, NOM, PSE, GOST, EMC, LVD, KEMA, IMQ
  • LED Type：3W,LED 3030 LED
  • LED Quantity：130PCS*10*3=3900W
  • Actual Power：1000W
  • Ppf：2727.54umol,S
  • Efficiency：2.7umol,S
  • Cooling Methods：Passive Cooling or Water Cooling
  • Beam Angle：140
  • Work Environment：-20+40
  • Working Humidity：10%-95%Rh
  • Heat Output：1120BTU,H
  • Spectrum：Red Blue Ratio, Full Spectrum
  • Material：Aluminum
  • LED Brand：Epiled,Sumsung,CREE,Osram
  • PF：0.9
  • Lighting Area：1m High 6.0 Square Meters
  • Transport Package：Pearl Foam Inner Box and K=K
  • Specification：1024*1015*115mm
  • Trademark：ATA
  • Origin：China
  • HS Code：9405409000
  • Production Capacity：300, 000,Pieces,Month
  • Package size per unit product：108.00cm * 44.00cm * 21.00cm
  • Gross weight per unit product：23.000kg

Description

Net Weight 18.7KG18.7KG18.7KG41.24lbs41.24lbs41.24lbsPF0.90.90.9Heat dissipation modeNatural coolingNatural coolingNatural coolingLight decay <15% In three years<15% In three years<20% In Two yearsIP rating IP65IP65IP65Working Humidity 10%-95%RH10%-95%RH10%-95%RHPPF     µmol/s1586umol/s1586umol/s1586umol/sHeat Output 1120BTU/H1120BTU/H1120BTU/HLighting area 1M High  6.0M21M High  6.0M21M High  6.0M2Warranty Three yearsThree yearsTwo years
PPFD
Plus*10 LED PAR 1000W Full Spectrum and Red Blue Ratio Grow Work Light for Greenhouse to Supplement Lighting Medical Plants Herb USA




Spectrum
Plus*10 LED PAR 1000W Full Spectrum and Red Blue Ratio Grow Work Light for Greenhouse to Supplement Lighting Medical Plants Herb USA

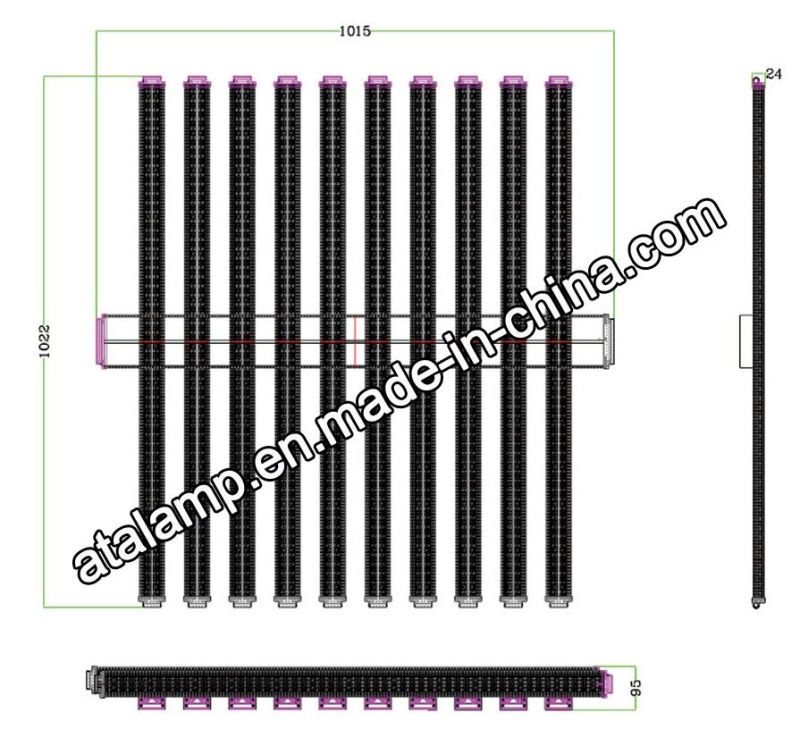

Product Dimension
Plus*10 LED PAR 1000W Full Spectrum and Red Blue Ratio Grow Work Light for Greenhouse to Supplement Lighting Medical Plants Herb USA


Installation: Suspending
Plus*10 LED PAR 1000W Full Spectrum and Red Blue Ratio Grow Work Light for Greenhouse to Supplement Lighting Medical Plants Herb USA

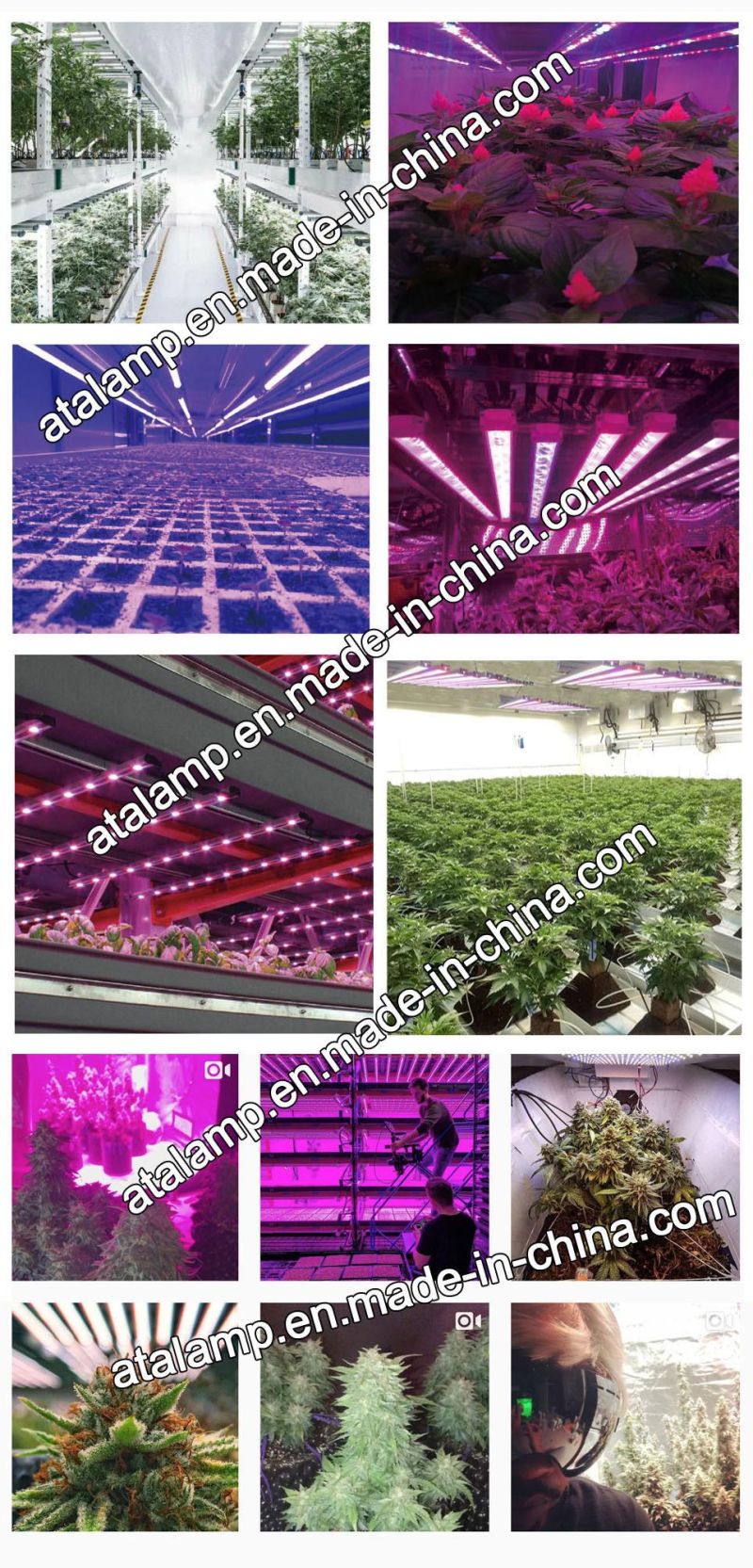

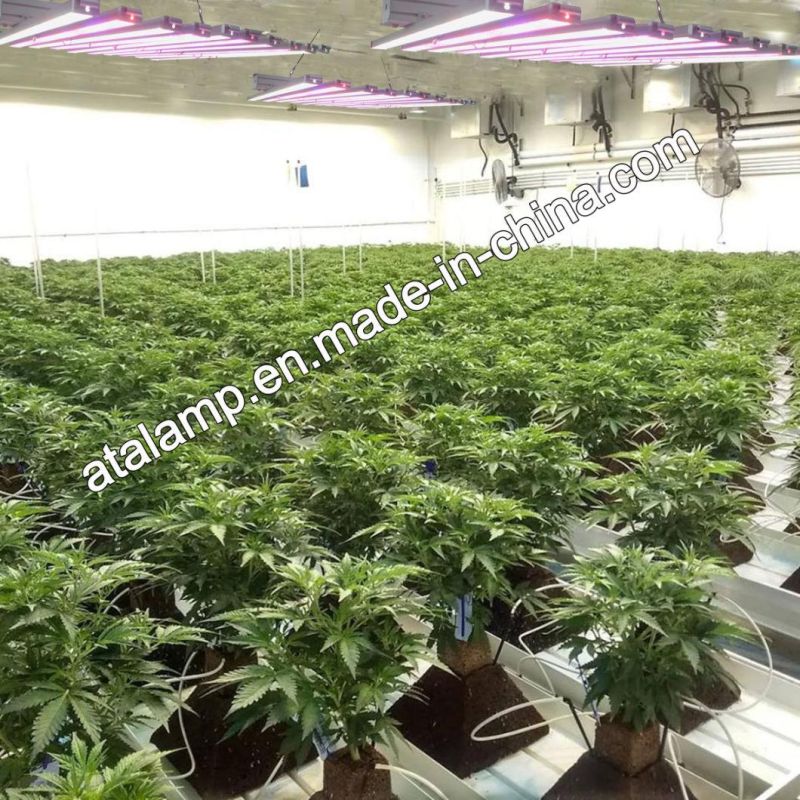

Application
Fruit, Vegetable, Flowers, Special Crops, Leafy, Fruit, Seedling, propagation, mixed-light, supplemental, complete indoor or greenhouse, Medical plants, indoor garden, pot plants, garden, breeding, farmland, spray plant, greenhouse plants, pipeline cultivation, flowering, etc.
Plus*10 LED PAR 1000W Full Spectrum and Red Blue Ratio Grow Work Light for Greenhouse to Supplement Lighting Medical Plants Herb USA


User Manual
Switch off power of the mains supply or respectively of the connection lead before doing any works.
Assembly must not damage or destroy conducting paths.
Make sure that the product is mounted on a stable, even and tilt-fixed background.
The complete installation must be done by an electrical expert who is familiar with the valid directives.

Quaity Control

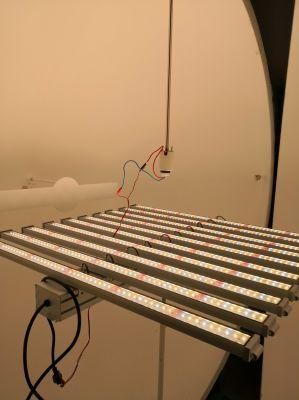

Stability TEST: make sure 100% of the lamps be aging test at least 48hours
Lighting TEST: make sure 100% of the lamps be lighted before packing
Drop TEST: make sure every single light have been well protected by box
