LED Professional Lighting

3014 smd led strip 60leds/m 10mm led strip flexible 12v

Leomay Technology Co., Ltd.
  • Power:6W
  • Color Temperature:Warm White
  • Emitting Color:White
  • Installation Mode:Adhesive
  • Switch Type:With Remote Control
  • IP Rating:IP20

Base Info

  • Model NO.:LM3014-WN60-12V
  • Shade Direction:No
  • Input Voltage:12v
  • Shade Type:No
  • LED Chips Brand:Epistar
  • Certification:FCC, UL, RoHS, CE, CCC
  • LED QTY:60LEDs,M 3014
  • LED Supplier:Honglitronic,Osram,Samsung
  • LEDs material:packaged by 99.99% pure gold wire
  • LED BINs:3-Step,5-Step, same BIN for each order
  • LED Chip Brand:Sanan(Epistar optional)
  • PCB Width:10mm
  • PCB material:Double-sided coated pure copper
  • PCB thickness:2Oz(front 35um,back 35um)
  • Adhesive Tape:9495 3000LSE 3M tape
  • IP Grade:IP20,IP60,IP65,IP68
  • Lifespan:5000 hours
  • Warranty:3years
  • CRI:Ra>80
  • Color Temperture:2700K,3000K,4000K,6500K
  • Transport Package:Neutral Packing, OEM Packing Are Available
  • Specification:UL, CE, RoHS, FCC, ERP
  • Trademark:LEOMAY
  • Origin:Guangdong, China
  • HS Code:9405409000
  • Production Capacity:10000 Meter,Day

Description

Basic Info.

Model NO. LM3014-WN60-12V Shade Direction No Input Voltage 12v Shade Type No LED Chips Brand Epistar Certification FCC, UL, RoHS, CE, CCC LED QTY 60LEDs/M 3014 LED Supplier Honglitronic/Osram/Samsung LEDs material packaged by 99.99% pure gold wire LED BINs 3-Step/5-Step, same BIN for each order LED Chip Brand Sanan(Epistar optional) PCB Width 10mm PCB material Double-sided coated pure copper PCB thickness 2Oz(front 35um,back 35um) Adhesive Tape 9495 3000LSE 3M tape IP Grade IP20/IP60/IP65/IP68 Lifespan 5000 hours Warranty 3years CRI Ra>80 Color Temperture 2700K/3000K/4000K/6500K Transport Package Neutral Packing, OEM Packing Are Available Specification UL, CE, RoHS, FCC, ERP Trademark LEOMAY Origin Guangdong, China HS Code 9405409000 Production Capacity 10000 Meter/Day

Product Description

Product Paramenters

<Extreme Reliability 3014 60leds 12v led strip.>

Model No.LM3014-WN60-12V-8MM
LED Qty60leds/m
Rated Power(W)6W/M
Voltage(V)12V DC
PCB Width8MM
PCB materials2Oz Double-sided coated pure copper
LED Chip BrandSanan(Epistar optional)
LED's materialPackaged by 99.99% pure gold wire
LED Bins3-Step/5-Step, same BIN for each order
LED SupplierHonglitronic (Osram/Samsung optional)
CRI(RA>)CRI80(CRI 90 optional)
ColorW/WW/CW/R/G/B/Y/O/UV/Pink
Color Temperature2200K, 2700K, 3000K, 3500K, 4000K, 6000K, 7000K
IP RateIP20 (IP54/IP67/IP68 optional)
View Angle120°
Product Size(mm)8*5000mm
Package(m/roll)5M/roll(1m/roll,10m/roll,20m/roll.50m/roll,100m/roll. Customized length available)
Working Temperature(ºC)-20-60
Cutting Unit3 LEDs
Adhesive Tape9495 3000LSE 3M tape
DimmableYes
CertificateUL, CE, RoHs, FCC
Warranty3 Years

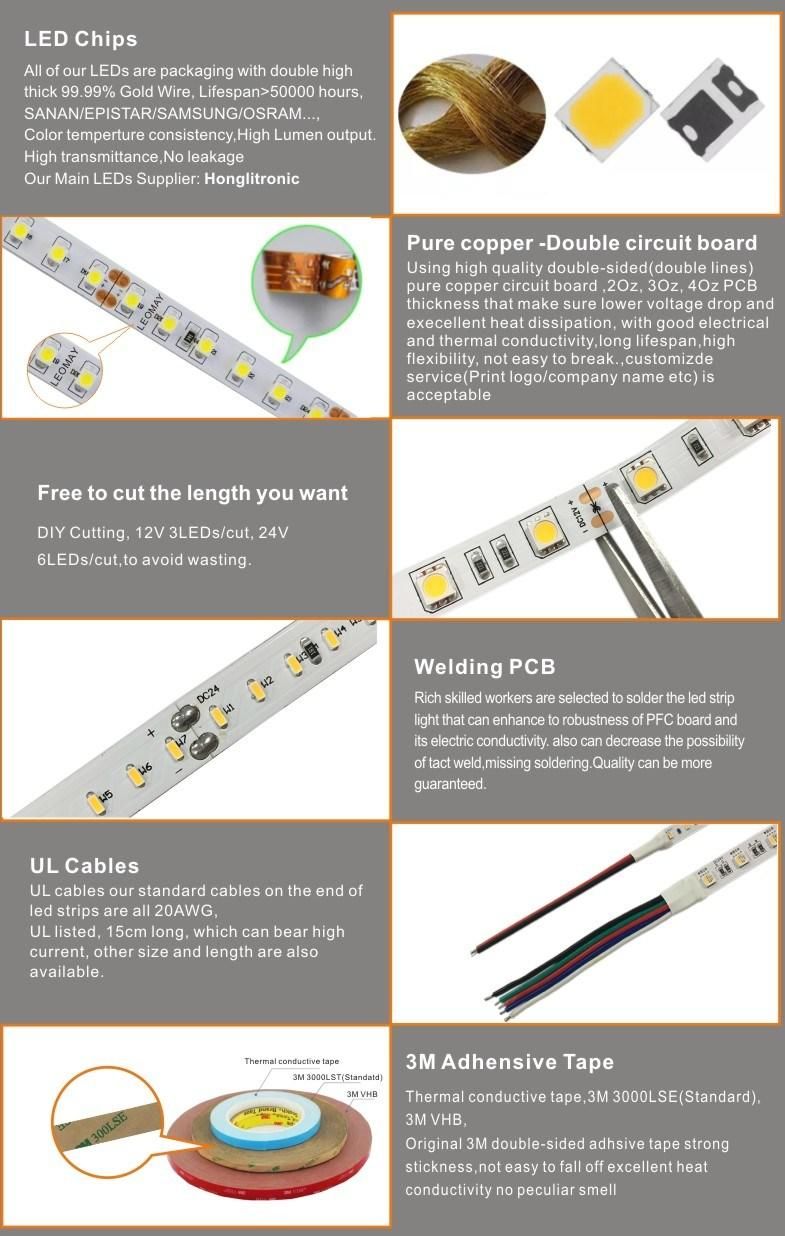

Details Images

3014 smd led strip 60leds/m 10mm led strip flexible 12v


Our Services

1. We can help all our customer in instaling, design, and accessory free.
2. Our all customer know: our connector, install cips, wires, is free with orders.
3. Any questions when using , we always fast replys with the professional methods.
4. The shipping from us, very fast, because when we know the normal prodcuts you often ordered. We will do stock produce.
5. We are very honest and careful factory direct sell the products. So all products is tested very good and packing very strong.
6. We are will be your most professional and cheapest, fastest supplier.
3014 smd led strip 60leds/m 10mm led strip flexible 12v



Packing & Delivery

Packing
  1. LED Strip Normal Length: 5meters/roll, in a anti-static bag.
  2. Our Box Size for 80rolls 10MM width Led strip and 12MM width
  3. 50rolls per box
  4. Size:46CM*35CM*25CM
  5. 50Rolls led strip in 1 Box
  6. weight: 10.5±0.5KG/BOX

Delivery
We mainly ship by DHL, International Express and others acording to customer's requirement.

3014 smd led strip 60leds/m 10mm led strip flexible 12v

3014 smd led strip 60leds/m 10mm led strip flexible 12v

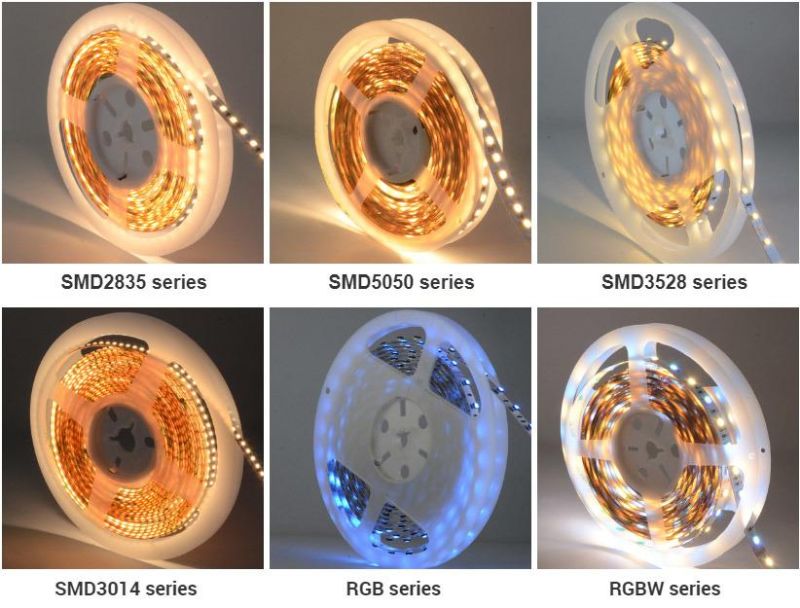

Recommend Products

3014 smd led strip 60leds/m 10mm led strip flexible 12v


Company Profile
3014 smd led strip 60leds/m 10mm led strip flexible 12v

3014 smd led strip 60leds/m 10mm led strip flexible 12v


Our Advantages

  1. UL,FCC,CE,RoHS,CCC,TUV,VDE,CUL certificate.
  2. Reliable SMD Source, Epistar. SMD 5050, super brightness, high CRI, ideal for restraurant and super market, make everything looks more real.
  3. Operating low voltage (DC12V, DC24V) for human safety.
  4. Energy saving and environmental conservation, long lifespan.
3014 smd led strip 60leds/m 10mm led strip flexible 12v
