• Model NO.：Rb-Cpx80W-B
• Certification：CE, EMC, LVD, RoHS, VDE
• LED Power：80W
• Power Factor：0.98
• Lumens：120lm,W
• Viewing Angle：120 Degree
• Color Rendering Index：75

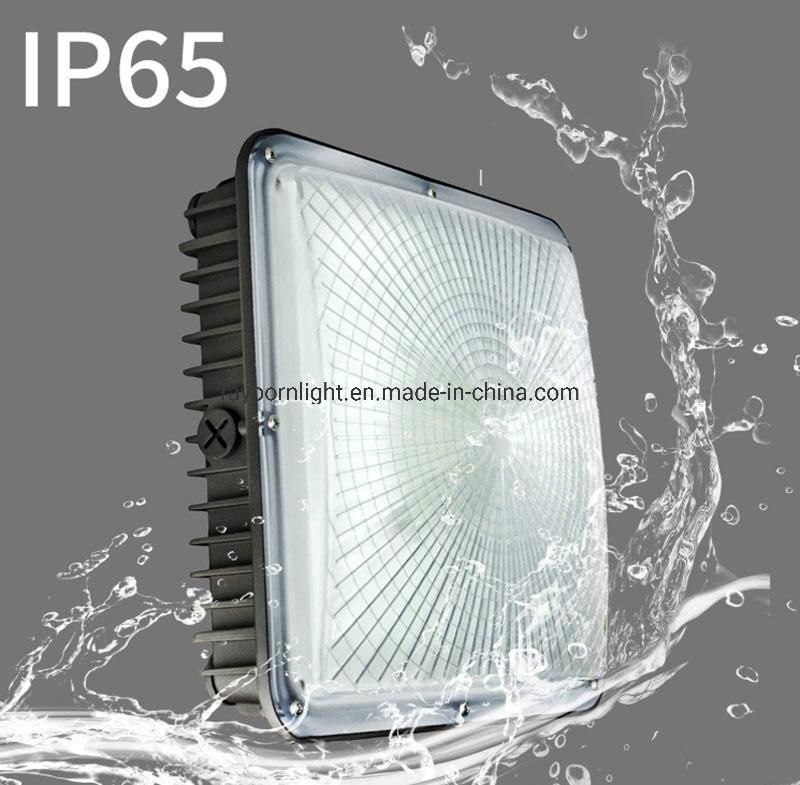

• IP Rate：IP65 Waterproof Dustproof
• Working Life-Span：50000 H
• Intallation Area：Indoor,Outdoor
• Product Size：L67xw66xh33mm
• CCT：3000K,4000K,5000K,6000K
• Model No.：Rb-Cpx80W-B
• Trademark：Rayborn
• Origin：China
• HS Code：9405409000
• Production Capacity：4000pieces ,Month

80W LED Canopy Light Main Technical ParametersItem No.:RB-CPX80W-BInput Voltage:AC 100~277VFreqency Range:50Hz~60HzLed Chip:Taiwan EpistarPower Factor:>0.98Power Efficiency:>93%THD<15%LED Power80WLED Working Voltage:DC 60-65VLumens per Watt120lm/WSystem Consumption:77WLED Luminous FluxWarm White9000LMPure White9400LMCool White9600LMViewing Angle:120 degreeIlluminance Uniformity:>0.6Color TemperatureWarm White3000-3500KPure White4000-4500KCool White5000-5500KColor Rendering IndexRa>75Light Distribution:LED points visibleLight Design:LED The secondary light distribution lensLED Junction Temperature:≤115ºCWorking Temperature:-35ºC~50ºCIP Grade:IP65Working Life-span:50000 HPower Line:1.0 mm three lineConnect WireBrownLBlueNYellow / GreenGCertificateCE/ROHSHousing color:Black

Outdoor LED Canopy light Features :
High Bright:  :Providing 120 lumens/w high-quality illumination, increases safety and security.
Power Supply:  Global Voltage Input 100-277V AC, 50/60Hz. IP65 and high quality, it improved lights performance. Power efficiency ≥92.

Color temperature: provide a range of color temperatures from 3000, 4000,5000 and 6000 Kelvin .
Beam angle : wide beam angle 120degree
Certification:  FCC CE RoHS approval.

Wide Voltage Input:100-277Vac.Compatible for USA 120Vac voltage.
Easy installation: labour cost saving.Long operation life time, above 50,000hours. Low maintenance costs.
Application: Ideal for indoor or half outdoor lighting, like indoor parking, gas stations, Stairwells, Passageway's, Toll booth's, waiting rooms, etc.

Outdoor LED Canopy light Competitive Advantage :
1.  High efficiency to meet rigorous photometric requirements.
2.  System rating 50,000 hours LM80 to reduce maintenance.
3.  LED high efficiency and long life, not only provides a bright, diversity, lasting and innovative lighting environment, but also greatly reduce the purchase system and maintenance costs.
4.  IP65 Rated.

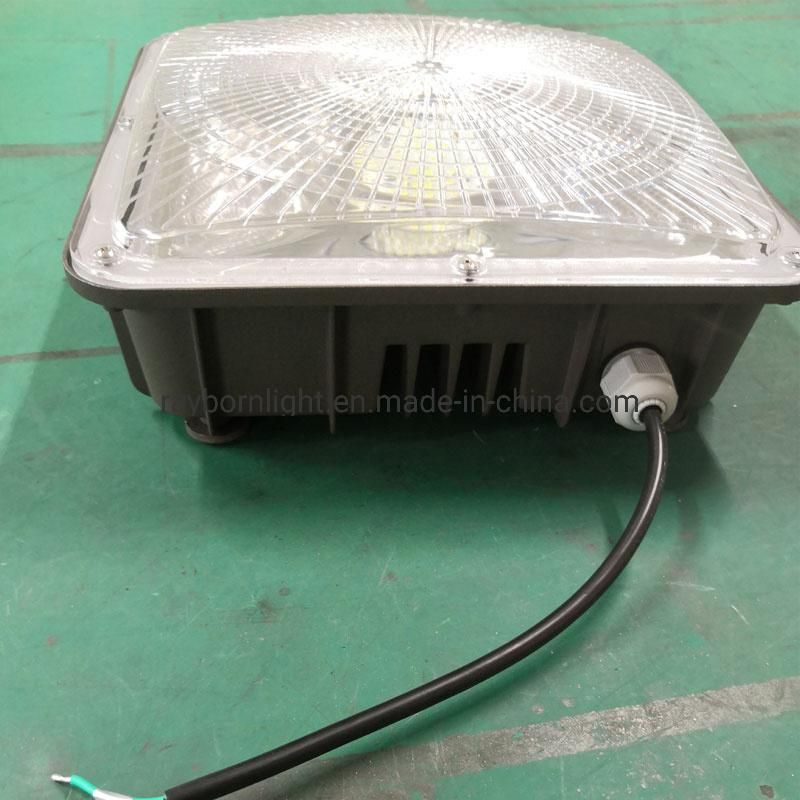

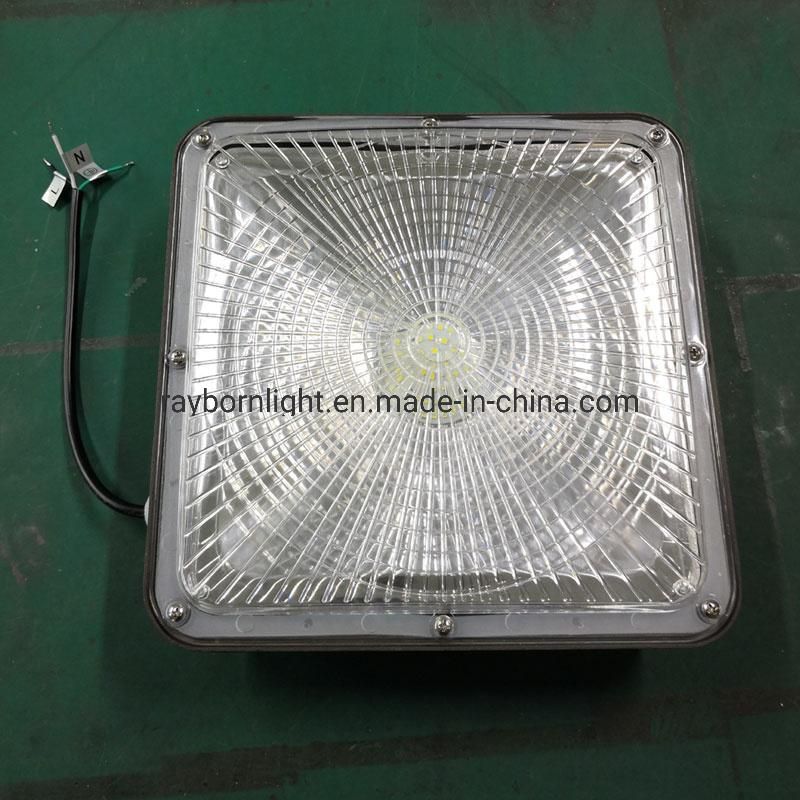

Deatils of Outdoor LED Canopy light :

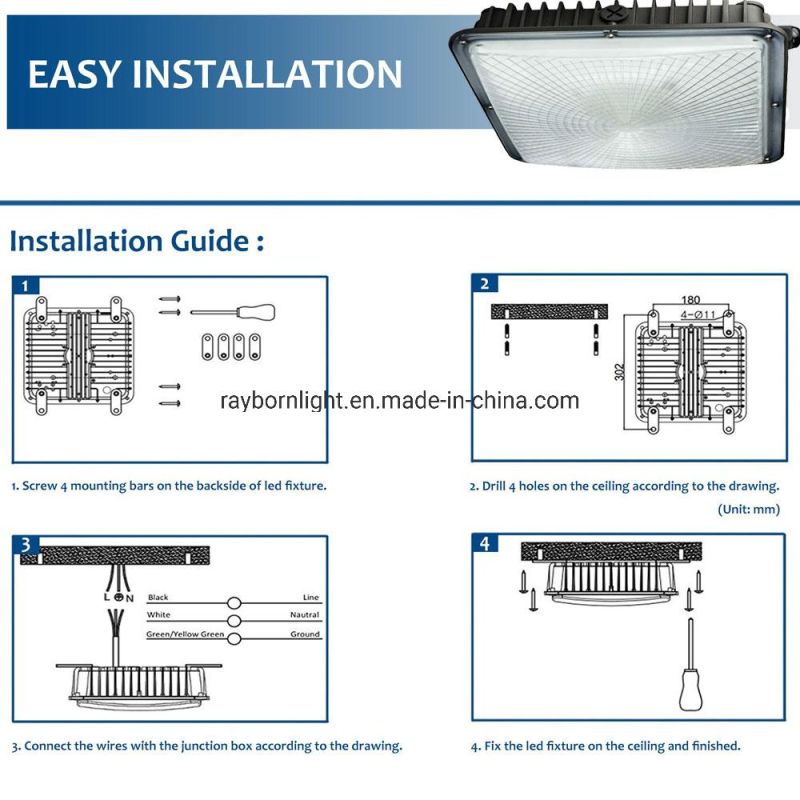

Installation process of LED Canopy light :

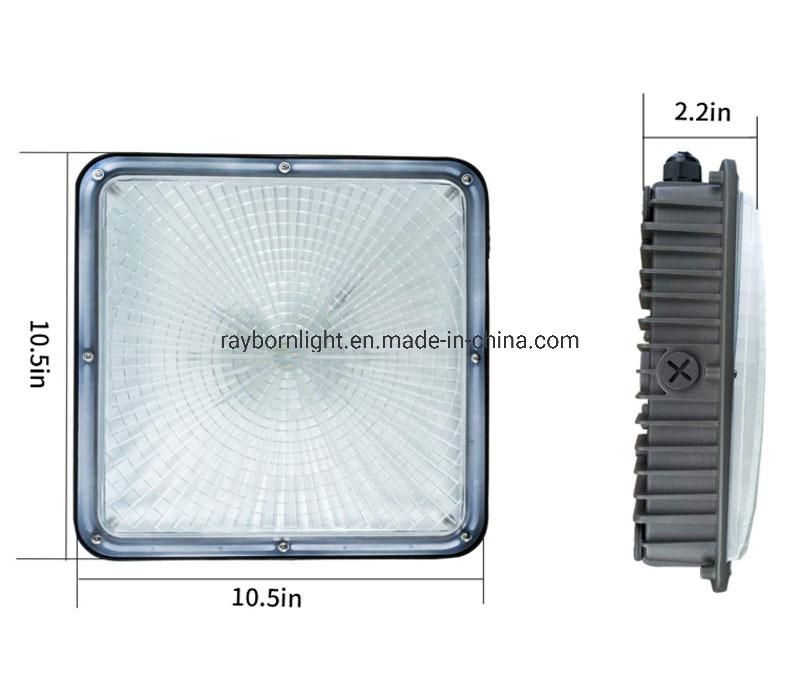

Dimension of Outdoor LED Canopy light :

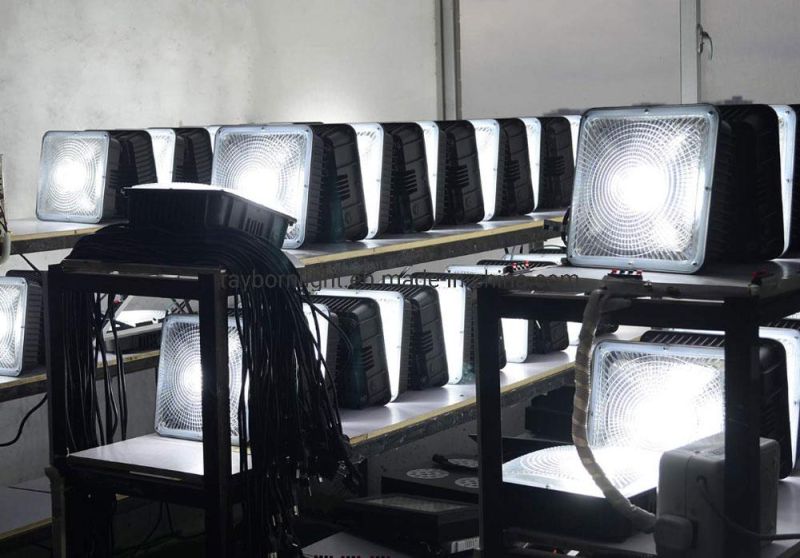

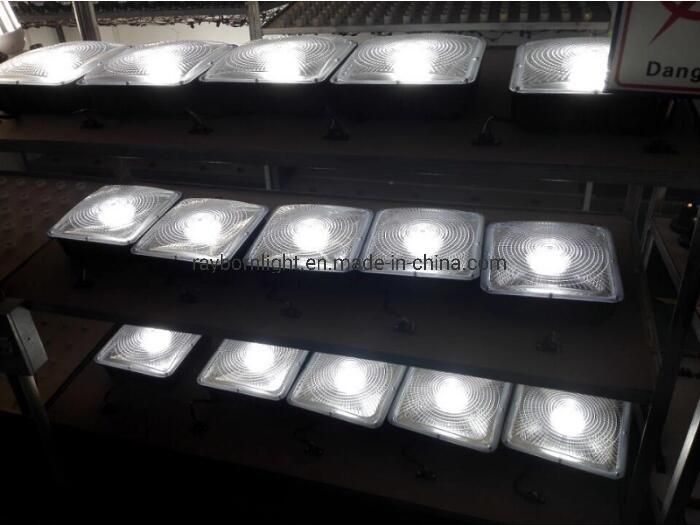

More than 24hours aging test of LED Canopy light  :
Before shipping, all the LED lamps will be over 24hours aging tested ,inspecttion department will test 100% products including light up test ,power wattage test ,high voltage test ,waterproof test ,ground connection test and so on ,defective rate is controlled less than 0.1% .Quality is ensured ,you can be assured our quality .

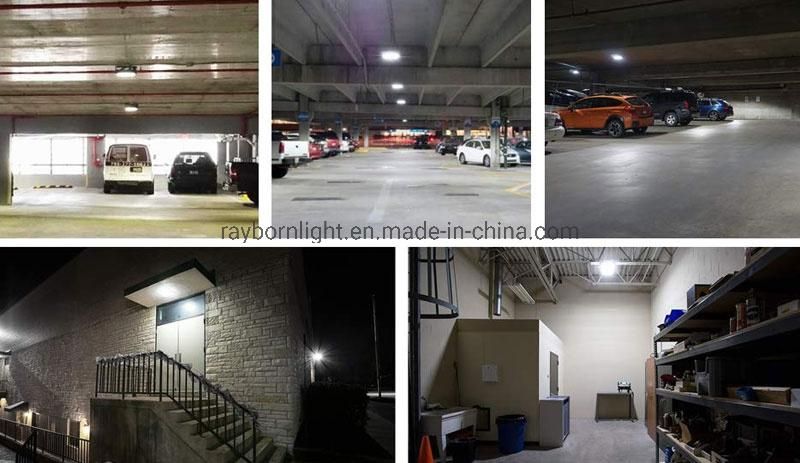

Applications of LED Canopy light :
Applications in Storage Areas, Garages, Canopies, Warehouses, Manufacturing Facilities, Hotel Canopies, Gas Station, Entry Ways, Security Lighting etc.



Company Information:
      Rayborn Lighting Co.,Ltd is a professional manufacturer ,focus on Industrial LED lights and commerical LED lights research ,devolopment ,production,sales ,on service,was in High-end operation and service provider in High-power led .Under the country "saving "polics,we are striving to create environment protection ,energy saving ,long life lighting and earned a reputation of being a quality supplier of LED lighting .




Payment terms
1. Payment: T/T, L/C at sight, Western Union ,Paypal available
2. Samples can be available within 5-7 working days; Order: 10-20Days
3. Shipping freight is quoted under your requests
4. Shipping port:Shenzhen , China
5. Discounts are offered based on order quantities


FAQ
1. What is the general business process?
Answer : Send Inquiry to Rayborn. → Specification Confirmation → Quotation → Sample List Confirm → Proforma Invoice → Payment Bank Slip → Sample Delivery → Sample Satisfactory → Bulk Order List → Proforma Invoice → 30% Deposit Payment in Advance → Production Ready → 70% Balance bank slip → Delivery → After Sale Service

2. What is the warranty?
Answer : 5 years warranty is offered depending on different types of lights. If item fails due to quality problem during warranty, we can send new replacement with freight on ours immediately if urgently. Or we prefer to send replacement with next order.

3. What is the payment term?
Answer : For sample order, we can accept T/T, Paypal, West Union, 100% in advance. For bulk order, 30% deposit in advance by T/T, 70% balance before shipping. For very big order, L/C is negotiable

4. Can I add my logo on the product label?
Answer : Yes, but order quantity is requested depending on different lights.

5. Do you have any MOQ limit for led light order?
Answer: Low MOQ, 2pc for sample checking is available .

6. How do you ship the goods and how long does it take to arrive?
Answer: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

7. How to proceed an order for led light?
Answer : Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

8: How to deal with the faulty?
Answer : Firstly, Our products are produced in strict quality control system and the defective rate < 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will send out new replacement to you immediately for you to solve the problem.
