• Model NO.：SLWP1240J
• Light Body Material：Plastic
• Color Temperature：Cool White
• IP Rating：IP65
• Lifespan：10000 Hours-50000 Hours
• Warranty：2 Years
• Certification：Ce, CB, SGS, RoHS, SAA
• with Light Source：SMD 2835
• Lighting Fixture Material：PC Body
• Beam Angle：120
• Size(mm)：1200*84*48mm
• Power：40W
• Input Voltage：100-130, 220-240V 50,60Hz
• Driver：Non-Isolated Driver
• Luminous Flux：100lm,W
• CRI：80
• Bright Angfle：120 Degree
• Transport Package：Carton Box
• Specification：CE, RoHs
• Trademark：Sunnylux
• Origin：Ningbo China
• HS Code：9405409000
• Production Capacity：50000PCS,Month
• Package size per unit product：1220.00cm * 100.00cm * 100.00cm
• Gross weight per unit product：5.000kg

Basic Info.

Model NO. SLWP1240J Light Body Material Plastic Color Temperature Cool White IP Rating IP65 Lifespan 10000 Hours-50000 Hours Warranty 2 Years Certification Ce, CB, SGS, RoHS, SAA with Light Source SMD 2835 Lighting Fixture Material PC Body Beam Angle 120 Size(mm) 1200*84*48mm Power 40W Input Voltage 100-130, 220-240V 50/60Hz Driver Non-Isolated Driver Luminous Flux 100lm/W CRI 80 Bright Angfle 120 Degree Transport Package Carton Box Specification CE, RoHs Trademark Sunnylux Origin Ningbo China HS Code 9405409000 Production Capacity 50000PCS/Month

Packaging & Delivery

Package size per unit product 1220.00cm * 100.00cm * 100.00cm Gross weight per unit product 5.000kg

Product Description

LED Batten Lighting LED Linear Light IP66 CE CB

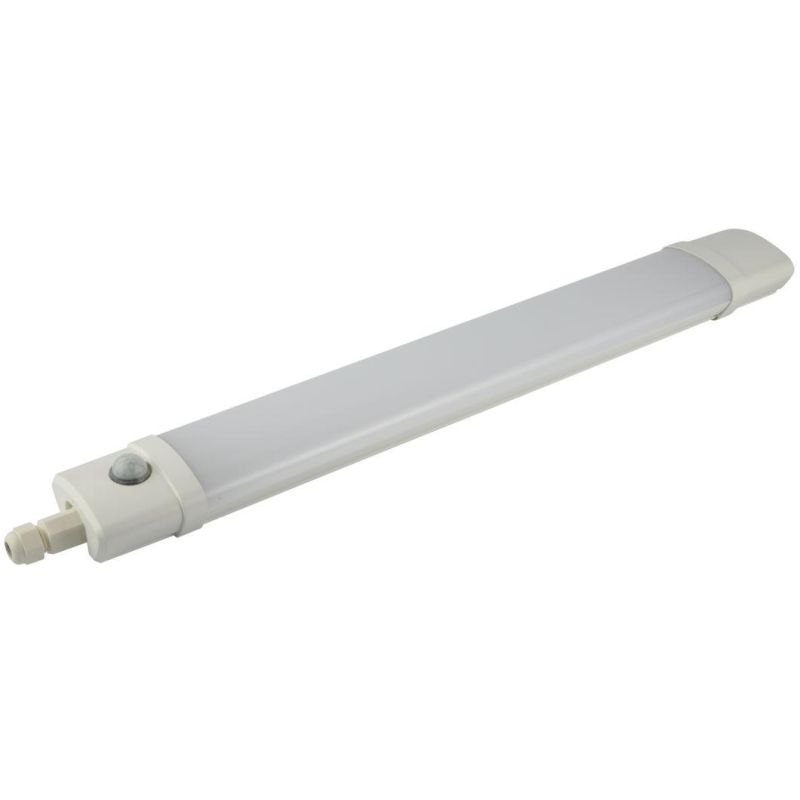

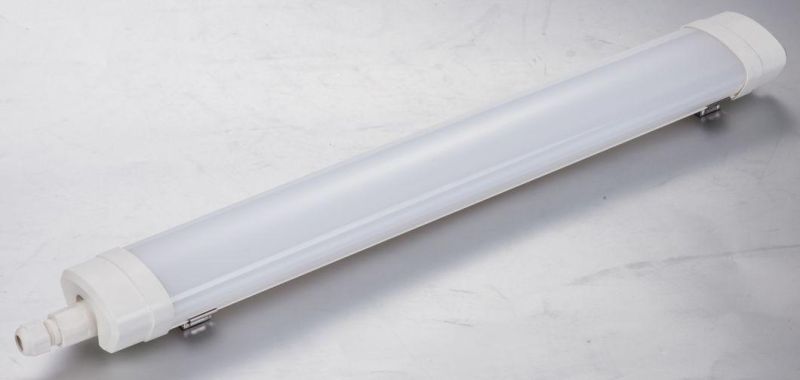

Lighting photoes:










Lighting Feature:



Item Type	LED Waterproof Light IP65	LED Waterproof Light IP65	LED Waterproof Light IP65
Model Number	SLWP0620J	SLWP1240J	SLWP1560J
Input Voltage	AC220~240V  50/60Hz	AC220~240V 50/60Hz	AC220~240V  50/60Hz
Input Power	20W	40W	60W
Luminoux flux	2000LM	4000LM	6000LM
CRI	80	80	80
LEDs	SMD2835  0.2W/pcs	SMD2835   0.2W/pcs	SMD2835   0.2W/pcs
Driver	non-isolated driver	non-isolated driver	non-isolated driver
Protection Level	IP65	IP65	IP65
Safety Level	II Type	II Type	II Type
Temperature	-20 °C ~+50 °C	-20 °C ~+50 °C	-20 °C ~+50 °C
Size/mm (L*W*H)	600*84*48	1200*84*48	1500*84*48
Packing size/mm	685*285*200	1285*285*200	1585*285*200

Note:1) Power and voltage can be adjusted as per requirement.

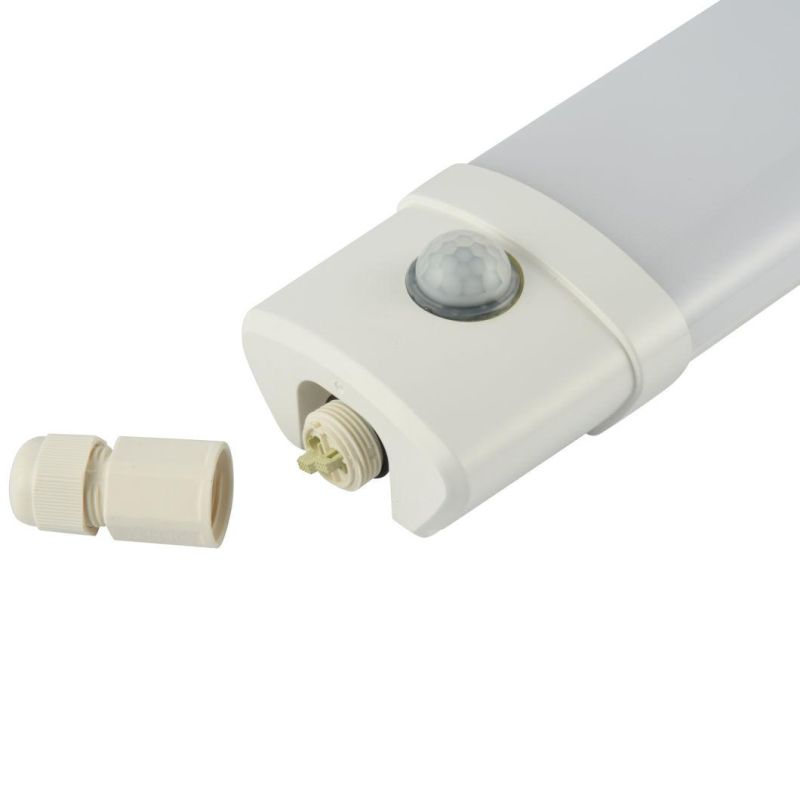

         2)our this type lighting could fit sensor or EM kitting inside.

 Quick Details
 1. Item Type: SLWP
 2. LED Light Source: SMD2835
 3. Input Voltage(V): 220-240 or 100-130
 4. Lamp Power(W): 20W  40W  60W
 5. Lamp Luminous Efficiency(lm/w): >100
 6. CRI (Ra>): 80
 7. Color Temperature(CCT): 2700-6500K
 8. Working Life time(Hour): 50000
 9. Lamp Body Material: PC base + PC diffuser
 10. IP Rating: IP65
 11. Certification: CE, CB,SAA
 12. Warranty(years): 3

Advantage:
- Opaque UV stabilized PC material
- High impact resistance
- Unique design guarantees shape preserving so that it enhances the  water-proof performance.
- Lamp cover: Injection moulded, high impact resistant PC material with light
diffusing agent which could shed soft light. Light transmittance ≥85%.
- Reflector: Metal.

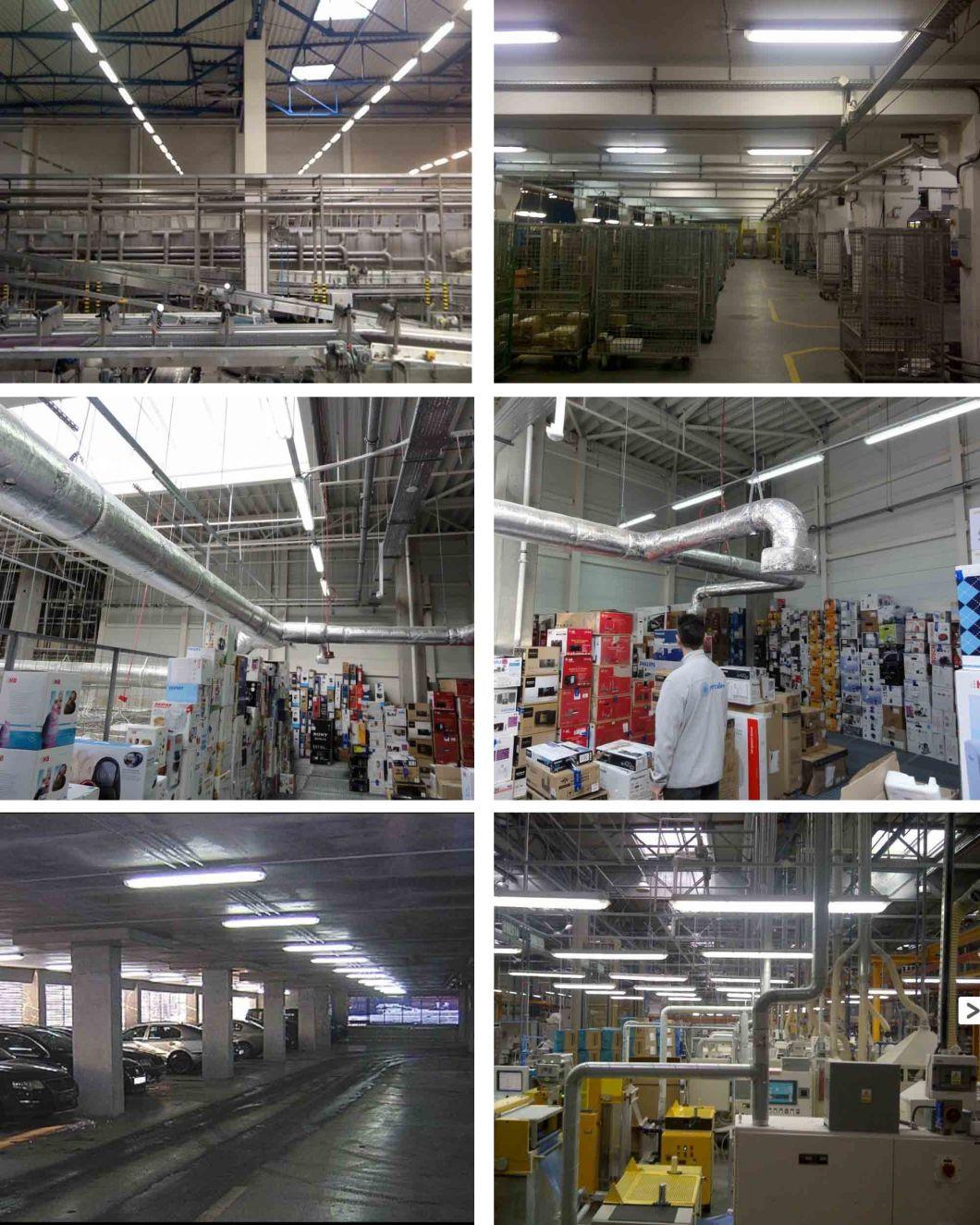

Application:
Can be applied in wet interior, dusty place and outdoor places, such as
factory, warehouse, cold store, car parking, pharmaceutical&food industry,
tunnel, bathroom, etc.


Packaging & Delivery
  Packaging Detail: 1pcs in one box 6pcs in one carton
  Delivery Detail: 7-10 work days for sample, 25-30 work days for 3000 pieces.

Term of Trade:
FOB, CFR, CIF could be negotiation,

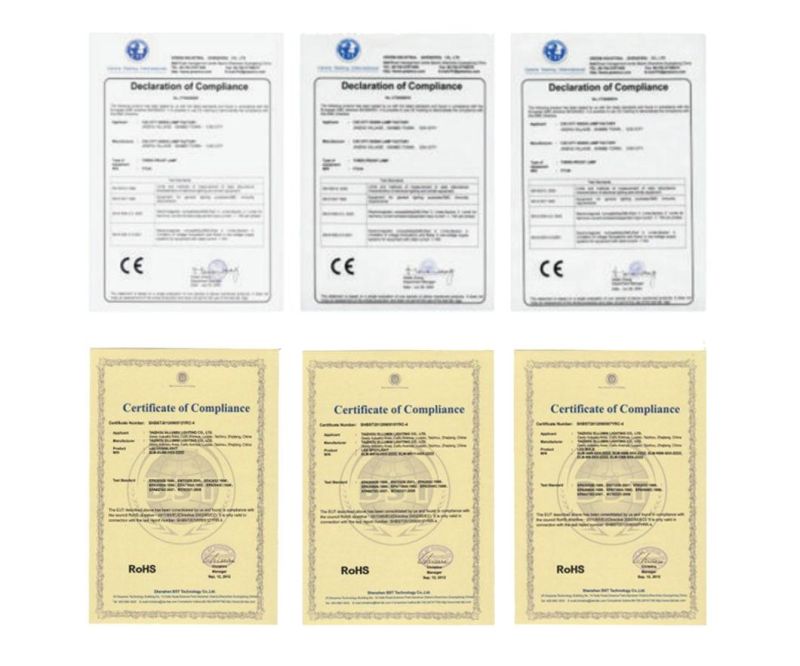

Certification:
  CE, CB, RoHS, SAA
