• Model NO.：90011B
• Style：Modern simplism style
• Base Type：LED+MPCB
• Voltage：DC12V,DC24V
• Certification：CE, EMC, RoHS
• Working Lifetime：>30000hrs
• Beam Angle：15,25,45,60 Degrees
• LED Chip：Epistar,Bridgelux
• Working Temperature：-20-40 Centigrade
• LED Brand：Bridgelux,Edison,CREE
• Housing& Cover：304#(316# Is Available) Stainless Steel
• Light Source：1X2w LED
• Other Models：1W,2W Single Color
• Transport Package：Shockproof Carton Box
• Specification：24PCS CTN
• Trademark：JP Lighting
• Origin：Dongguan, Guangdong, China
• HS Code：94054090
• Production Capacity：5000PCS,Month

Basic Info.

Model NO. 90011B Style Modern simplism style Base Type LED+MPCB Voltage DC12V/DC24V Certification CE, EMC, RoHS Working Lifetime >30000hrs Beam Angle 15/25/45/60 Degrees LED Chip Epistar/Bridgelux Working Temperature -20-40 Centigrade LED Brand Bridgelux/Edison/CREE Housing& Cover 304#(316# Is Available) Stainless Steel Light Source 1X2w LED Other Models 1W/2W Single Color Transport Package Shockproof Carton Box Specification 24PCSCTN Trademark JP Lighting Origin Dongguan, Guangdong, China HS Code 94054090 Production Capacity 5000PCS/Month

Product Description

IP68 Waterproof Submersible Led Pool Lights Underwater Pond Lights Waterproof
This is a tiny type LED recessed underwater light with plastic mounting sleeve. High energy efficiency LED and low consumption, very easy to install and maintain. It is widely used in swimming pools, hotel fish ponds, landscape pools. Precision-made structural waterproof makes it suitable for long-term underwater work.

Main Features1.DC 12V/24V low working voltage, safe for underwater use.
2.Whole lamp body is stainless steel 304# or 316#, with plastic mounting sleeve.3.Waterproof grade is IP68, precision structure with matched waterproof silicone ring to achieve real waterproof.4.PMMA optical lens, light efficiency ≥ 85%.5.EU standard power cable, wear resistance, corrosion resistance, heat resistance and not easily deformed.6.Default power cable length is 1m, for convenient maintenance and repair.7.Multiple light color options: cold white, warm white, neutral white, red, green, yellow, blue etc.8.Long life up to 50,000 hours.
 Main Specifications
Front Cover & Housing: Molding shaped 304# or 316# stainless steel
LED Source: 1x1W/2W
Lens: Optical lens, efficiency ≥85%
Glass: Tempered glass T=6mm
Cable gland: IP-68 PG-11 copper and nickel coated
Light Color: Single color
Working temperature: -20ºC to 40ºC
Driver: Constant current output
            Single color LED=1-circuit output
MCPCB: Aluminum, coefficient of heat conductivity≥2.0w/mk
Power cable: H05RN-F 2x0.75mm² L=1m (for single color)
Mounting sleeve: Plastic

Product Models

Item No.	Lighting Source	Lens Beam Angle (°)	Consumption(Watt)	Input Voltage(V)	IK Rate
90011B	1x1W	15°/25°/45°/60°	1.1	DC12V/DC24V	06
90012B	1x2W	15°/25°/45°/60°	2.4	DC12V/DC24V	06

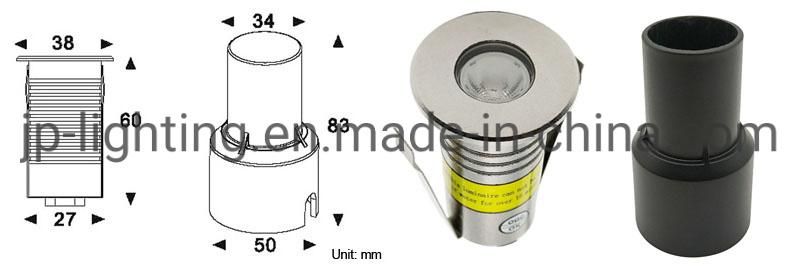

Product Dimension

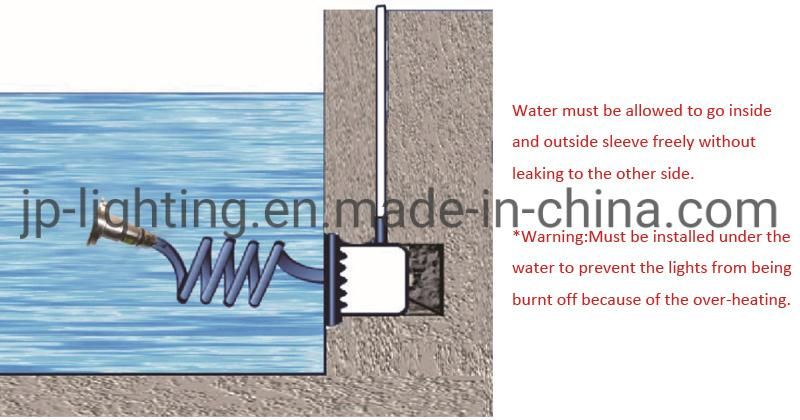

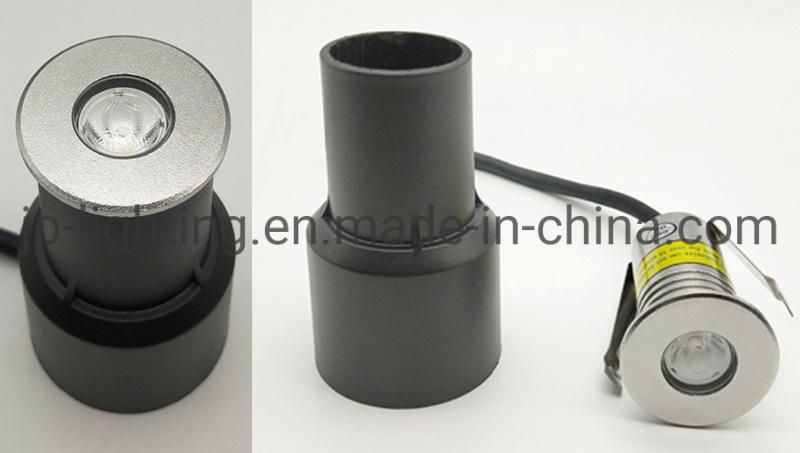

Product ImageProduct Installation

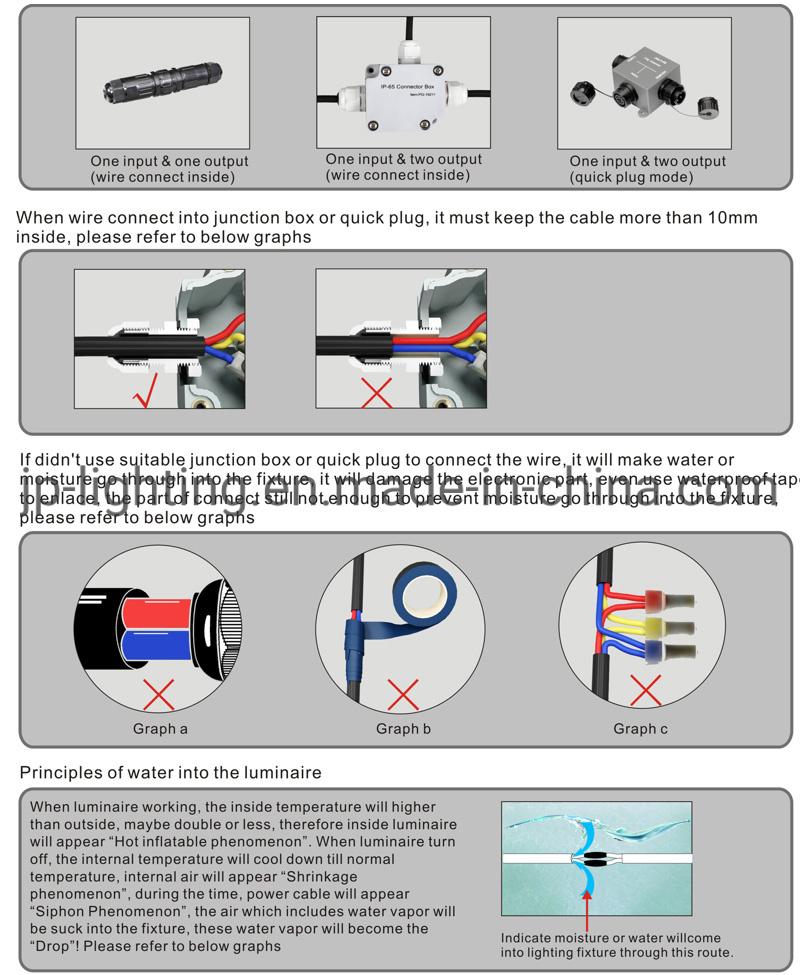

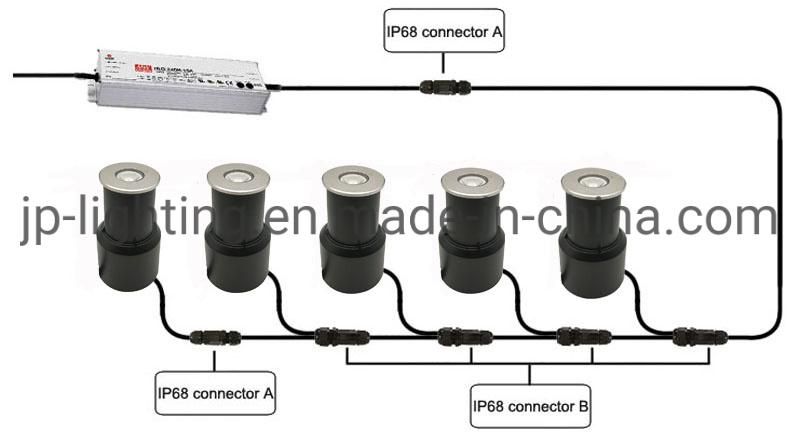

Wiring Diagram

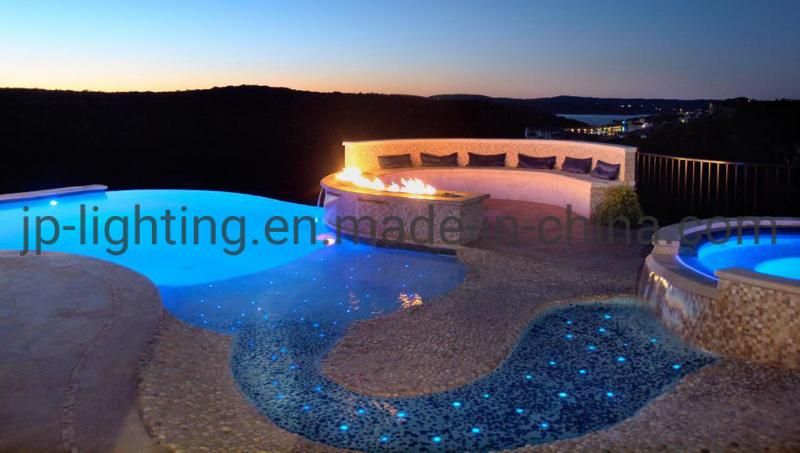

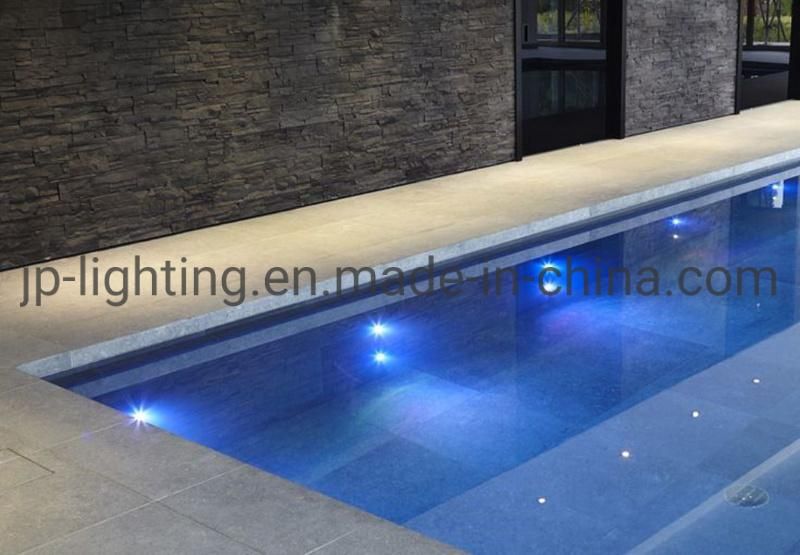

Product Application


FAQ

Are you a manufacturer?
Yes, We are a professional manufacturer with 15 years experience.

What are your main products?
1.Outdoor LED wall light
2.LED garden spot/spike light
3.LED inground light
4.LED underwater light(fountain light, swimming poool light, underwater spot light)
5.LED wall washer light

What is the company sample system?
1.Sample charge should prepaid.
2.Sample can be customized,If the order QTY is more than 1000Pcs.

How we can pay for?
1.30% advanced payment. 70% balance payment.
2.We accept L/C, T/T, Western Union, and Paypal.
3.Our shipping terms is EXW, FOB, CIF

How about the delivery time?
1.About 5 working days for sample making.
2.15-30 working days for mass products production time. It is up to the quantity.

What information should I let you know when I want to make a inquiry?
1.Which body color do you want?
2.What kind of light color do you prefer?
3.How long do you need about light cable?
4.Which voltage ( low voltage or high voltage)?
5.What kind of beam angle do you need?
6.What's the quantity do you need?

Why choose us?
1.One-stop services:  Innovative design, professional product light effect. Excellent product quality, sincere service concept. For exterior lighting provides an integrated, one-stop integrated lighting solution!

2.Experience R&D, production and sales team: We have an mature and experienced team. Some members have more than 15 years of work experience in the field of lighting. JP Lighting factory covers an area of 2,000 square meters and the annual sales of more thank $10 million.

3.Strict quality control process: JP lights use the high quality components. All material must be strictly screened. All JP lights will undergo strict testing before shipping, including integrating sphere testing, aging test, waterproof test, etc. Due to rich experience and professionalism, JP Lighting's product defect rate is strictly controlled within 1%.

4.Products worldwide with high reputation: We participate in various industry lighting exhibitions, our products are all over Asia, Europe, Oceania, Africa and Central and South America, Middle East. All products have got great comments for high quality and excellent service.
