• Model NO.：LCD-BHD6620-150-LN30-3K
• Color Temperature：Warm White
• Emitting Color：White
• LED Chips Brand：Bridgelux
• Certification：CCC, CE, CQC, C-tick, EMC, Energy Star, ETL, FCC, FDA, GOST, GS, LVD, PSE, REACH, RoHS, SAA, SASO, UL, VDE, Atex Iecex TUV
• Transport Package：Carton Box
• Specification：395*275*200mm
• Trademark：LCD brand
• Origin：Shenzhen City, China
• HS Code：9405409000
• Production Capacity：50000PCS , Year

CERTIFICATIONSLCD-BHD6620-xxxx series is a hazardous location LED lighting fixture Class I Division 2,

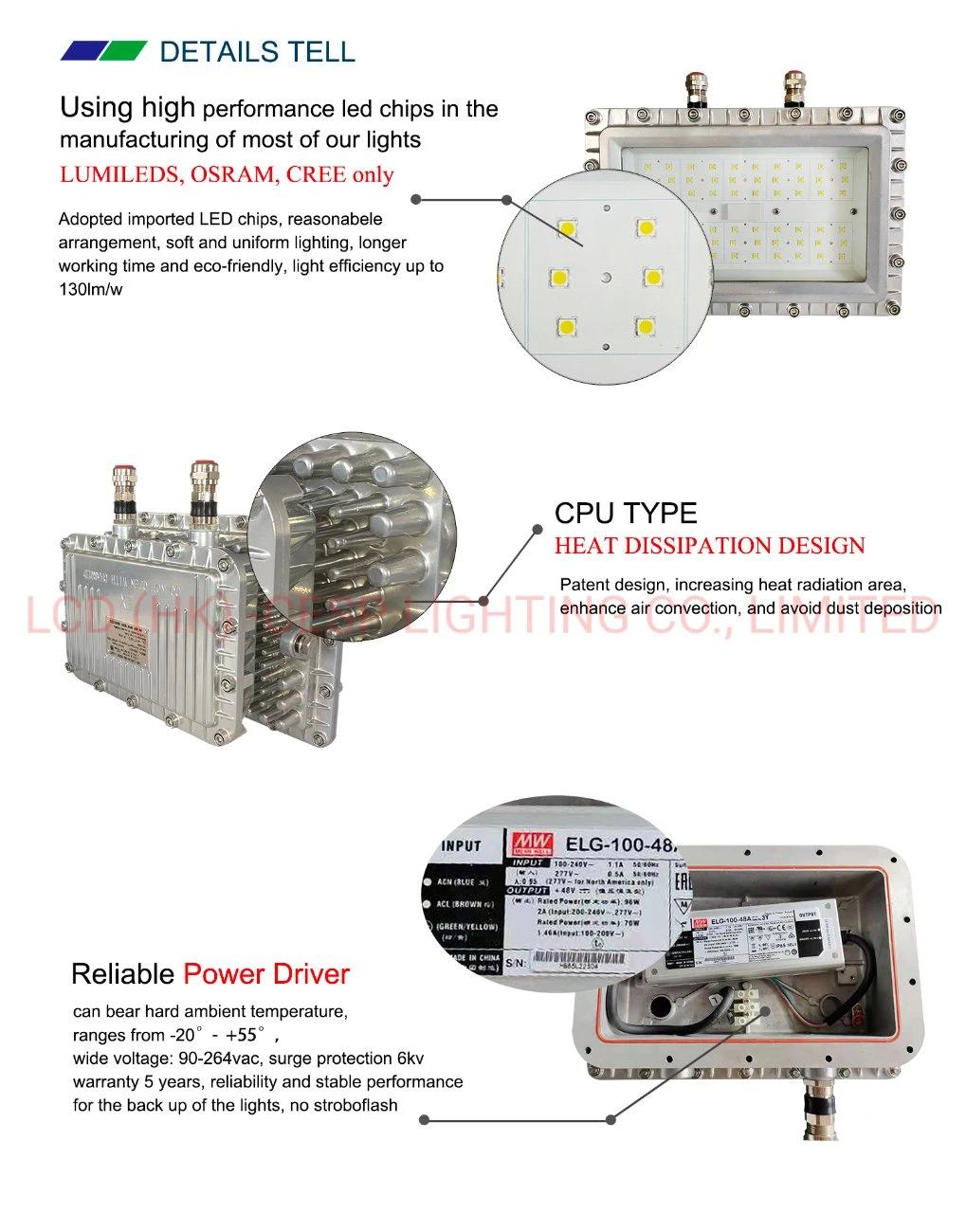

Groups A,B,C and D; Group II, Zone 1 & Zone 2; Zone 21 & 22.HOUSING BODYAluminum alloy ADC12LENS4mm thick tempered glass & PC reflector 30º 60º 90º 120º
+95% light transmission.Shock and vibrations resistant.PERFORMANCE12,000 to 24,050+ lumens
Up to 160 lm/w.
From 80W up to 160W.
L70 (hrs) rated > 65,000.IP66 & IP67 RATEDDust tight and protected against the effects of immersion in water to depth between 15 cm and 1 meter.
1-10V, DALI dimming standard.

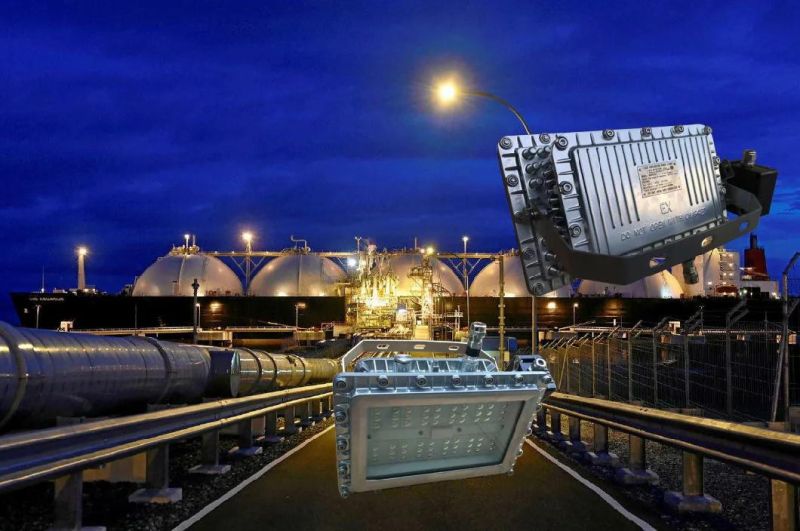

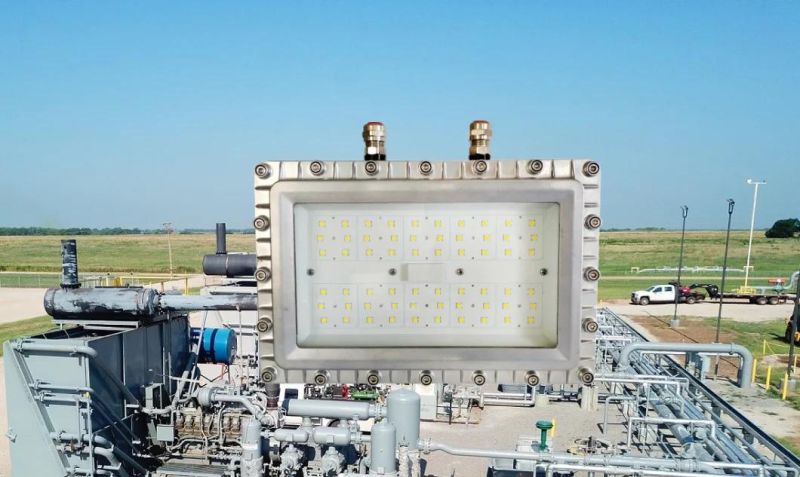

Ideal for heavy industry, mining, refineries, chemical industry, coastal
marine facilities and corrosive applications.MOUNTINGSurface/wall mount standard (adjustable mount bracket included).Pendant kit optional.OPERATING TEMPERATUREFrom -40°F up to 122°F (-40°C to 50°C).DIMMING1-10V dimming standard , DALI, Triac

Technical Specifications

Certification
ATEX Rating: ATEX and IEC Ex rated for Gas and Dust
Hazardous Area rating: Zone 1 - Gas and Dust

Certificates:
UL, including C1D2

Gas: II 2 GD  Ex e mb op is IIC T* Gb
Ta= Up to -30°C to +50°C (-20°C to +46°C for emergency variants)
Dust:II 2D  Ex tb op is IIIC T* Db
Ta= Up to -30°C to +50°C (-20°C to +46°C for emergency variants)
IP66 & IP67

Electrical
Input:
100-277VAC, 50/60Hz  only
Low voltage: 18-48V AC and 18-32V DC
Extra low voltage: 12V AC/DC
Power:
80W to 165W standard
Termination

Incoming terminal block suitable for
looping 4 core 4mm² cable
Power Factor:

>0.95
Cable Entries:

4xM20 as standard (other entries
available upon request), dispatched
complete with three ATEX/IEC Ex
approved blanking plug



Optical / Photometric Specs
Beam Patterns-symmetric : 25°x 25° or 60°x 60° or 90°x 90° or 120°x 120°
(10 x 10 option can be upgraded to LCD-CESP Technology)
Lumen output on mains: 2,600 lm - 24,050 lm
LED type: Bridgelux or LUMILEDs SMD3030 LEDs chip
Number of LEDs: 36 / 108 / 192
CRI 75+
Colour Temperature: 3,000K 4,000K 6,000K

25º



60º



90º



120º





Mechanical/Environmental
Burning position: Universal
IP rating: IP67 & IP68
Temperature range: -30°C to +50°C (-20°C to +46°C for emergency variants)
Weight: Please contact LCD-CESP for copy
Enclosure: Marine grade aluminium epoxy powder coated, toughened glass, all external
fasteners and brackets are marine grade stainless steel
Unit Colour: grey , yellow, orange
Installation instructions: Please contact LCD-CESP for copy
Dimensions: Please contact LCD-CESP for copy
Mounting: Comes complete with stainless steel brackets(as shown on below )
Other options available
