• Model NO.：LM-PG01-HPL
• Warranty：5 Years
• Housing Material：Aluminum Alloy
• Life：80000h
• LED Chips：Samsung
• Certification：CE, RoHS, UL, CCC, Energy Star, FCC, SAA, EMC, LVD
• CRI (Ra>)：80
• Ppfd Efficacy：2.8umol,J
• Ppfd：1792umol,S
• Lamp Luminous Flux(Lm)：210lm,W
• Wavelength：3500K+660nm
• Dimmable：1~10V
• Waterproof：Yes
• Heat Dissipation：Good
• Customized：Available
• G/W：2.5g,W
• Full Spectrum：Yes
• Wattage：640W
• Keywords：640W High Bay Grow Light

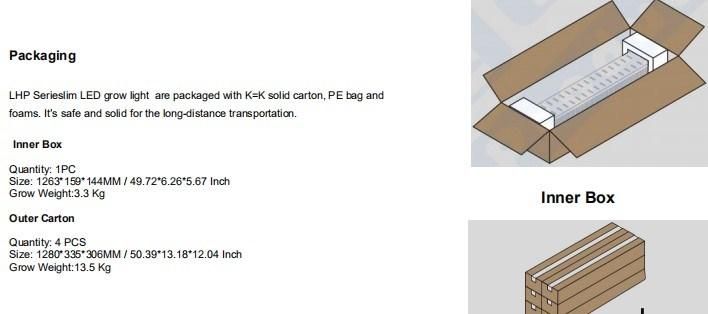

• Transport Package：Carton
• Specification：1143*99*81mm
• Trademark：Iluminni
• Origin：Shenzhen Guangdong China
• HS Code：9405409000
• Production Capacity：10000 Per Month

ModelLM-PG01-HPLInput power630WInput Voltage100-277V ACQTY of LED1200pcs white 2835+ 80pcs 3030 RedCCT3000,4000, 5000,6000KLifetime80,000 hoursWarranty3 yearsSize1143*199*81mm Dimming Solution1~10VWeight3KGIP ratingIP65Features

Structure & Material
· Heat sink fin design. Anodizing back finish for heat dissipation
· High hardness aero aluminum alloy material 6063
· IP65 design
· Used for damp place such as greenhouse

LED & Spectrum
· LM-80 listed LEDs realize high luminous efficacy & low opticaldecay
· 80,000 hours design lifespan, long lifetime
· High efficacy LEDs 210lm/w
· Full Spectrum: White+ Red; Custom
· Beam Angle: 120º

Electrics & Dimming
 · High efficiency power supply, UL listed
· Input Voltage: AC100-277V, 50/60Hz
· Power Factor: >0.98 · 1-10V dimmable

Environmentally friendly
· No glare, mercury, ultraviolet, infrared or other hazardoussubstances
· Working Temperature: -25ºC to 65ºC

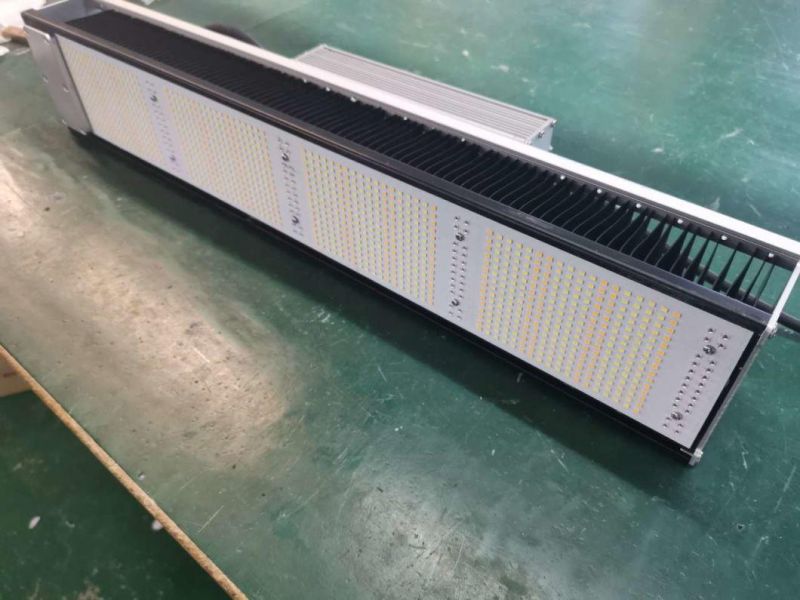

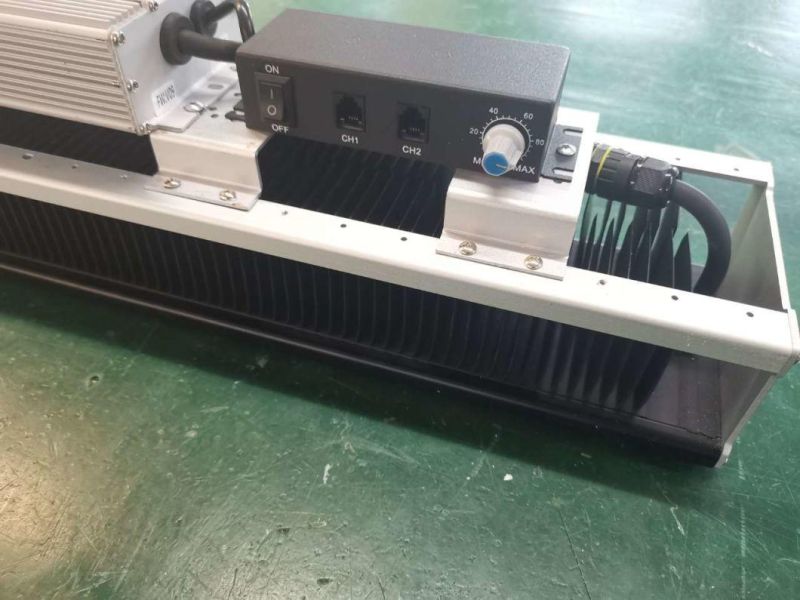

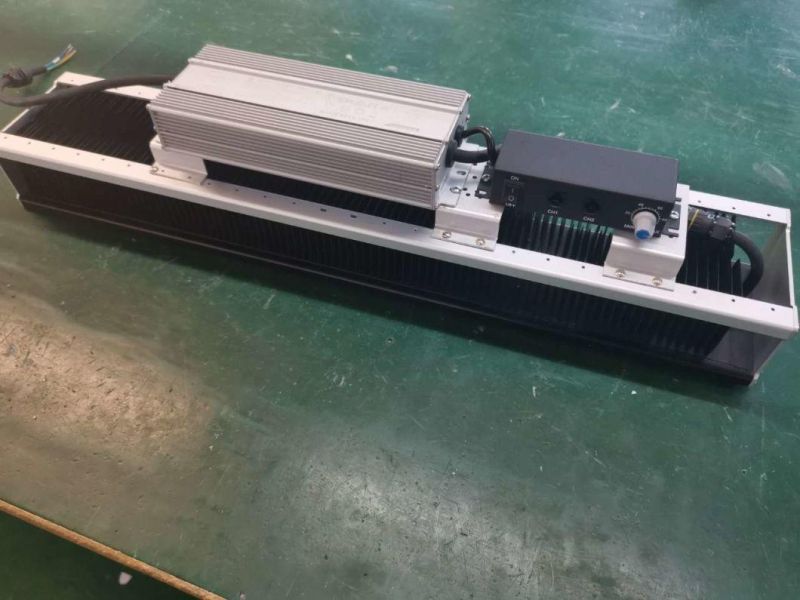

Grow Light DetailsLarge Space heatsink of Fin-designed

Water proof Cable and ConnectorSuspension Kit

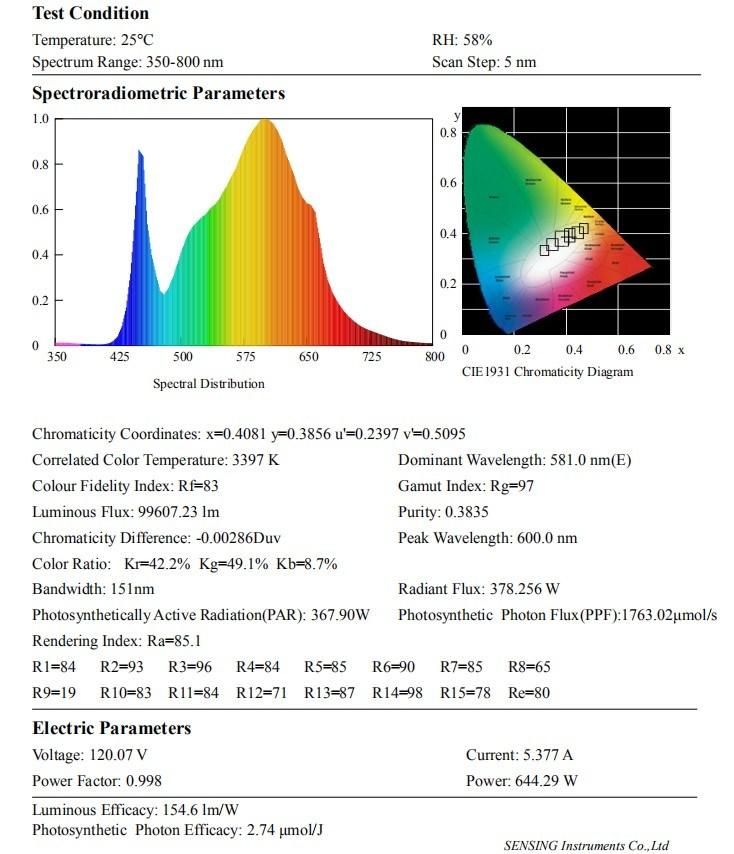

Test Report

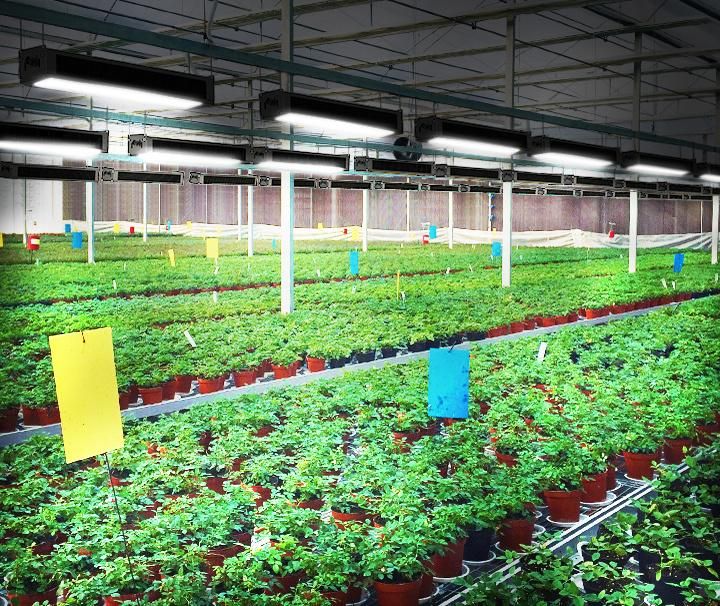

Application

It is widely used in the commercial greenhouse cultivation, indoor plant growing, and private garden horticulture.
Replacement Replacing traditional lights such as high pressure sodium of supplement of light for horticulture

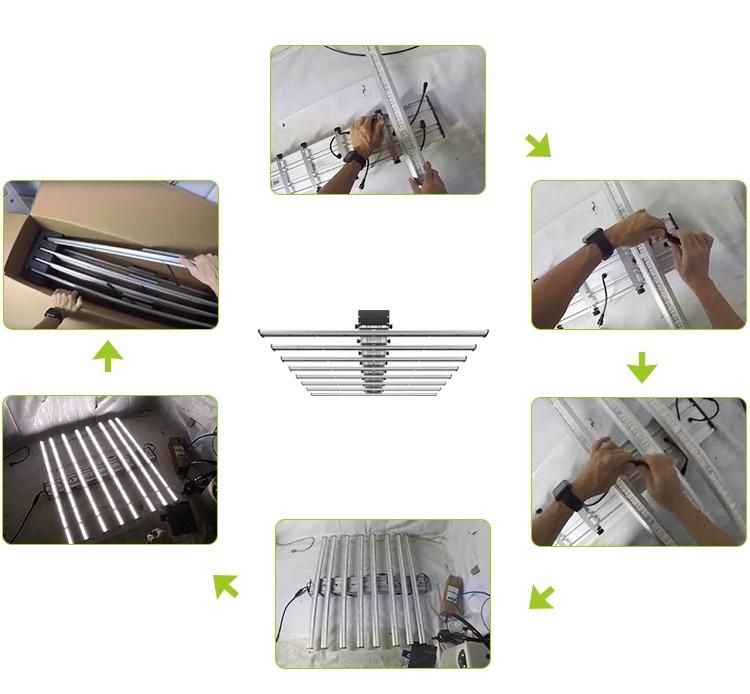

Installation Instructions

1. Fixtures must be operated by a licensed electrician.
2. Check if fixtures are sloid and in good condition once packaging is open.
3. Do not let fixture fall down from ceiling system or clash to hard stuff.
4. Make sure that the cable of fixture is long enough to connect. Do not knot or pull the cable strongly whilewiring.
5. Do connect input end of fixture to output end of LED driver.
6. Wiring must be firm and tight with insulation protection well. Be aware of electricity shock.
7. Keep fixture and LED driver away from water or liquid, free from electric leakage and electricity shock.
8. Must use LED driver approved by Lumin, otherwise, fixtures may not work normally, and may be damaged, may cause unexpected incidents.
Lumin will not bear any responsibilities due to such deeds.

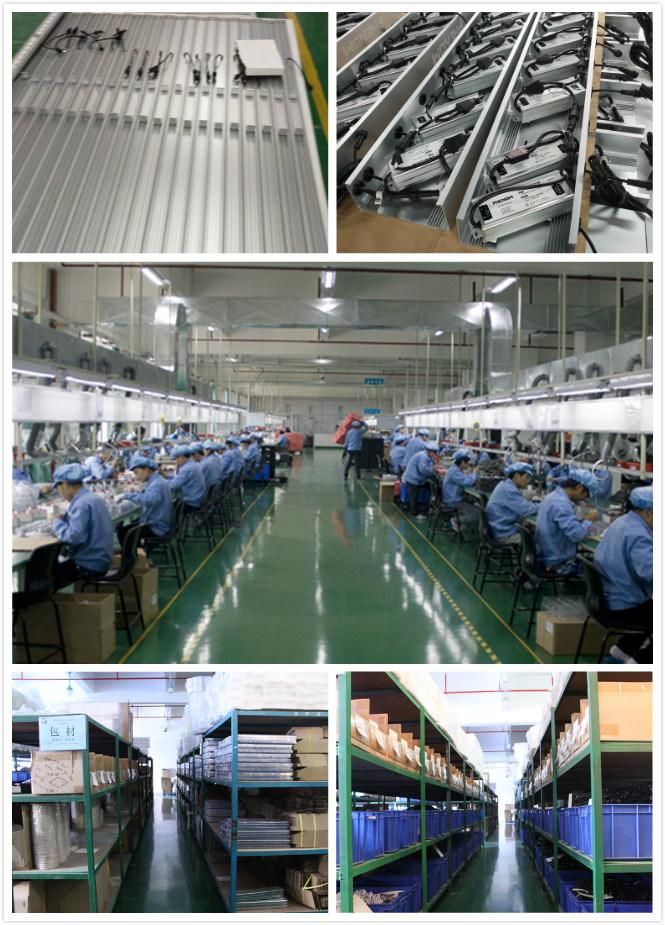

Company Information

Indoor you can control the environment lights temperature humidity,outside your at the mercy of Mother Nature

Our product quality as our lifeline.
We focus on quality control during the whole production process by strickly carrying out ISO 9001 Quality System and ISO Environment Management System.
And we emphasize training of skills and capabilities of our workers and staff to improve production management.
The products have already been awarded with certificates of CE, RoHS, and UL .
With good quaity control, our products are well received by customers throughout the world.


We has an excellent research and development team. New products are launched every year.

Related Products

FAQ

Q1: Which certificates does your LED Plant Light have?

A1 : CE,RoHS,ETL

Q2: What's your LED chip brand?

A2: Samsung.

Q3: What's the waterproof grade?
A3: IP65.

Q4: How to deal with the faulty?
A4: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 1%.
Secondly, during the guarantee period, we will send components or new lights with new order for small quantity.
For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.

Q5:How about customized service ?
A5:Customized service always available,301H/UV/IR LED available

More details,welcome to contact me
