• Model NO.：TY-365nm-3W-B
• Battery Type：Lithium Battery
• Material of Reflecting cup：Glass
• Surface Preparation of Reflecting cup：Smooth
• Material：Copper
• Light Color：Purple
• Transport Package：a Set
• Specification：28mm x 157mm x 53mm
• Trademark：LED TaoYuan
• Origin：China
• Production Capacity：40000sets,Year

Basic Info.

Model NO. TY-365nm-3W-B Battery Type Lithium Battery Material of Reflecting cup Glass Surface Preparation of Reflecting cup Smooth Material Copper Light Color Purple Transport Package a Set Specification 28mm x 157mm x 53mm Trademark LED TaoYuan Origin China Production Capacity 40000sets/Year

Product Description

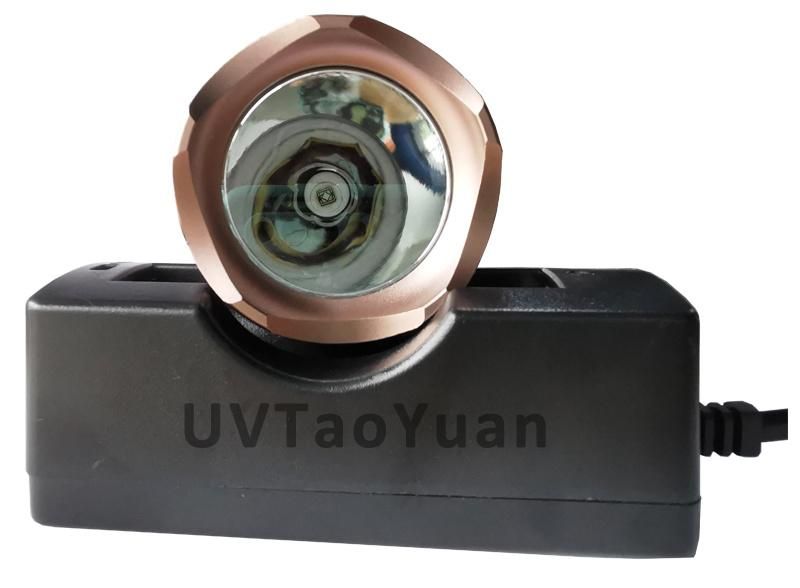

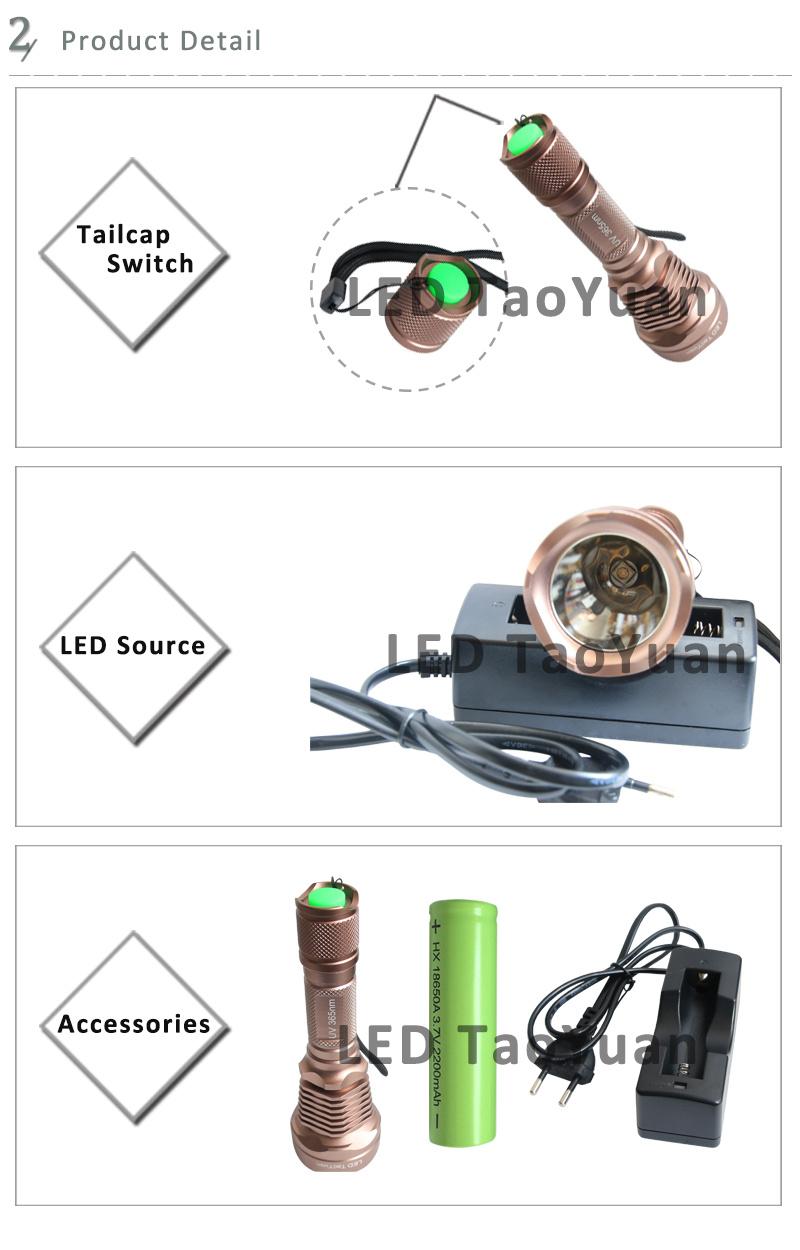

TY-B-S host
Rechargeable lithium battery (BRC 18650 3000-4000mAh 3.7V li-i0n)
Charger

This is the UV365nm, the brightest single-die LED UV flashlight available. Designed for FPI NDT, Fluorescent Penetrant Inspection Non-Destructive Testing, it dramatically exceeds the ASTM minimum intensity standard of 200mW/cm² " 15". The factory-focused beam creates a bright 20mm spot of 365nm UV light at over 180mW/cm² " 15" surrounded by a 50mm beam at over 160mW/cm².
For its UV source, the UV365nm uses a genuine, Japanese NCSU033B(T) 365nm LED. It's up to 34% brighter than the original Hoplite, throwing as much as 390mW of UV. Per the factory documentation which can easily be found on line, the vast majority of emission from this device is very narrow; at or close to 365nm, with 380+nm radiation not appearing until about .05nm

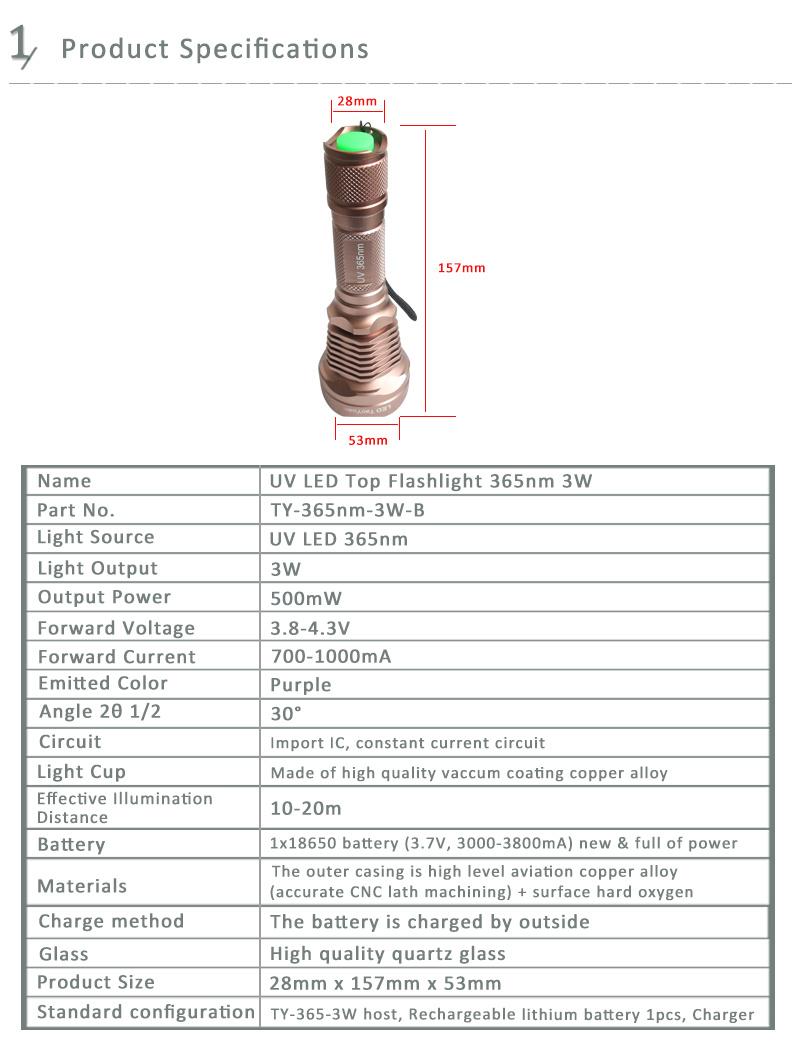

Name	UV LED top Flashlight 365nm 3W
Part No.	TY-365nm-3W-B
Light Source	UV LED 365nm
Light Output	3W
Output Power	500mW
Forward power	3.8-4.3V
Forward Voltage	700-1000mA
Emitted Color	purple
Angle 2θ 1/2	30°
Circuit	Import IC, constant current circuit
Light Cup	Made of high quality vacuum coating copper alloy
Effective illumination Distance	10-20m
Battery	1 x 18650 battery (3.7v, 3000-3800mA) new & full of power
Materials	The outer casing is high level aviation copper alloy (accurate CNC lath machining) + surface hard oxygen
Charge method	The battery is charged by outside
Glass	High quality quartz glass
Product Size	28mm x 157mm x 53mm
Standard Configuration	TY-365nm-3W host, Rechargeable lithium battery 1pcs, Charge
