• Model NO.：OL60-6-1
• Voltage：24V
• Voltage Type：AC,DC
• LED Type：5730
• Certification：CCC, CE, ETL, RoHS
• Lifetime：50000hours
• Color Temperature(CCT)：4000-6500
• Keyword：Heavy Duty LED Work Lights
• Transport Package：Carton
• Specification：60mm diameter
• Trademark：Otennlux
• Origin：China
• Production Capacity：10000,Years

Item Number
 OL60-6-1Materialaluminum alloy+Toughened glassIp Rate
 IP67Power6wVoltage

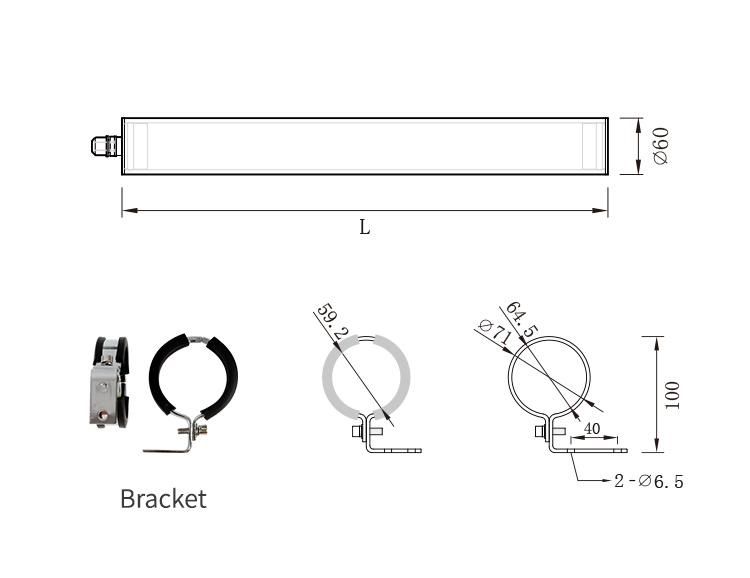

 24v AC/DCSize(C bracket)285x60x60 mmLamp Luminous Efficiency(lm/w)
 >100lm/wFixed modefixed by screws

Features:

*CE,CCC,ROHS Approval;
*Good functions of Water proof,oil proof,anti-corrosion and anti-riot;
*Uniform distribution of light,excellent color rendering and good lighting effects;

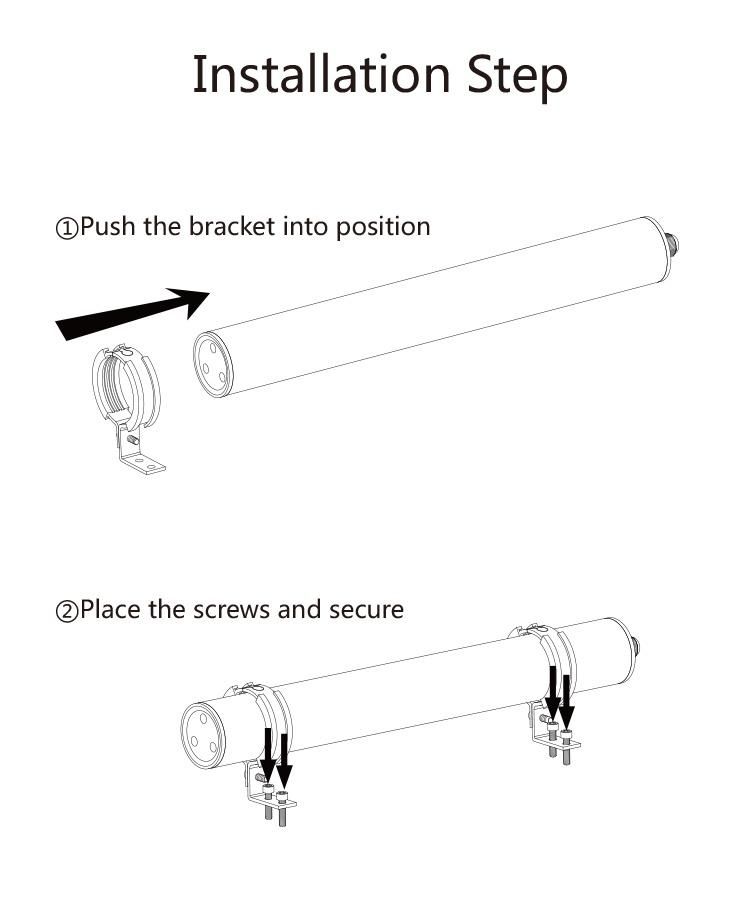

*Easy installation and low maintenance;

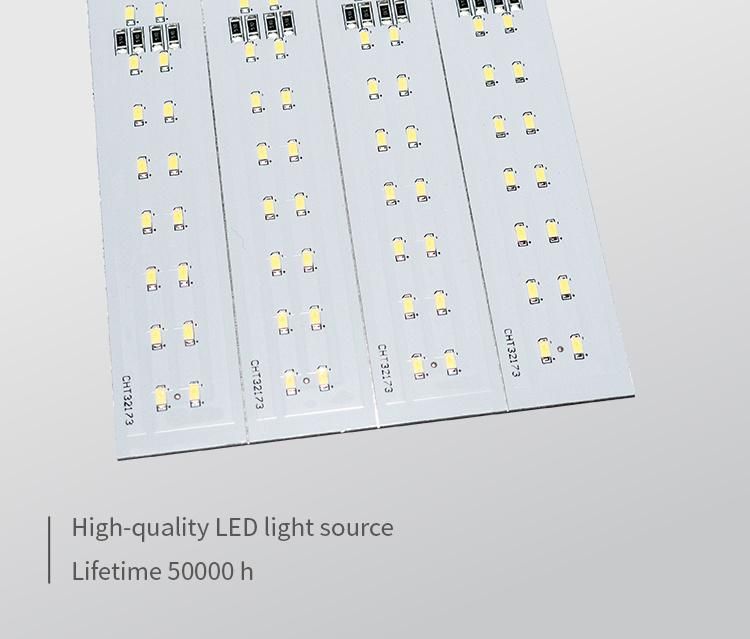

*The LED chips of light source are imported from USA,it has good performance of low power consumption,high efficiency and long life time;
*The high quality of AC/DC LED driver with the good parameters of low power consumption ,protect circuit function and long life time;

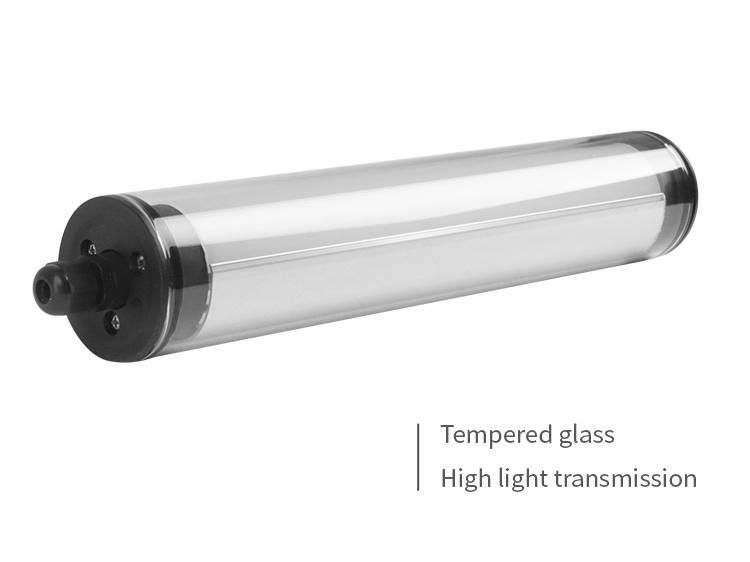

*The qualified aluminum with good dissipation,transparent and tempered glass;
*The quality of waterproof connector,aluminum PCB,silicone rubber sealing ring and reflector/lens;
*Color rendering index>80;
*Abient working temperature:-25ºC~+55ºC.

                                                                          More ItemModelInput VoltagePowerColor TemperatureLuminous FluxInstalltion Dimension (L×D×H)Total LengthOL60-6-124V DC6W6000K~6500K600 lm285mm×60mm×60mm285mmOL60-6-124V DC6W4000K~4500K600 lm285mm×60mm×60mm285mmOL60-6-3100V~240V AC6W6000K~6500K600 lm285mm×60mm×60mm285mmOL60-6-3100V~240V AC6W4000K~4500K600 lm285mm×60mm×60mm285mmOL60-9-124V DC9W6000K~6500K900 lm325mm×60mm×60mm325mmOL60-9-124V DC9W4000K~4500K900 lm325mm×60mm×60mm325mmOL60-9-3100V~240V AC9W6000K~6500K900 lm325mm×60mm×60mm325mmOL60-9-3100V~240V AC9W4000K~4500K900 lm325mm×60mm×60mm325mmOL60-13-124V DC13W6000K~6500K1300 lm475mm×60mm×60mm475mmOL60-13-124V DC13W4000K~4500K1300 lm475mm×60mm×60mm475mmOL60-13-3100V~240V AC13W6000K~6500K1300 lm475mm×60mm×60mm475mmOL60-13-3100V~240V AC13W4000K~4500K1300 m475mm×60mm×60mm475mmOL60-17-124V DC17W6000K~6500K1700 lm505mm×60mm×60mm505mmOL60-17-124V DC17W4000K~4500K1700 lm505mm×60mm×60mm505mmOL60-17-3100V~240V AC17W6000K~6500K1700 lm505mm×60mm×60mm505mmOL60-17-3100V~240V AC17W4000K~4500K1700 lm505mm×60mm×60mm505mmOL60-20-124V DC20W6000K~6500K2000 lm670mm×60mm×60mm670mmOL60-20-124V DC20W4000K~4500K2000 lm670mm×60mm×60mm670mmOL60-20-3100V~240V AC20W6000K~6500K2000 lm670mm×60mm×60mm670mmOL60-20-3100V~240V AC20W4000K~4500K2000 lm670mm×60mm×60mm670mmOL60-24-124V DC24W6000K~6500K2400 lm775mm×60mm×60mm775mmOL60-24-124V DC24W4000K~4500K2400 lm775mm×60mm×60mm775mmOL60-24-3100V~240V AC24W6000K~6500K2400 lm775mm×60mm×60mm775mmOL60-24-3100V~240V AC24W4000K~4500K2400 lm775mm×60mm×60mm775mmOL60-32-124V DC32W6000K~6500K3200 lm1205mm×60mm×60mm1205mmOL60-32-124V DC32W4000K~4500K3200 lm1205mm×60mm×60mm1205mmOL60-32-3100V~240V AC32W6000K~6500K3200 lm1205mm×60mm×60mm1205mmOL60-32-3100V~240V AC32W4000K~4500K3200 lm1205mm×60mm×60mm1205mmOL60-40-124V DC40W6000K~6500K4000 lm1495mm×60mm×60mm1495mmOL60-40-124V DC40W4000K~4500K4000 lm1495mm×60mm×60mm1495mmOL60-40-1100V~240V AC40W6000K~6500K4000 lm1495mm×60mm×60mm1495mmOL60-40-1100V~240V AC40W4000K~4500K4000 lm1495mm×60mm×60mm1495mm



Company Information

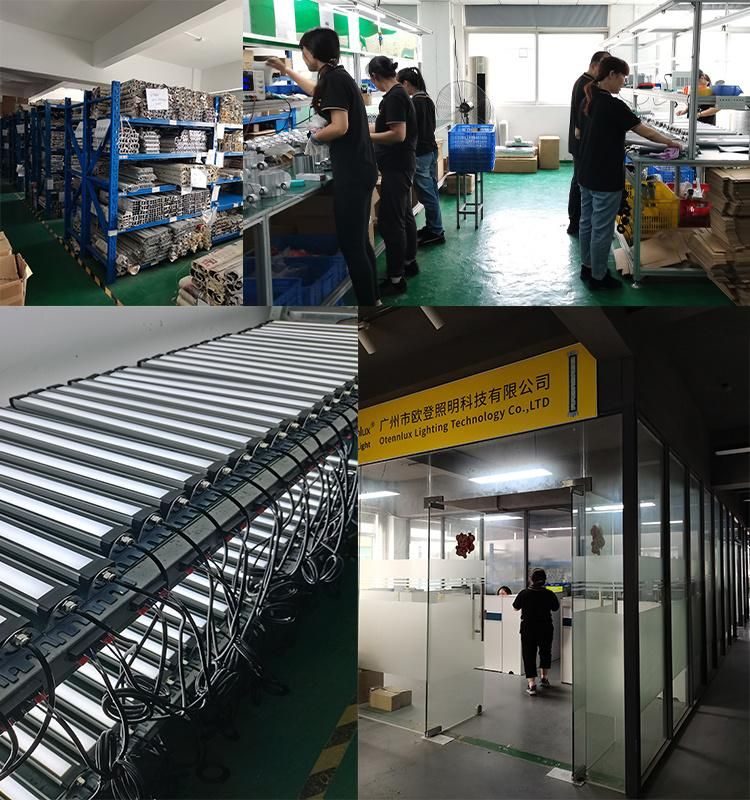

Located in GuangZhou south railway station area,GuangZhou Otennlux lighting Technology Co.,Ltd,was established in2008.
It's a high tech company which specializing in LED working light, visual-light, outdoor light and LED warning light.
We dedicated ourselves to R&D,Production,and also after-sale service.With our skilled R&D team,our company is fully capable of independent product design and development.

Our products include surface-mounted,tube light,Flexible-Head,Pivoting-Head LED,Arm-Mounted,Bracket Light,Magnifier,Multi-Functional Signal,and so on.
Most of products got CE,EX,FC and RoHScertifications.We are fully able to meet our customers'needs, producing designs according to their requirements and providing comprehensive support services and solutions.

Our products can be made IP67,IP68 and IP69K level waterproof with excellent heat dissipation qualities and can be adapted to work reliably in harsh environments(-30 to 80 degrees Celsius).Each product batch is burned in at 100% of maximum load temperature for 4 to 24 hours before shipping.Each product has a set of strict control procedures and norms derived from extensive technical research and testing.

Our products are mainly used in machine,equipment,CNC,and other projects.Through their widespread use,we have earned a reputation for quality exported to Europe,the United States, Japan and southeast Asia.The company aims to grow its business relationships,with keen market insight,acquiring cutting-edge information in order to be receptive to the needs of the market.

We strive to capture the market with a quality product,create a future that encourages talent while always acting with the utmost corporate honesty and integrity.

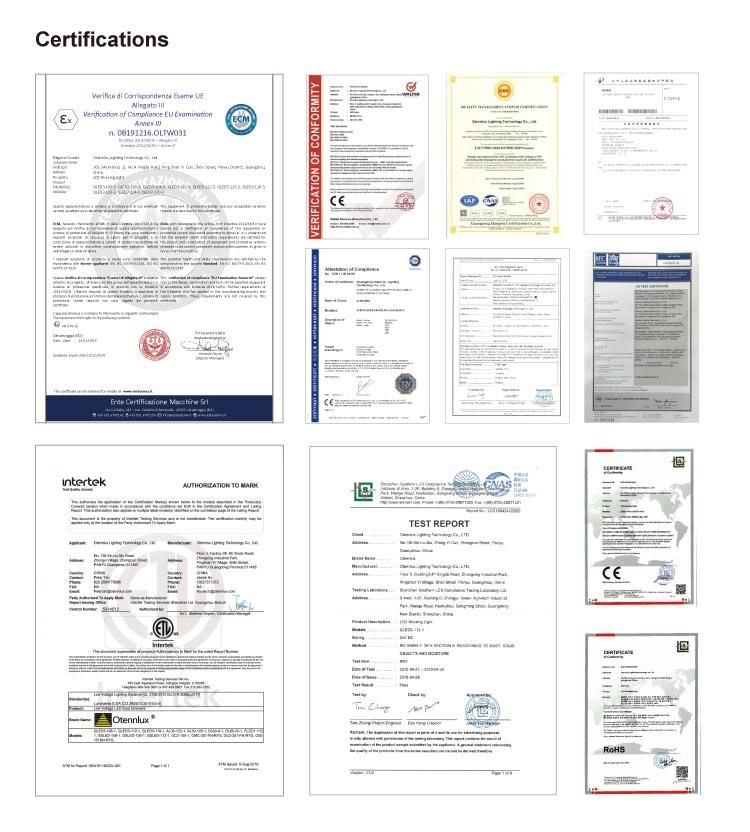

Certifications

Otennlux led work lights with certification CE,CCC,ROHS, ETL,EXPLOSION-PROOF and so on.
Trade Show
 We attended lots of trade show in every year.
 Looking forward to meet you in the exhibition.

Advantage:
Otennlux is manufacturer of led work light, led signal tower light, cnc machine led spot light, led cabinet light ,led signal tower light with switch button for more than 10 years! We only provide high quality products.We have confidence in our products. So please contact us to begin the business between us.
